Synology DiskStation DS1823xs+
Flexible large-scale storage for small and medium-sized businesses

Synology Products

Synology DiskStation

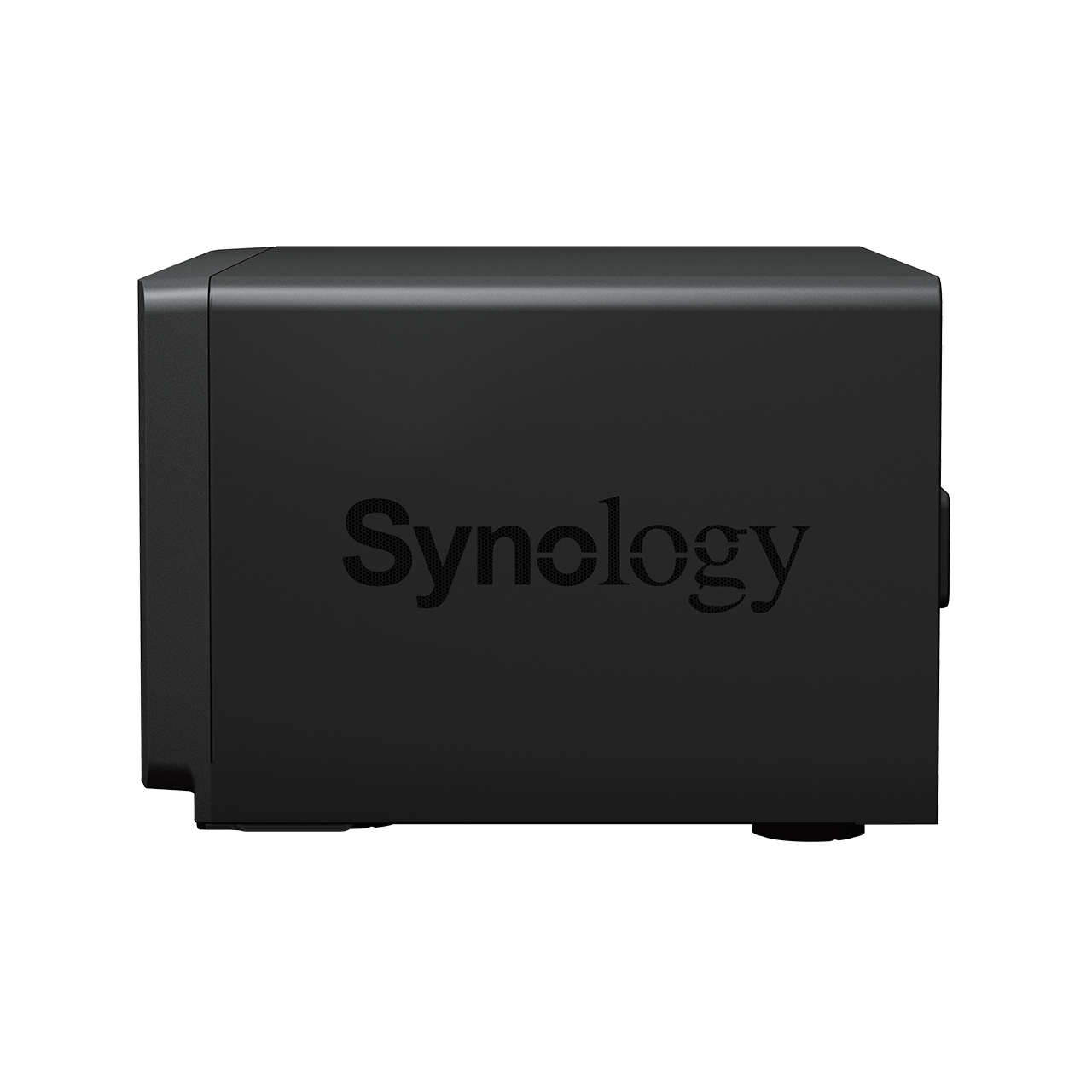

Synology DS1823xs+ 8 Bay Active/Passive Dual Controller SAS Storage Server

#DS1823xs+
Our Price: Request a Quote

Get a Quote

Overview:

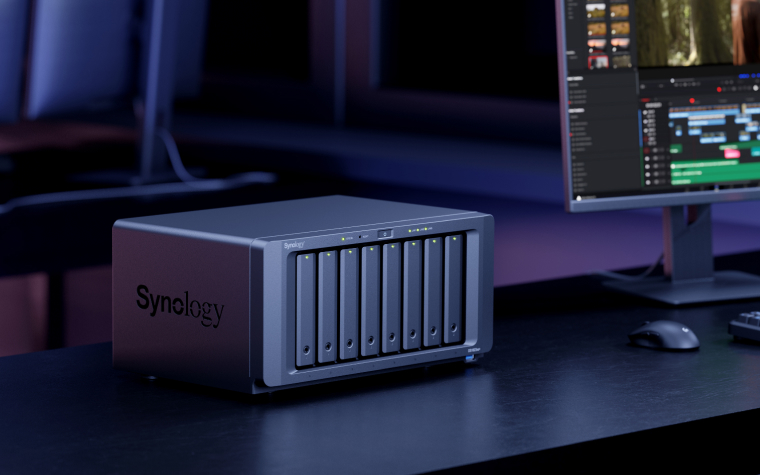

Private data center on your desk

The DS1823xs+ is a powerful central storage server that can easily be deployed anywhere to provide shared data storage and sharing, endpoint and server backup, VM storage, surveillance management, and other business applications. It is perfect in settings where no dedicated server rack or data center is available.

Desktop-sized powerhouse

Over 3,100/2,600 MB/s seq. read/write, built-in 10GbE, and up to 160 TB raw storage before expansion.

Flexible configuration

Add up to 10 extra drive bays, 25GbE or Fibre Channel, and SSD cache volumes when needed.

Versatile applications

Back up 300 endpoints, manage 75 IP cameras, or safely sync and share files between devices and sites.

Simply faster

Experience faster file indexing in Synology Drive and higher sequential throughput.

+48%
faster file indexing in Synology Drive

+40%
higher seq. throughput when using Encrypted Shared Folders

Features:

Safe, dependable, and scalable

Built-in data integrity protection, remote management options, and easy hardware expansion make the DS1823xs+ dependable, easy to maintain, and cost efficient.

Data integrity protection

The Btrfs file system helps prevent data corruption or loss through metadata mirroring, file self-healing, and efficient point-in-time snapshots. ECC memory provides additional integrity safeguards.

Efficient remote management

Monitor, manage, and replace drives and storage online in Synology DSM. Remotely reboot, reset, or view logs while the system is down thanks to out-of-band management (OOB).

Plug-and-play expansion

The DS1823xs+ can be scaled to up to 18 bays by adding two DX517 expansion units without system downtime, thanks to online storage and volume expansion.

The performance you need

Configure the DS1823xs+ to handle any workload. Easily add 1/10/25GbE or Fibre Channel ports and designate NVMe or SATA SSD volumes as read/write cache to boost HDD performance.

Over
3,100/2,600 MB/s
read/write

Up to
25GBe
networking

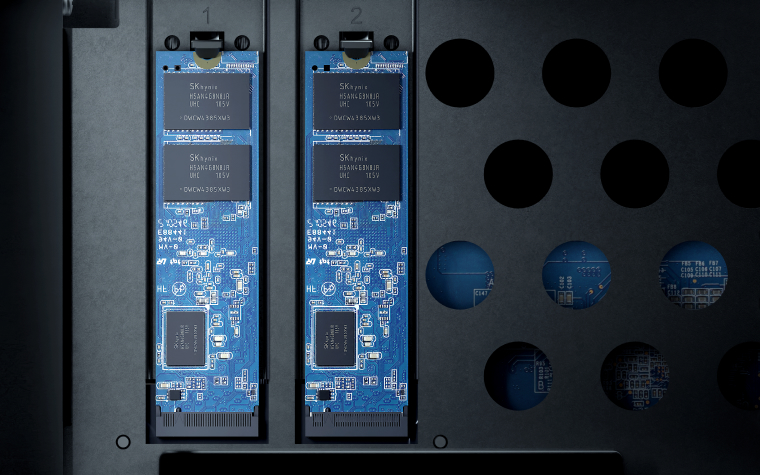

2 x M.2 br NVMe SSD
cache & storage pool

Store, share, and protect

Manage all your documents, photos, and other files, back up applications and devices, and protect your physical assets with professional video surveillance.

Flexible file server

Central backup server

Business application platform

Get more with DiskStation Manager

Take advantage of a host of native productivity, management, and security solutions available in the web-based Synology DSM operating system.

Central Management System

Conveniently manage your fleet of Synology NAS from a centralized console.

Security

Shield your Synology NAS from the most sophisticated threats with industry-leading security solutions.

Synology High Availability

Seamless transition between clustered servers in the event of a server failure to minimize the impact on applications.

Specifications:

DS1823xs+ Hardware Specifications:
Hardware Specifications
CPU Model	AMD Ryzen V1780B
CPU Core	4
CPU Architecture	64-bit
CPU Frequency	3.35 (base) / 3.6 (turbo) GHz
Hardware encryption engine	Yes (AES-NI)
Memory	8 GB DDR4 ECC SODIMM
Memory Module Pre-instaled	8 GB (8 GB x 1)
Total Memory Slots	2
Maximum Memory Capacity	32 GB (16 GB x 4)
Drive Bays	8
Maximum Drive Bays with Expansion Unit	18 (DX517 x 2)
M.2 Drive Slots	2 (NVMe)
Compatible drive type	2.5" SATA SSD 3.5" SATA HDD M.2 2280 NVMe SSD
Hot swappable drive

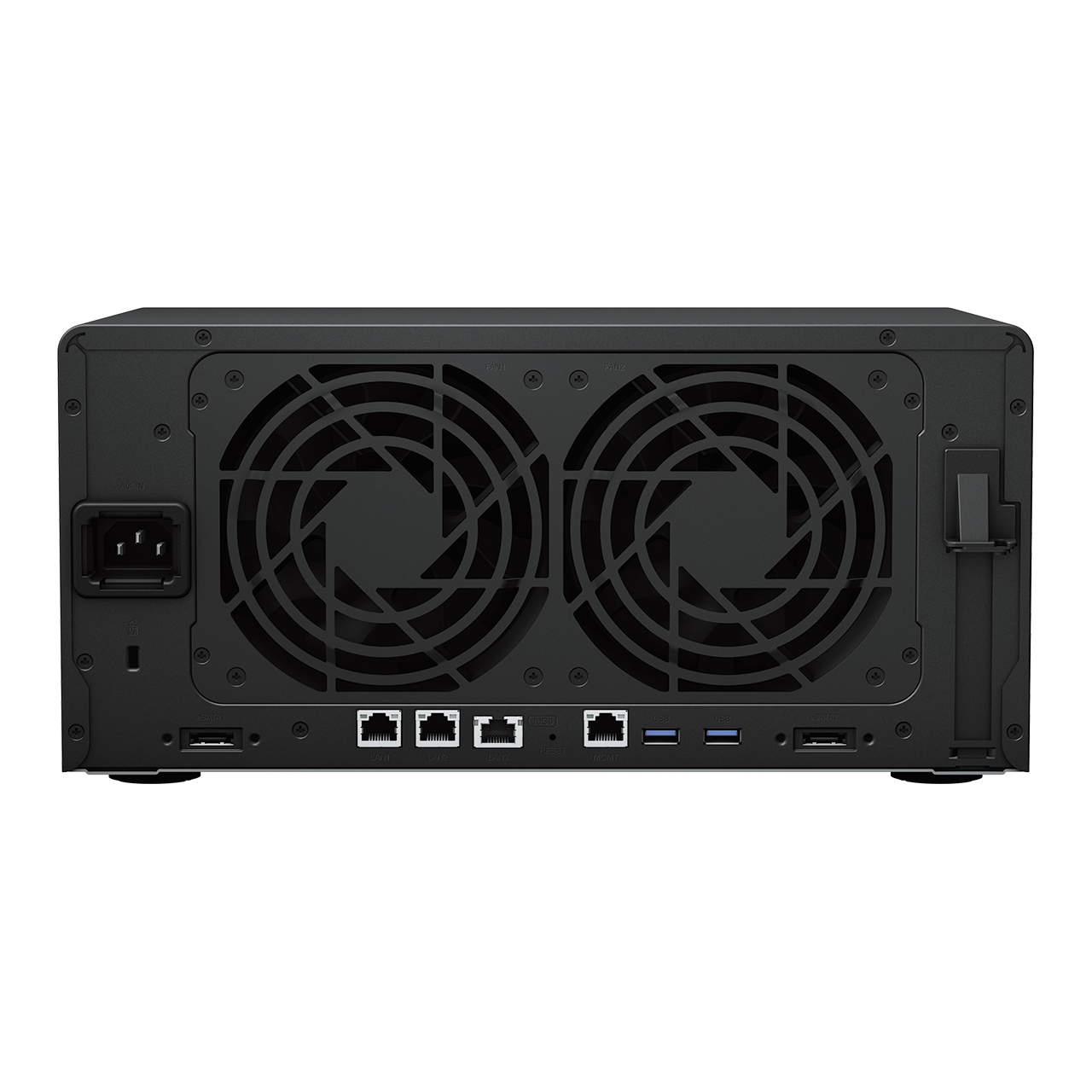

External port	2 x RJ-45 1GbE LAN Port 1 x RJ-45 10GbE LAN Port 1 x Out-of-Band Management LAN Port 3 x USB 3.2 Gen 1 Port
Expansion Port	2
Expansion Port Type	eSATA
PCIe Expansion	1 x Gen3 x8 slot (x4 link)
Size (Height x Width x Depth)	166 mm x 343 mm x 243 mm
Weight	6.2 kg
Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
System fan	120 mm x 120 mm x 2 pcs
Easy Replacement System Fan
Power Recovery
Noise Level	23.6 dB(A)
Power Recovery
Wake on LAN/WAN
Power Supply Unit/Adapter	250 watts
Redundant Power Supply
AC input power voltage	100 V to 240 V AC
Power Frequency	50 to 60Hz, single phase
Power Consumption	87.93 watts (Access) 28.37 watts (HDD Hibernation)
British Thermal Unit	300.23 BTU/hr (Access) 96.87 BTU/hr (HDD Hibernation)
Operating Temperature	0°C to 35°C (32°F to 95°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Relative Humidity	5% to 95% RH
Certifications and Packaging
Environment safety	RoHS compliant
Package content	1 x Main unit 1 x Quick Installation Guide 1 x Accessory pack 1 x AC power cords 2 x RJ-45 LAN Cable
Optional accessories	DDR4 ECC SODIMM: D4ES02-8G / D4ES01-16G Expansion Units: DX517 Enterprise Series 3.5" SATA HDD: HAT5300 Series Plus Series 3.5" SATA HDD: HAT3300 Series Enterprise Series 2.5" SATA SSD: SAT5200 Series Enterprise Series M.2 2280 NVMe SSD: SNV3400 & SNV5400 Series 25GbE Network Interface Card: E25G30-F2 10GbE Network Interface Card: E10G30-F2 / E10G30-T2 / E10G18-T1
Warranty	5 Years

Documentation:

Download the Synology DS1823xs+ Datasheet (PDF).

Synology has you covered

The DS1823xs+ is backed by Synology's 5-year limited warranty, including technical support and hardware replacement services to maximize your return on investment and ensure continued high-quality performance.
