Synology DiskStation DS1525+
Versatile all-purpose data hub

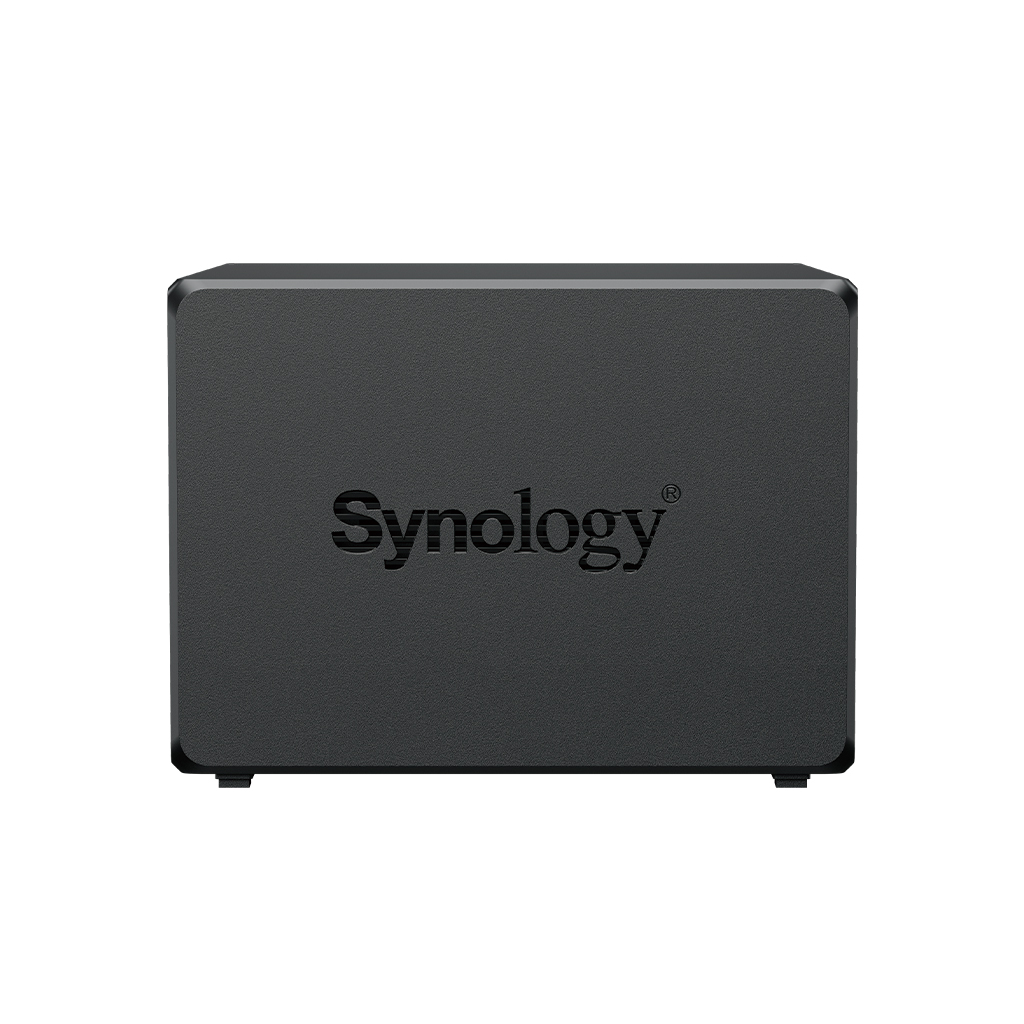

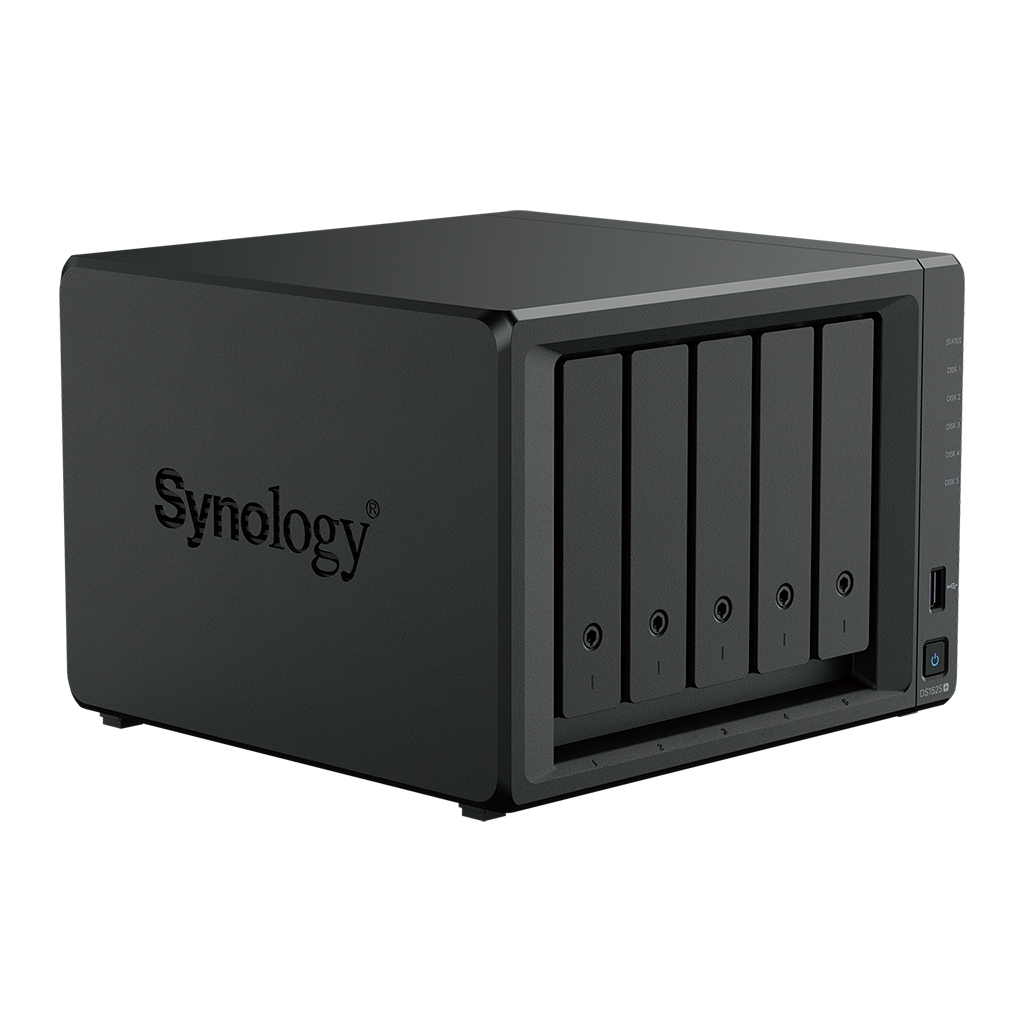

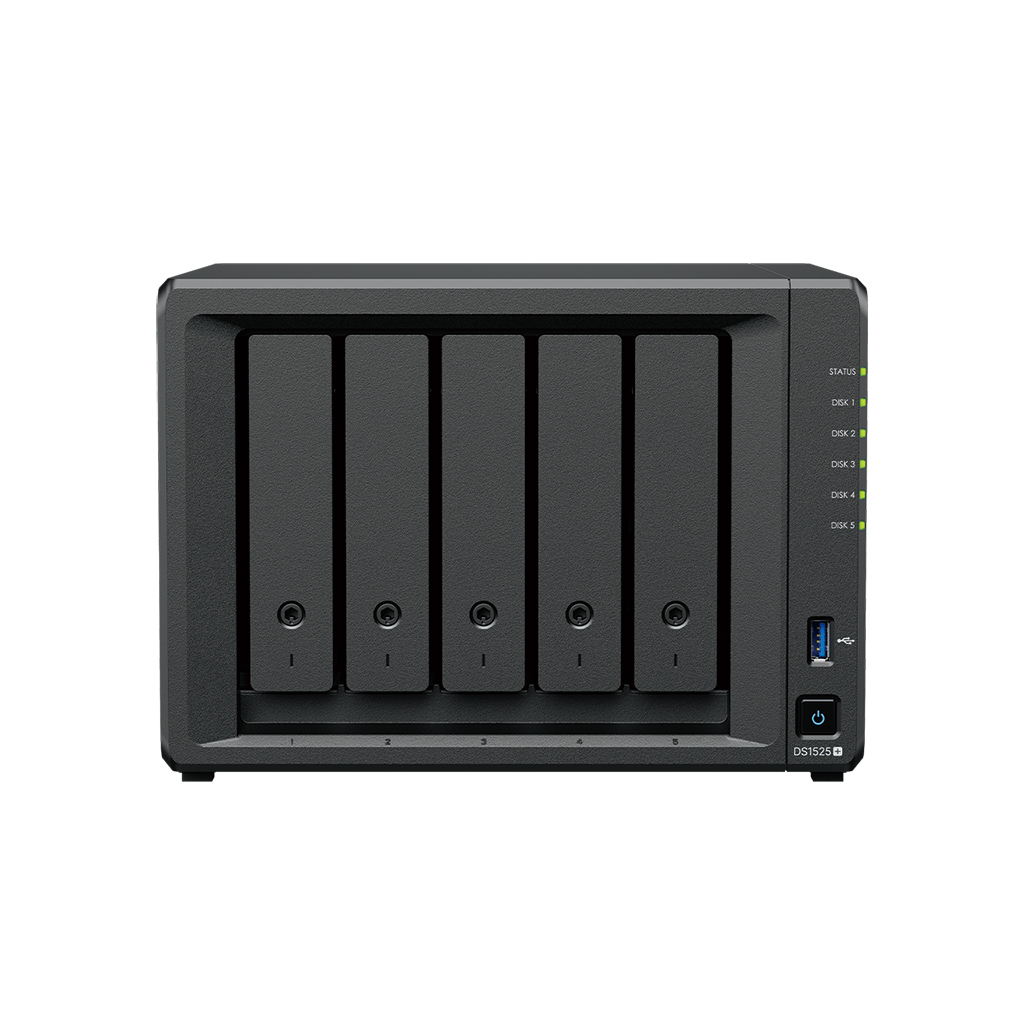

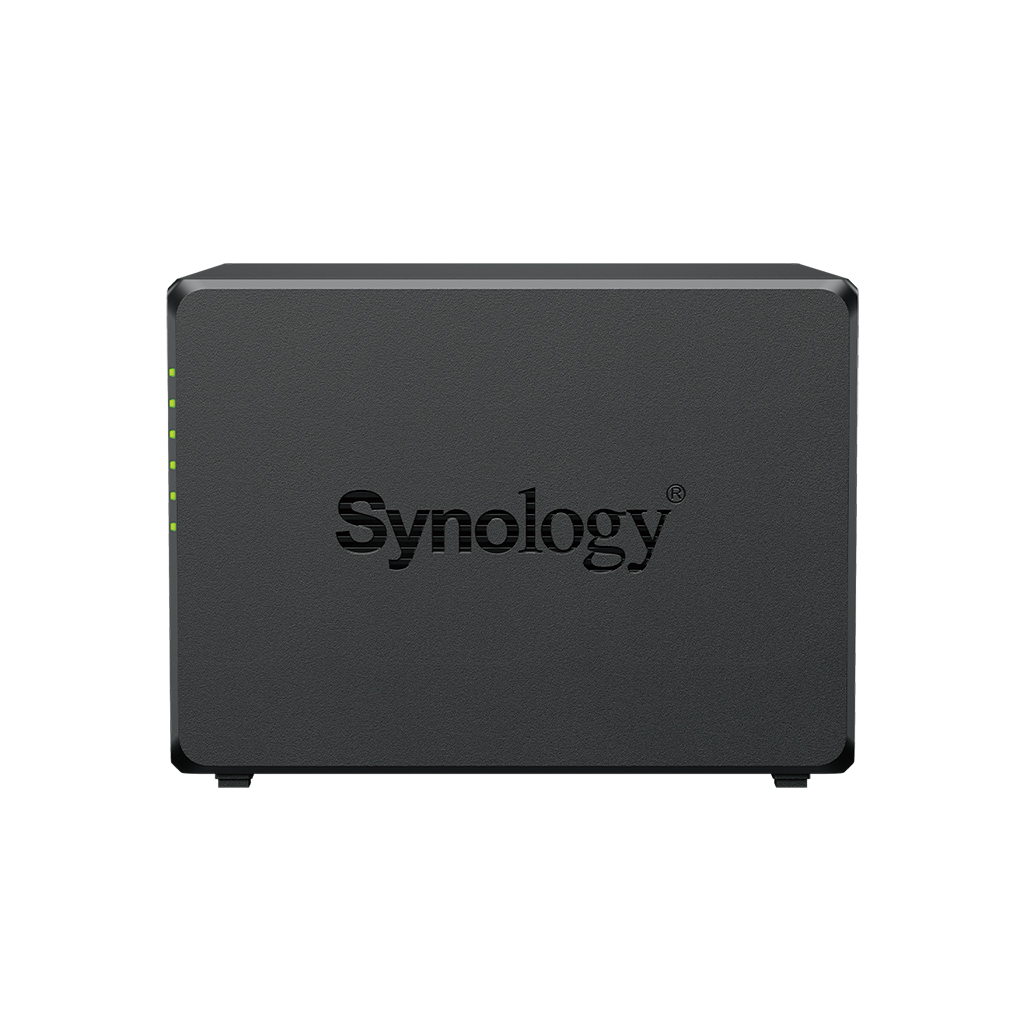

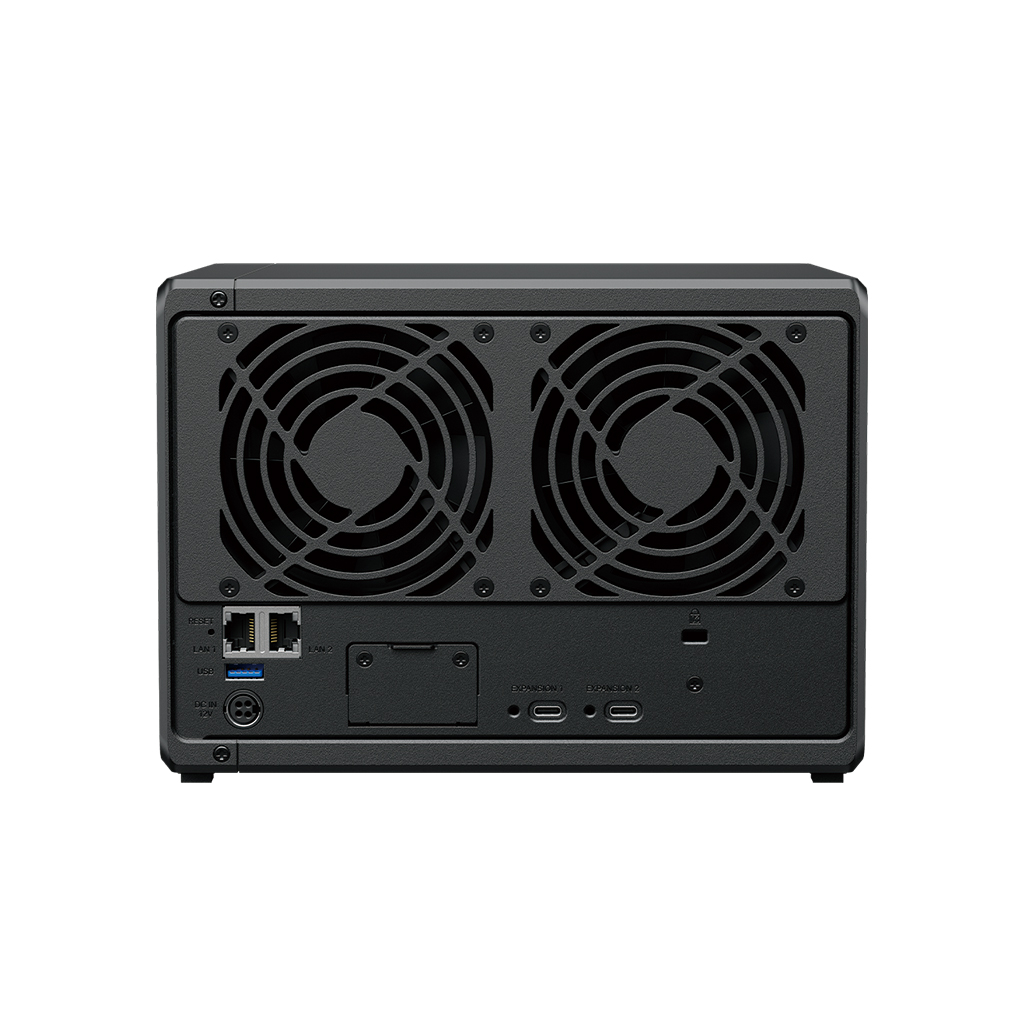

DS1525plus front DS1525plus iso DS1525plus side DS1525plus back DS1525plus back DS1525plus back
DS1525Plus

Synology Products
Synology DiskStation
Synology DiskStation DS1525+ 5 Bay SAN/NAS Storage System
#DS1525+
Our Price: Request a Quote
Get a Quote

Want to build a custom bundle? Contact us!

Click here to jump to more pricing!

Please Note: All Prices are Inclusive of GST

Overview:

Flexible All-Purpose Data Management Platform

Synology DS1525 is a versatile 5-bay storage solution that scales with your needs, with support for storage expansion

A storage solution that can adapt with your evolving needs

Flexibility Icon

5-bay with expansion

Up to 300 TB of raw storage with expansion unit

Performance Icon

High-speed storage

Two built-in 2.5GbE ports, over 1,181/1,180 MB/s sequential read/write, and 10GbE option

Settings Icon

Versatile applications

Back up multiple endpoints, manage 40 IP cameras, or safely sync and share files across sites

Fast, out-of-the-box performance with customization options

The DS1525+ features built-in 2.5GbE networking with 10GbE option and supports both SATA SSDs and HDDs in 2.5"/3.5" internal bays, as well as M.2 NVMe drives via M.2 slots for use as cache.


Up to
1,181/1,180 MB/s
read/write

Built-in dual
2.5GbE
ports

Up to
10GbE
networking

2 x M.2
NVMe
cache

Expand capacity for evolving needs

Consolidate your data with up to 100 TB of raw storage across 5 bays. Need more space? Add capacity with two DX525 for up to 300 TB of total raw storage.


5 bays
100 TB


15 bays
300 TB

Features:

Store, share, and protect

Manage all your documents, photos, and other files, back up applications and devices, or protect your assets with professional video surveillance.

Private cloud for seamless data access

Streamlined file management and collaboration

Store, sync, access, and share data from any device, wherever you are. Work seamlessly between different platforms and devices, and access your files through mobile apps, desktop clients, and a browser-based interface. Quickly and easily roll back files in case of accidental deletion, mistakes, malware, etc., with versioning.

A private photo storage and management solution

Effortlessly back up and organize photos, videos, and other visual assets using intuitive management tools. Automatically organize your content into albums and create secure share links for stakeholders and teammates.

Boost team productivity with collaborative tools

Enhance workplace collaboration with Synology's productivity solutions. Create, edit, and share documents across teams in real time. Host an on-premises mail server to provide web-based email access while maintaining full data ownership. Additionally, stay connected through secure one-on-one chats, public channels, encrypted private channels, and group conversations.

Multi-site synchronization to empower global workflows

NAS-to-NAS synchronization

Improve workflow efficiency and team alignment across data sites with automatic one- or two-way site-to-site syncing. Files and folders are kept up-to-date across sites, so everyone stays aligned, whether at home, in the office, or across different branches — all while maintaining full control of your data.

Cloud-powered multi-site syncing

Empower global workflows with high-speed access to data from anywhere in your network. Our hybrid cloud solution caches frequently used files locally for rapid access, while less frequently accessed data is stored in the cloud, reducing your on-site storage requirements.

Sync to public cloud providers

Automatically keep data in sync between Synology NAS and major cloud providers, including BackBlaze B2, Dropbox, Google Drive, and Microsoft OneDrive. Multiple protocol support, client-side encryption, and customizable sync and bandwidth controls enable efficient storage management across various platforms.

Comprehensive data backup, protection, and recovery solutions

Back up PCs, smartphones, cloud apps, and more

Consolidate and automate backup tasks for PCs, file servers, VMs, SaaS applications, and more. Administer device backups remotely through a centralized portal and quickly restore specific files or entire devices to keep your business up and running. Take advantage of built-in backup solutions designed to protect your data with seamless 3-2-1 backup configurations.

Comprehensive and flexible Synology system backups

Protect all data, applications, and configurations on your Synology systems with comprehensive scheduled backups, including bare-metal backups, to local and remote servers, external drives, or cloud storage destinations, including Synology C2 Storage.

Tamper-proof protection with immutable snapshots

Safeguard critical LUNs and shared folders with automated immutable snapshots backed by custom retention policies. Built-in support for offsite replication further ensures robust business continuity.

Smart surveillance

Synology Surveillance Station

Protecting your business has never been easier, with centralized management, support for over 8,700 IP camera models, and remote monitoring and playback. Synology’s scalable video management system provides all the tools you need for live monitoring, investigation, management, and backup.

Dual recording to the cloud

Secure your surveillance footage with robust cloud backup that supports end-to-end encryption. Our cloud-based surveillance backup solution safeguards your Surveillance Station recordings, allowing you to access, view, share, and download footage through a convenient web portal. Ensure your data remains available even if your on-premises system is compromised.

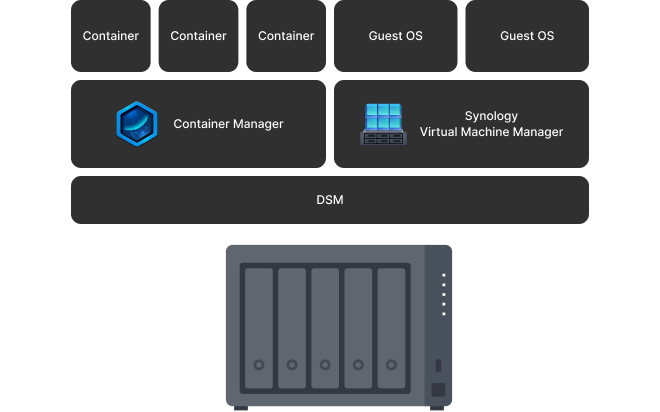

Versatile testing platform

Create a versatile environment for application testing and evaluation, supporting Docker containers and virtual machines. For package and security testing, Virtual DSM acts as a dedicated test environment, ensuring isolation between applications, systems, and data.

Centralized monitoring and management

Monitor and manage your Synology fleet from a central interface, on-prem or in the cloud.


Central Management System

Manage Synology servers from a central console using group policies, task delegation, batch updates, and more.

Active Insight

Monitor your global Synology fleet's performance, backup status, login activity, and more with the power of the cloud.

Specifications:

DS1525+ Hardware Specs

CPU

 CPU Model AMD Ryzen V1500B
CPU Core 4
CPU Architecture 64-bit
CPU Frequency 2.2 GHz
Hardware Encryption Engine

Memory

 System Memory 8 GB DDR4 ECC SODIMM
Total Memory Slots 2
Maximum Memory Capacity 32 GB (16 GB x 2)
Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations.

Storage

 Drive Bays 5
Maximum Drive Bays with Expansion Unit 15 (DX525 x 2)
M.2 Drive Slots 2 (NVMe)
Compatible Drive Type* (See all supported drives)
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • M.2 2280 NVMe SSD
Maximum Internal Raw Capacity 32 TB (16 TB drive x 2) (Capacity may vary by RAID types)
Maximum Single Volume Size* 108 TB
Hot Swappable Drive
Notes
  • The hot swappable drive feature is not supported by M.2 SSD slots.
  • Compatible drives are mandatory. Please consult our compatibility list before purchasing hard drives. For more details, please refer to this article.

External Ports

 RJ-45 1GbE LAN Port 2
USB 3.2 Gen 1 Port 2
Expansion Port 2
Expansion Port Type USB Type-C

PCIe

 PCIe Expansion 1 x Gen3 x2 network upgrade slot

Appearance

 Size (Height x Width x Depth) 166 mm x 230 mm x 223 mm
Weight 2.67 kg

Others

 System Fan 92 mm x 92 mm x 2 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Brightness Adjustable Front LED Indicators
Power Recovery
Noise Level* 22.60 dB(A)
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter 120 W
AC Input Power Voltage 100 V to 240 V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 44.56 watts (Access)
13.63 watts (HDD Hibernation)
British Thermal Unit 151.95 BTU/hr (Access)
46.48 BTU/hr (HDD Hibernation)
Notes
  • For more information on how power consumption is measured, refer to this article.
  • Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two GRAS 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature

 Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Operating humidity 8% to 80% RH
Relative Humidity 5% to 95% RH

Certification
  • UKCA
  • BIS
  • EAC
  • VCCI
  • CCC
  • RCM
  • KC
  • FCC
  • CE
  • BSMI

Warranty

 3-year hardware warranty, extendable to 5 years with Extended Warranty Plus
Notes
  • The warranty period starts from the purchase date as stated on your purchase receipt.
  • Extended Warranty Plus is only available in Europe and North America. Refer to the Extended Warranty Plus website for details on supported countries/regions

Environment

 RoHS Compliant

Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Adapter X 1
  • AC Power Cord X 1
  • RJ-45 LAN Cable X 2

Documentation:

Download the Synology DiskStation DS1525+ Datasheet  (PDF).

It appears you don't have a PDF plugin for this browser. No biggie... you can click here to download the PDF file.
Warranty Icon

Extended protection with Extended Warranty

Add an additional two years to your standard three-year limited hardware warranty and gain access to premium services that accelerate recovery in the event of a disaster.
