Synology Rackstation RS1221
Reliable data management for remote and branch offices

Synology Products
Synology RackStation
Synology RackStation RS1221RP+ 8 Bay NAS
#RS1221RP+
Our Price: Request a Quote
Synology RackStation RS1221+ 8 Bay NAS
#RS1221+
Our Price: Request a Quote

Want to build a custom bundle? Contact us!

Click here to jump to more pricing!

Please Note: All Prices are Inclusive of GST

Overview:

Compact and reliable

The RS1221RP+/RS1221+, at only 30 to 38 centimeters deep, is built for space-sensitive deployments. Boasting over 100K 4K random read IOPS and 2,315 MB/s sequential read, the RS1221RP+/RS1221+ is equipped to handle heavy workloads in data-intensive environments. The RS1221RP+ additionally features an extra level of protection with redundant power supplies.

Compute

AMD Ryzen™ V1500B quad-core 2.2 GHz

Throughput

2,300 MB/s seq. read 100K 4K random read IOPS

Memory

Up to 32 GB DDR4 ECC

Compact

30cm depth (38cm for RP model)


A compact design for space efficiency

The RS1221+ and its RX418 expansion units are designed to help you save space in compact deployments. At only 30 centimeters, half the length of a typical 2U unit, it fits perfectly snug onto 2-post or shallow rackmount enclosures. The RS1221RP+ with dual power supplies comes in at 38 cm, also fitting most shallow depth enclosures.

  • Fits into shallow rackmount enclosures
  • Easy-to-install on 2-post racks

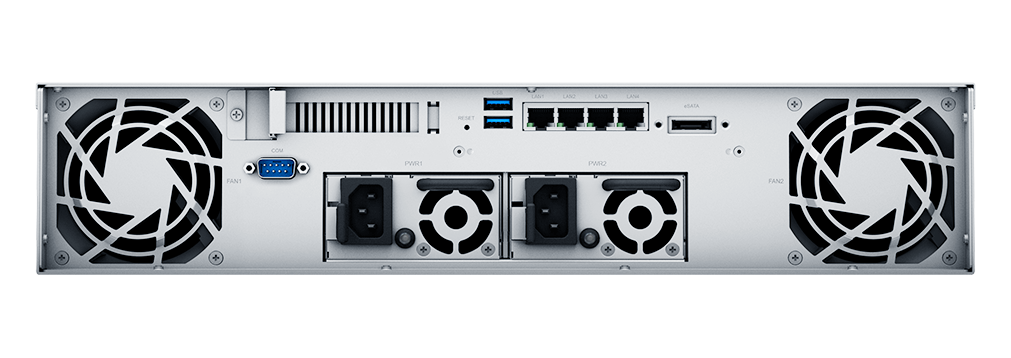

Reduce the chance that power disruptions on a single distribution channel or PDU causes data and service availability degradation.
When paired with another identical unit, Synology High Availability enables automatic minute-level failover between two clustered servers in the event of a server failure to minimize service downtime.
ECC memory and the Btrfs file system bring higher reliability and snapshot capabilities to help prevent data corruption and simplify data protection.

Features:

Room for expansion

Easily adjust the RS822RP+/RS822+ to match your usage environment, whether it needs performance, faster networking, or higher storage capacity.

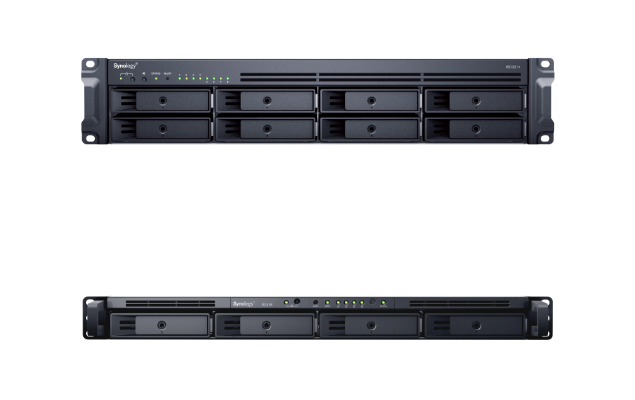

Expand to 12 drive bays with a RX418 expansion unit
Boost read/write IOPS over HDD-only arrays by 16 times or more with NVMe or SATA SSD Cache
Improve I/O with faster SFP+/SFP28 or RJ-45 networking.

Maximize data availability

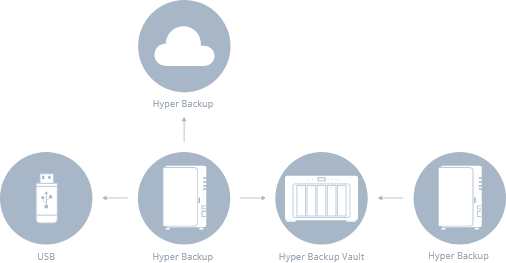

A comprehensive backup and recovery solution for added data protection. Create backup destinations locally, on another Synology device, rsync servers, or cloud-based destinations, such as Google Drive, Dropbox, S3-compatible destinations, and Synology C2 Storage, a dedicated backup destination for Synology devices.
Easily schedule flexible point-in-time backups of shared folders and LUNs with an RPO as low as 5 minutes and recovery in seconds. Set up replication and failover to other Synology storage systems for fast RTOs and minimal service disruption.

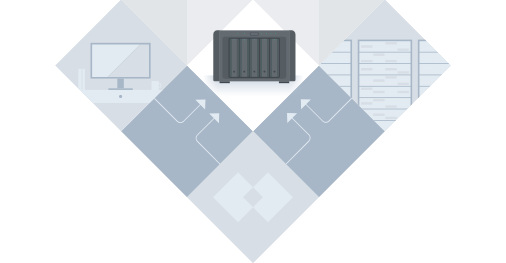

Protect your entire IT infrastructure

Protect your entire office with Active Backup

The Active Backup suite enables administrators to easily secure their entire IT infrastructure by backing up mission-critical data to their NAS, including Windows & Linux workstations and servers, file servers, VMware and Hyper-V virtual machines, and Microsoft 365 and Google Workspace accounts.

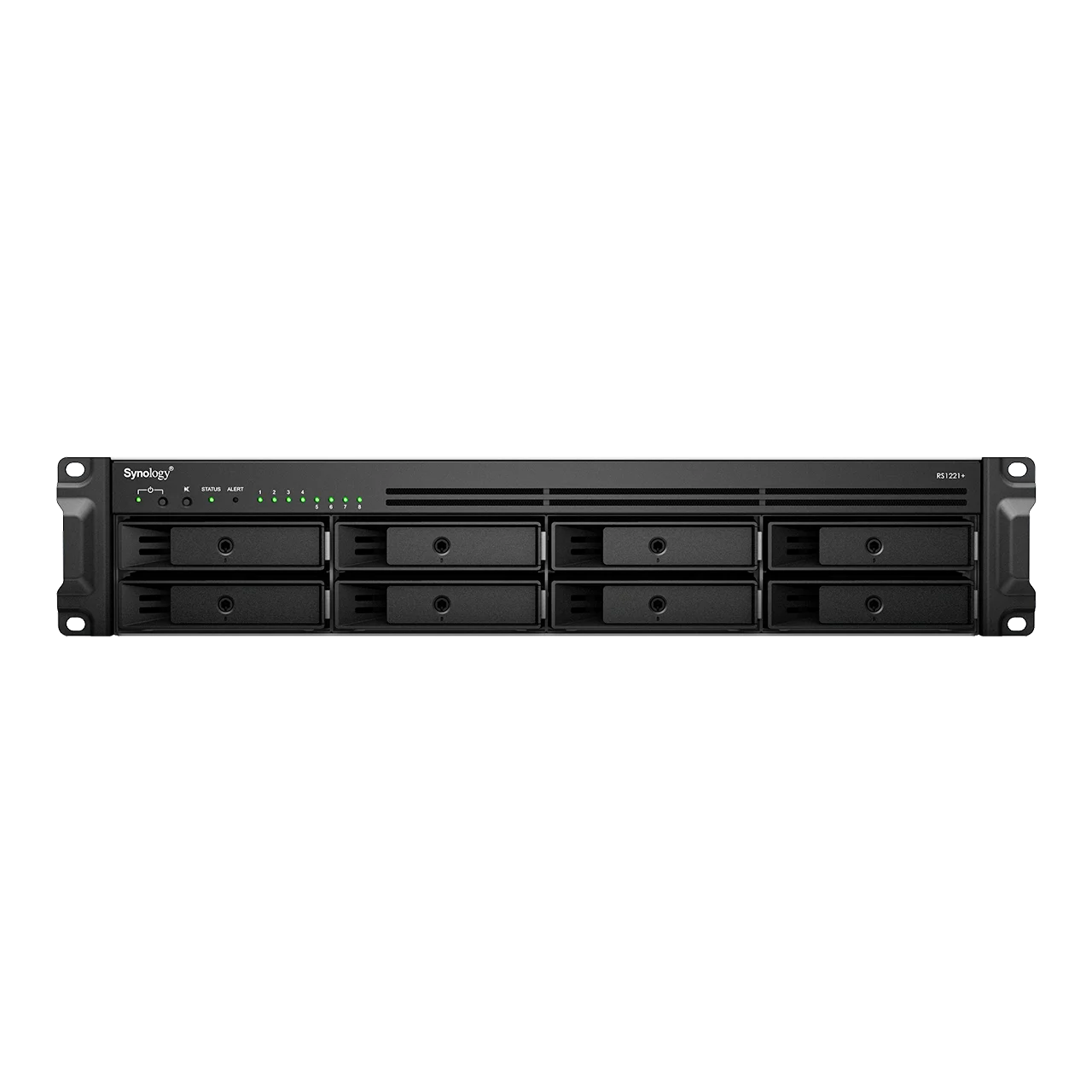

RackStation RS1221RP+ / RS1221+

Synology High Availability

Seamless transition between clustered servers in the event of a server failure to minimize the impact on applications.

Virtual Machine Manager

Run various operating systems in isolated sandboxes. Seamlessly clone, store, and migrate virtual machines.

Synology Drive

Instantly access your NAS files across multiple devices whenever you want, wherever you are.

Central Management System

Conveniently manage your fleet of Synology NAS from a centralized console.

Surveillance Station

Complete surveillance solution for recording, monitoring, and management.

Collaboration Suite

Satisfy all team collaboration needs behind the safety of your own private cloud with Synology Office, Calendar, and Chat.

Specifications:

Hardware Specifications RS1221RP+ RS1221+
CPU Model AMD Ryzen V1500B
CPU Core 4
CPU Architecture 64-bit
CPU Frequency 2.2 GHz
Hardware encryption engine
Memory 2 GB DDR4 ECC RDIMM
Memory Module Pre-instaled 4 GB (4 GB x 1)
Total Memory Slots 2
Maximum Memory Capacity 32 GB (16 GB x 4)
Drive Bays 8
Maximum Drive Bays with Expansion Unit 12 (RX418 x 1)
Compatible drive type
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD
Hot swappable drive

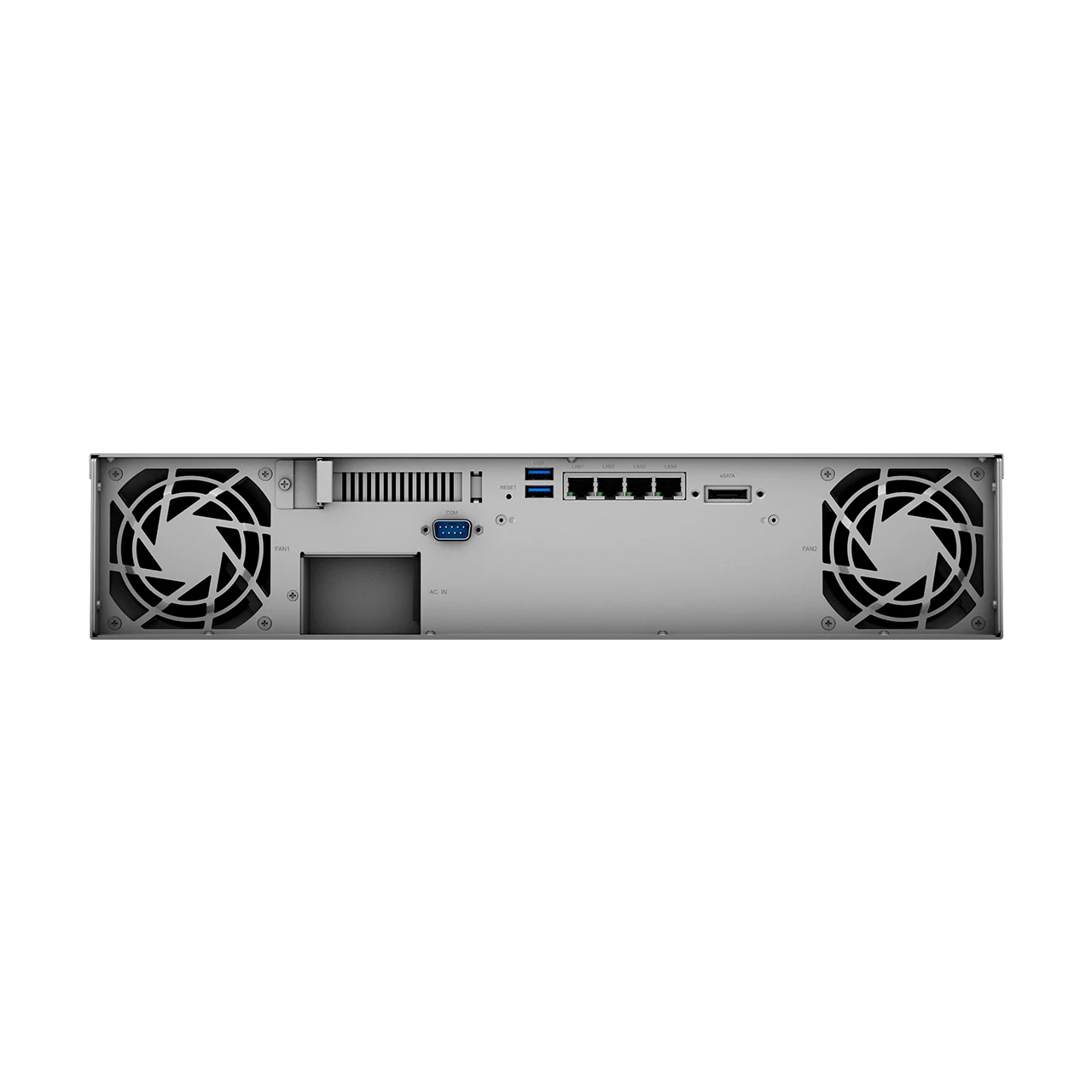

External port
  • 4 x RJ-45 1GbE LAN Port
  • 2 x USB 3.2 Gen 1 Port
  • 4 x RJ-45 1GbE LAN Port
  • 2 x USB 3.2 Gen 1 Port
Expansion Port 1
Expansion Port Type eSATA
PCIe Expansion 1 x Gen3 x8 slot (x4 link)
Form Factor (RU) 2U
Size (Height x Width x Depth) 88 mm x 482 mm x 407.5 mm 88 mm x 482 mm x 306.6 mm
Weight 8.4 kg 6.9 kg
Rack Installation Support 4-post 19" rack (Synology Rail Kit - RKM114/RKS-02) 4-post 19" rack (Synology Rail Kit - RKM114/RKS-02)
2-post 19" rack (direct mounting)
Notes The rail kit is sold separately
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
System fan 80 mm x 80 mm x 2 pcs
Easy Replacement System Fan
Power Recovery
Noise Level 53.5 dB(A) 37.8 dB(A)
Wake on LAN/WAN
Power Supply Unit/Adapter 350 watts 250 watts
Redundant Power Supply -
AC input power voltage 100 V to 240 V AC
Power Frequency 50 to 60Hz, single phase
Power Consumption 61.94 watts (Access)
29.98 watts (HDD Hibernation)
49.89 watts (Access)
22.64 watts (HDD Hibernation)
British Thermal Unit 211.35 BTU/hr (Access)
102.30 BTU/hr (HDD Hibernation)
170.23 BTU/hr (Access)
77.25 BTU/hr (HDD Hibernation)
Operating Temperature 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certifications and Packaging
Environment safety RoHS compliant
Package content
  • 1 x Main unit
  • 1 x Quick Installation Guide
  • 1 x Accessory pack
  • 2 x AC power cords
  • 1 x Main unit
  • 1 x Quick Installation Guide
  • 1 x Accessory pack
  • 2 x AC power cords
Optional accessories
  • DDR4 ECC SODIMM: D4ES01-4G / D4ES01-8G / D4ECSO-2666-16G
  • Expansion Units: RX418
  • Enterprise Series 3.5" SATA HDD: HAT5300 Series
  • Plus Series 3.5" SATA HDD: HAT3300 Series
  • Enterprise Series 2.5" SATA SSD: SAT5200 Series
  • M.2 SSD & 10GbE Combo Adapter Card: E10M20-T1
  • M.2 SSD Adapter Card: M2D20 / M2D18
  • 25GbE Network Interface Card: E25G30-F2
  • 10GbE Network Interface Card: E10G30-F2 / E10G30-T2 / E10G18-T1
  • Rail Kit Sliding: RKS-02
  • DDR4 ECC SODIMM: D4ES01-4G / D4ES01-8G / D4ECSO-2666-16G
  • Expansion Units: RX418
  • Enterprise Series 3.5" SATA HDD: HAT5300 Series
  • Plus Series 3.5" SATA HDD: HAT3300 Series
  • Enterprise Series 2.5" SATA SSD: SAT5200 Series
  • M.2 SSD & 10GbE Combo Adapter Card: E10M20-T1
  • M.2 SSD Adapter Card: M2D20 / M2D18
  • 25GbE Network Interface Card: E25G30-F2
  • 10GbE Network Interface Card: E10G30-F2 / E10G30-T2 / E10G18-T1
  • Rail Kit Sliding: RKS-02
  • Rail Kit Mounted: RKM114*
Warranty 3-year hardware warranty, extendable to 5 years with Extended Warranty Plus

Documentation:



Download the Synology RS1221RP+ Datasheet (PDF).

It appears you don't have a PDF plugin for this browser. No biggie... you can click here to download the PDF file.



Download the Synology RS1221+ Datasheet (PDF).

It appears you don't have a PDF plugin for this browser. No biggie... you can click here to download the PDF file.

Warranty Icon

Get extra protection with Extended Warranty Plus

Extend the standard 3-year hardware warranty of your RS1221plus / RS1221RPplus with 2 more years of Synology-certified support and premium services that help you recover faster in the event of disaster.
