Expansion Unit RX418
4-bay 1U rackmount expansion unit for 1U RackStation

Expansion Unit RX418

Synology Products
Synology Expansion Unit
Synology RX418 4 Bay Expansion Unit
#RX418
Our Price: Request a Quote

Want to build a custom bundle? Contact us!

Click here to jump to more pricing!

Please Note: All Prices are Inclusive of GST

Overview:

Synology RX418 delivers an effortless solution for volume expansion and data backup for Synology 1U RackStation by adding 4 additional SATA drive bays on-the-fly. With its short-depth chassis design, RX418 ensures easy installation and deployment in 2-post racks and wall mount racks. Synology RX418 is backed with Synology's 3-year limited warranty

  • Plug-and-play design for seamless storage space upgrade
  • Online volume expansion
  • 12-inch depth to fit in 2-post racks and wall mount racks
  • Energy-saving deep sleep mode
  • Managed from Synology DiskStation Manager (DSM)

Features:

Storage Capacity Expansion

When the storage capacity on Synology 1U RackStation reaches its limit, Synology expansion unit RX418 provides easy capacity expansion by adding 4 3.5"/2.5" SATA drives to the system. Synology RX418 can also be used as a dedicated local backup destination of Synology 1U RackStation for comprehensive data protection.

Reliable plug-and-play designe

Simply connect Synology RX418 to corresponding Synology RackStation and it is ready to use. Drives in the connected Synology RX418 operate as though they were internal to the connected Synology NAS and can be managed directly by Synology DiskStation Manager (DSM), with no additional software installation required.

Green and easy to manage

Award-winning Synology DSM provides an intuitive user interface for easy system management. Drive hibernation can be configured in DSM to take effect automatically when the system has been inactive for a period of time. This not only saves energy but also extends the lifespan of the installed drives.

Product Views:


RS3618xs Front View
RS3618xs Front View
RS3618xs Front View
RS3618xs Front View
RS3618xs Front View
RS3618xs Front View

Technical Specifications:

Hardware Specifications:
Applied Models
  • 22 series: RS822RP+, RS822+
  • 21 series: RS1221RP+, RS1221+
  • 20 series: RS820RP+, RS820+
  • 19 series: RS1219+, RS819
  • 18 series: RS818RP+, RS818+
  • 16 series: RS816
  • 15 series: RS815RP+, RS815+, RS815
Supports creating volumes on a single unit only RS217
Storage
Drive Bay(s) 4
Compatible Drive Type
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD
Hot Swappable Drive
RAID Management through Synology DSM
External Ports
eSATA Port 1
Appearance
Size (Height X Width X Depth) 44 mm x 430.5 mm x 290 mm
Size (Height X Width X Depth) (with server ears) 44 mm x 480 mm x 325 mm
Weight 4.28 kg
Rack Installation Support
  • 4-post 19" rack (Synology Rail Kit - RKM114/RKS-02)
  • 2-post 19" rack (direct mounting)
Notes The rail kit is sold separately
Power
Power Recovery Synchronized with the Synology DiskStation
Power Supply Unit / Adapter 100W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 23.26 W (Access)
6.39 W (HDD Hibernation)
British Thermal Unit 79.42 BTU/hr (Access)
21.82 BTU/hr (HDD Hibernation)
Note Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
Temperature
Operating Temperature 5°C to 40°C (40°F to 104°F)
Storage Temperature -10°C to 70°C (-15°F to 155°F)
Relative Humidity 5% to 95% RH
Others
System Fan 40 mm x 40 mm x 3 pcs
Easy Replacement System Fan
Noise Level 25.1 dB(A)
Note Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Certification
  • FCC
  • CE
  • BSMI
  • UKCA
  • EAC
  • VCCI
  • RCM
  • KC
  • BIS
Warranty 3-year hardware warranty, extendable to 5 years with EW201 or Extended Warranty Plus
Environment & Packaging
Environment RoHS Compliant
Packaging Content
  • Main Unit x 1
  • User's Guide X 1
  • Accessory Pack x 1
  • AC Power Cord x 1
  • Expansion Cable: MiniSAS-HD X 1
Optional Accessories
  • Enterprise Series 3.5" SATA HDD: HAT5300 Series
  • Plus Series 3.5" SATA HDD: HAT3300 Series
  • Enterprise Series 2.5" SATA SSD: SAT5200 Series
  • Rail Kit Sliding: RKS-02
  • Rail Kit Mounted: RKM114*

*Model specifications are subject to change without notice. Please refer to www.synology.com for the latest information.

Documentation:

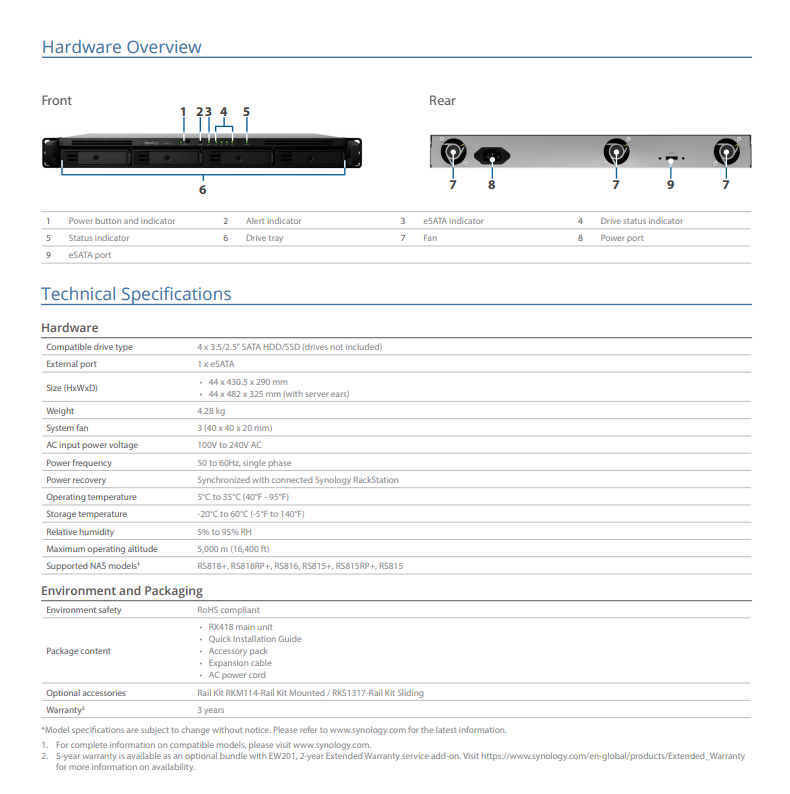

Download the Synology Expansion Unit RX418 Datasheet  (PDF).

It appears you don't have a PDF plugin for this browser. No biggie... you can click here to download the PDF file.
