DiskStation DS223
Data management platform for home and small office

Synology Products
Synology DiskStation

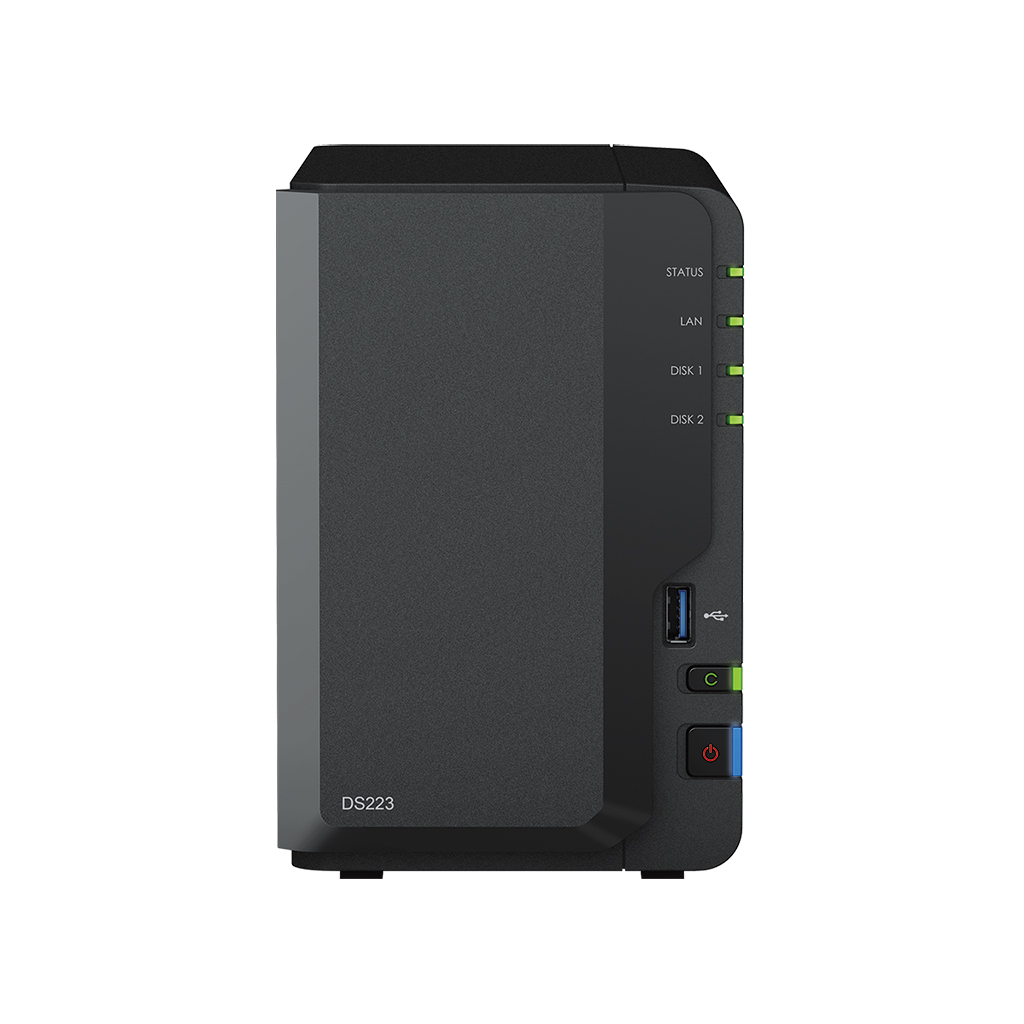

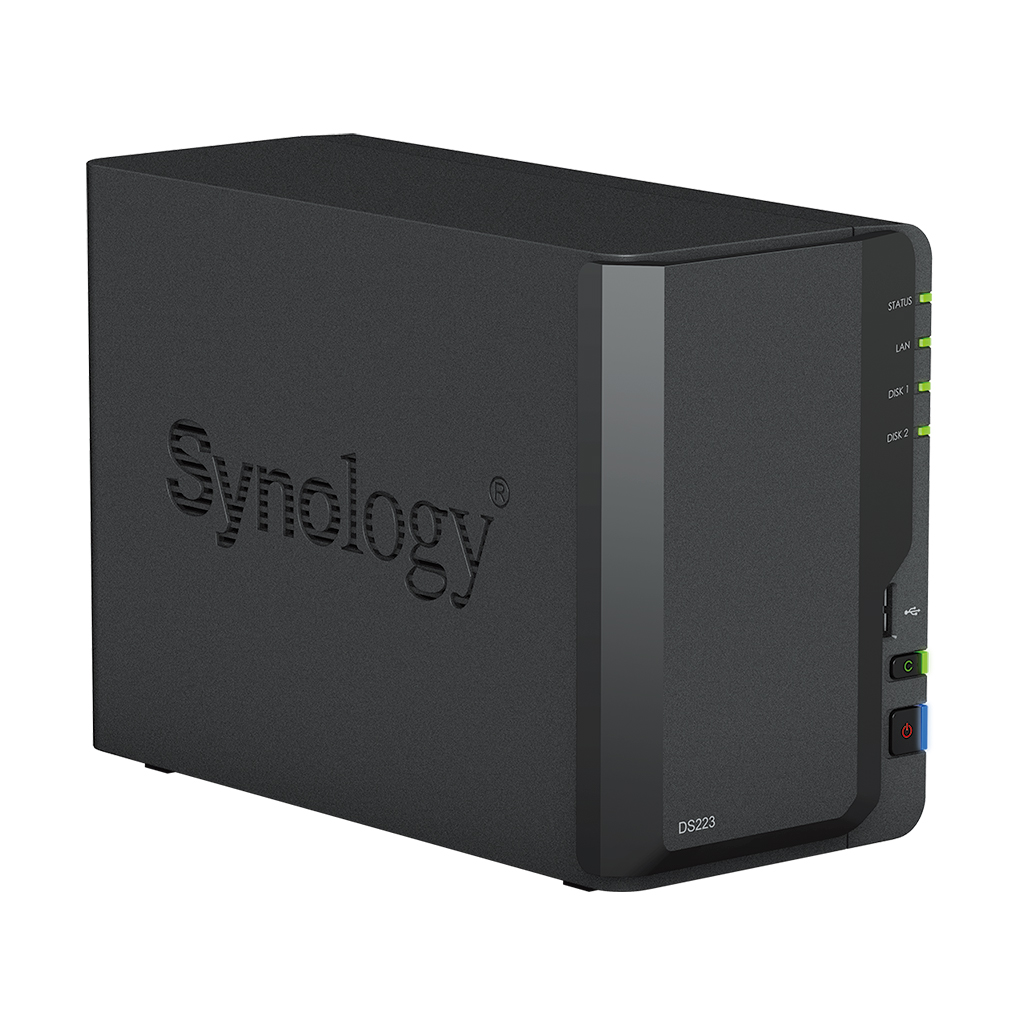

Synology DiskStation DS223 2 Bay SAN/NAS Storage System
#DS223
Our Price: Request a Quote

Want to build a custom bundle? Contact us!

Click here to jump to more pricing!

Please Note: All Prices are Inclusive of GST

Overview:

Data Management and Sharing Platform for Home and SOHO

Designed with both leisure and work in mind, the entry-level 2-bay DS223 has all the tools you need to create an intuitive and secure platform to centralize, organize, and share your data. Leverage the license-free, built-in solutions available in Synology DiskStation Manager (DSM) to create your own private cloud, access files from any device, and work efficiently on business projects with clients and collaborators.


Get your data under control

Consolidate files from various sources into your own private cloud. The DS223 keeps the process simple and offers everything you need to keep your data safe and organized.

cloud icon

Secure private cloud

Enable anywhere, anytime access to up to 40 TB of data.

bckup hub icon

Simple backup hub

Create spare copies of your documents and media for easy recovery.

power efficient icon

Efficient operation

Keep energy consumption low with just 17.3 W during operation.


Private cloud made easy

Import data from PCs, Macs, and other external storage devices at a 14% faster rate and keep all your devices in sync for smoother file management.


Access from any device

Get to your files from PC, Mac, Linux, Chromebook, Android, iOS, or any device equipped with a browser. Keep your data private or easily share it using secure links.

anywhere access image

on demand image

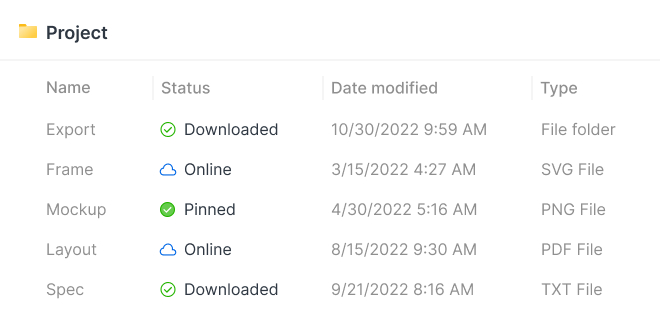

Save storage space

Save space on your personal devices by only synchronizing the files you need from your Synology system. Pin frequently accessed files for convenient offline accessibility.


Cloud integration

Sync your private storage servers with public cloud services such as Google Drive, Dropbox, and Microsoft OneDrive. Retain local copies of your cloud data for centralized management and data ownership.

sync image

across image

Sync across locations

Build a private data cloud that syncs and shares files swiftly between multiple storage servers, letting everyone access the same set of data at their convenience.


Versatile NAS for the modern home

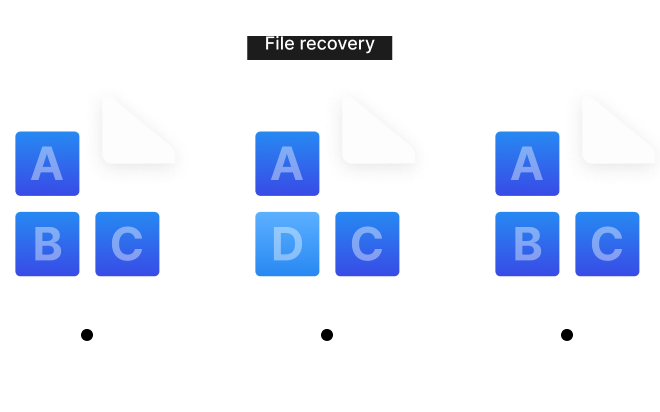

Not all data storage is created equal. Synology DiskStation Manager (DSM), the operating system that powers the DS223, leverages the efficient Btrfs file system to protect your data against data corruption and roll back any accidental or malicious changes thanks to the snapshot technology.

btrfs image

Features:

Versatile storage solution for essential needs

Configure your DS223 to best suit your needs thanks to a host of complete solutions designed for every scenario.

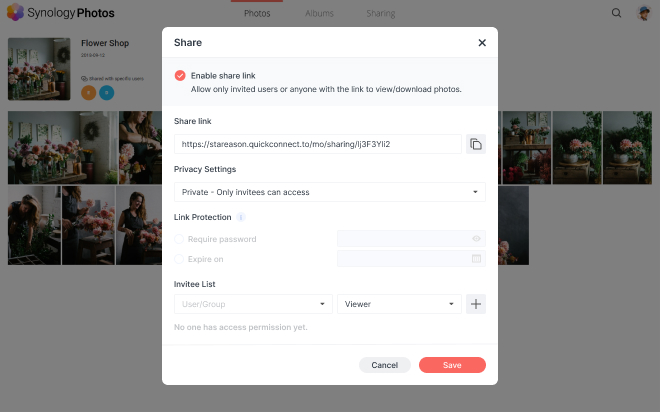

Smart and secure photo management

Store and organize photos, albums, and other media with smart and intuitive features. Back up your memories with the mobile app, and leverage privacy-focused options to share media securely with friends, family, or colleagues.

30%
faster photo indexing

photo image

versatile image

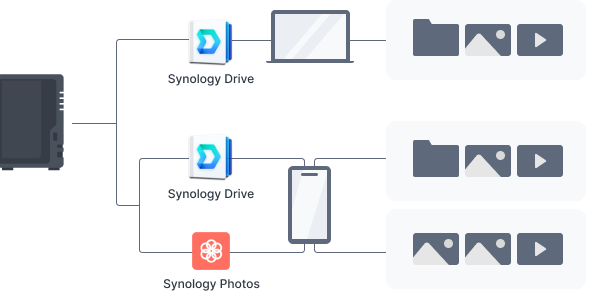

Safeguard your digital world and back up all your documents, files, photos, and more with license-free backup solutions.
Safeguard mobile media such as photos and videos by automatically storing remote copies onto Synology Photos or Synology Drive.
Protect your data against ransomware attacks or accidental deletion with real-time or scheduled backups of computer folders with Synology Drive.

Secure your home or business with a powerful solution to monitor, archive, and analyze footage centrally.
Connect up to 30 IP cameras by selecting from a wide variety of over 8,300 validated models or ONVIF devices.
Monitor video streams in real time via web browsers, desktop clients, or mobile apps to protect your premises 24/7. Set up alerts and triggers to get notified of suspicious activity.
versatile image

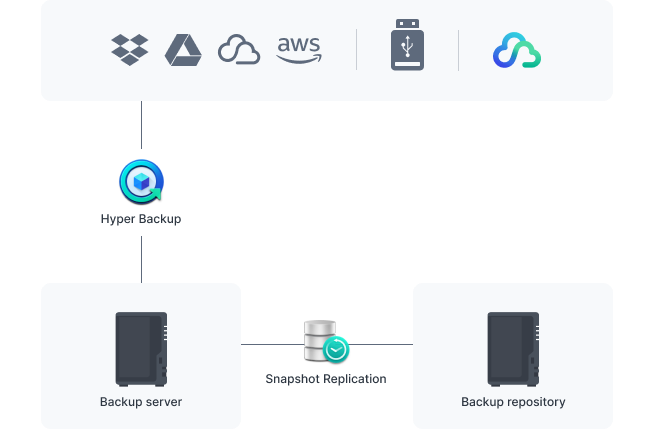

Multi-layered backup solutions

Add an extra layer of protection to your files with one of the built-in, license-free solutions available to back up your DS223.

platform image
Back up your Synology device, including system settings, applications, and shared folders, save space with data deduplication, and store copies to multiple destinations.
Create point-in-time snapshots of shared folders and LUNs for added protection of your data. Snapshot Replication enables an RPO as low as 5 minutes and recovery within seconds.

Specifications:

DS220+ Hardware Specs

CPU

CPU Model Realtek RTD1619B
CPU Core 4
CPU Architecture 64-bit
CPU Frequency 1.7 GHz
Hardware Encryption Engine

Memory

System Memory 2 GB DDR4 non-ECC
Notes Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Storage

Drive Bays 2
Compatible Drive Type* (See all supported drives)
  • 3.5" SATA HDD
  • 2.5" SATA HDD
Hot Swappable Drive

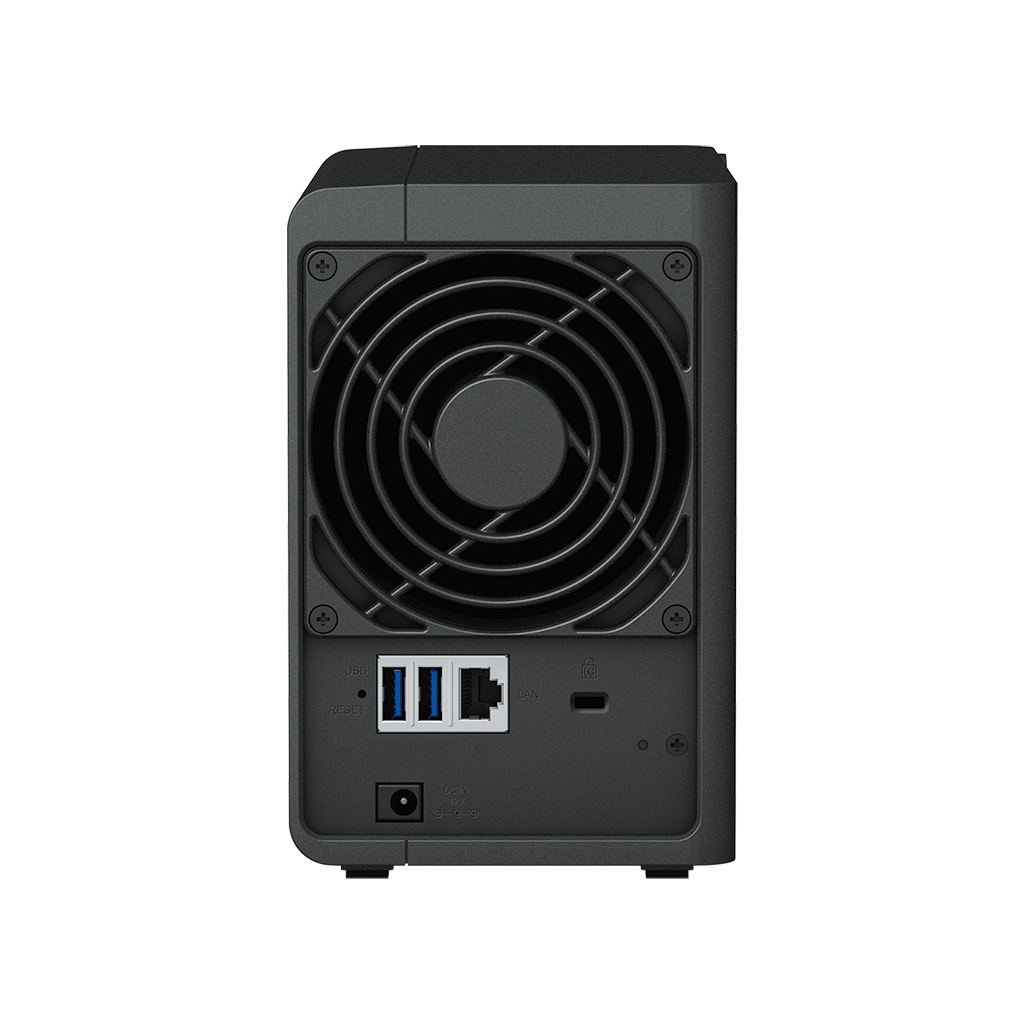

External Ports

RJ-45 1GbE LAN Port 1
USB 3.2 Gen 1 Port 3
Notes This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.

Appearance

Size (Height x Width x Depth) 165 mm x 108 mm x 232.7 mm
Weight 1.28 kg

Others

System Fan 92 mm x 92 mm x 1 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Brightness Adjustable Front LED Indicators
Power Recovery
Noise Level* 14.6 dB(A)
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter 60 watts
AC Input Power Voltage 100 V to 240 V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 17.343 watts (Access)
4.08 watts (HDD Hibernation)
British Thermal Unit 59.19 BTU/hr (Access)
13.92 BTU/hr (HDD Hibernation)
Notes
  • For more information on how power consumption is measured, refer to this article.
  • Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two GRAS 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature

Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Operating humidity 8% to 80% RH
Relative Humidity 5% to 95% RH

Certification

  • UKCA
  • BIS
  • EAC
  • VCCI
  • CCC
  • RCM
  • KC
  • FCC
  • CE
  • BSMI

Warranty

2-year hardware warranty, extendable to 4 years with Extended Warranty Plus
Notes
  • The warranty period starts from the purchase date as stated on your purchase receipt.
  • Extended Warranty Plus is only available in Europe and North America. Refer to the Extended Warranty Plus website for details on supported countries/regions

Environment

RoHS Compliant

Packaging Content

  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Adapter X 1
  • AC Power Cord X 1
  • RJ-45 LAN Cable X 2
  • Quick Installation Guide X 1

Optional Accessories

  • Enterprise Series 3.5" SATA HDD: HAT5300 Series
  • Plus Series 3.5" SATA HDD: HAT3300 Series
  • Enterprise Series 2.5" SATA SSD: SAT5200 Series

Documentation:

Download the Synology DiskStation DS223 Datasheet  (PDF).
