DiskStation DS224+
Compact data storage for edge deployments

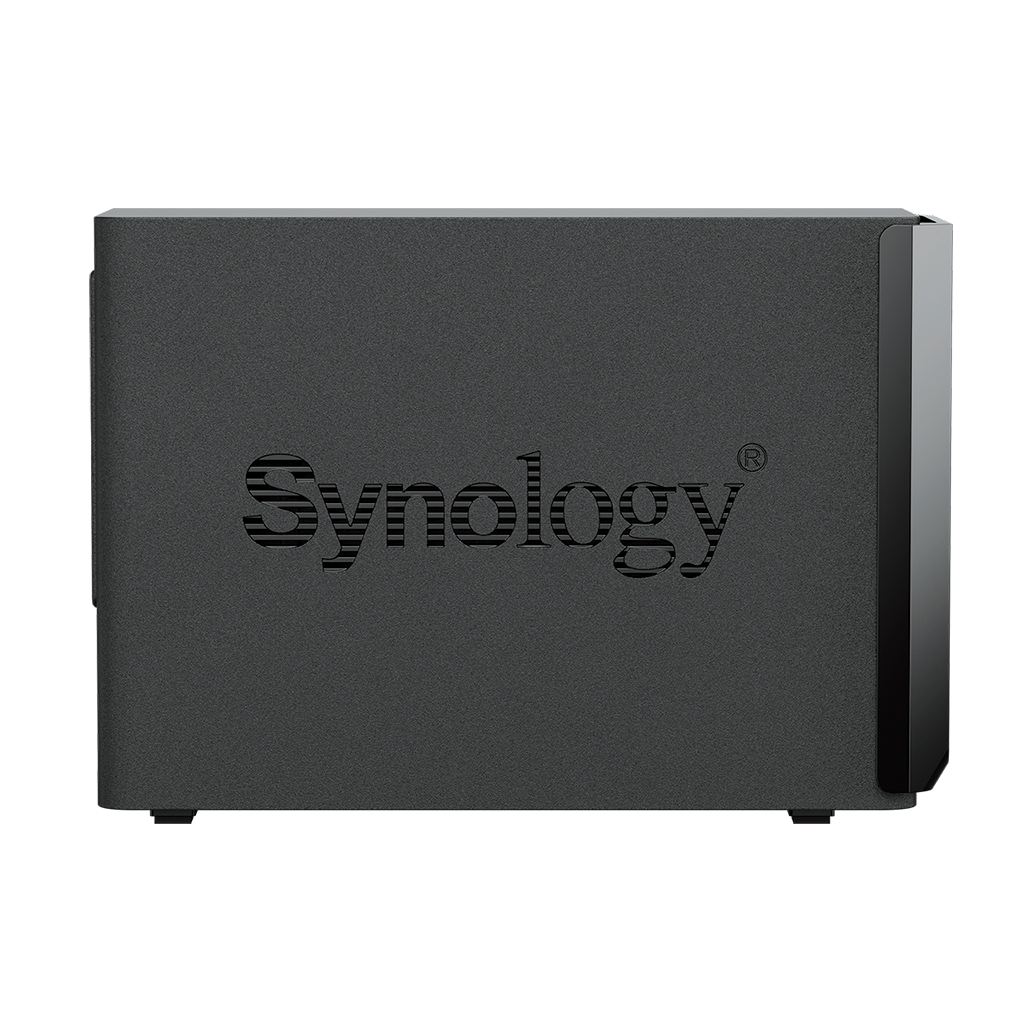

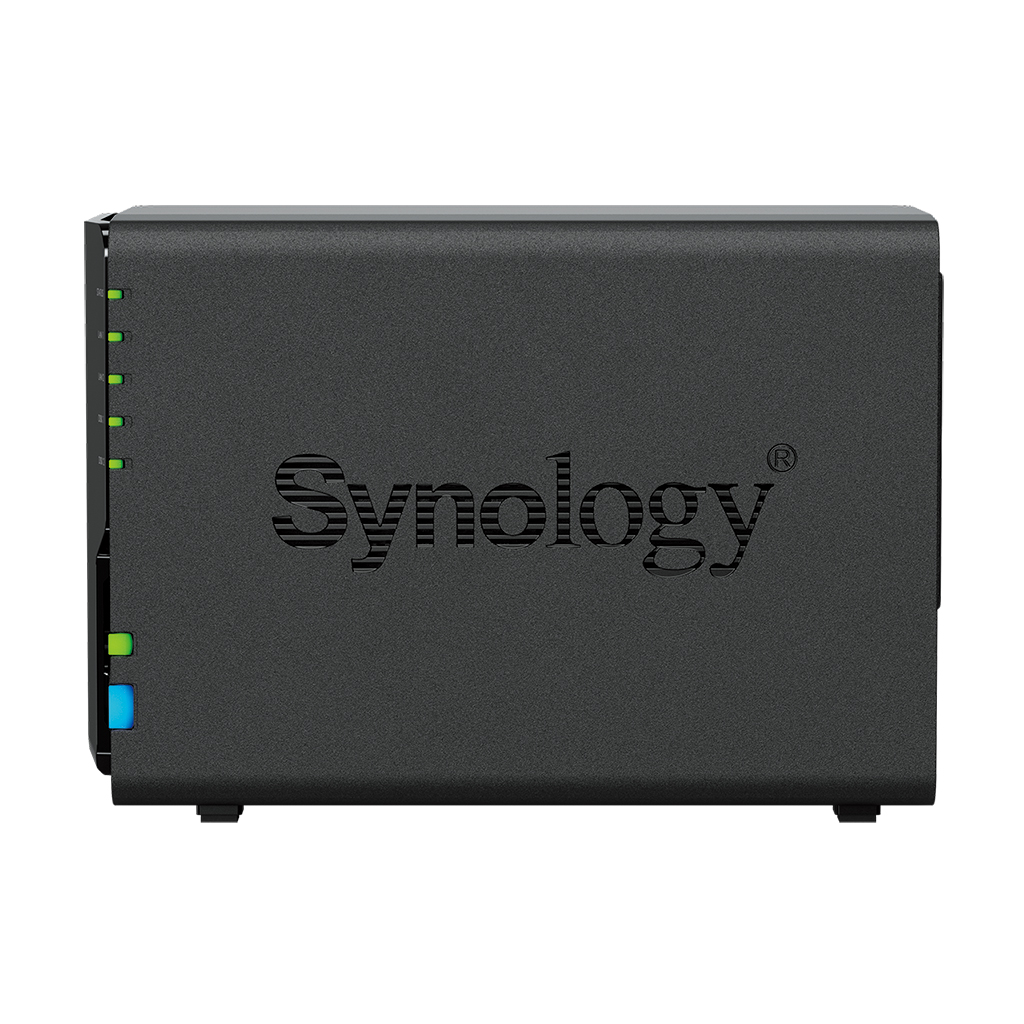

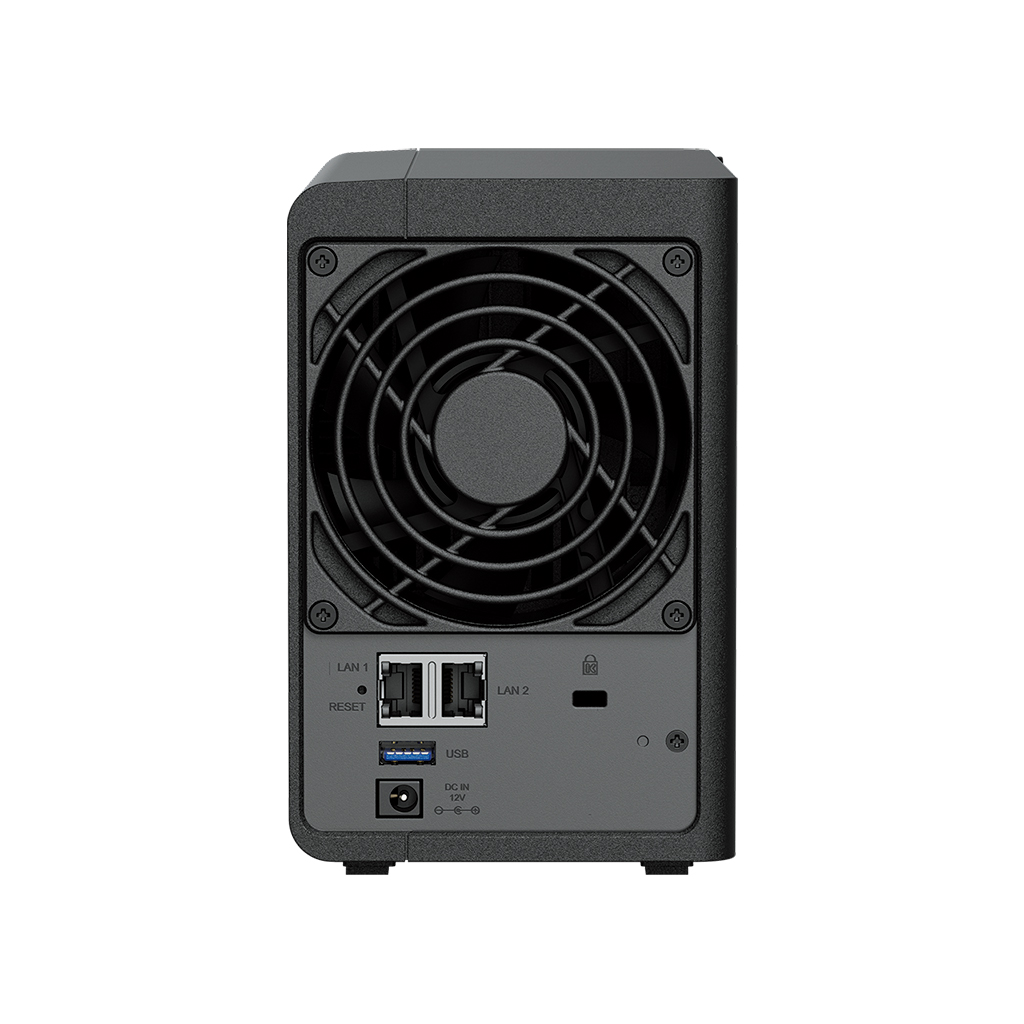

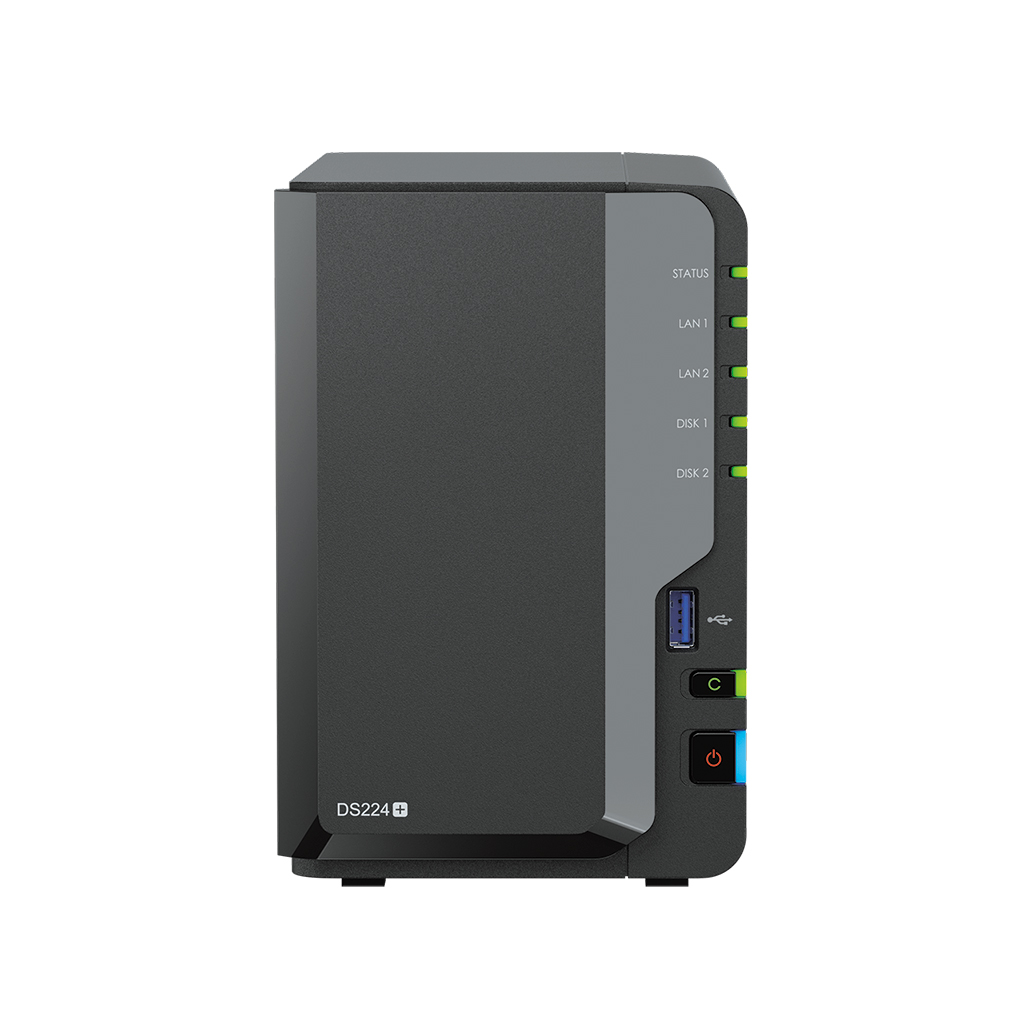

ds224plus front ds224plus iso ds224plus side ds224plus back ds224plus back ds224plus back
ds224plus

Synology Products
Synology DiskStation
Synology DiskStation DS224+ 2 Bay SAN/NAS Storage System
#DS224+
Our Price: Request a Quote
Get a Quote

Want to build a custom bundle? Contact us!

Click here to jump to more pricing!

Please Note: All Prices are Inclusive of GST

Overview:

File Management Hub for Compact Teams and Organizations

The Synology DiskStation DS224+ is a compact 2-bay NAS solution designed to bring centralized data management to small organizations and teams

Keep your data on-site

consolidate Icon

Consolidate and safeguard

Protect all your data with integrated security features and centralized access.

flexibility Icon

Manage important data

Share, back up, and access files, photos, surveillance video, and more.

power efficient Icon

Minimize energy impact

15 watts under full operation keeps operating costs low.

Simply faster

DS224+ is faster at indexing files in Synology Drive and Synology Photos and more capable of running demanding web applications compared to previous-generation systems


Web applications
62%
more responses per second

Synology Drive
52%
faster file indexing

Synology Photos
28%
faster image indexing

Features:

Store, share, and protect

Manage all your documents, photos, and other files, back up applications and devices, or protect your assets with professional video surveillance.

Private cloud for data sharing

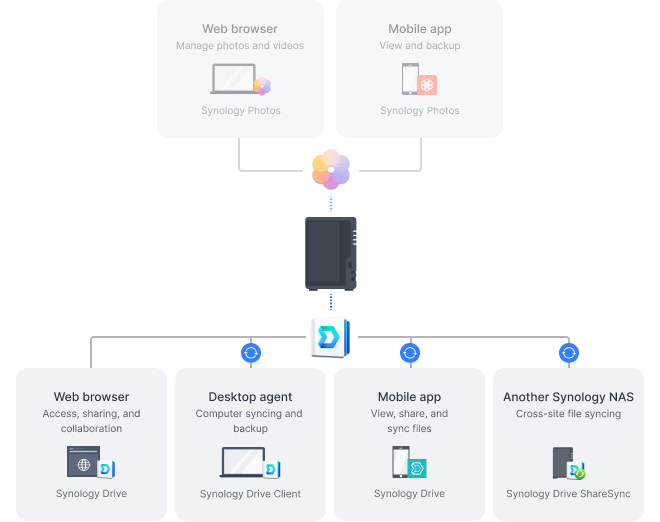

Hybrid work in the private cloud

Store, sync, access, and share data from any device, wherever you are. Work together seamlessly across different platforms, accessing files through mobile apps, desktop clients, or a browser-based interface. Quickly and easily roll back files in case of unwanted deletion or modification thanks to smart versioning.

Keep your photos organized

Effortlessly back up and organize photos, videos, and other visual assets using intuitive management tools. Automatically organize your content into albums and create secure share links for stakeholders and teammates.

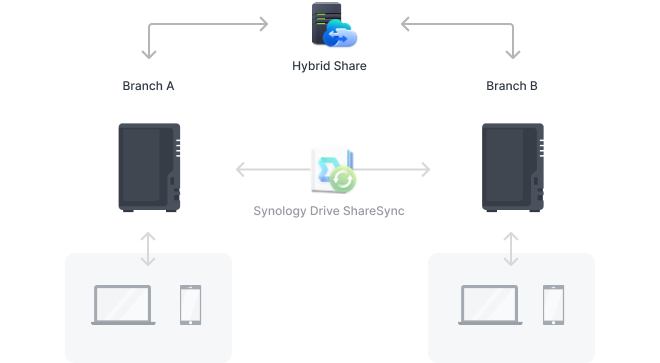

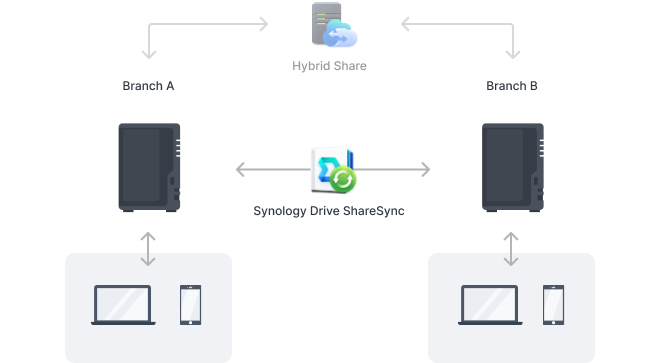

Synchronize data between sites

Work together with minimal slowdown using site-to-site file syncing, which can be configured to automatically synchronize individual files or folders between Synology devices, allowing seamless file access from local devices.

Manage data with the power of the cloud

Reduce your on-site storage footprint and benefit from data center network speeds with hybrid cloud technology. Synology Hybrid Share adds automatic cloud tiering, keeping the bulk of data in the cloud, while caching frequently accessed files cached locally on your DS224+ for fast access at LAN speeds

Multi-layered backup

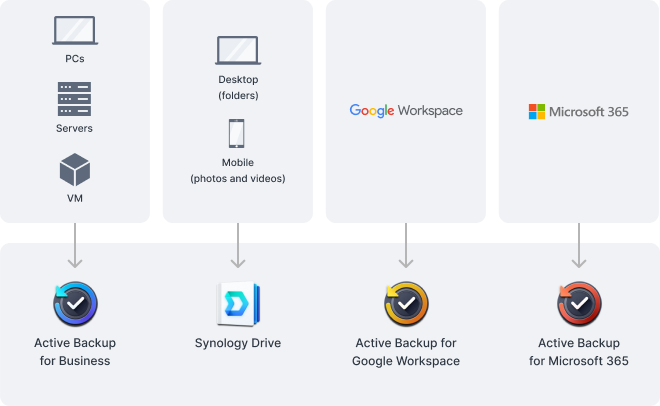

Back up workstations, smartphones, cloud apps, and more

Consolidate and automate backup tasks for workstations, file servers, VMs, SaaS applications, and more with Active Backup Suite. Administer device backups remotely through a centralized portal and quickly restore specific files or entire devices to keep your business up and running. Take advantage of built-in remote backup solutions designed to protect your data with seamless 3-2-1 backup configurations.

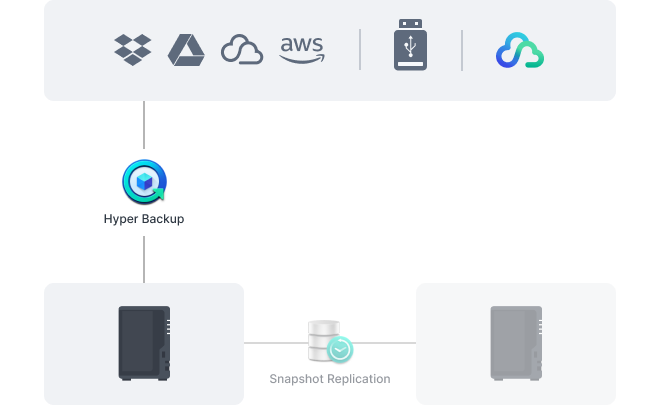

Perform full Synology system backups

Protect all data, applications, and configurations on your Synology systems with comprehensive scheduled backups to local and remote servers, external drives, or cloud storage destinations including Synology C2 Storage.

Protect folders and LUNs with snapshots

Configure efficient point-in-time snapshots of shared folders and LUNs at intervals as short as 5 minutes. Let users easily restore previous versions of files unassisted, quickly recover VMs, and copy snapshots to another server to benefit from rapid storage failover. Further safeguard data integrity with immutable snapshots.

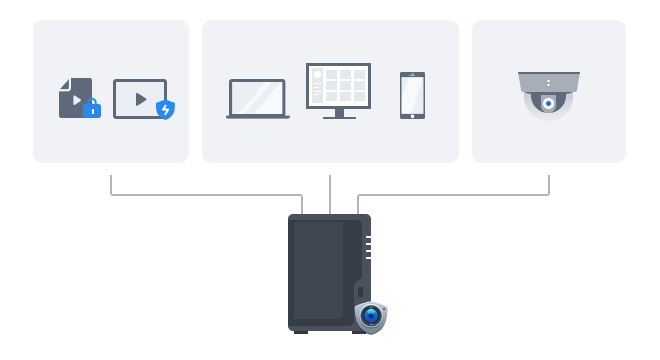

Smart surveillance management

Synology Surveillance Station

Protecting your business has never been easier, with centralized management, support for over 8,700 IP camera models, and remote monitoring and playback. Synology’s scalable video management system provides all the tools you need for live monitoring, investigation, management, and backup.

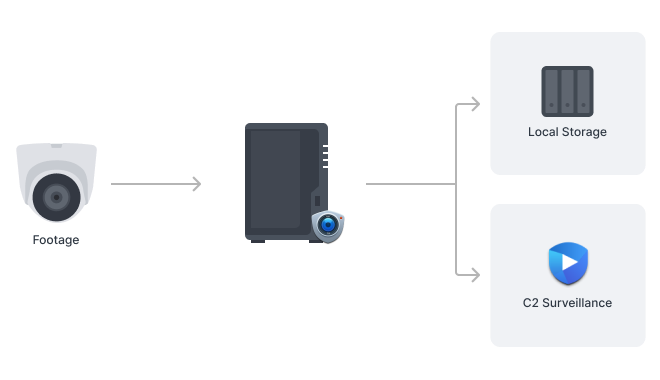

Dual recording to the cloud

C2 Backup for Surveillance allows you to keep access to surveillance footage if your recording server is disabled by recording to your local server as well as the C2 cloud. End-to-end encryption protects streams against unauthorized access while low-latency recording lets you review the crucial last few seconds before the recording server was lost.

Btrfs: advanced file system for data protection

The Synology DiskStation Manager (DSM) operating system that powers the DS224+ uses the advanced Btrfs file system, which safeguards your data against corruption and allows for the reversal of unintended or malicious changes through the use of snapshot technology

btrfs image

Specifications:

DS220+ Hardware Specs

CPU

 CPU Model Intel Celeron J4125
CPU Core 4
CPU Architecture 64-bit
CPU Frequency 2.0 (base) / 2.7 (turbo) GHz
Hardware Encryption Engine

Memory

 System Memory 2 GB DDR4 non-ECC
Total Memory Slots 1
Maximum Memory Capacity 6 GB (2 GB + 4 GB)
Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.

Storage

 Drive Bays 2
Compatible Drive Type* (See all supported drives)
  • 3.5" SATA HDD
  • 2.5" SATA HDD
Hot Swappable Drive

External Ports

 RJ-45 1GbE LAN Port 2
USB 3.2 Gen 1 Port 2
USB Copy
Notes MTU value of 1GbE LAN port has a limit of 1500.

Appearance

 Size (Height x Width x Depth) 165 mm x 108 mm x 232.2 mm
Weight 1.30 kg

Others

 System Fan 92 mm x 92 mm x 1 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Brightness Adjustable Front LED Indicators
Power Recovery
Noise Level* 22 dB(A)
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter 60 watts
AC Input Power Voltage 100 V to 240 V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 14.69 watts (Access)
4.41 watts (HDD Hibernation)
British Thermal Unit 50.09 BTU/hr (Access)
15.04 BTU/hr (HDD Hibernation)
Notes
  • For more information on how power consumption is measured, refer to this article.
  • Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two GRAS 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature

 Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Operating humidity 8% to 80% RH
Relative Humidity 5% to 95% RH

Certification
  • UKCA
  • BIS
  • EAC
  • VCCI
  • CCC
  • RCM
  • KC
  • FCC
  • CE
  • BSMI

Warranty

 2-year hardware warranty, extendable to 4 years with Extended Warranty Pluss
Notes
  • The warranty period starts from the purchase date as stated on your purchase receipt.
  • Extended Warranty Plus is only available in Europe and North America. Refer to the Extended Warranty Plus website for details on supported countries/regions

Environment

 RoHS Compliant

Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Adapter X 1
  • AC Power Cord X 1
  • RJ-45 LAN Cable X 2
  • Quick Installation Guide X 1

Optional Accessories
  • DDR4 non-ECC SODIMM: D4NESO-2666-4G
  • Plus Series 3.5" SATA HDD: HAT3300 Series
    		•

    Documentation:

    Download the Synology DiskStation DS224+ Datasheet  (PDF).

    It appears you don't have a PDF plugin for this browser. No biggie... you can click here to download the PDF file.
    Warranty Icon

    Extended protection with Extended Warranty

    Extend the standard 2-year hardware warranty of your DS224+ with 2 more years of Synology-certified support and premium services to help you recover faster in the event of disaster.
