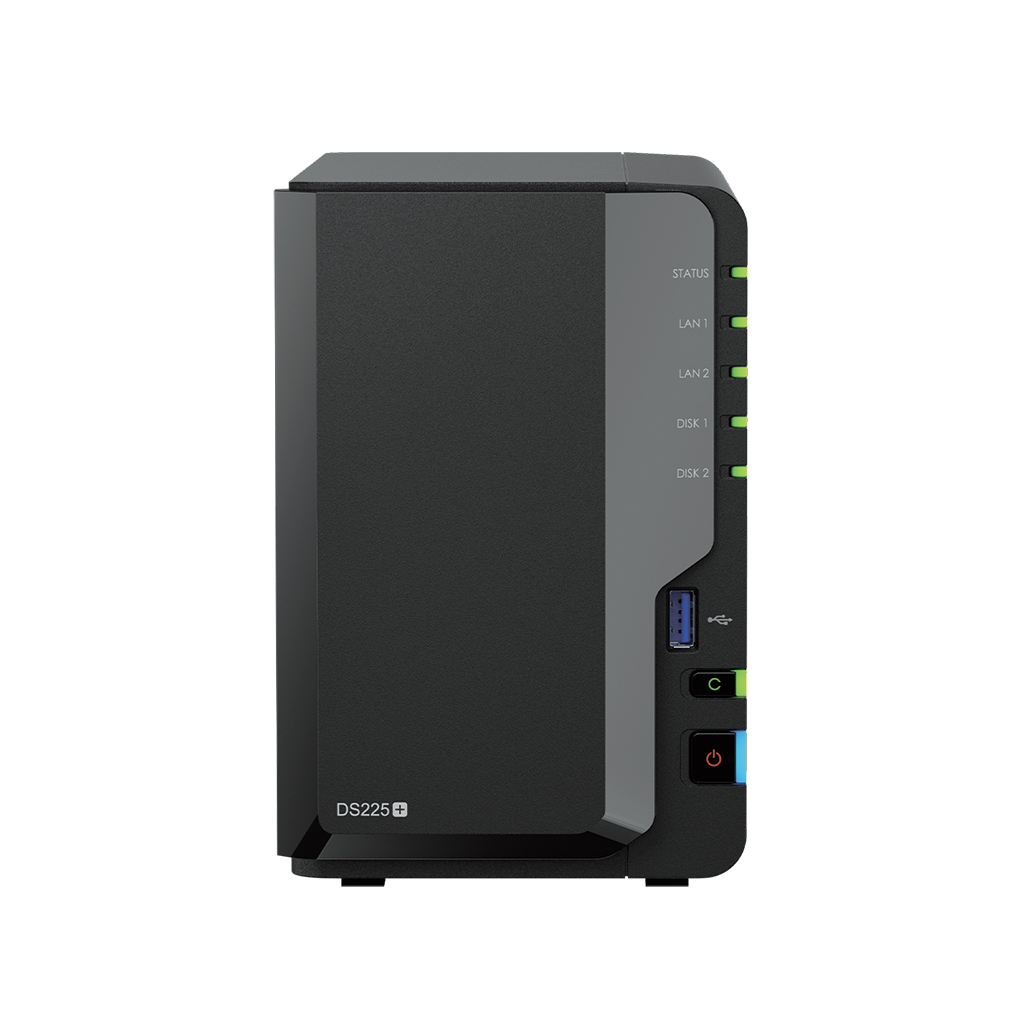

Synology DiskStation DS225+ 2 Bay SAN/NAS Storage System
#DS225+
Our Price: Request a Quote

Want to build a custom bundle? Contact us!

Click here to jump to more pricing!

Please Note: All Prices are Inclusive of GST

Overview:

File Management Hub for Home, Home Office, and Edge

The Synology DiskStation DS225 is a compact 2-bay NAS solution designed to centralize data management, offering a comprehensive suite of tools through Synology DiskStation Manager (DSM) for managing, sharing, and protecting files and photos, backing up devices and data, and serving as the core of a smart surveillance system.


Consolidate and store your growing digital data

consolidate icon

Consolidate and safeguard

Up to 40 TB of raw storage

capable storage icon

Capable storage

Built-in 2.5GbE port and over 282/217 MB/s sequential read/write

Settings Icon

Versatile applications

Back up multiple endpoints, manage 25 IP cameras, or safely sync and share files across sites

Features:

Store, share, and protect

Manage all your documents, photos, and other files, back up applications and devices, or protect your assets with professional video surveillance.


Private cloud for seamless data access

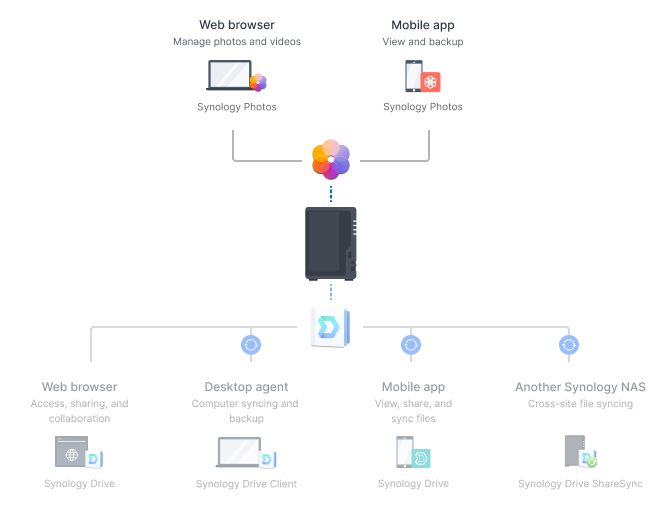

Store, sync, access, and share data from any device, wherever you are. Work seamlessly between different platforms and devices, and access your files through mobile apps, desktop clients, and a browser-based interface. Quickly and easily roll back files in case of accidental deletion, mistakes, malware, etc., with versioning.
Effortlessly back up and organize photos, videos, and other visual assets using intuitive management tools. Automatically organize your content into albums and create secure share links for stakeholders and teammates.
Enhance workplace collaboration with Synology's productivity solutions. Create, edit, and share documents across teams in real time. Host an on-premises mail server to provide web-based email access while maintaining full data ownership. Additionally, stay connected through secure one-on-one chats, public channels, encrypted private channels, and group conversations.

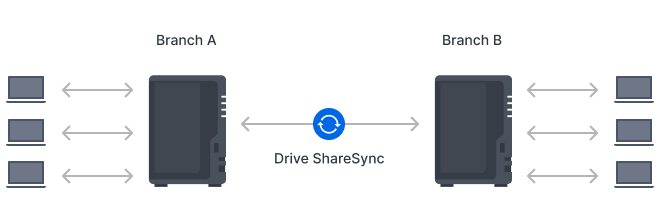

Multi-site synchronization to empower global workflows

Improve workflow efficiency and team alignment across data sites with automatic one- or two-way site-to-site syncing. Files and folders are kept up-to-date across sites, so everyone stays aligned, whether at home, in the office, or across different branches — all while maintaining full control of your data.

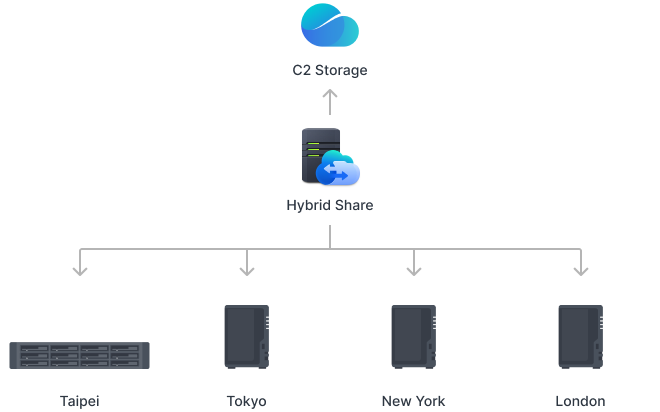

Empower global workflows with high-speed access to data from anywhere in your network. Our hybrid cloud solution caches frequently used files locally for rapid access, while less frequently accessed data is stored in the cloud, reducing your on-site storage requirements.

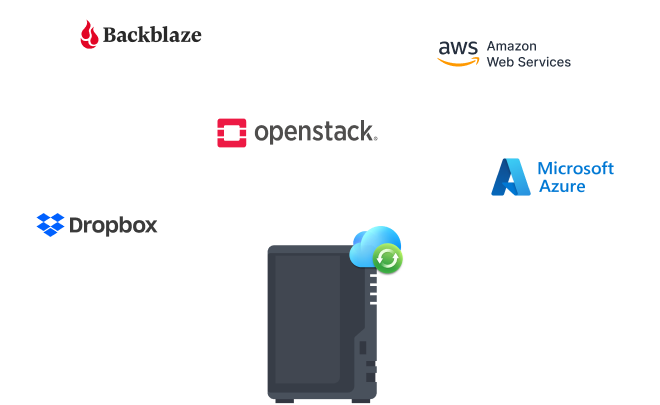

Automatically keep data in sync between Synology NAS and major cloud providers, including BackBlaze B2, Dropbox, Google Drive, and Microsoft OneDrive. Multiple protocol support, client-side encryption, and customizable sync and bandwidth controls enable efficient storage management across various platforms.

Comprehensive data backup, protection, and recovery solutions

Consolidate and automate backup tasks for PCs, file servers, VMs, SaaS applications, and more. Administer device backups remotely through a centralized portal and quickly restore specific files or entire devices to keep your business up and running. Take advantage of built-in backup solutions designed to protect your data with seamless 3-2-1 backup configurations.

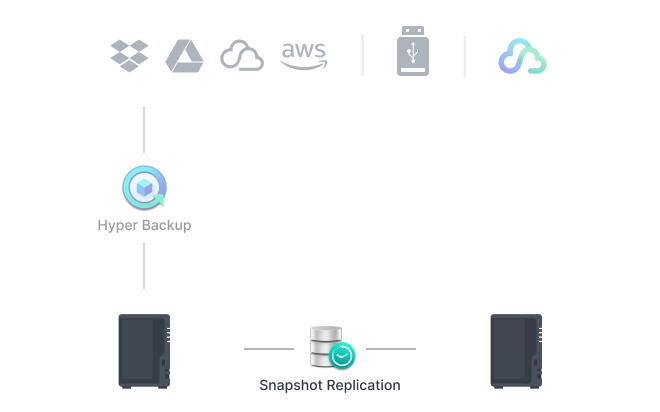

Protect all data, applications, and configurations on your Synology systems with comprehensive scheduled backups, including bare-metal backups, to local and remote servers, external drives, or cloud storage destinations, including Synology C2 Storage.

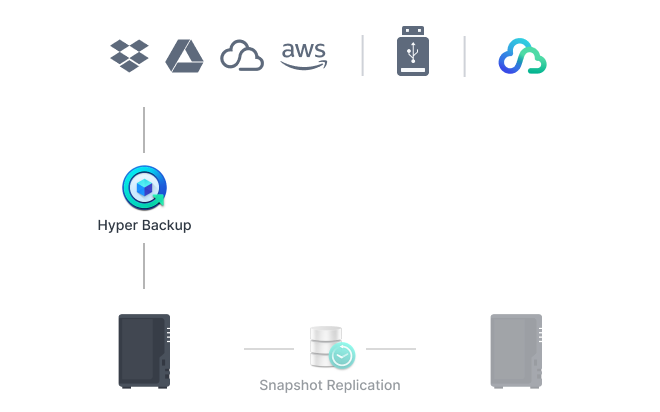

Safeguard critical LUNs and shared folders with automated immutable snapshots backed by custom retention policies. Built-in support for offsite replication further ensures robust business continuity.

Smart surveillance

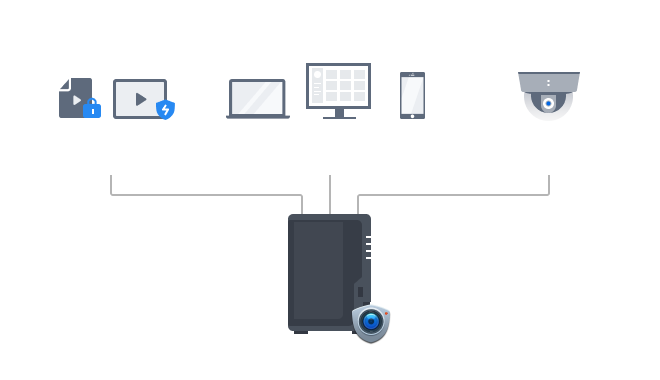

Protecting your business has never been easier, with centralized management, support for over 8,700 IP camera models, and remote monitoring and playback. Synology’s scalable video management system provides all the tools you need for live monitoring, investigation, management, and backup.

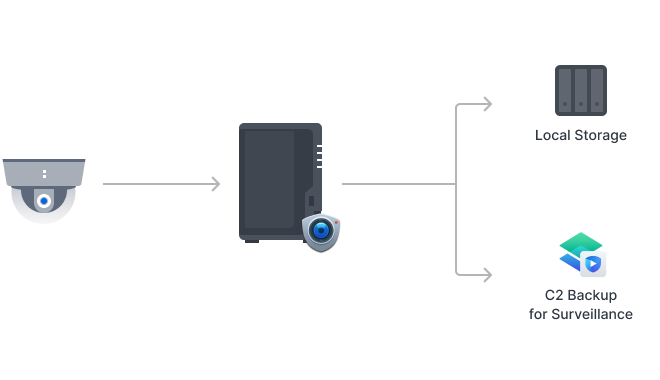

Secure your surveillance footage with robust cloud backup that supports end-to-end encryption. Our cloud-based surveillance backup solution safeguards your Surveillance Station recordings, allowing you to access, view, share, and download footage through a convenient web portal. Ensure your data remains available even if your on-premises system is compromised.

Centralized monitoring and management

Monitor and manage your Synology fleet from a central interface, on-prem or in the cloud.


Central Management System

Manage Synology servers from a central console using group policies, task delegation, batch updates, and more.

Active Insight

Monitor your global Synology fleet's performance, backup status, login activity, and more with the power of the cloud.

Specifications:

DS220+ Hardware Specs

CPU

CPU Model Intel Celeron J4125
CPU Core 4
CPU Architecture 64-bit
CPU Frequency 2.0 (base) / 2.7 (turbo) GHz
Hardware Encryption Engine

Memory

System Memory 2 GB DDR4 non-ECC
Total Memory Slots 1
Maximum Memory Capacity 6 GB (2 GB + 4 GB)
Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.

Storage

Drive Bays 2
Compatible Drive Type* (See all supported drives)
  • 3.5" SATA HDD
  • 2.5" SATA HDD
Hot Swappable Drive
Notes
  • Compatible drives are mandatory. Please consult our compatibility list before purchasing hard drives.

External Ports

RJ-45 1GbE LAN Port 1

External Ports

RJ-45 2.5GbE LAN Port 1
USB 3.2 Gen 1 Port 2
USB Copy
Notes This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.

Appearance

Size (Height x Width x Depth) 165 mm x 108 mm x 232.2 mm
Weight 1.3 kg

Others

System Fan 92 mm x 92 mm x 1 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Brightness Adjustable Front LED Indicators
Power Recovery
Noise Level* 19.6 dB(A)
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter 60 watts
AC Input Power Voltage 100 V to 240 V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 16.98 watts (Access)
6.08 watts (HDD Hibernation)
British Thermal Unit 57.90 BTU/hr (Access)
20.73 BTU/hr (HDD Hibernation)
Notes
  • For more information on how power consumption is measured, refer to this article.
  • Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two GRAS 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature

Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Operating humidity 8% to 80% RH
Relative Humidity 5% to 95% RH

Certification

  • UKCA
  • BIS
  • EAC
  • VCCI
  • CCC
  • RCM
  • KC
  • FCC
  • CE
  • BSMI

Warranty

3-year hardware warranty, extendable to 5 years with Extended Warranty Plus
Notes
  • The warranty period starts from the purchase date as stated on your purchase receipt.
  • Extended Warranty Plus is only available in Europe and North America. Refer to the Extended Warranty Plus website for details on supported countries/regions

Environment

RoHS Compliant

Packaging Content

  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Adapter X 1
  • AC Power Cord X 1
  • RJ-45 LAN Cable X 2

Optional Accessories

  • DDR4 non-ECC SODIMM: D4NS01-4G
  • Enterprise Series 3.5" SATA HDD: HAT5300 Series
  • Plus Series 3.5" SATA HDD: HAT3300 Series
  • Enterprise Series 2.5" SATA SSD: SAT5200 Series

Documentation:

Download the Synology DiskStation DS225+ Datasheet  (PDF).

It appears you don't have a PDF plugin for this browser. No biggie... you can click here to download the PDF file.

Warranty Icon

Extended protection with Extended Warranty

The DS225+ is backed by Synology’s 3-year hardware warranty.
An optional 2-year extended warranty is available in select regions to extend coverage to 5 years.
