DiskStation DS423
Versatile data management platform for work and more

Synology Products
Synology DiskStation
Synology DiskStation DS423 4 Bay SAN/NAS Storage System
#DS423
Our Price: Request a Quote

Want to build a custom bundle? Contact us!

Click here to jump to more pricing!

Please Note: All Prices are Inclusive of GST

Overview:

Private Cloud Hub for Essential File and Media Management

The Synology DiskStation DS423 offers four bays of storage and everything you need to consolidate, organize, and secure your data.


Simplify your data management

cloud icon

Secure cloud storage

Flexibly store up to 80 TB of data with 100% ownership and enjoy multi-platform access from anywhere.

data sharing icon

Data sharing made easy

Safely share files and media over your private cloud for easier collaboration and better productivity.

video surveillance icon

Versatile video surveillance

Leverage intuitive surveillance tools to protect your premises and store footage from up to 30 IP cameras.


Create a private cloud hub for your data

Import and sync data scattered across PCs, Macs, phones, and external storage devices to implement well-organized file management for your business.


Multi-device access

Browse, access, edit, and share files securely and conveniently via desktop, mobile, or web browser platforms. Use intuitive admin tools to track and set file permissions and control access to documents, files, and other data.

anywhere access image

on demand image

On-demand sync

Save space on your personal devices by only synchronizing the files you need from your Synology system. Pin frequently accessed files for convenient offline accessibility.


Cloud integration

Sync your private storage servers with public cloud services such as Google Drive, Dropbox, and Microsoft OneDrive. Retain local copies of your cloud data for centralized management and data ownership.

sync image

sharing across image

Cross-platform sharing

Build a private data cloud that syncs and shares files swiftly between multiple storage servers, letting everyone access the same set of data at their convenience.


Safeguard your data

Powered by Synology DiskStation Manager (DSM), the DS423 utilizes Btrfs, a next-generation file system, to secure data against corruption and allows users to roll back any accidental or malicious changes with instantaneous snapshots.

btrfs image

Features:

Versatile storage solution for essential needs

Manage and organize photos efficiently, back up and secure your digital data, and safeguard your physical premises with the DS423.


Smart and secure photo management

Store and organize photos, albums, and other media with smart and intuitive features. Back up your memories with the mobile app, and leverage privacy-focused options to share media securely with friends, family, or colleagues.

30%
faster photo indexing

photo image

protect image
Safeguard your digital world and back up all your documents, files, photos, and more with license-free backup solutions.
Safeguard mobile media such as photos and videos by automatically storing remote copies onto Synology Photos or Synology Drive.
Protect your data against ransomware attacks or accidental deletion with real-time or scheduled backups of computer folders with Synology Drive.

Secure your home or business with a powerful solution to monitor, archive, and analyze footage centrally.
Connect up to 30 IP cameras by selecting from a wide variety of over 8,300 validated models or ONVIF devices.
Monitor video streams in real time via web browsers, desktop clients, or mobile apps to protect your premises 24/7. Set up alerts and triggers to get notified of suspicious activity.
intelligent image

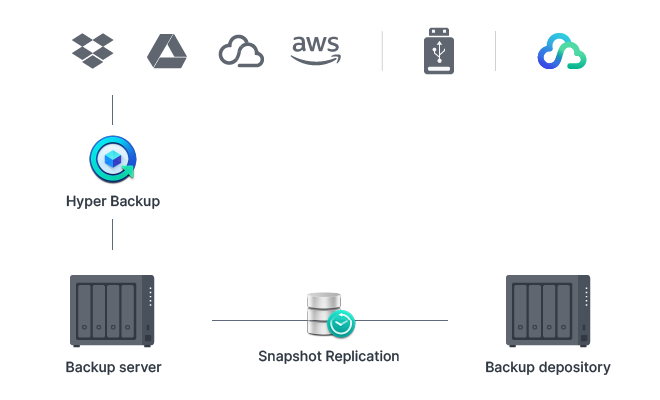

Multi-layered backup solutions

Leverage Synology solutions to back up all data stored on your DS423 onto a secondary server, external storage device, or the cloud.

multi image
Back up your Synology device, including system settings, applications, and shared folders, save space with data deduplication, and store copies to multiple destinations.
Create point-in-time snapshots of shared folders and LUNs for added protection of your data. Snapshot Replication enables an RPO as low as 5 minutes and recovery within seconds.

Specifications:

DS220+ Hardware Specs

CPU

CPU Model Realtek RTD1619B
CPU Core 4
CPU Architecture 64-bit
CPU Frequency 1.7 GHz
Hardware Encryption Engine

Memory

System Memory 2 GB DDR4 non-ECC
Notes Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Storage

Drive Bays 4
Compatible Drive Type* (See all supported drives)
  • 3.5" SATA HDD
  • 2.5" SATA HDD
Hot Swappable Drive

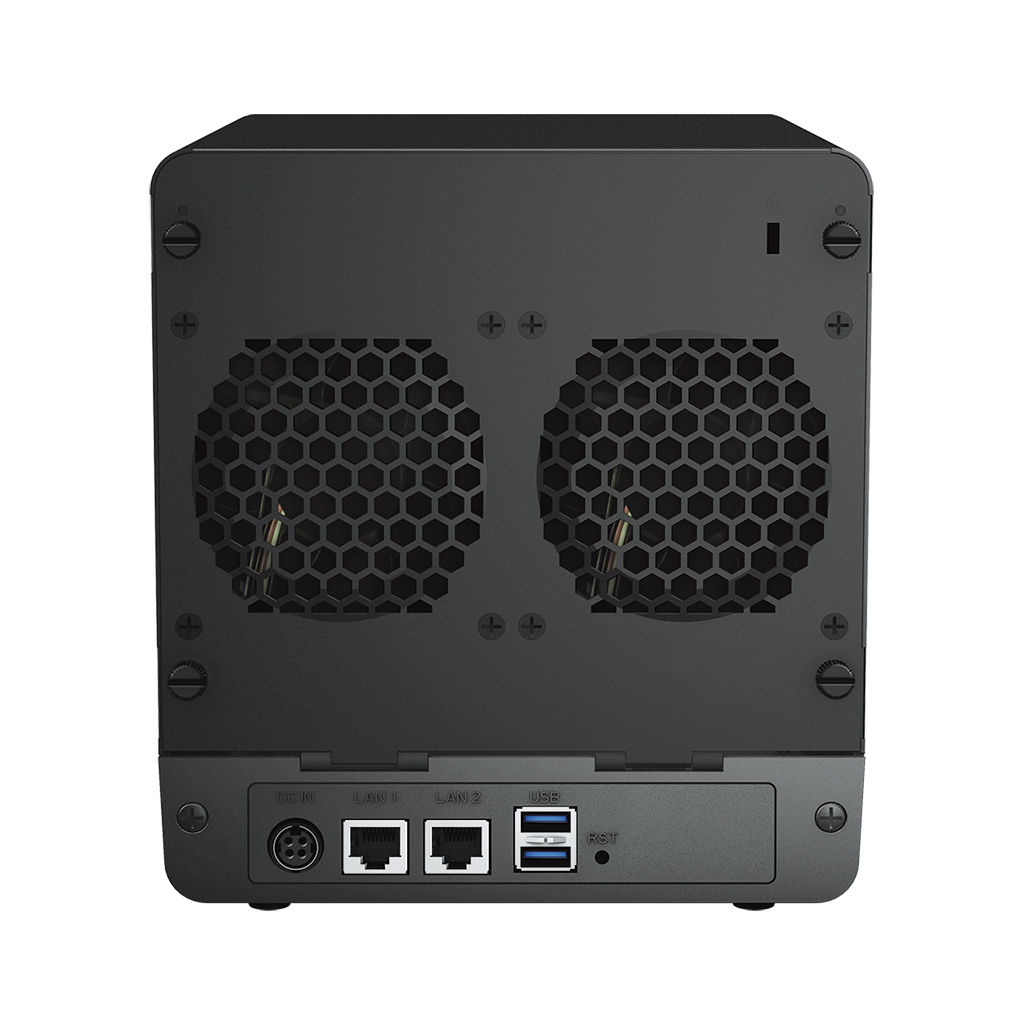

External Ports

RJ-45 1GbE LAN Port 2
USB 3.2 Gen 1 Port 2
Notes MTU value of 1GbE LAN port has a limit of 1500.

Appearance

Size (Height x Width x Depth) 184 mm x 168 mm x 230 mm
Weight 2.21 kg

Others

System Fan 80 mm x 80 mm x 2 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode

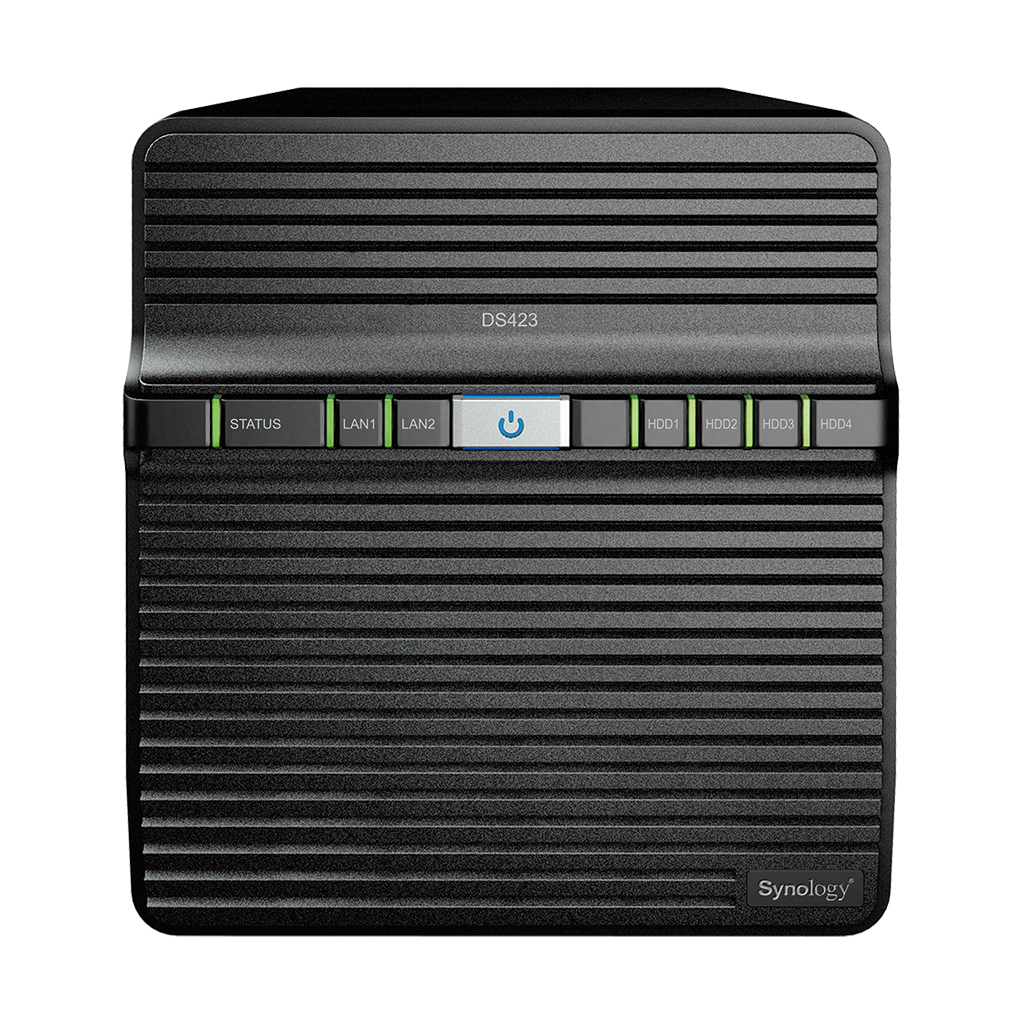

Brightness Adjustable Front LED Indicators
Power Recovery
Noise Level* 20.6 dB(A)
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter 90 watts
AC Input Power Voltage 100 V to 240 V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 32.41 watts (Access)
4.897 watts (HDD Hibernation)
British Thermal Unit 110.52 BTU/hr (Access)
16.95 BTU/hr (HDD Hibernation)
Notes
  • For more information on how power consumption is measured, refer to this article.
  • Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two GRAS 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature

Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Operating humidity 8% to 80% RH
Relative Humidity 5% to 95% RH

Certification

  • UKCA
  • BIS
  • EAC
  • VCCI
  • CCC
  • RCM
  • KC
  • FCC
  • CE
  • BSMI

Warranty

2-year hardware warranty
Notes
  • The warranty period starts from the purchase date as stated on your purchase receipt.
  • Extended Warranty Plus is only available in Europe and North America. Refer to the Extended Warranty Plus website for details on supported countries/regions

Environment

RoHS Compliant

Packaging Content

  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Adapter X 1
  • AC Power Cord X 1
  • RJ-45 LAN Cable X 2
  • Quick Installation Guide X 1

Optional Accessories

  • Enterprise Series 3.5" SATA HDD: HAT5300 Series
  • Plus Series 3.5" SATA HDD: HAT3300 Series
  • Enterprise Series 2.5" SATA SSD: SAT5200 Series

Documentation:

Download the Synology DiskStation DS423 Datasheet  (PDF).

It appears you don't have a PDF plugin for this browser. No biggie... you can click here to download the PDF file.
