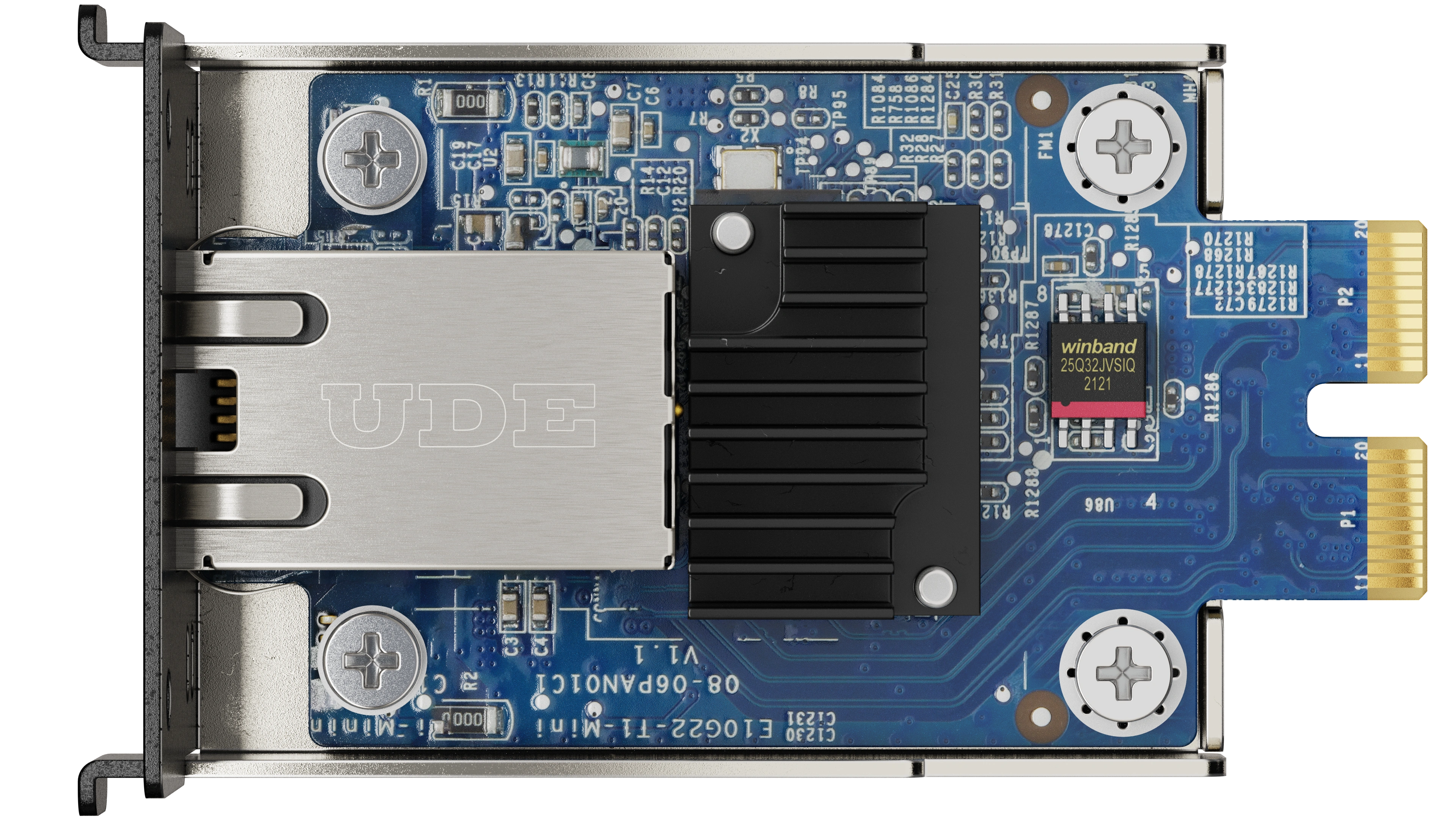

Synology E10G22-T1-Mini
10GbE RJ-45 network upgrade module for compact Synology servers
Overview:
Maximize bandwidth to tackle heavy-duty applications
The Synology E10G22-T1-Mini Network Upgrade Module is designed to easily and quickly upgrade your Synology system with 10GbE connectivity. Simple installation, low implementation cost, and support for nearly any network environment makes it the ideal solution for small businesses and home users looking to maximize the performance potential of their deployments.
Throughput
Expand system capabilities with 10GbE connectivity
Flexibility
Integrate easily with support for 10/5/2.5/1 Gbps networks
Compatibility
Designed for maximum performance and reliability in Synology systems
Simple installation
Install the E10G22-T1-Mini through the dedicated and easily-accessible network upgrade slot to instantly upgrade bandwidth availability in Synology servers featuring compact-size enclosures
Multi-gig support
Integrates easily into any network using standard Ethernet cabling. Autonegotiation automatically determines the best data rate (between 10, 5, 2.5, 1 Gbps, and 100 Mbps) for your network environment, simplifying network setup.
Technical Specifications:
| Hardware Specifications: | |
|---|---|
| General Specifications | |
| Host Bus Interface | PCIe 3.0 x2 |
| Size (Height x Width x Depth) | 26.37 mm x 45.38 mm x 75.7 mm |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Relative Humidity | 5% to 95% RH |
| Warranty | 3 Years |
| Network | |
| IEEE Specification Compliance |
|
| Data Transfer Rates | 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps |
| Supported Features |
|
| Compatibility | |
| Applied Models |
|
| Notes | DSM version requirement: 7.1.1-42962 Update 4 or later version |
Documentation:
Download the Synology E10G22-1-Mini Network Upgrade Datasheet (PDF).
