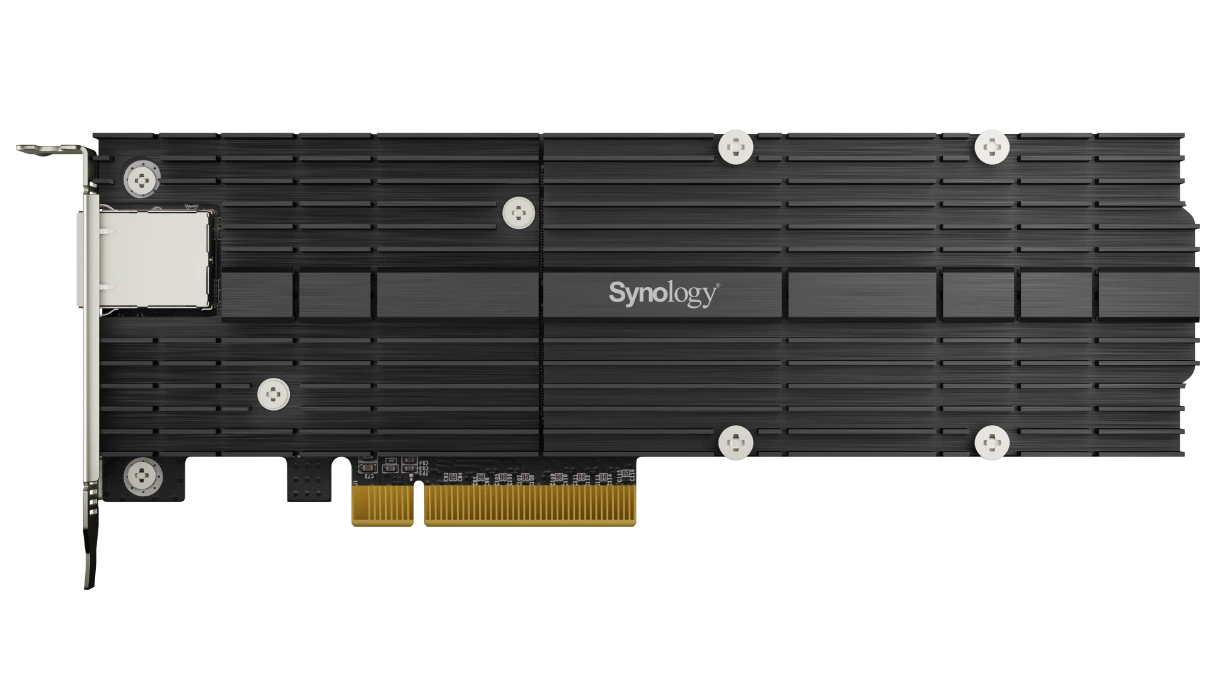

Synology E10M20-T1
M.2 SSD & 10GbE combo adapter card for performance acceleration
Synology Products
Synology Add-in Cards
Overview:
10GbE bandwidth and M.2 SSD cache, all at once
Synology E10M20-T1 helps you boost I/O performance and network bandwidth simultaneously using just one PCIe expansion slot on your Synology NAS.
10GbE Ready
Achieve Multi-Gig Ethernet transmission speeds of up to 10 Gbps.
NVMe enabled
Accelerate random I/O performance with the dual M.2 2280/22110 NVMe SSD slots.
Dedicated cache slots
Free up primary drive bays for data storage.
Technical Specifications:
| Hardware Specifications: | |
|---|---|
| General Specifications | |
| Host Bus Interface | PCIe 3.0 x8 |
| Bracket Height | Low Profile and Full Height |
| Size (Height x Width x Depth) | 71.75 mm x 200.05 mm x 17.70 mm |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Relative Humidity | 5% to 95% RH |
| Warranty | 5 Years |
| Storage | |
| Storage Interface | PCIe NVMe |
| Supported Form Factor | 22110 / 2280 |
| Connector Type and Quantity | M-key, 2 Slots |
| Network | |
| IEEE Specification Compliance |
|
| Data Transfer Rates | 10 Gbps |
| Network Operation Mode | Full Duplex |
| Supported Features |
|
| Applied Models | |
| NVMe SSD |
|
| Notes |
|
- All Prices are Inclusive of GST
- Pricing and product availability subject to change without notice.
