Synology FlashStation FS3410
Economical, high-performance data management solution for SMBs

Synology Products
Synology FlashStation Series

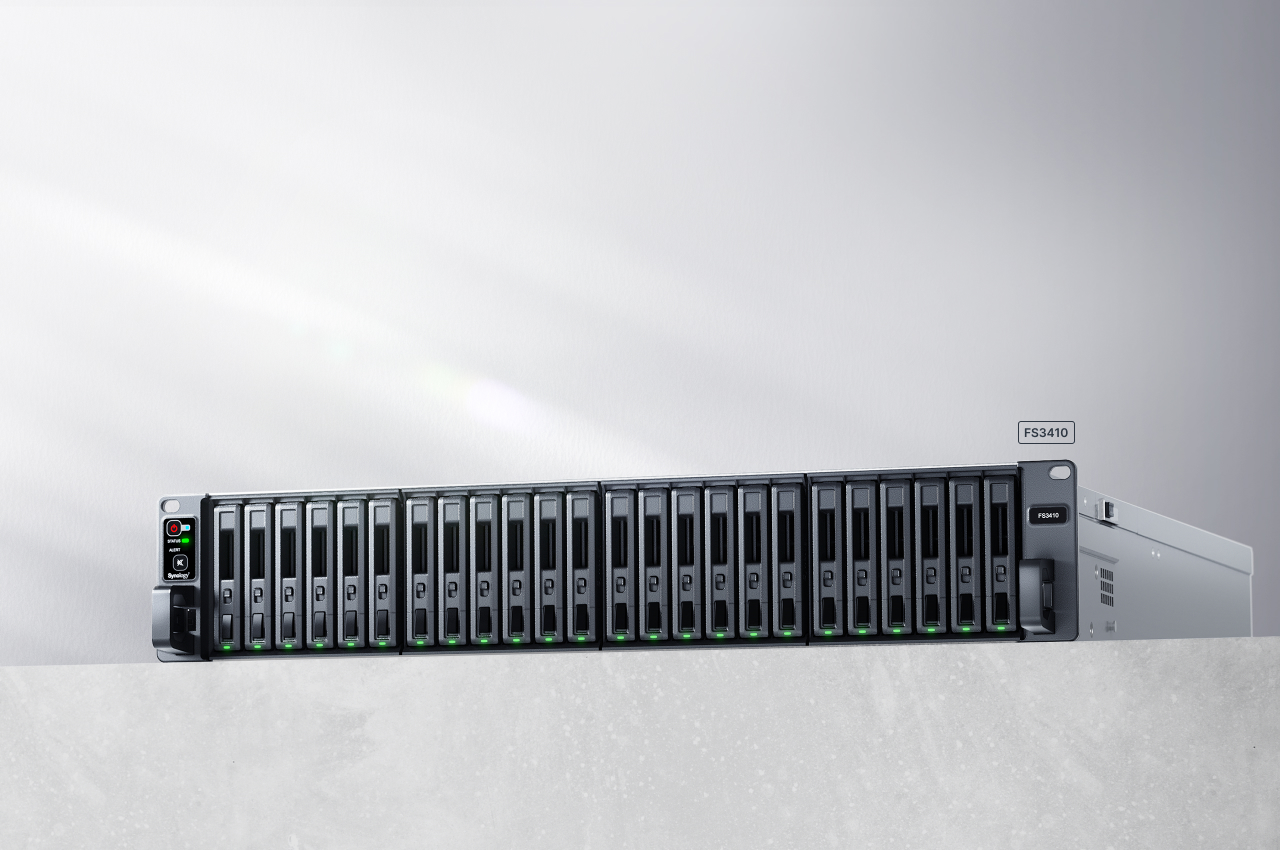

Synology FlashStation FS3410 24 Bay Flash Storage Array
#FS3410
Our Price: Request a Quote

Want to build a custom bundle? Contact us!

Click here to jump to more pricing!

Please Note: All Prices are Inclusive of GST

Overview:

Synology FlashStation FS3410 is a 24-bay all-flash server engineered to boost the responsiveness of I/O-intensive applications. Lightning-fast data transfer speeds, comprehensive connectivity options, and built-in high-availability safeguards make it the ideal platform to support latency-sensitive applications for which data and service uptime is of paramount importance.


Harness all-flash storage to speed up business workflows

Storage

Supports 24 x 2.5” SATA SSDs

Throughput

Over 356,500/129,400 iSCSI 4K random read/write IOPS

Memory

16 GB DDR4 ECC RDIMM, up to 128 GB

Expandability

Optional 25/40GbE through PCIe 3.0 expansion


Powerful flash storage server

Combine all-flash performance with Synology systems’ ease of use and reliability. The FS3410 is designed to tackle scenarios that require high throughput and low latency.

Features:

Built for high reliability

The FS3410 is built to keep mission-critical data and services always accessible, enabling businesses to continue to perform even when disaster strikes.

Simplify troubleshooting by managing powered-down devices remotely and accessing critical logs through a dedicated interface.
Redundant PSU units reduce the possibility of power disruptions on a single distribution channel or PDU adversely impacting data and service availability.
Pair two FS3410 units with Synology High Availability to enable automatic minute-level failover in the event of server failure or to minimize downtime when performing system updates or upgrades.

Powerful networking options

The FS3410 supports a wide range of networking interfaces, protocols, and configurations, whether you need fast sequential transfer, support for simultaneous connections, or high network redundancy.

Two 10GbE RJ-45 ports and four Gigabit Ethernet ports allow for rapid transfer speeds right out of the box.
Add up to 2 x 10/25/40GbE network interface cards using the 2 x PCIe 3.0 slots to enable lightning fast networking in minutes.
Bond multiple network interfaces with Link Aggregation to enable automatic network failover and load balancing.

Versatile data storage

The FS3410 fits perfectly in file server, block storage, or light application server roles that require high availability, reliability, and leading-edge storage technology.

VM storge & protection

High-performance file serving & syncing

Business application platform


Get more with DiskStation Manager

Take advantage of a whole host of native productivity, management, and security solutions available on the web-based Synology DSM operating system.


Data Protection

Keep your business safe from data loss and minimize service downtime.

User Management

Manage user accounts and devices throughout your business with powerful directory services.

Security

Shield your Synology NAS from the most sophisticated threats with industry-leading security solutions.

File Management

Manage, sync, and share files from multiple devices through a centralized platform.

System Administration

Manage the health of your deployments and centrally administer updates with ease.

Public Cloud Integration

Back up and synchronize data easily between public cloud accounts and your NAS.

Specifications:

FS3410Hardware Specifications:
Hardware Specifications
CPU Model Intel Xeon D-1541
CPU Core 8
CPU Architecture 64-bit
CPU Frequency 2.1 (base) / 2.7 (turbo) GHz
Hardware encryption engine Yes (AES-NI)
Memory 16 GB DDR4 ECC RDIMM
Memory Module Pre-instaled 16 GB (16 GB x 1)
Total Memory Slots 4
Maximum Memory Capacity 128 GB (32 GB x 4)
Drive Bays 24
Compatible drive type 2.5" SATA SSD
Hot swappable drive
External port
  • 4 x RJ-45 1GbE LAN Port
  • 2 x RJ-45 10GbE LAN Port
Out-of-Band Management LAN Port 1
Max. Number of LAN Ports 15
USB 3.2 Gen 1 Port 2
PCIe Expansion 2 x Gen3 x8 slots (x8 link)
Form Factor (RU) 2U
Size (Height x Width x Depth) 88 mm x 482 mm x 724 mm
Weight 15 kg
Rack Installation Support 4-post 19" rack (Synology Rail Kit - RKS-02)
Notes The rail kit is sold separately
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
System fan 80 mm x 80 mm x 4 pcs
Easy Replacement System Fan
Power Recovery
Noise Level 46.1 dB(A)
Power Recovery
Wake on LAN/WAN
Power Supply Unit/Adapter 550 watts
Redundant Power Supply
AC input power voltage 100 V to 240 V AC
Power Frequency 50 to 60Hz, single phase
Power Consumption 113.84 watts (Access)
British Thermal Unit 388.70 BTU/hr (Access)
Operating Temperature 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certifications and Packaging
Environment safety RoHS compliant
Package content
  • 1 x FS6400 main unit
  • 1 x Quick Installation Guide
  • 1 x Accessory pack
  • 2 x AC power cords
Optional accessories
  • DDR4 ECC RDIMM: D4ER01-16G*/D4ER01-32G
  • Enterprise Series 2.5" SATA SSD: SAT5200 Series
  • 25GbE Network Interface Card: E25G30-F2
  • 10GbE Network Interface Card: E10G30-F2 / E10G30-T2 / E10G18-T1
  • Rail Kit Sliding: RKS-02
Warranty 5 Years

Documentation:

Download the Synology FlashStation FS3410 Datasheet  (PDF).

It appears you don't have a PDF plugin for this browser. No biggie... you can click here to download the PDF file.

Warranty Icon

Synology has you covered

The FS3410 is backed by Synology's 5-year limited warranty, including technical support and hardware replacement services to maximize your return on investment and ensure continued high-quality performance.
