Synology M2D18

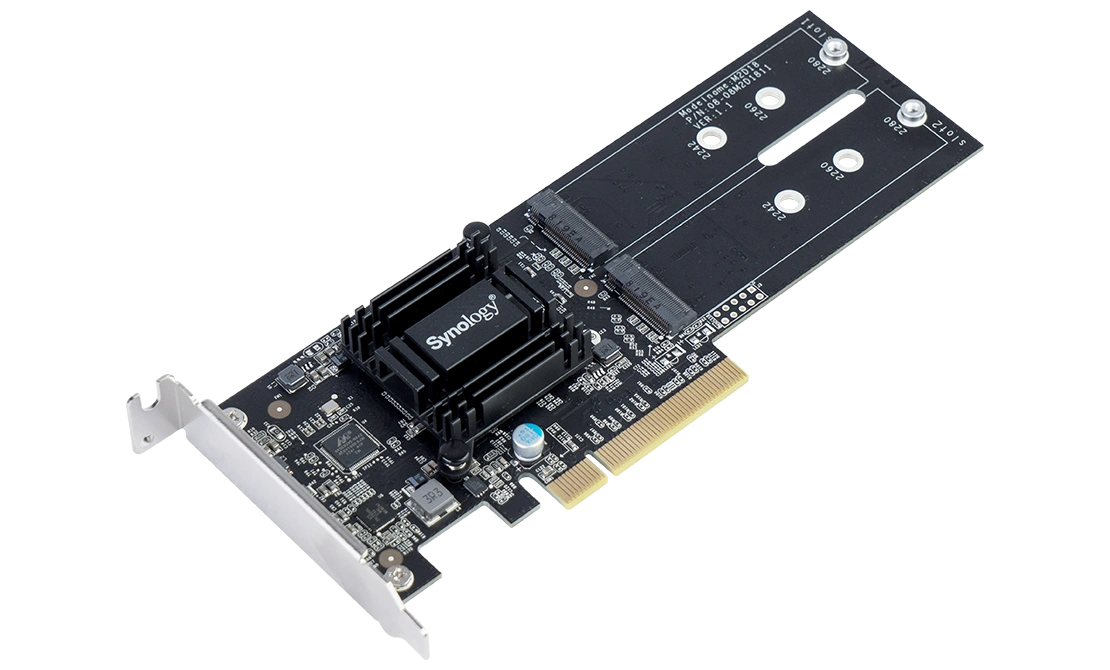

Dual M.2 SSD adapter card for extraordinary cache performance

Expansion Unit RX418

Synology Products
Synology Add-in Cards
Synology M2D18 Adapter Card
#M2D18
Our Price: Request a Quote

Want to build a custom bundle? Contact us!

Click here to jump to more pricing!

Please Note: All Prices are Inclusive of GST

Overview:

Elevate Your Storage Performance To the Next Level

Designed to supercharge your NAS I/O performance, Synology M.2 SSD adapter M2D18 significantly reduces random I/O latency, benefiting applications such as photo indexing, file search, and virtualization environments.

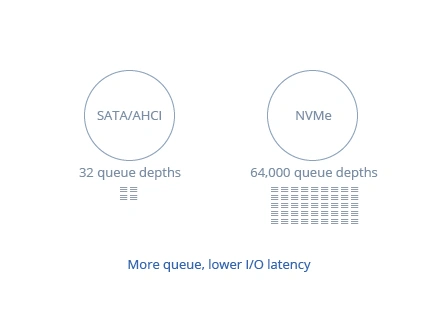

The dual M.2 SSD slots support both SATA and NVMe SSD, meaning higher SSD read/write caching and more primary drive bays reserved for data storage. Attachable heatsink accelerates thermal dispatching of M.2 SSD and assures system stability with excellent performance. Its flexibility in supporting 2280/2260/2242 form factors and meeting various SSD options saves you from vendor lock-in.

Technical Specifications:

Hardware Specifications:
General Specifications
Host Bus Interface PCIe 2.0 x8
Bracket Height Low Profile and Full Height
Size (Height x Width x Depth) 70 mm x 180 mm x 18 mm
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Warranty 3 Years
Storage
Storage Interface PCIe NVMe / SATA
Supported Form Factor 2280 / 2260 / 2242
Connector Type and Quantity M-key, 2 Slots
Applied Models
NVMe & SATA SSD
  • FS Series: FS1018
  • 22 Series: RS822RP+, RS822+
  • 21 Series: RS1221RP+, RS1221+
  • 20 Series: RS820RP+, RS820+
  • 19 Series: DS2419+II, DS2419+, DS1819+
  • 18 Series: RS2818RP+, RS2418RP+, RS2418+, DS3018xs, DS1618+
SATA SSD
  • FS Series: FS2017
  • 19 Series: RS1219+
  • 18 Series: RS3618xs, RS818RP+, RS818+
  • 17 Series: RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, DS3617xsII, DS3617xs, DS1817+, DS1517+
Notes
  • DSM version requirement: 6.2-23739-2 onward (or 6.1-15284-2 onward with DSM 6.1)
  • Operating system requirement for RS1221RP+, RS1221+, RS822RP+, and RS822+: DSM 7.2-64551 or later
  • Hardware support: RS1221RP+, RS1221+, RS822RP+, and RS822+ support M.2 NVMe SSD with the M2D18 add-in card
