Overview:

Boost storage performance for demanding workloads

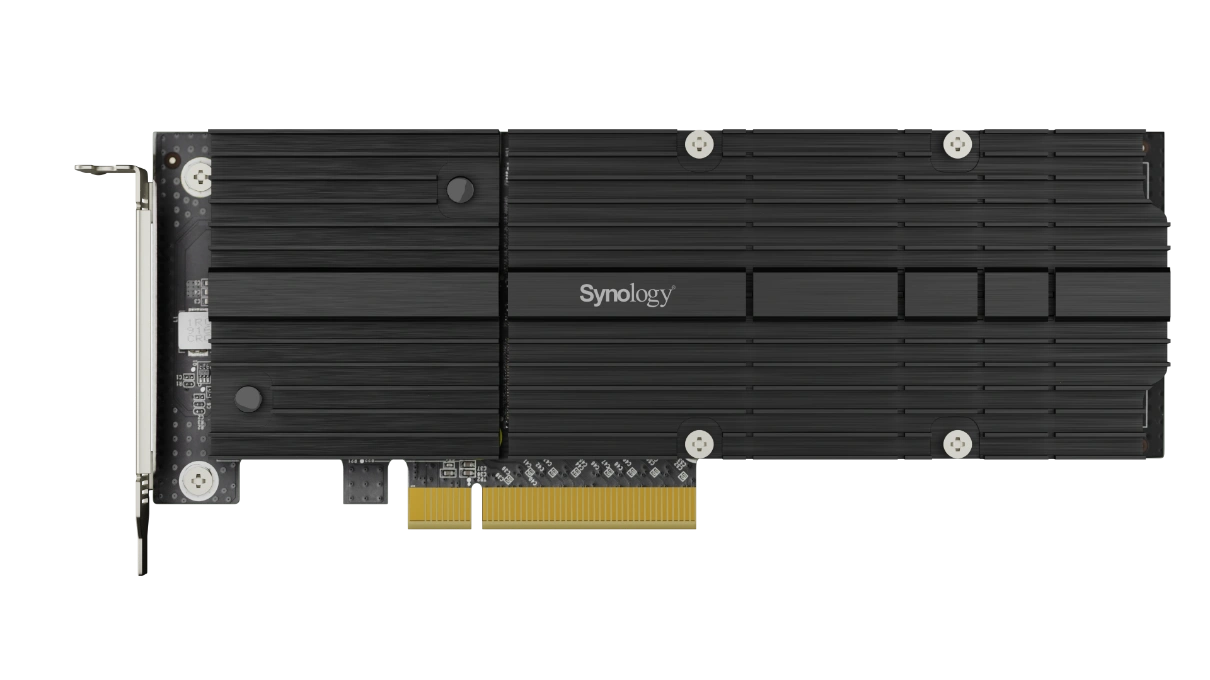

Synology M2D20 is a M.2 NVMe SSD adapter card designed to supercharge your NAS I/O performance. The multi-queue capability of NVMe SSD greatly benefits latency-sensitive applications such as photo indexing, file search, and virtualization deployments.

NVMe enabled

Accelerate random I/O performance with the dual M.2 2280/22110 NVMe SSD slots.

Dedicated cache slots

Free up primary drive bays for data storage.


Easy IT upgrade

Upgrade your existing storage infrastructure efficiently.

Technical Specifications:

Hardware Specifications:
General Specifications
Host Bus Interface PCIe 3.0 x8
Bracket Height Low Profile and Full Height
Size (Height x Width x Depth) 71.75 mm x 181.9 mm x 15.8 mm
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Warranty 5 Years
Storage
Storage Interface PCIe NVMe
Supported Form Factor 22110 / 2280
Connector Type and Quantity M-key, 2 Slots
Applied Models
NVMe SSD
  • SA Series: SA6400, SA3610, SA3600, SA3410, SA3400
  • 25 Series: RS2825RP+
  • 23 Series: RS2423RP+, RS2423+
  • 22 Series: RS822RP+, RS822+, DS3622xs+, DS2422+
  • 21 Series: RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+
  • 20 Series: RS820RP+, RS820+
  • 19 Series: DS2419+II, DS2419+, DS1819+
  • 18 Series: RS3618xs, RS2818RP+, RS2418RP+, RS2418+, DS3018xs, DS1618+
  • 17 Series: RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, DS3617xsII, DS3617xs
Notes
  • DSM version requirement: 6.2.3-25426 or later version
  • DSM version requirement for RS18017xs+, RS4017xs+, RS3618xs, RS3617xs+, RS3617RPxs, DS3617xs and DS3617xsII: 7.0.1 or later version
