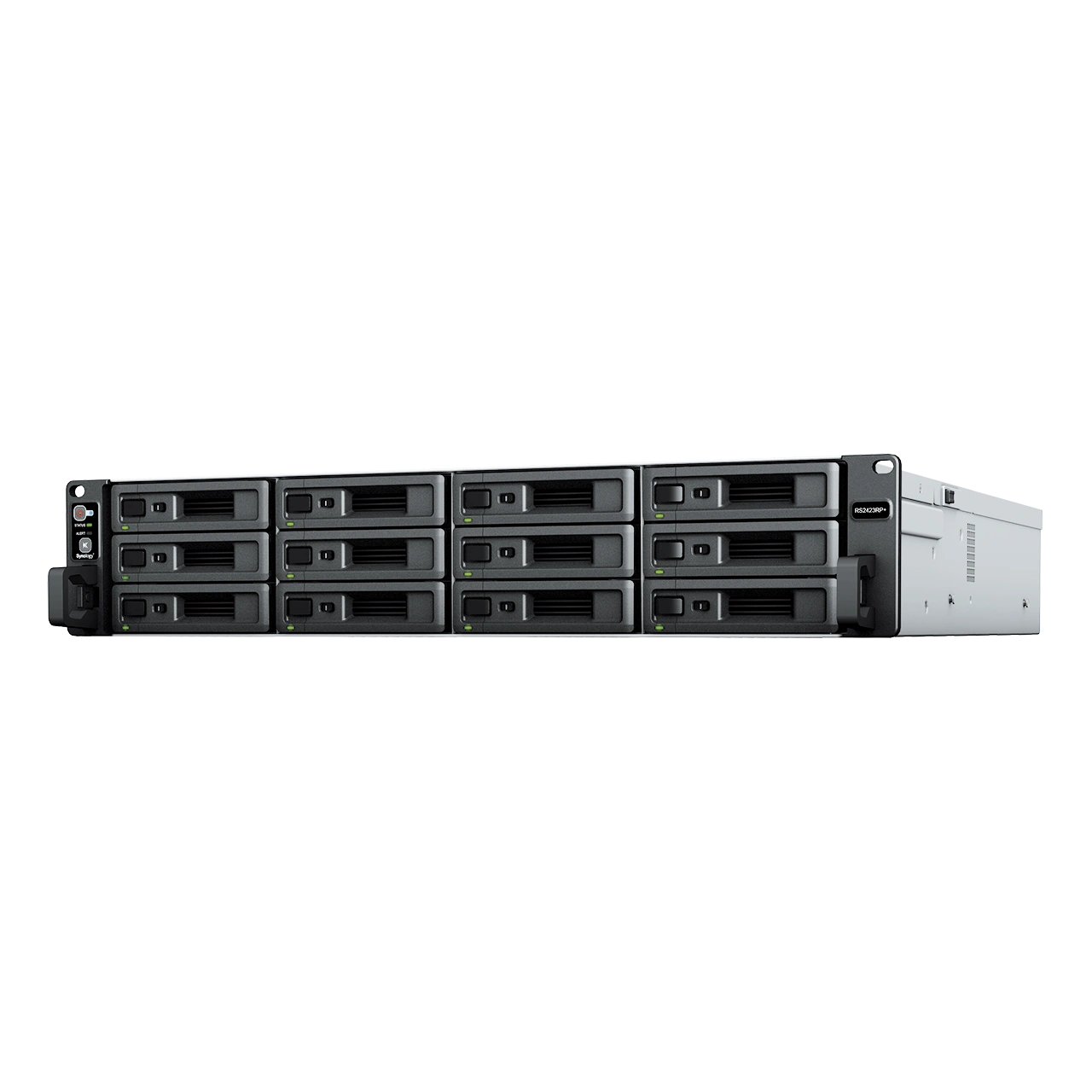

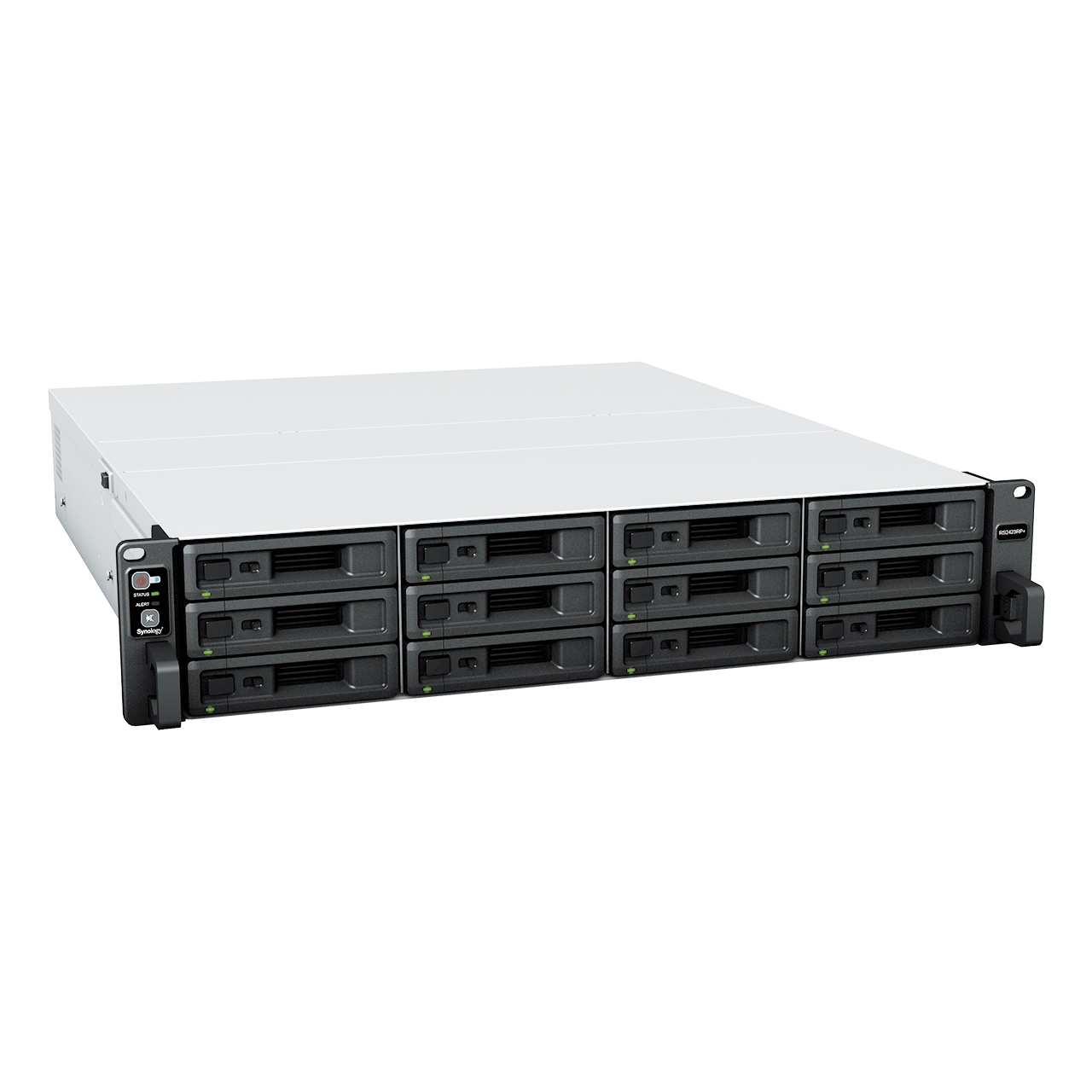

Synology Rackstation RS2423
Efficient storage for centralized data management
Overview:
Secure storage for your business
Business-ready
Over 3,500/1,700 MB/s seq. read/write, built-in 10GbE, and up to 240 TB raw storage before expansion.
Flexible configuration

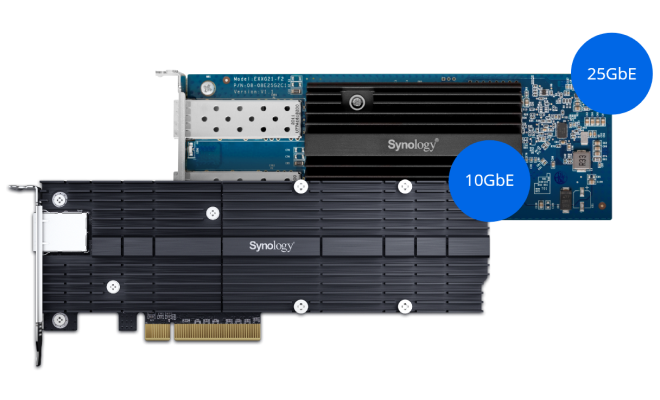

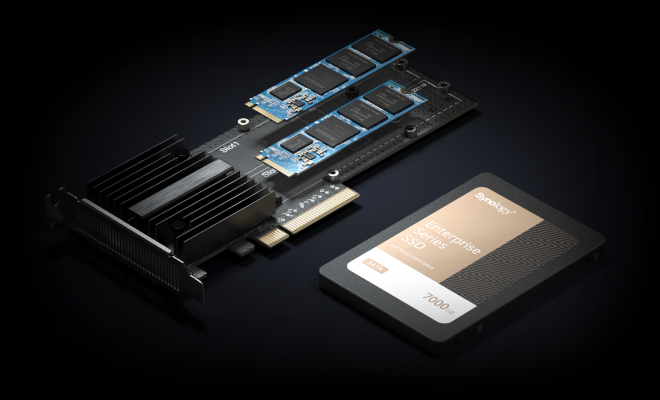

Add 12 extra drive bays,1/10/25GbE ports, and SSD cache volumes whenever needed.
Versatile applications
Back up 300 endpoints, manage 50 IP cameras, or safely sync and share files between devices and sites.
A compact design for space efficiency
The RS1221+ and its RX418 expansion units are designed to help you save space in compact deployments. At only 30 centimeters, half the length of a typical 2U unit, it fits perfectly snug onto 2-post or shallow rackmount enclosures. The RS1221RP+ with dual power supplies comes in at 38 cm, also fitting most shallow depth enclosures.
- Fits into shallow rackmount enclosures
- Easy-to-install on 2-post racks

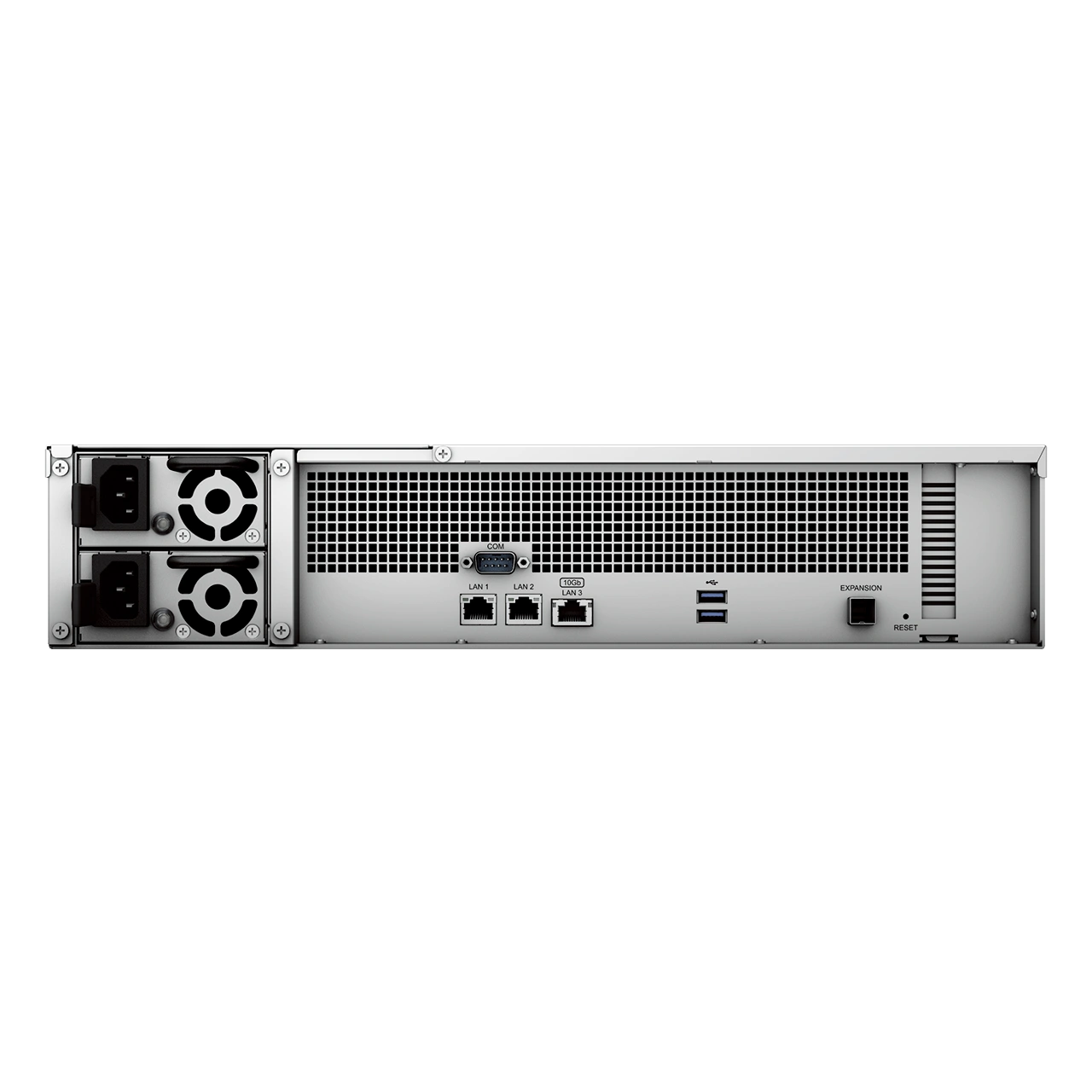

- The RS2423RP+ and RS2423+ come with one 10GbE RJ-45 port and two Gigabit RJ-45 ports, which can be bonded with Link Aggregation to enable automatic network failover and load balancing.
- Two RS2423RP+/RS2423+ units can be paired using Synology High Availability to form a reliable active-passive server cluster, maximizing service uptime.

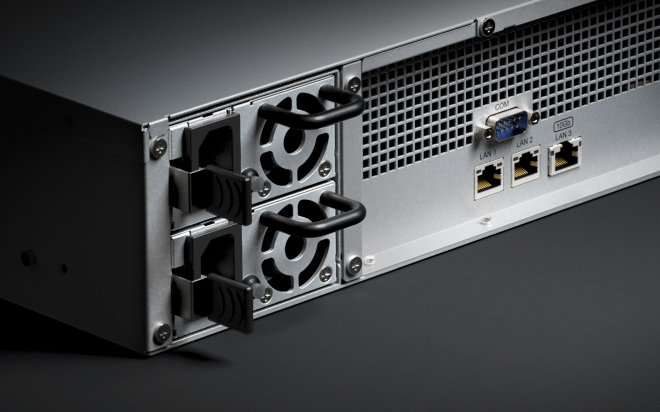

- The RS2423RP+ also features redundant and hot-swappable power supply units to protect service continuity in case there are issues with one power source.
Features:

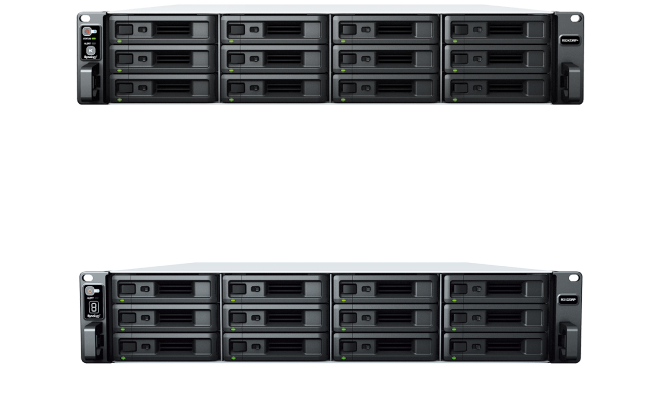

Room for expansion
Easily adjust the 2U 12-bay RS2423RP+/RS2423+ to match the usage of your environment, whether it needs performance, faster networking, or higher storage capacity.
Versatile storage for businesses
The RS2423RP+/RS2423+ are ideal for small to medium-sized businesses and branch offices seeking a high-performing, reliable, and cost-efficient storage solution for file management, data backup, and surveillance.
Intuitive storage for on-site and remote teams
Multi-endpoint data protection
Smart and scalable surveillance
Get more with DiskStation Manager
Take advantage of a host of native productivity, management, and security solutions available in the web-based Synology DSM operating system.
Central Management System
Conveniently manage your fleet of Synology NAS from a centralized console.
Security
Shield your Synology NAS from the most sophisticated threats with industry-leading security solutions.
Synology High Availability
Real-time system-level protection with automatic failover mechanism to maximize service availability.
Specifications:
| Hardware Specifications | RS2423RP+ | RS2423+ |
|---|---|---|
| CPU Model | AMD Ryzen V1780B | |
| CPU Core | 4 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 3.35 (base) / 3.6 (turbo) GHz | |
| Hardware encryption engine | ||
| Memory | 8 GB DDR4 ECC RDIMM | |
| Memory Module Pre-instaled | 8 GB (8 GB x 1) | |
| Total Memory Slots | 2 | |
| Maximum Memory Capacity | 32 GB (16 GB x 2) | |
| Drive Bays | 12 | |
| Maximum Drive Bays with Expansion Unit | 24 (RX1223RP x 1) | |
| Compatible drive type |
|
|
| Hot swappable drive | ||
| External port |
|
|
| Expansion Port | 1 | |
| Expansion Port Type | Mini-SAS HD | |
| PCIe Expansion | 1 x Gen3 x8 slot (x4 link) | |
| Form Factor (RU) | 2U | |
| Size (Height x Width x Depth) | 88 mm x 482 mm x 578 mm | 88 mm x 482 mm x 552 mm |
| Weight | 11.9 kg | 11.5 kg |
| Rack Installation Support | 4-post 19" rack (Synology Rail Kit - RKS-02) | |
| Notes | The rail kit is sold separately | |
| Fan Speed Mode |
|
|
| System fan | 60 mm x 60 mm x 3 pcs | |
| Easy Replacement System Fan | ||
| Power Recovery | ||
| Noise Level | 56.2 dB(A) | 52.3 dB(A) |
| Wake on LAN/WAN | ||
| Power Supply Unit/Adapter | 350 watts | 500 watts |
| Redundant Power Supply | - | |
| AC input power voltage | 100 V to 240 V AC | |
| Power Frequency | 50 to 60Hz, single phase | |
| Power Consumption |
114.86 watts (Access) 42.33 watts (HDD Hibernation) |
119.95 watts (Access) 46.21 watts (HDD Hibernation) |
| British Thermal Unit |
392.18 BTU/hr (Access) 144.53 BTU/hr (HDD Hibernation) |
409.56 BTU/hr (Access) 157.78 BTU/hr (HDD Hibernation) |
| Operating Temperature | 0°C to 35°C (32°F to 95°F) | |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
| Certifications and Packaging | ||
| Environment safety | RoHS compliant | |
| Package content |
|
|
| Optional accessories |
|
|
| Warranty | 3-year hardware warranty, extendable to 5 years with Extended Warranty Plus | |
Documentation:
Download the Synology RS2423RP+ Datasheet (PDF).
Download the Synology RS2423+ Datasheet (PDF).
Get extra protection with Extended Warranty Plus
Extend the standard 3-year hardware warranty of your RS2423RP+/RS2423+ with 2 more years of Synology-certified support and premium services that help you recover faster in the event of disaster.
