Synology Rackstation RS2825RP+
Reliable storage for data protection, file serving, and more.

Synology Products
Synology RackStation

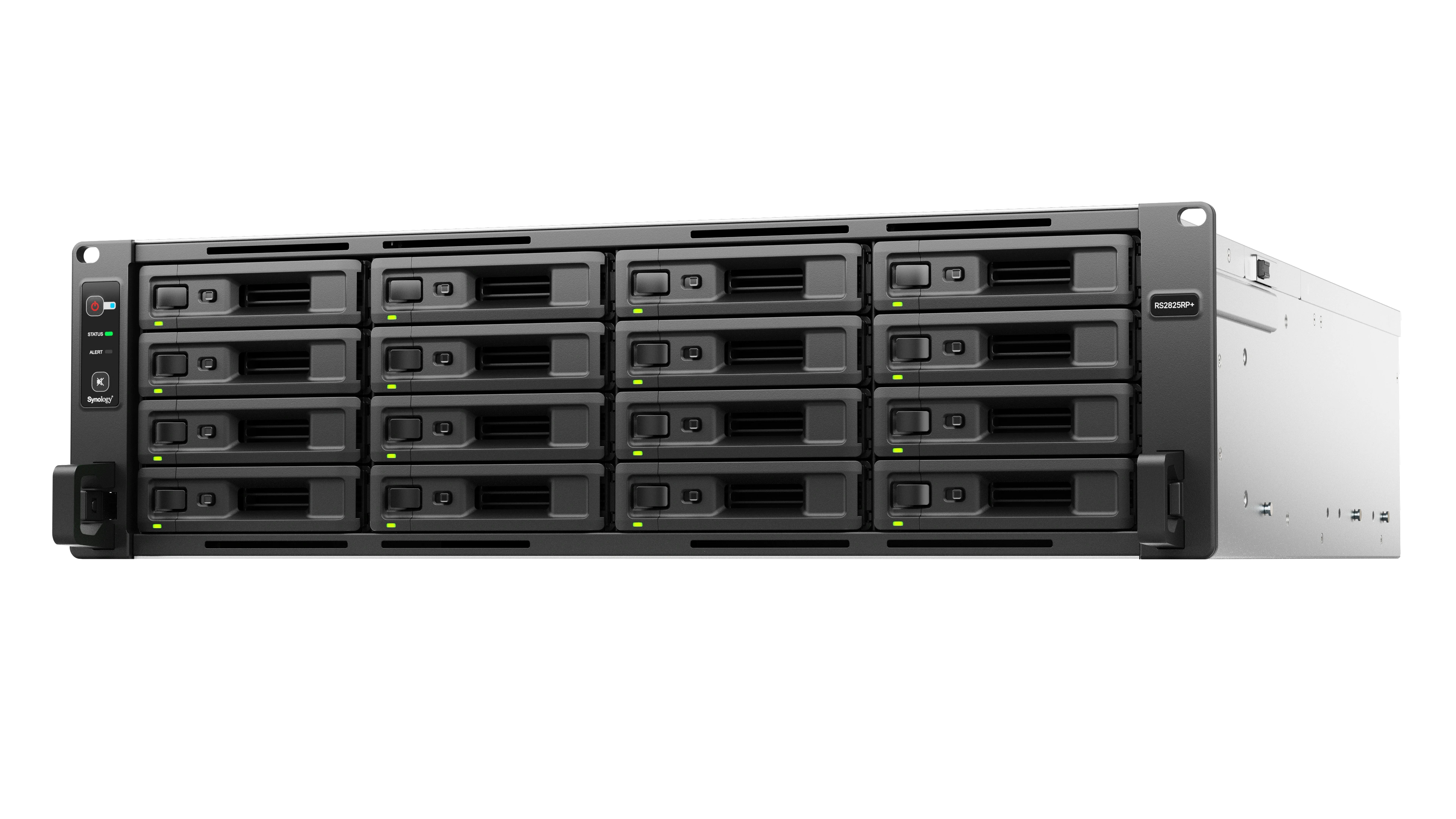

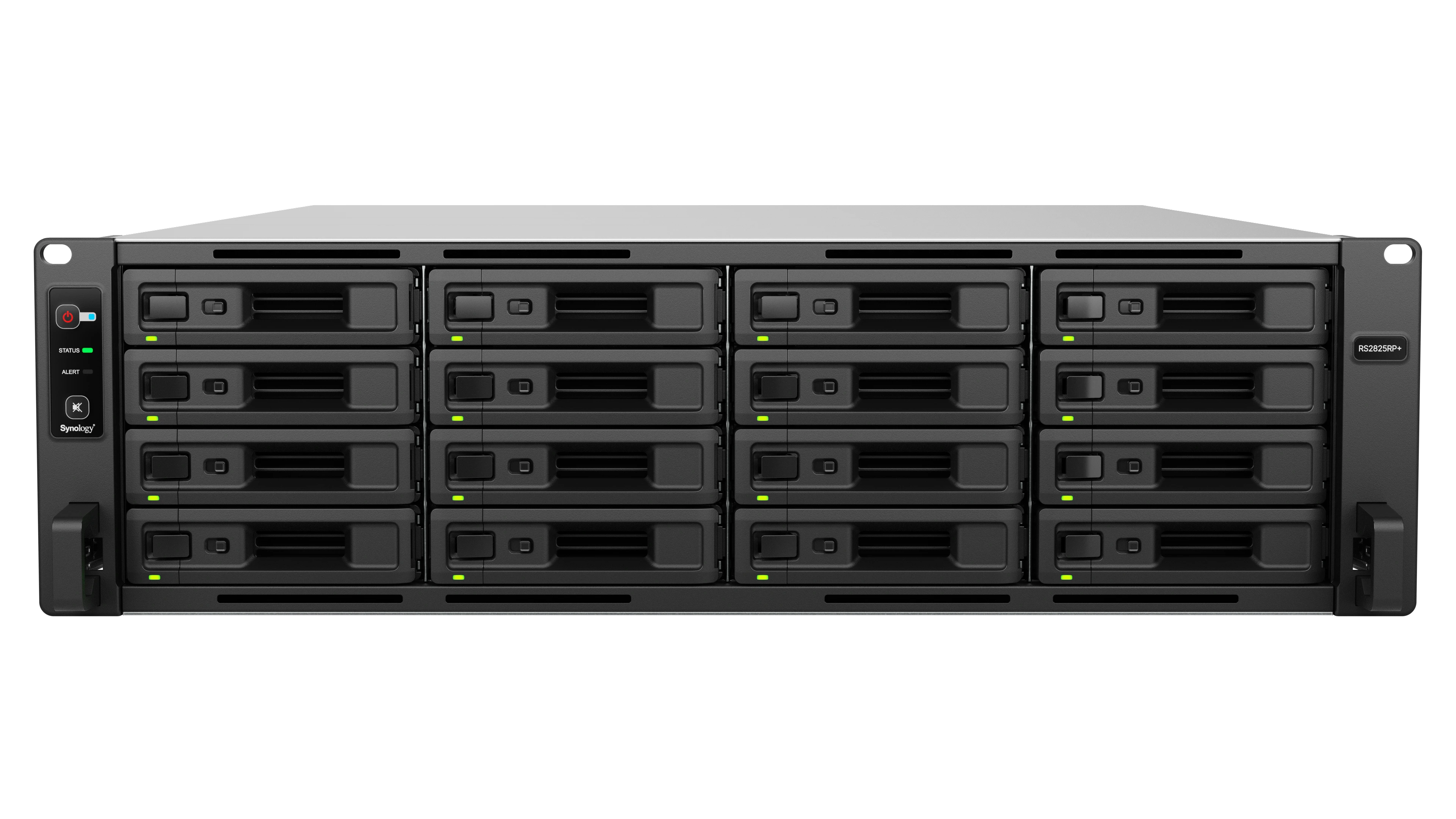

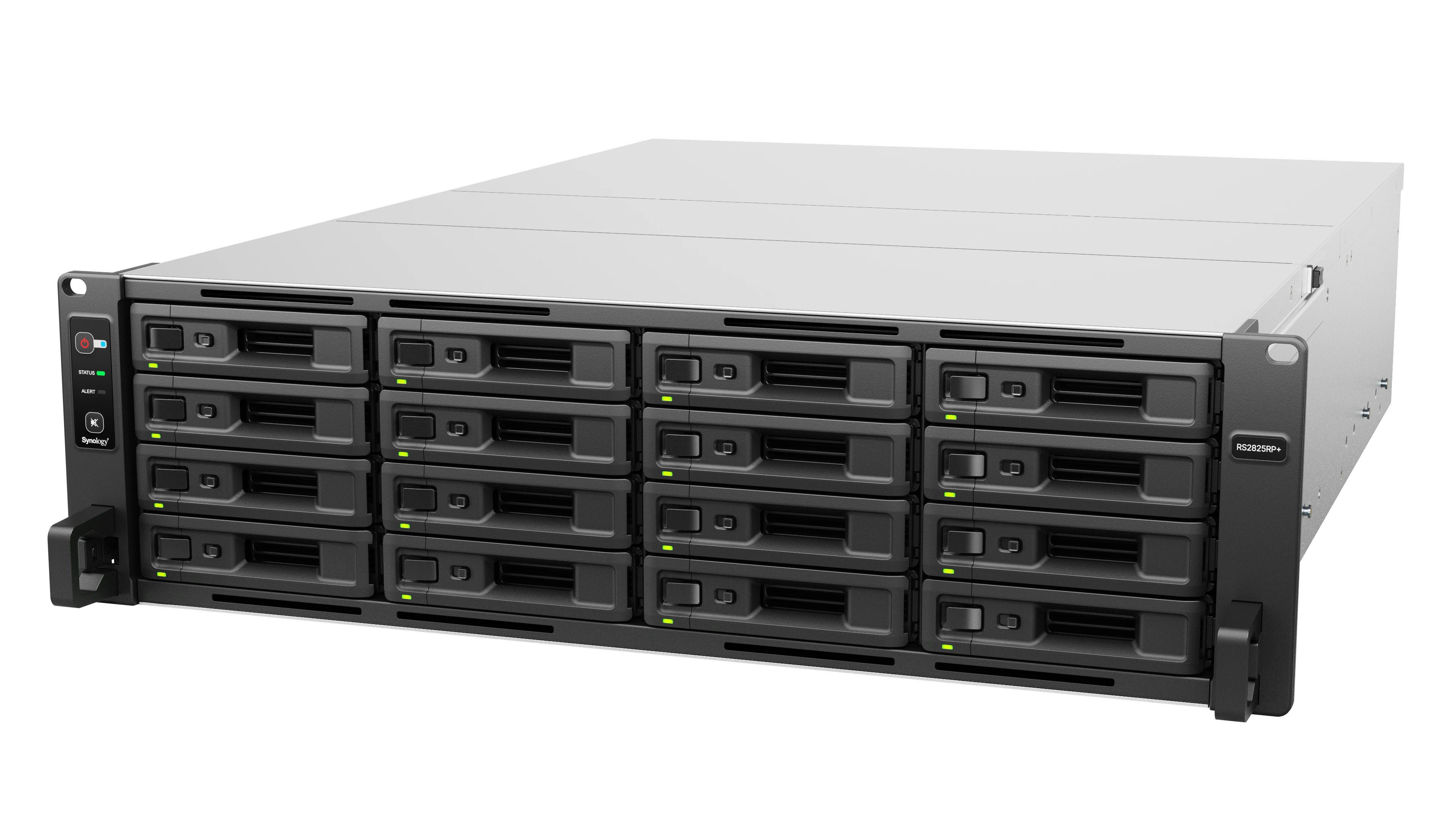

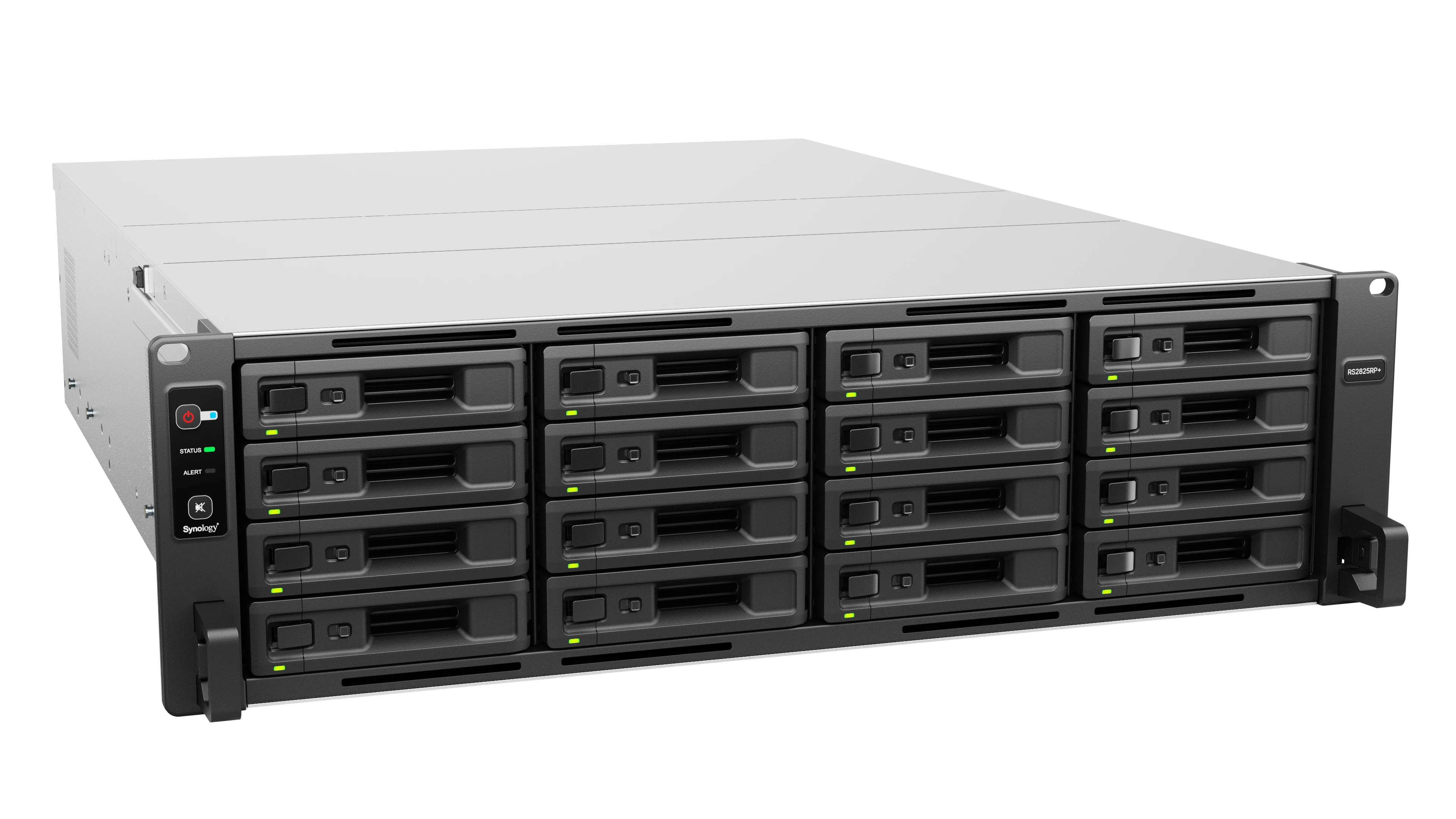

Synology RackStation RS2825RP+ 16 Bay NAS
#RS2825RP+
Our Price: Request a Quote

Want to build a custom bundle? Contact us!

Click here to jump to more pricing!

Please Note: All Prices are Inclusive of GST

Overview:

Reliable Data Management Solution for Business Workloads

The RS2825RP (redundant power) is a versatile and cost-effective 3U 16-bay storage system for central data storage and sharing, endpoint and server backup, surveillance management, and other business applications.


Versatile and scalable storage

Flexible storage with redundancy

Over 3,519/1,790 MB/s seq. read/write , built-in 10GbE, and up to 560 TB raw storage after expansion

Flexible configuration

Add 12 extra drive bays, 10/25GbE ports, and SSD cache volumes whenever needed

Versatile applications

Back up endpoints, manage 90 IP cameras, or safely sync and share files between devices and sites.

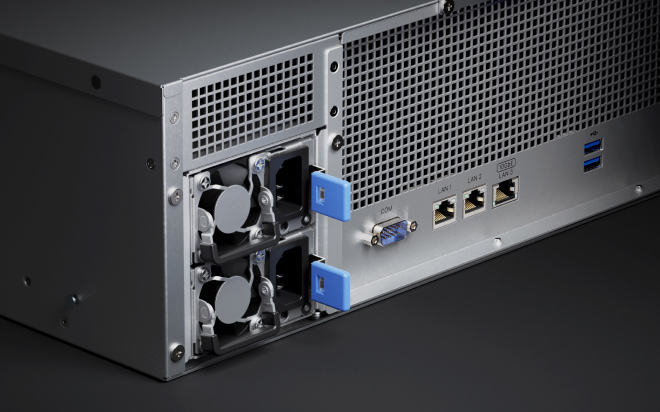

Built for reliability

Redundant power supplies ensure maximum server uptime by preventing single-point power failures.
Pair two identical devices with Synology High Availability and enable automatic minute-level failover between both devices in the event one server fails.
Built-in 1x 10GbE and 2x 1GbE ports can be bonded with Link Aggregation to enable automatic network failover and load balancing.

Features:

Room for expansion

Easily adjust the 2U 12-bay RS2423RP+/RS2423+ to match the usage of your environment, whether it needs performance, faster networking, or higher storage capacity.

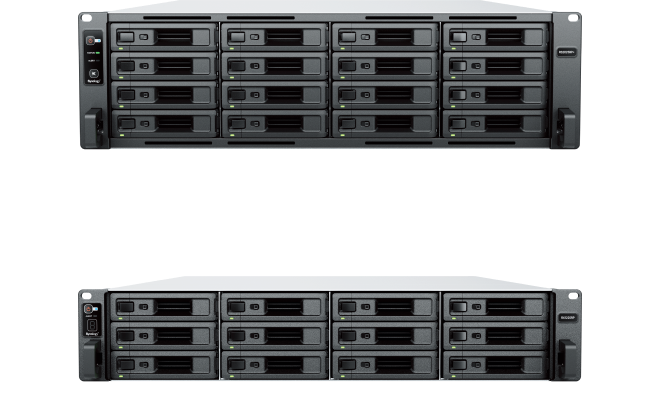

Add 12 extra drive bays for a total of 24 drive bays with a RX1223RP expansion unit
Boost read/write IOPS over HDD-only arrays by 16 times or more with NVMe or SATA SSD Cache
Improve I/O or add redundancy with 10/25GbE SFP+/SFP28 or RJ-45 networking.

Intuitive storage for on-site and remote teams

Provide secure and convenient cross-platform tile access, sharing, and synchronization across multiple locations.

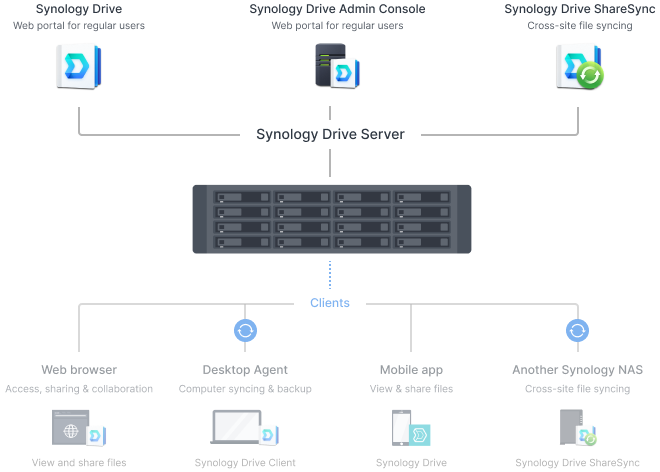

A secure private cloud solution for enterprise collaboration

Empower your entire organization with streamlined access, sharing, and syncing of data from any location. Establish granular control over file and folder access and sharing permissions. Maintain a comprehensive audit trail of file activities and track changes to file share settings with detailed records.
Access personal and shared data from mobile apps, desktop clients, web browsers, or another Synology system. Any changes you make are automatically synced to other devices as soon as they are connected.
Enhance workplace collaboration with Synology's productivity solutions. Create, edit, and share documents across teams in real time. Host an on-premises mail server to provide web-based email access while maintaining full data ownership. Additionally, stay connected through secure one-on-one chats, public channels, encrypted private channels, and group conversations.

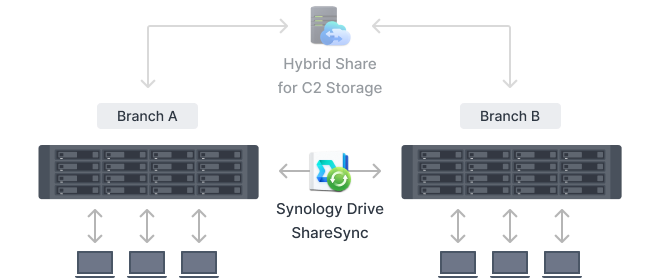

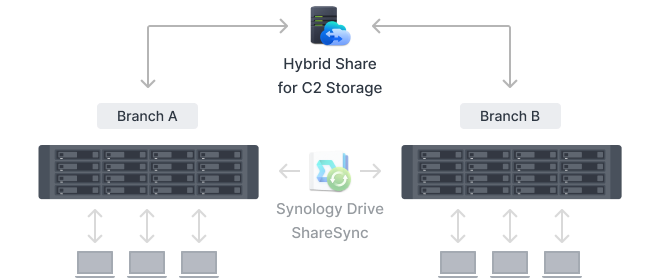

Efficient multi-site synchronization

Automate site-to-site data synchronization for better team workflows. Options for one-way or two-way syncing keeps files and folders up-to-date across every data site.
Empower global workflows with high-speed access to data from anywhere in your network. Our hybrid cloud solution caches frequently used files locally for rapid access, while less frequently accessed data is stored in the cloud, reducing your on-site storage requirements.
Automatically keep data in sync between Synology NAS and major cloud providers, including BackBlaze B2, Dropbox, Google Drive, and Microsoft OneDrive. Multiple protocol support, client-side encryption, and customizable sync and bandwidth controls enable efficient storage management across various platforms.

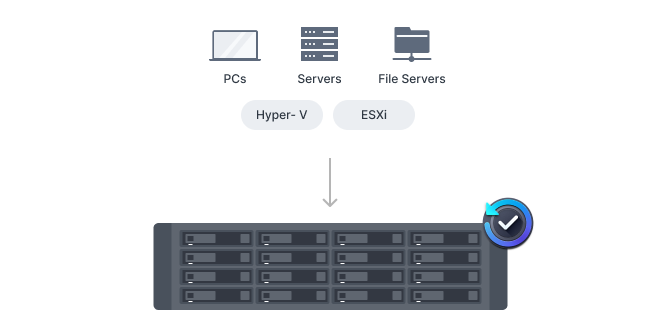

Comprehensive backup solutions

Securely back up a wide range of systems including Windows, Mac, and Linux endpoints, VMware® and Hyper-V® virtual machines, and Synology servers. Expand protection to physical servers running Windows or Linux, as well as storage solutions such as Nutanix Files, NetApp ONTAP, and Windows Server with VSS (Volume Shadow Copy Service).

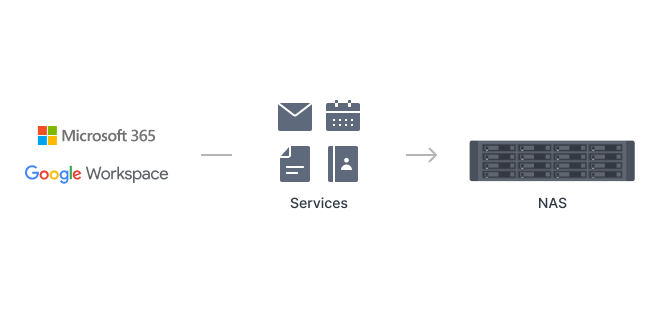

Centralize backups of Microsoft 365 and Google Workspace data to protect cloud data from accidents and simplify compliance with data retention policies. Schedulable backups, flexible file versioning, and block-level deduplication ensure flexibility and storage and bandwidth savings.

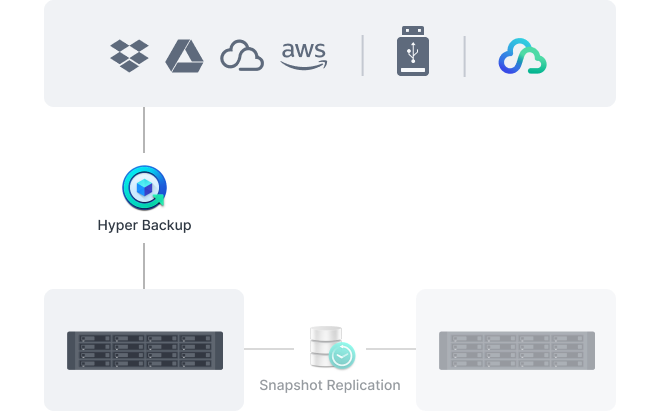

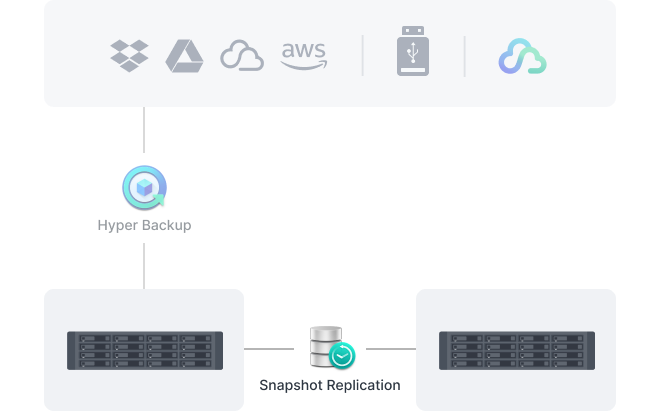

Advanced data protection and recovery

Back up entire systems or all data, applications, and configurations to a wide range of storage destinations, including Synology C2 Storage.
Safeguard critical LUNs and shared folders with automated immutable snapshots backed by custom retention policies. Built-in support for offsite replication further ensures robust business continuity.

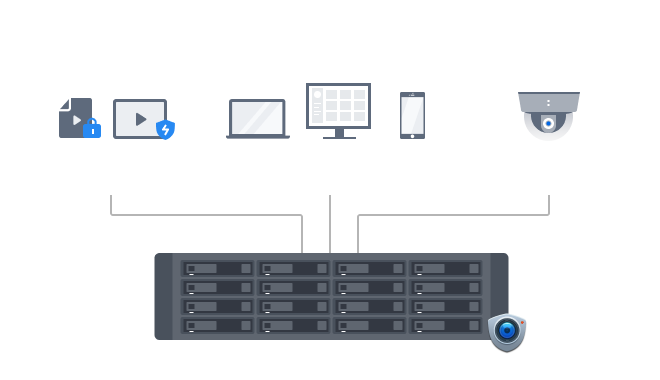

Surveillance

Protecting your business has never been easier, with centralized management, support for over 8,700 IP camera models, and remote monitoring and playback.
Secure your surveillance footage with robust cloud backup that supports end-to-end encryption. Our cloud-based surveillance backup solution safeguards your Surveillance Station recordings, allowing you to access, view, share, and download footage through a convenient web portal. Ensure your data remains available even if your on-premises system is compromised.

Centralized monitoring and management

Monitor and manage your Synology fleet from a central interface, on-prem or in the cloud.


Central Management System

Manage Synology servers from a central console using group policies, task delegation, batch updates, and more.

Active Insight

Monitor your global Synology fleet's performance, backup status, login activity, and more with the power of the cloud.

Specifications:

RS2825RP+ Hardware Specifications:
Hardware Specifications
CPU Model AMD Ryzen V1780B
CPU Core 4
CPU Architecture 64-bit
CPU Frequency 3.35 (base) / 3.6 (turbo) GHz
Hardware encryption engine
Memory 8 GB DDR4 ECC UDIMM
Memory Module Pre-instaled 8 GB (8 GB x 1)
Total Memory Slots 2
Maximum Memory Capacity 32 GB (16 GB x 2)
Drive Bays 16
Maximum Drive Bays with Expansion Unit 28 (RX1225RP x 1)
Compatible drive type
  • 2.5" SATA SSD
  • 3.5" SATA HDD
Hot swappable drive

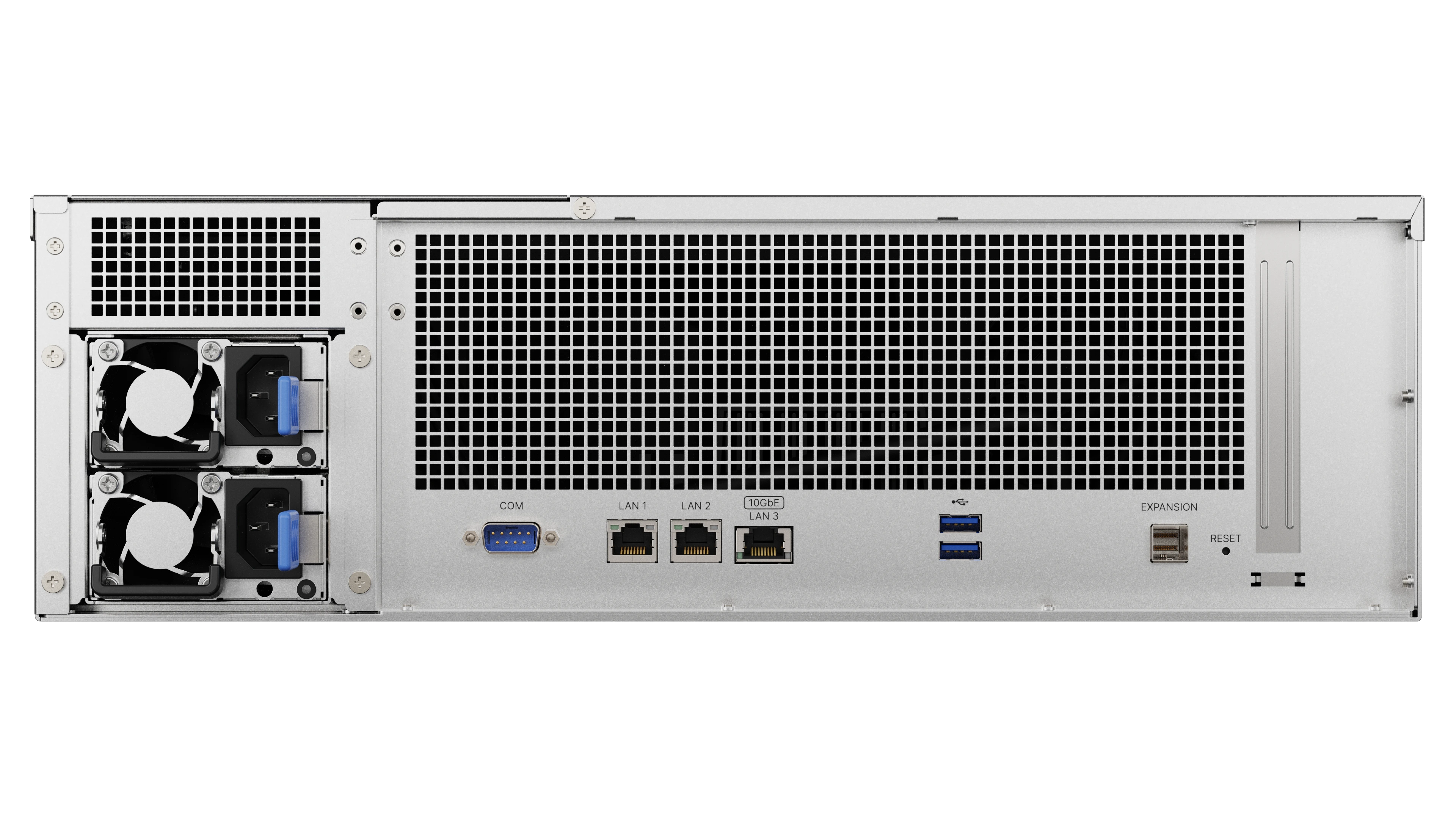

External port
  • 2 x RJ-45 1GbE LAN Port
  • 1 x RJ-45 10GbE LAN Port
  • 2 x USB 3.2 Gen 1 Port
Expansion Port 1
Expansion Port Type Mini-SAS HD
PCIe Expansion 1 x Gen3 x8 slot (x4 link)
Form Factor 3U
Size (Height x Width x Depth) 132.3 mm x 482 mm x 656.5 mm
Weight 17.3 kg
Rack Installation Support 4-post 19" rack (Synology Rail Kit - RKS-02)
Rack Installation Support The rail kit is sold separately
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
System fan 80 mm x 80 mm x 3 pcs
Easy Replacement System Fan
Power Recovery
Noise Level 49.6 dB(A)
Power Recovery
Wake on LAN/WAN
Power Supply Unit/Adapter 550 watts
Redundant Power Supply
AC input power voltage 100 V to 240 V AC
Power Frequency 50 to 60Hz, single phase
Power Consumption 134.48 watts (Access)
50.81 watts (HDD Hibernation)
British Thermal Unit 459.17 BTU/hr (Access)
173.49 BTU/hr (HDD Hibernation)
Operating Temperature 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certifications and Packaging
Environment safety RoHS compliant
Package content
  • 1 x Main unit
  • 1 x Accessory pack
  • 1 x AC power cords
Optional accessories
  • DDR4 ECC UDIMM: D4EU02-8G / D4EU02-16G
  • Expansion Units: RX1225RP
  • Enterprise Series 3.5" SATA HDD: HAT5300 Series
  • Plus Series 3.5" SATA HDD: HAT3300 Series
  • Enterprise Series 2.5" SATA SSD: SAT5200 Series
  • M.2 SSD & 10GbE Combo Adapter Card: E10M20-T1
  • M.2 SSD Adapter Card: M2D20
  • 25GbE Network Interface Card: E25G30-F2
  • 10GbE Network Interface Card: E10G30-F2 / E10G30-T2 / E10G18-T1
  • Rail Kit Sliding: RKS-02
Warranty 3-year hardware warranty, extendable to 5 years with EW202 or Extended Warranty Plus

Documentation:

Download the Synology RS2825RP+ Datasheet  (PDF).

It appears you don't have a PDF plugin for this browser. No biggie... you can click here to download the PDF file.

Warranty Icon

Extended protection with Extended Warranty

The RS2825RP+ is backed by Synology’s 3-year hardware warranty. An optional 2-year extended warranty is available in select regions to extend coverage to 5 years.
