Synology Rackstation RS822
Reliable data management for remote and branch offices
Overview:

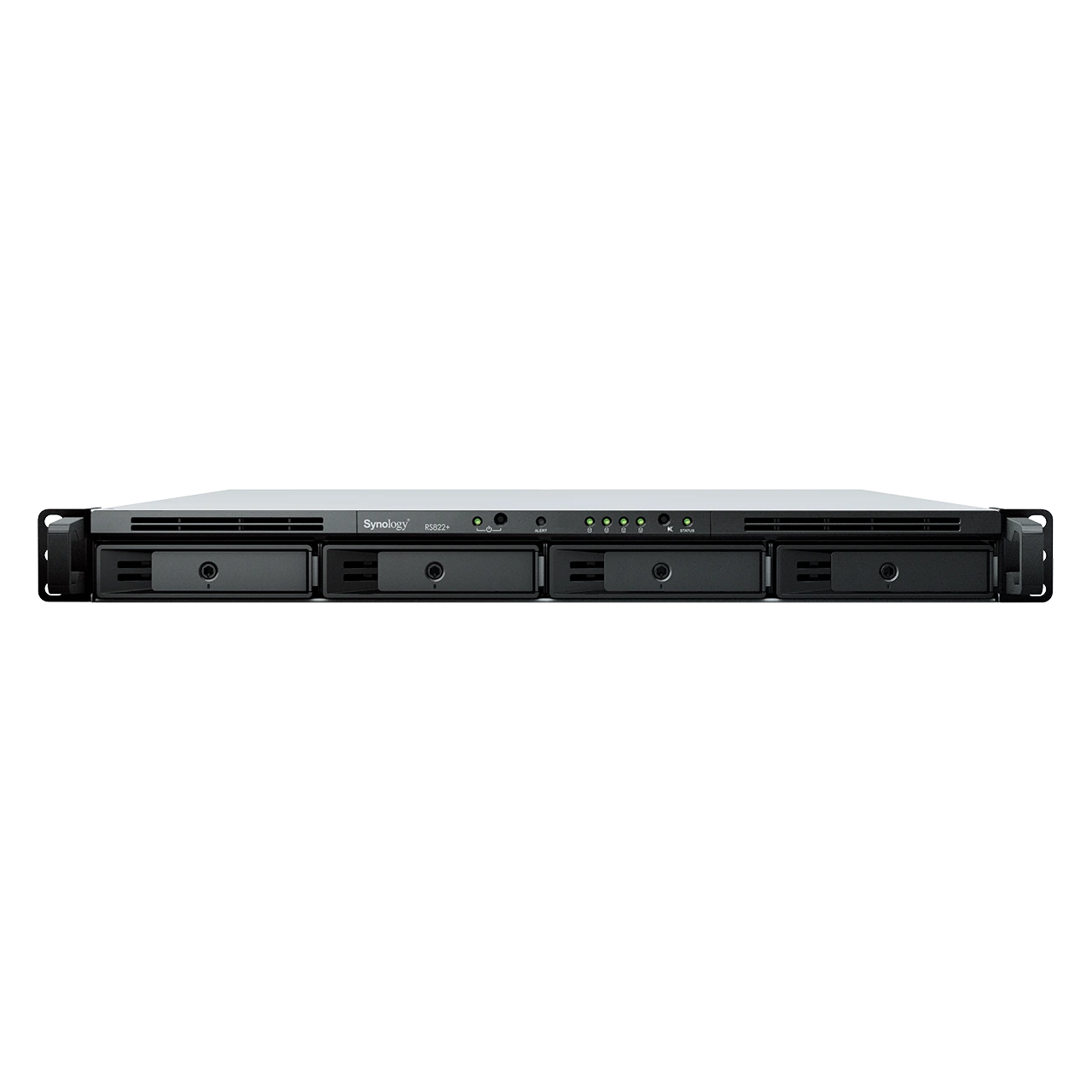

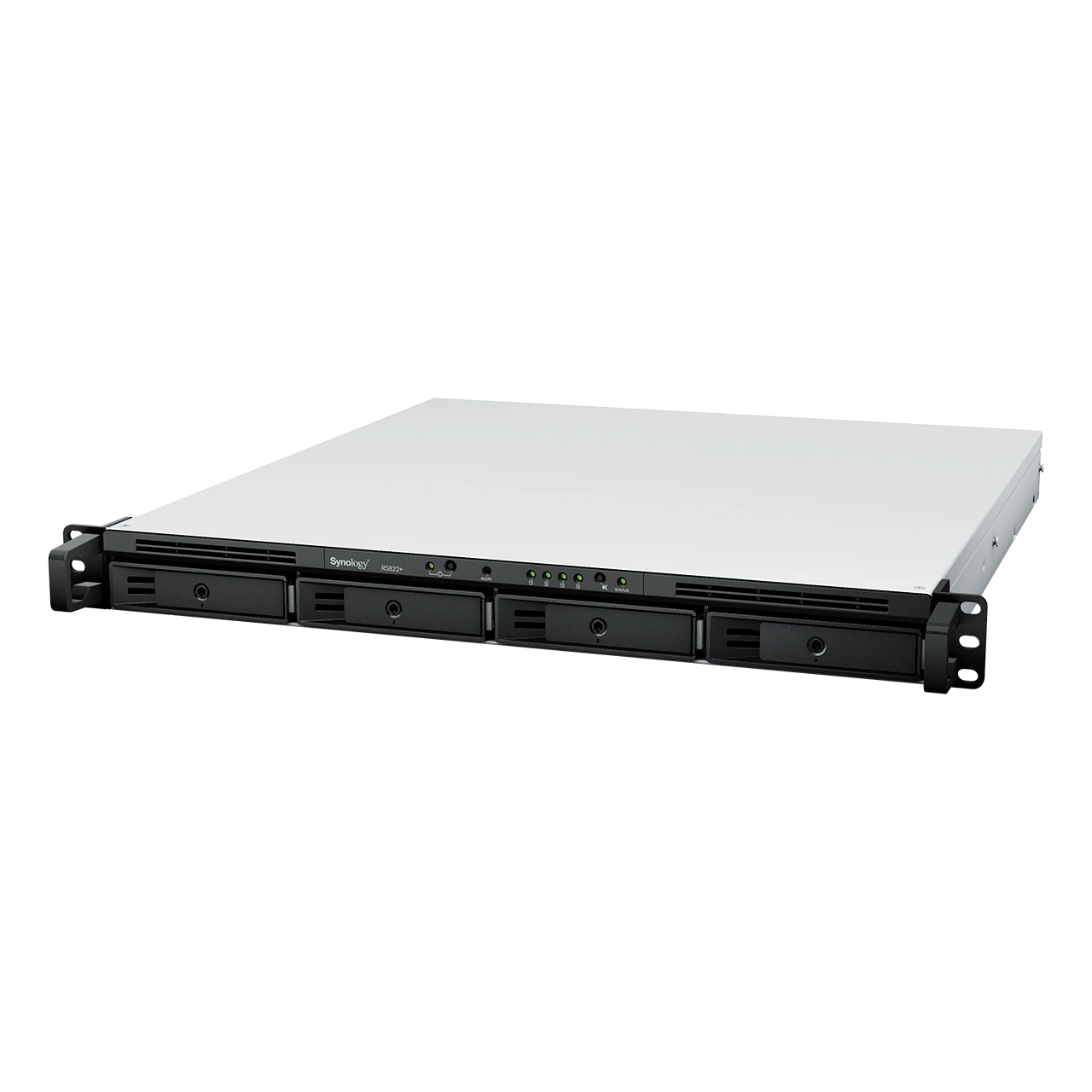

An all-in-one edge storage solution
The compact 1U 4-bay Synology RackStation RS822RP+/RS822+ with its storage and connectivity expandability coupled with the powerful Synology DiskStation Manager (DSM) operating system is an ideal edge storage solution for branch offices and small and medium-sized businesses.
Performance
2103/1074 MB/s sequential read/write throughput
Scalability

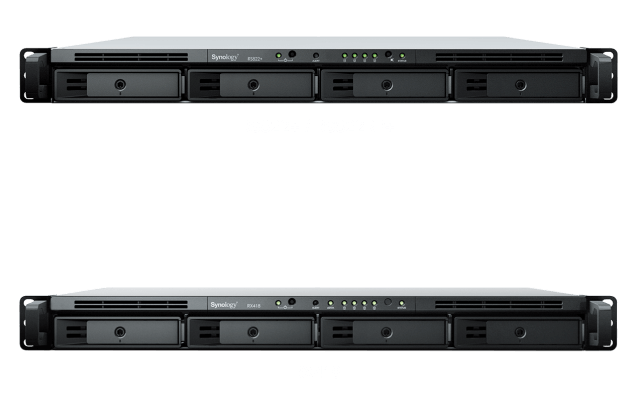

Scale up to 8 drives with Synology Expansion Unit RX418
Connectivity

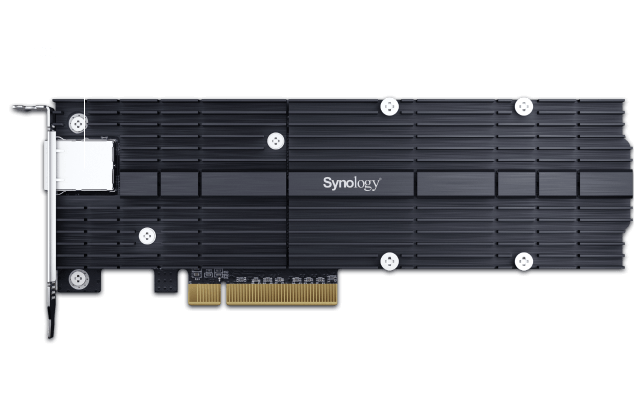

Built-in 4 x 1GbE ports with 10/25 GbE expansion option
Memory
Up to 32 GB DDR4 ECC
Built for reliability

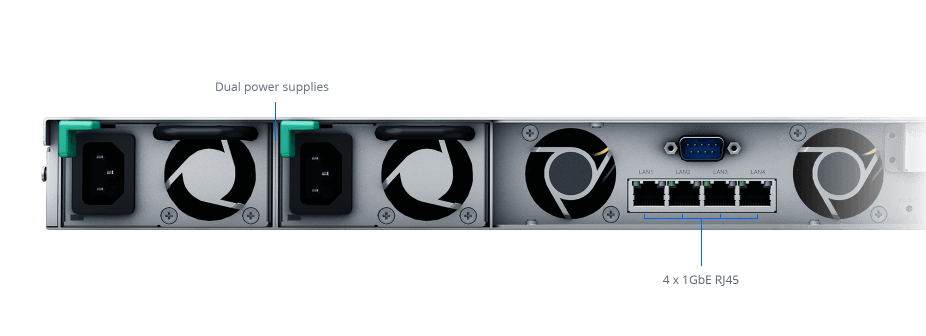

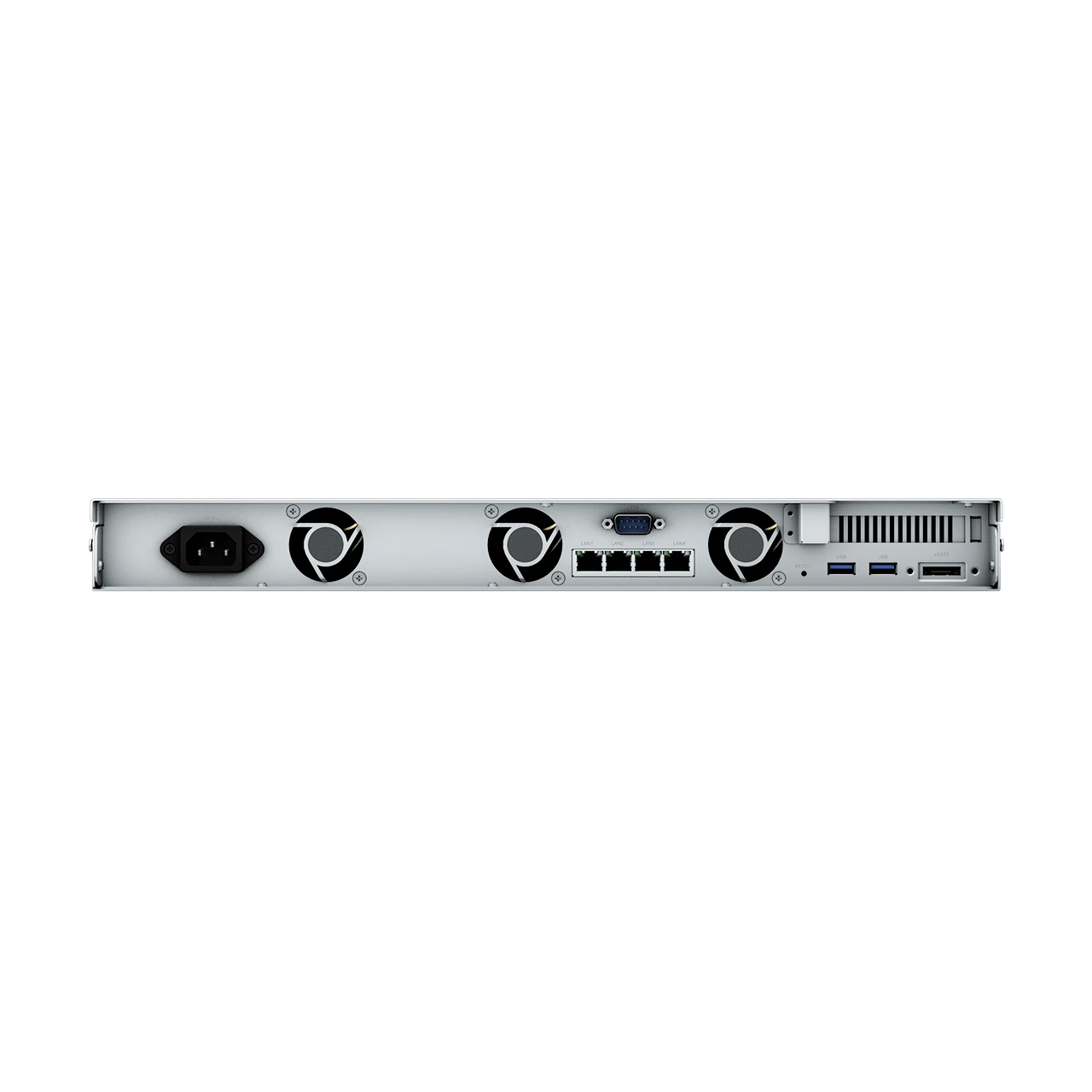

- RS822RP+/RS822+ comes with four Gigabit RJ-45 ports which can be bonded with Link Aggregation to enable automatic network failover and load balancing.
- Two RS822RP+/RS822+ units can be paired using Synology High Availability to form a reliable active/passive server cluster, maximizing service uptime.
- Furthermore, the RS822RP+ features a redundant power supply for an extra edge in service continuity.
Features:

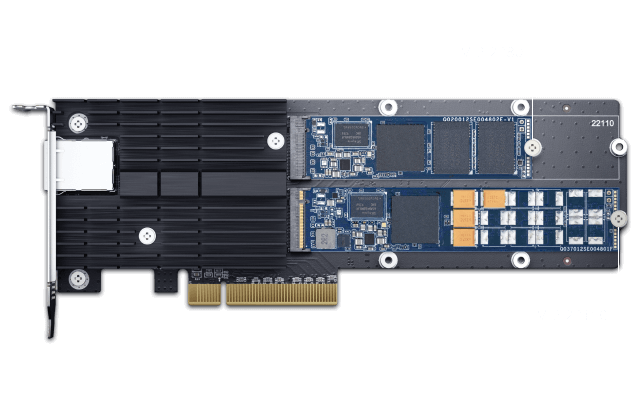

Room for expansion
Easily adjust the RS822RP+/RS822+ to match your usage environment, whether it needs performance, faster networking, or higher storage capacity.
All-in-one data management platform
The RS822RP+/RS822+ is designed to support small deployments in tackling common applications such as file management, data backup, and surveillance.
Edge storage for distributed teams
Multi-endpoint data protection
Smart surveillance for small deployments
Powered by Synology DSM
Take advantage of a whole host of native productivity, management, and security solutions available on the web-based DSM operating system.
File Management
Manage, sync, and share files from multiple devices through a centralized platform.
.svg)
Security
Shield your Synology NAS from the most sophisticated threats with industry-leading security solutions.
.svg)
System Administration
Manage the health of your deployments and centrally administer updates with ease.
.svg)
User Management
Manage user accounts and devices throughout your business with powerful directory services.
.svg)
Central Management System
Conveniently manage your fleet of Synology NAS from a centralized console.
.svg)
Synology High Availability
Seamless transition between clustered servers in the event of a server failure to minimize the impact on applications.
Specifications:
| Hardware Specifications | RS822RP+ | RS822+ |
|---|---|---|
| CPU Model | AMD Ryzen V1500B | |
| CPU Core | 4 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 2.2 GHz | |
| Hardware encryption engine | ||
| Memory | 2 GB DDR4 ECC RDIMM | |
| Memory Module Pre-instaled | 2 GB (2 GB x 1) | |
| Total Memory Slots | 2 | |
| Maximum Memory Capacity | 32 GB (16 GB x 4) | |
| Drive Bays | 4 | |
| Maximum Drive Bays with Expansion Unit | 8 (RX418 x 1) | |
| Compatible drive type |
|
|
| Hot swappable drive | ||
| External port |
|
|
| Expansion Port | 1 | |
| Expansion Port Type | eSATA | |
| PCIe Expansion | 1 x Gen3 x8 slot (x4 link) | |
| Form Factor (RU) | 1U | |
| Size (Height x Width x Depth) | 44 mm x 480 mm x 518.6 mm | 44 mm x 480 mm x 492.6 mm |
| Weight | 8.0 kg | 6.4 kg |
| Rack Installation Support | 4-post 19" rack (Synology Rail Kit - RKM114/RKS-02) | |
| Notes | The rail kit is sold separately | |
| Fan Speed Mode |
|
|
| System fan | 40 mm x 40 mm x 2 pcs | 40 mm x 40 mm x 3 pcs |
| Easy Replacement System Fan | ||
| Power Recovery | ||
| Noise Level | 38.8 dB(A) | 27.4 dB(A) |
| Wake on LAN/WAN | ||
| Power Supply Unit/Adapter | 150 watts | |
| Redundant Power Supply | - | |
| AC input power voltage | 100 V to 240 V AC | |
| Power Frequency | 50 to 60Hz, single phase | |
| Power Consumption |
47.69 watts (Access) 16.7 watts (HDD Hibernation) |
47.69 watts (Access) 16.7 watts (HDD Hibernation) |
| British Thermal Unit |
162.83 BTU/hr (Access) 57.02 BTU/hr (HDD Hibernation) |
162.83 BTU/hr (Access) 57.02 BTU/hr (HDD Hibernation) |
| Operating Temperature | 0°C to 35°C (32°F to 95°F) | |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
| Certifications and Packaging | ||
| Environment safety | RoHS compliant | |
| Package content |
|
|
| Optional accessories |
|
|
| Warranty | 3-year hardware warranty, extendable to 5 years with Extended Warranty Plus | |
Documentation:
Download the Synology RS822RP+ Datasheet (PDF).
Download the Synology RS822+ Datasheet (PDF).
Protect better with Extended Warranty Plus
Extend the standard 3-year hardware warranty8 of your RS822+/RS822RP+ with 2 extra years of Synology-certified support and premium services that help you recover faster in the event of disaster.
