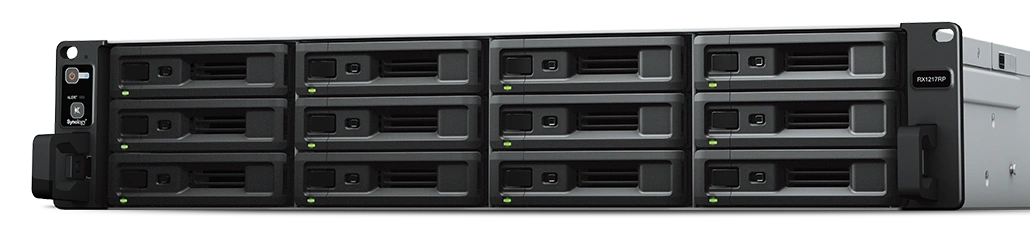

Expansion Unit RX1217 Series
Scale up your RackStation in a breeze

Expansion Unit RX1217

Synology Products
Synology Expansion Unit
Synology RX1217RP 12 Bay Expansion Unit
#RX1217RP
Our Price: Request a Quote
Synology RX1217 12 Bay Expansion Unit
#RX1217
Our Price: Request a Quote

Want to build a custom bundle? Contact us!

Click here to jump to more pricing!

Please Note: All Prices are Inclusive of GST

Overview:

Synology Expansion Unit RX1217/RX1217RP delivers an effortless solution for data volume expansion and data backup for Synology 2U RackStation NAS. With additional 12 drive bays, RX1217/RX1217RP seamlessly expands the storage capacity of the connected Synology NAS onthe-fly. Synology RX1217/RX1217RP is backed with Synology’s 5-year limited warranty.

  • Plug-and-play design for seamless storage space upgrade
  • Online volume expansion
  • Redundant power supplies ensure service uptime (RX1217RP only)
  • Managed from Synology DiskStation Manager (DSM)

Features:

Volume expansion & backup

When drive capacity is running low on a Synology RackStation, Synology RX1217RP/RX1217 offers an easy way to immediately expand storage by providing 12 additional drive slots. The RAID volume on the Synology RackStation can be expanded directly without having to reformat the existing hard drives, ensuring service continuity during the expansion process. To ensure 24/7 service uptime, Synology RX1217RP is equipped with redundant power supplies, allowing automatic failover support if one of the PSUs fail.

Reliable plug-and-use design

Synology RX1217RP/RX1217 securely connects to Synology RackStation servers with a high-bandwidth expansion cable, ensuring maximum data throughput and smooth operation — as if they are part of the internal drives of Synology RackStation. SATA 6Gb/s interface ensures the installed drives provide high quality, outstanding data processing performance.

Green & easy to manage

Hibernation mode can be manually configured to start automatically when the system has been inactive for a period of time. This not only saves energy but also extends the lifespan of hard drives. RX1217RP/RX1217 will also smartly power on/off with the attached RackStation, so no user intervention is needed to keep this system running smartly and efficiently.

Product Views:

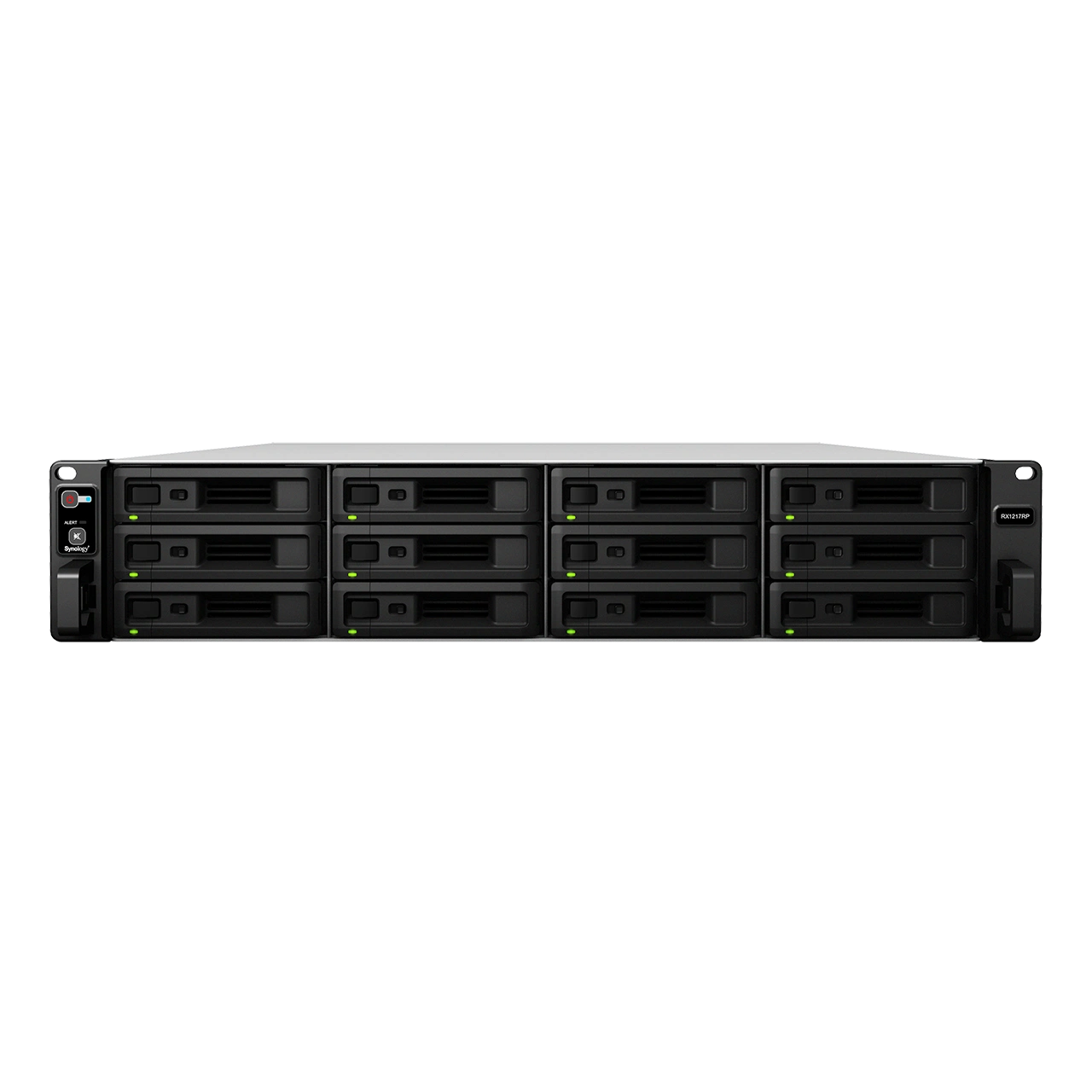

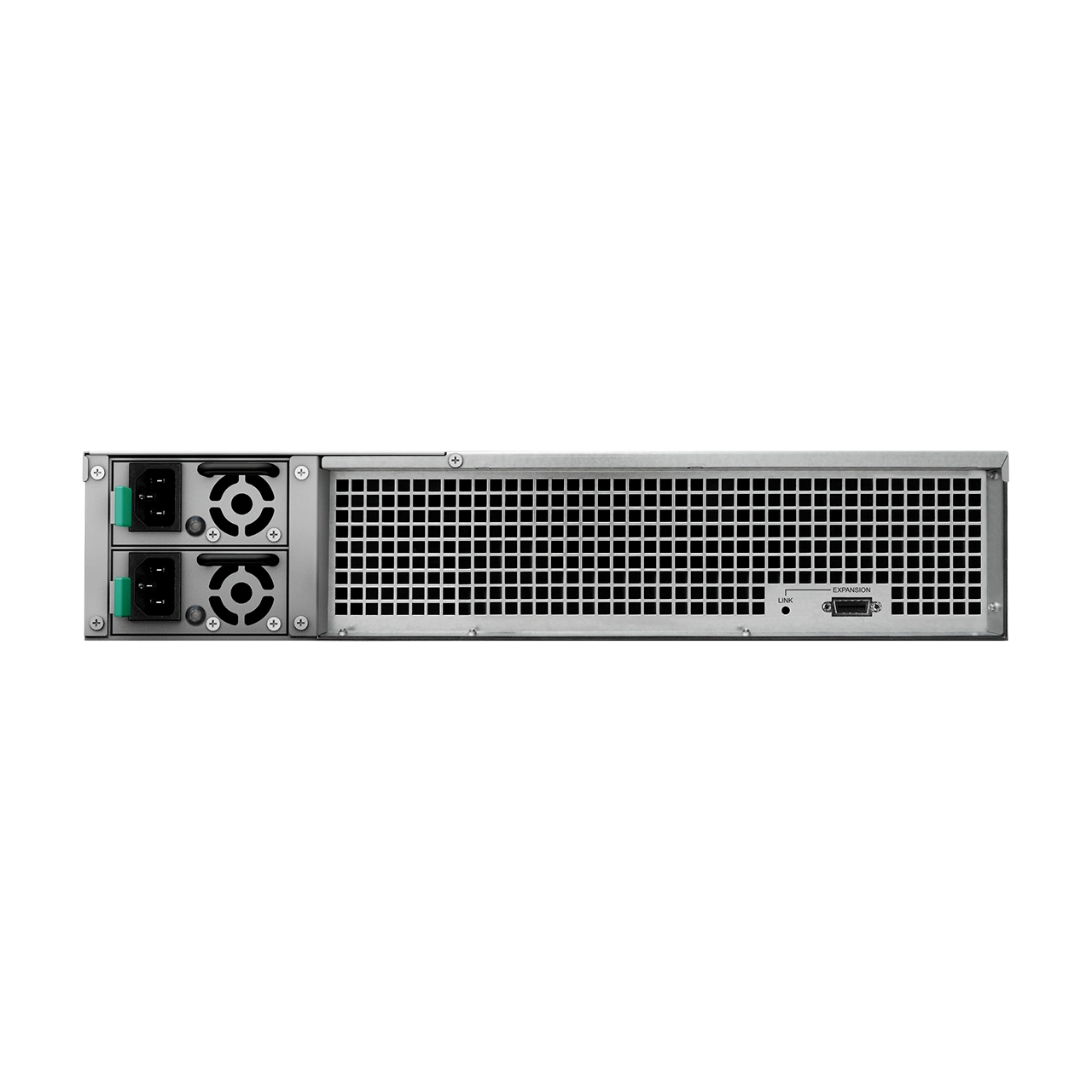

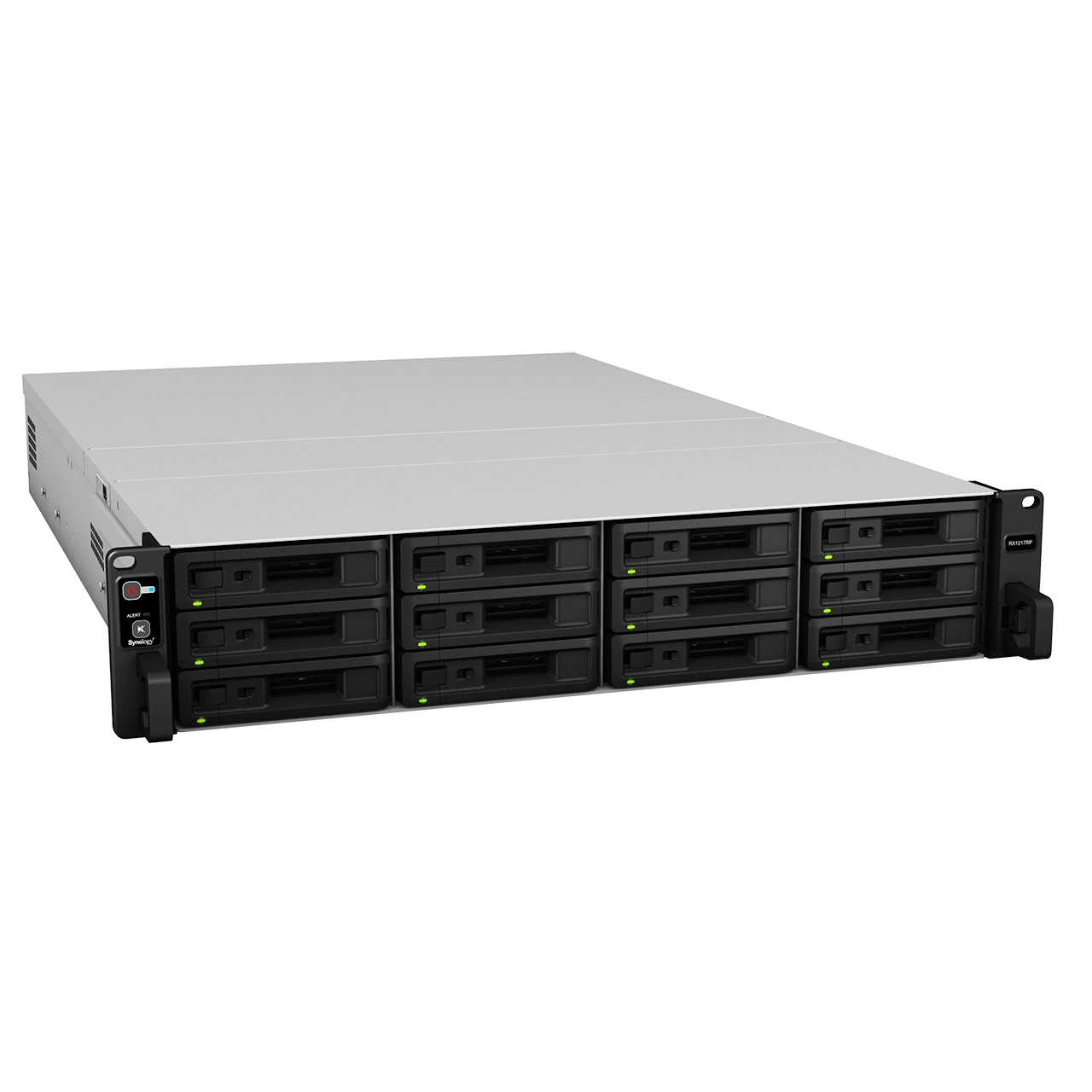

RX1217RP

RS3618xs Front View
RS3618xs Front View
RS3618xs Front View
RS3618xs Front View
RS3618xs Front View
RS3618xs Front View

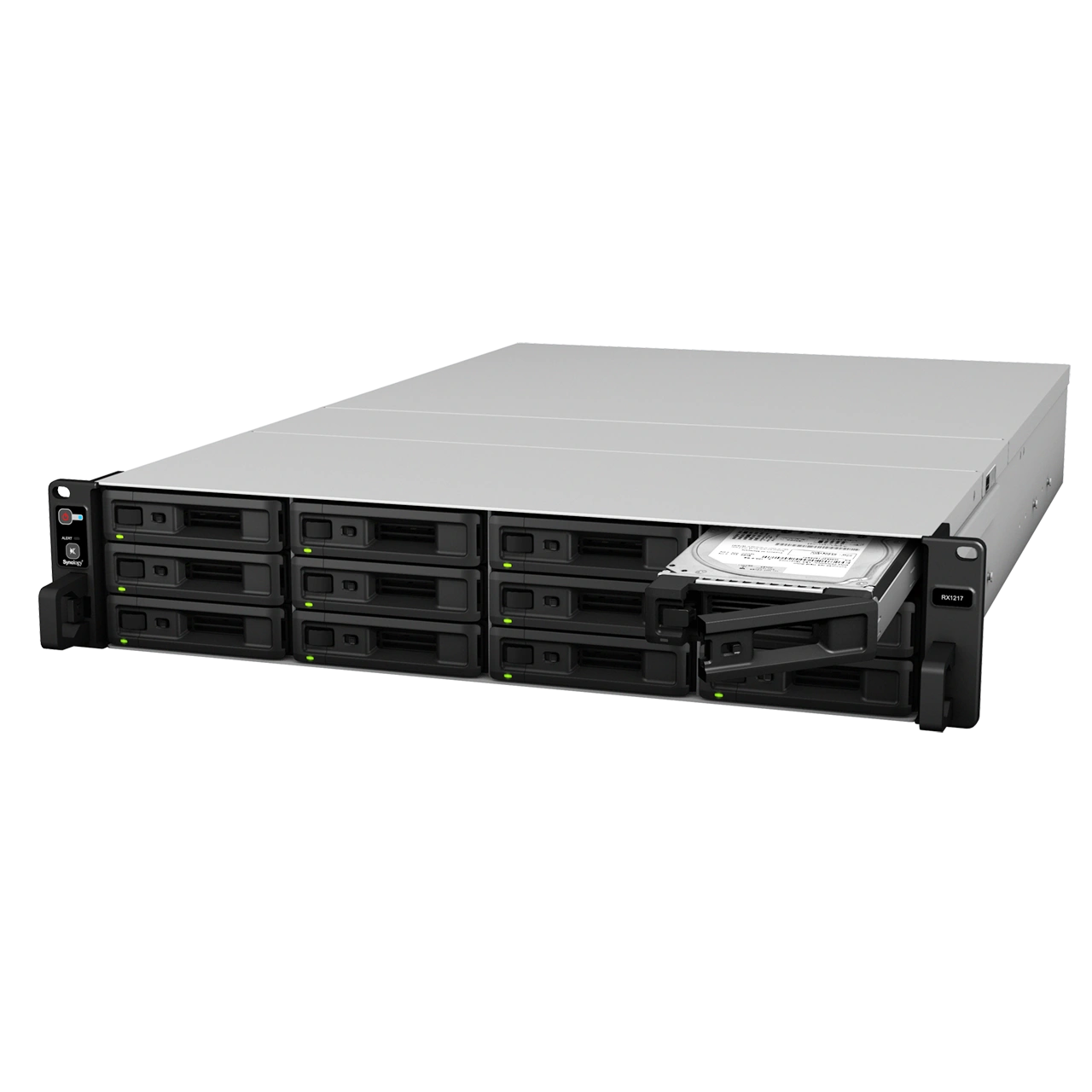

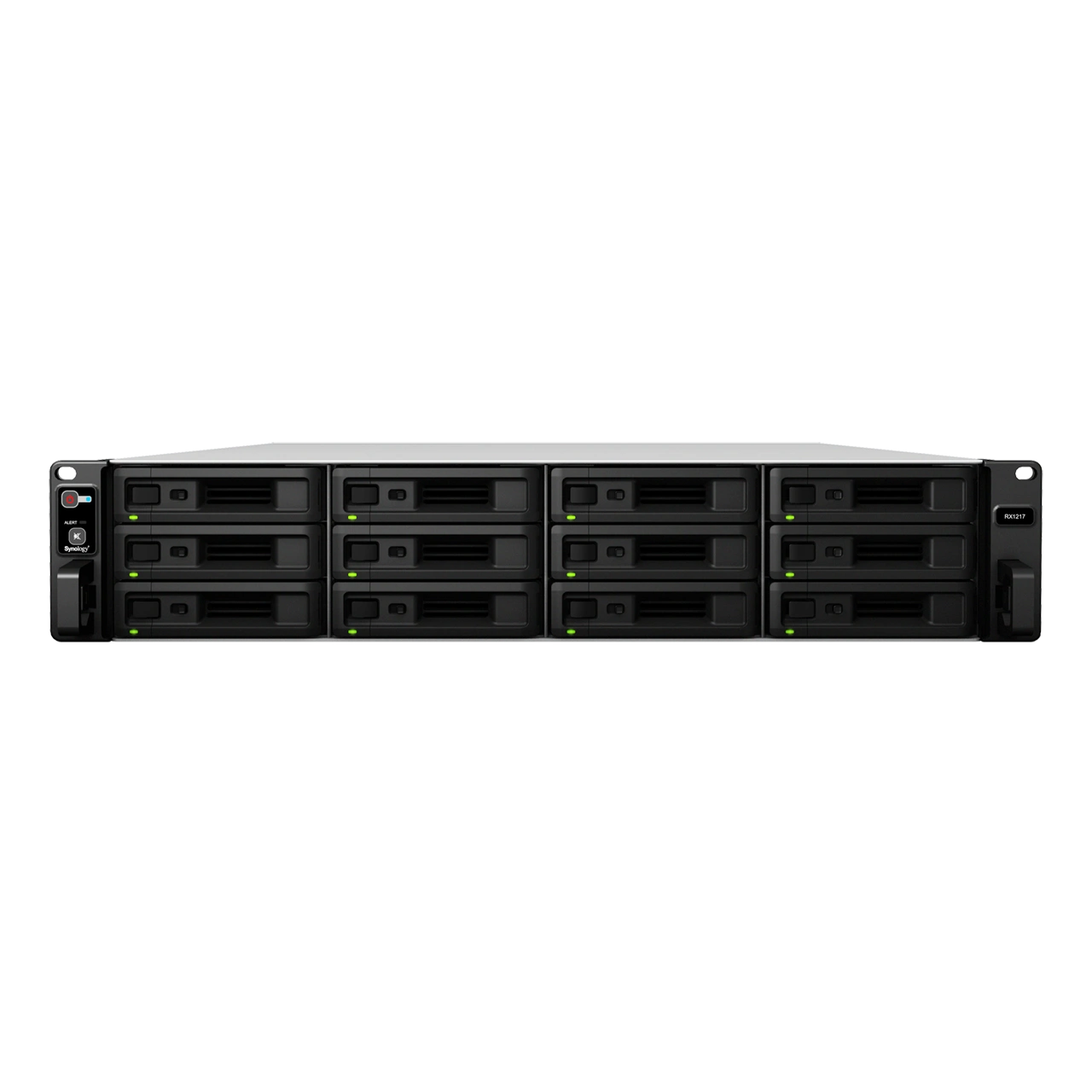

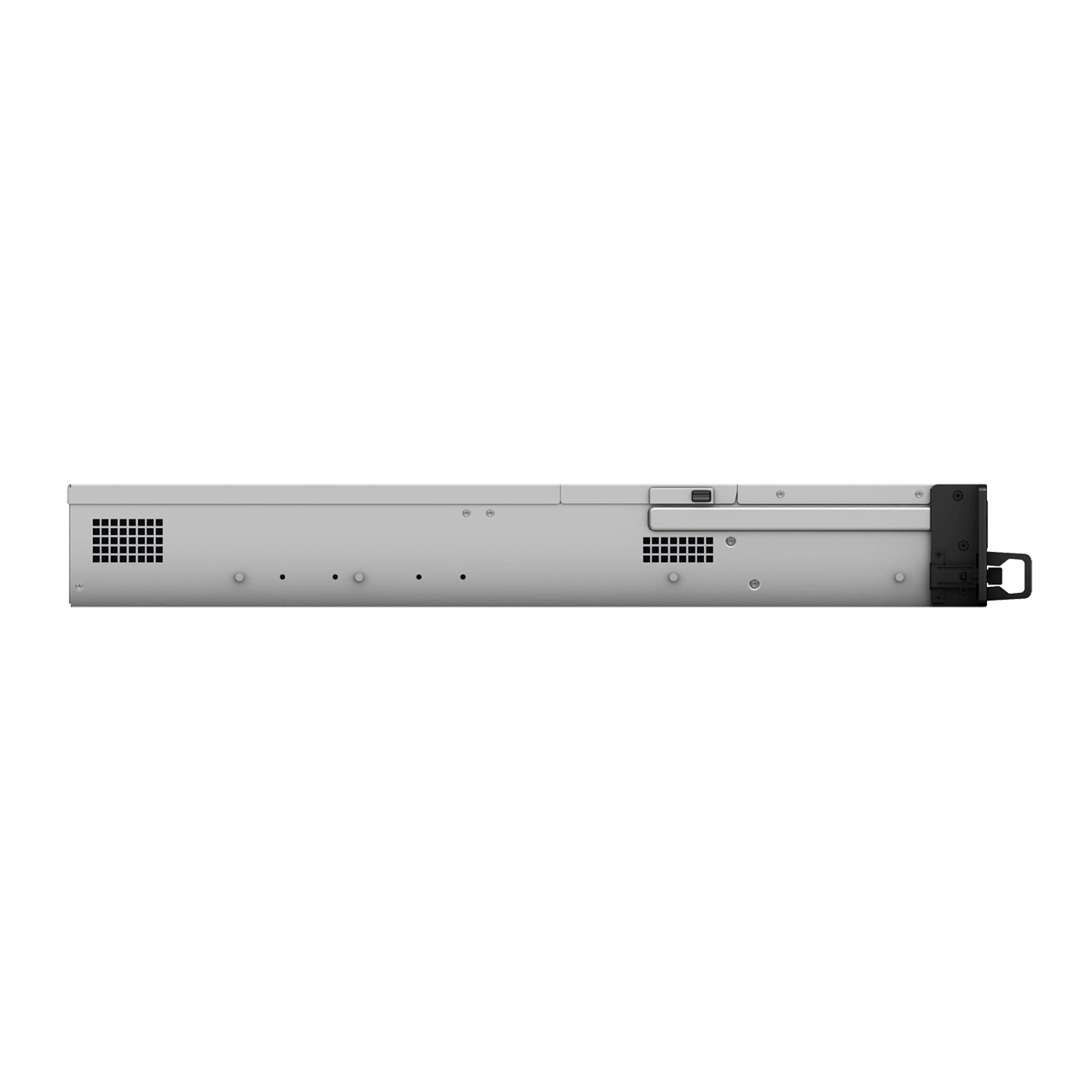

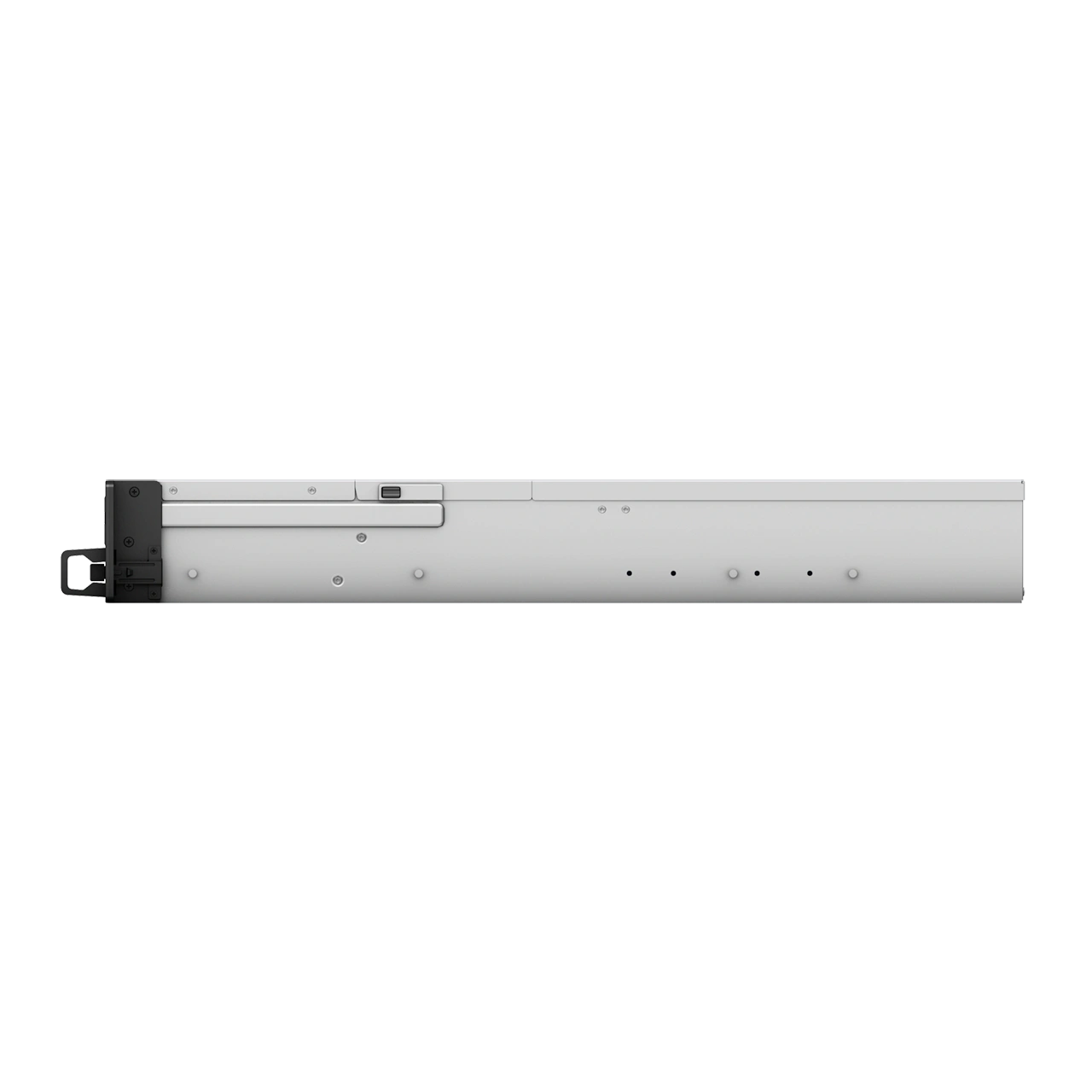

RX1217

RS3618xs Front View
RS3618xs Front View
RS3618xs Front View
RS3618xs Front View
RS3618xs Front View
RS3618xs Front View

Technical Specifications:

Hardware Specifications:
  RX1217RP RX1217
Applied Models
  • 21 series: RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+
  • 19 series: RS1619xs+
  • 18 series: RS3618xs, RS2818RP+, RS2418RP+, RS2418+
  • 17 series: RS4017xs+, RS3617xs+, RS3617RPxs, RS3617xs
  • 16 series: RS2416RP+, RS2416+
  • 14 series: RS3614xs+, RS3614RPxs, RS3614xs, RS2414RP+, RS2414+
  • 13 series: RS3413xs+
  • 12 series: RS3412RPxs, RS3412xs, RS2212RP+, RS2212+
  • 11 series: RS3411RPxs, RS3411xs, RS2211RP+, RS2211+
Storage
Drive Bay(s) 12
Compatible Drive Type
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD
Hot Swappable Drive
RAID Management through Synology DSM
External Ports
Expansion Port 1
Appearance
Size (Height X Width X Depth) 88 mm x 430.5 mm x 692 mm 88 mm x 430.5 mm x 664 mm
Size (Height X Width X Depth) (with server ears) 88 mm x 482 mm x 724 mm 88 mm x 482 mm x 696 mm
Weight 13.4 kg 12.7 kg
Rack Installation Support 4-post 19" rack (Synology Rail Kit - RKS-02)
Notes The rail kit is sold separately
Power
Power Recovery Synchronized with the Synology DiskStation
Power Supply Unit / Adapter 500W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 71.3 W (Access)
31.2 W (HDD Hibernation)
68.60 W (Access)
27.45 W (HDD Hibernation)
British Thermal Unit 243.52 BTU/hr (Access)
106.53 BTU/hr (HDD Hibernation)
234.23 BTU/hr (Access)
93.73 BTU/hr (HDD Hibernation)
Redundant Power Supply -
Note Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
Temperature
Operating Temperature 5°C to 40°C (40°F to 104°F)
Storage Temperature -10°C to 70°C (-15°F to 155°F)
Relative Humidity 5% to 95% RH
Others
System Fan 80 mm x 80 mm x 3 pcs
Easy Replacement System Fan
Noise Level 54.2 dB(A) 54.6 dB(A)
Note Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Certification
  • FCC
  • CE
  • BSMI
  • EAC
  • RCM
  • KC
  • BIS
  • FCC
  • CE
  • BSMI
  • EAC
  • RCM
  • KC
Warranty 5 Years
Environment & Packaging
Environment RoHS Compliant
Packaging Content
  • Main Unit x 1
  • User's Guide X 1
  • Accessory Pack x 1
  • AC Power Cord x 1
  • Expansion Cable: Infiniband x 1
Optional Accessories
  • Enterprise Series 3.5" SATA HDD: HAT5300 Series
  • Plus Series 3.5" SATA HDD: HAT3300 Series
  • Enterprise Series 2.5" SATA SSD: SAT5200 Series
  • Rail Kit Sliding: RKS-02

*Model specifications are subject to change without notice. Please refer to www.synology.com for the latest information.

Documentation:

Download the Synology Expansion Unit RX1217RP/RX1217 Datasheet  (PDF).
