Expansion Unit RX6025sas
High-density storage expansion for Synology HD6500 servers


Expansion Unit RX418


Synology Products
Synology Expansion Unit

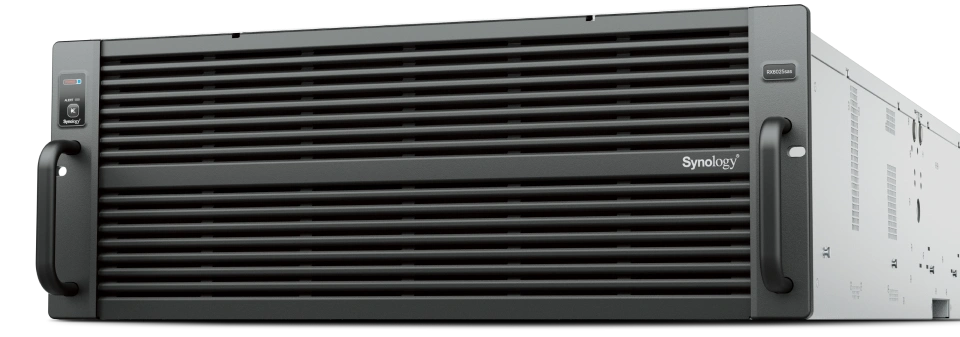

Synology RX6025sas 60 Bay Expansion Unit
#RX6025sas
Our Price: Request a Quote

Want to build a custom bundle? Contact us!

Click here to jump to more pricing!

Please Note: All Prices are Inclusive of GST

Overview:

High-Density Capacity Expansion for Synology HD6500 Servers

The 4U RX6025sas enables seamless storage expansion for Synology’s largest server unit, the 60-bay HD6500. Achieve even more storage availability with up to 60 additional drive bays through quick installation and intuitive setup in Synology DiskStation Manager (DSM)

  • On-The-Fly Instllation
    Add up to 60 additional 3.5" Synology SAS HDDs or 2.5" Synology SATA SSDs with minimal setup and disruption
  • Simple Configuration
    Leverage new storage in minutes using Synology DSM’s unified tools
  • Service Availability Safeguards
    Redundant components and support for SAS multipathing keeps downtime at bay
  • Designed for Synology Drives
    Synology drives are rigorously stress-tested for the upmost reliability and compatibility
  • Long-Term Support
    Backed by Synology’s 5-year limited warranty

Features:

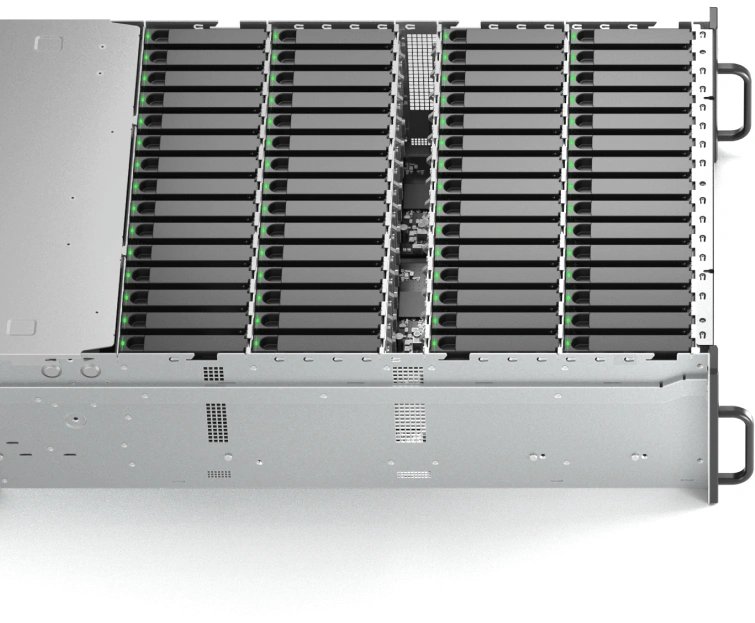

Massive storage expansion

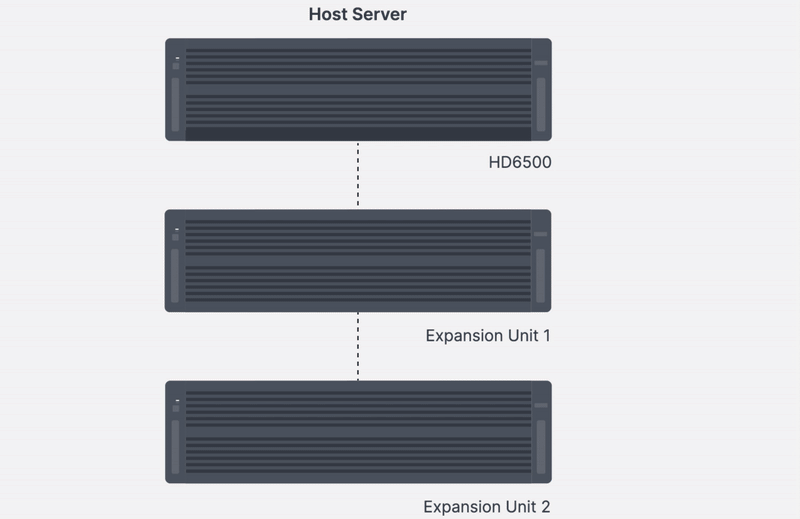

Accomodate growing storage demands by adding 60 additional drives to your HD6500 in minutes. Support for up to four expansion units enables seamless storage growth without costly disruptions.


Designed for service uptime

Tackle large-scale applications while maintaining the highest level of service availability thanks to clever hardware solutions.

SAS multipathing

SAS multipathing maximizes resiliency against hardware malfunctions by providing alternate physical paths, allowing the system to reroute data when the primary interface or connection fails.


Redundant components

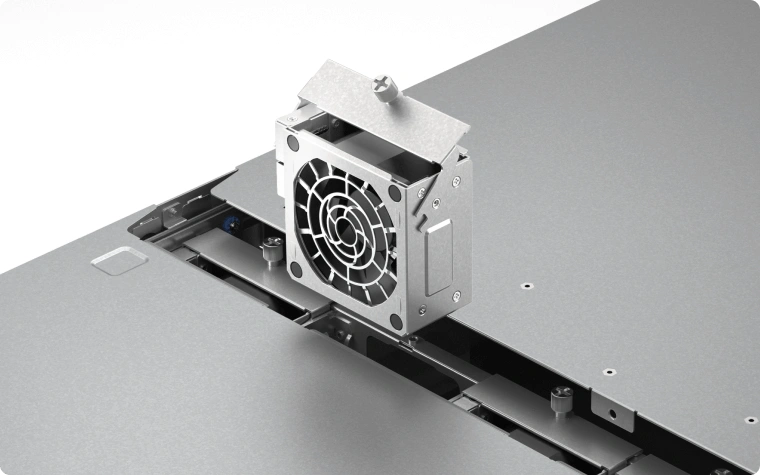

Modular drive trays and system fans reduce the impact of maintenance on service availability, allowing for easy and quick replacement. Redundant power supply units provide continuous data availability even during power source failures.


Plug-and-play deployment

Minimize downtime when expanding your storage infrastructure with online storage expansion, which allows you to add new volumes or expand RAID volumes on the RX6025sas without affecting services on the HD6500.

Technical Specifications:

Hardware Specifications:
Applied Models HD6500
Storage
Drive Bay(s) 60
Compatible Drive Type
  • 3.5" SATA HDD
  • 2.5" SATA SSD
Hot Swappable Drive
External Ports
Expansion Port 2
Appearance
Size (Height X Width X Depth) 176 mm x 438 mm x 985 mm
Size (Height X Width X Depth) (with server ears) 176 mm x 482 mm x 1020 mm
Weight 33.9 kg
Rack Installation Support 4-post 19" rack (Synology Rail Kit - RKS-03)
Power
Power Recovery Synchronized with the Synology DiskStation
Power Supply Unit / Adapter 1300W
AC Input Power Voltage 200V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 811.8 W (Access)
231 W (HDD Hibernation)
British Thermal Unit 2768.24 BTU/hr (Access)
787.71 BTU/hr (HDD Hibernation)
Redundant Power Supply
Note Power consumption is measured when it is fully loaded with Synology HAS5300-8T hard drive(s).
Temperature
Operating Temperature 5°C to 40°C (40°F to 104°F)
Storage Temperature -10°C to 70°C (-15°F to 155°F)
Relative Humidity 5% to 95% RH
Others
System Fan 80 mm x 80 mm x 4 pcs
Easy Replacement System Fan
Noise Level 61.7 dB(A)
Note Noise Level Testing Environment: Fully loaded with Synology HAS5300-8T hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Certification
  • UL
  • FCC
  • CE
  • BSMI
  • UKCA
  • EAC
  • VCCI
  • RCM
  • KC
Warranty 5 Years
Environment & Packaging
Environment RoHS Compliant
Packaging Content
  • Main Unit x 1
  • Rail kit RKS-03 x 1
  • Accessory Pack x 1
  • AC Power Cord x 2
  • Expansion Cable: MiniSAS-HD x 1
  • Quick Installation Guide x 1
Optional Accessories
  • Enterprise Series 3.5" SAS HDD: HAS5300 Series
  • Enterprise Series 2.5" SATA SSD: SAT5200 Series

*Model specifications are subject to change without notice. Please refer to www.synology.com for the latest information.

Documentation:

Download the Synology Expansion Unit RX6025sas Datasheet  (PDF).

It appears you don't have a PDF plugin for this browser. No biggie... you can click here to download the PDF file.

Warranty Icon

Synology has you covered

The RX6025sas is backed by Synology's 5-year limited warranty, including technical support and hardware replacement services to maximize your return on investment and ensure continued high-quality performance.
