Synology SA3000 Series
Flexible petabyte-scale storage for growing storage needs

Synology Products
Synology SA Series

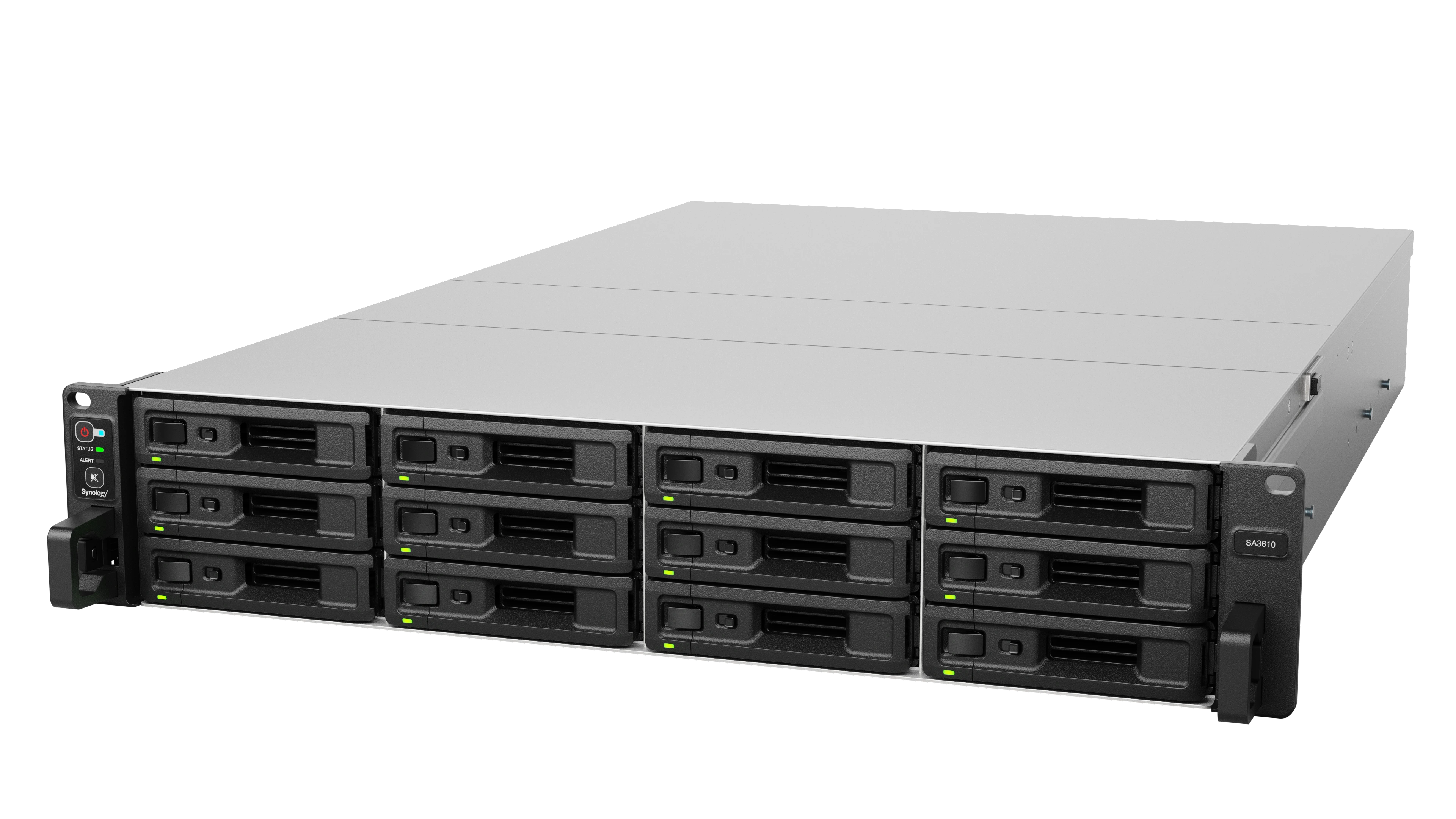

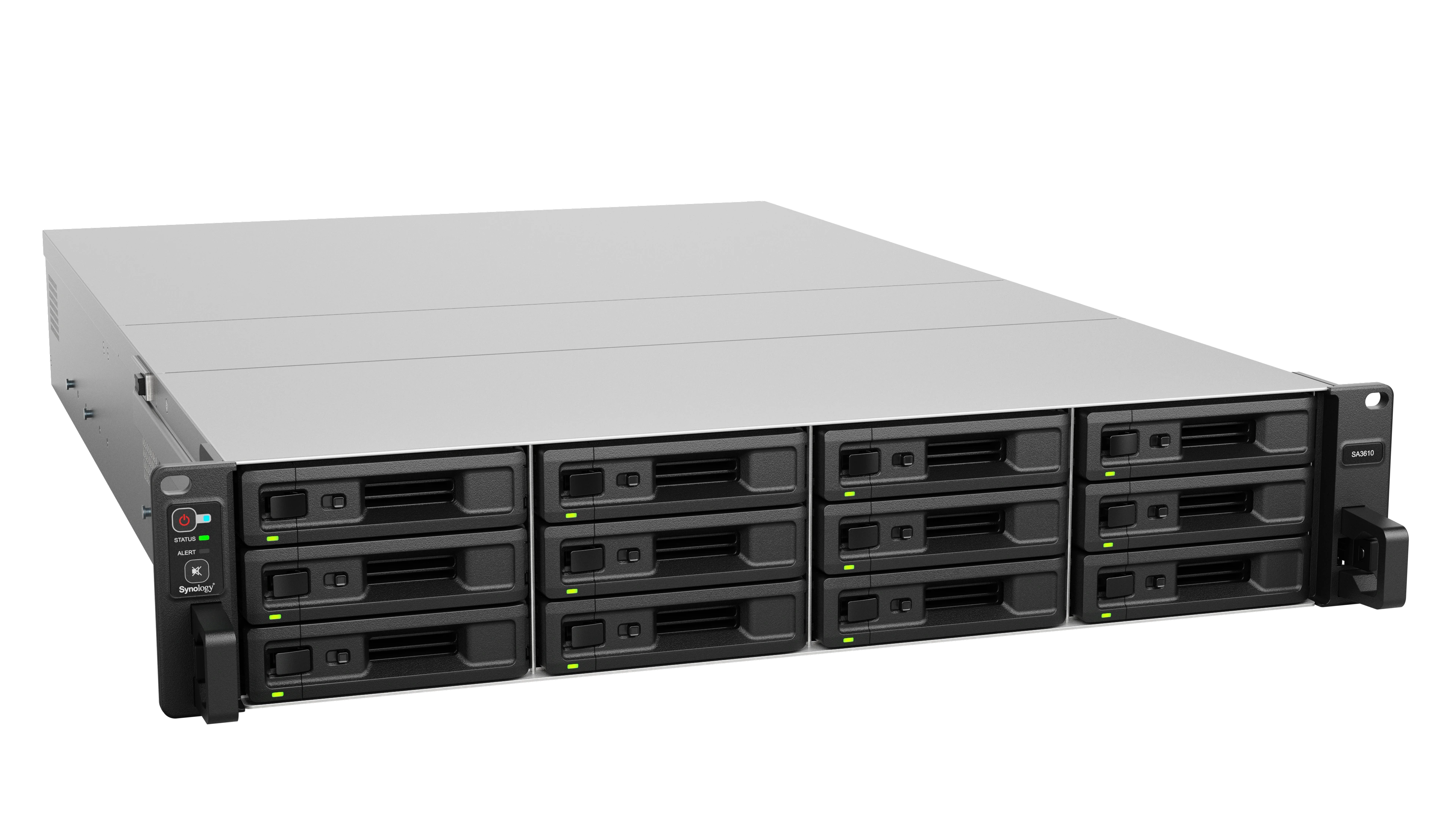

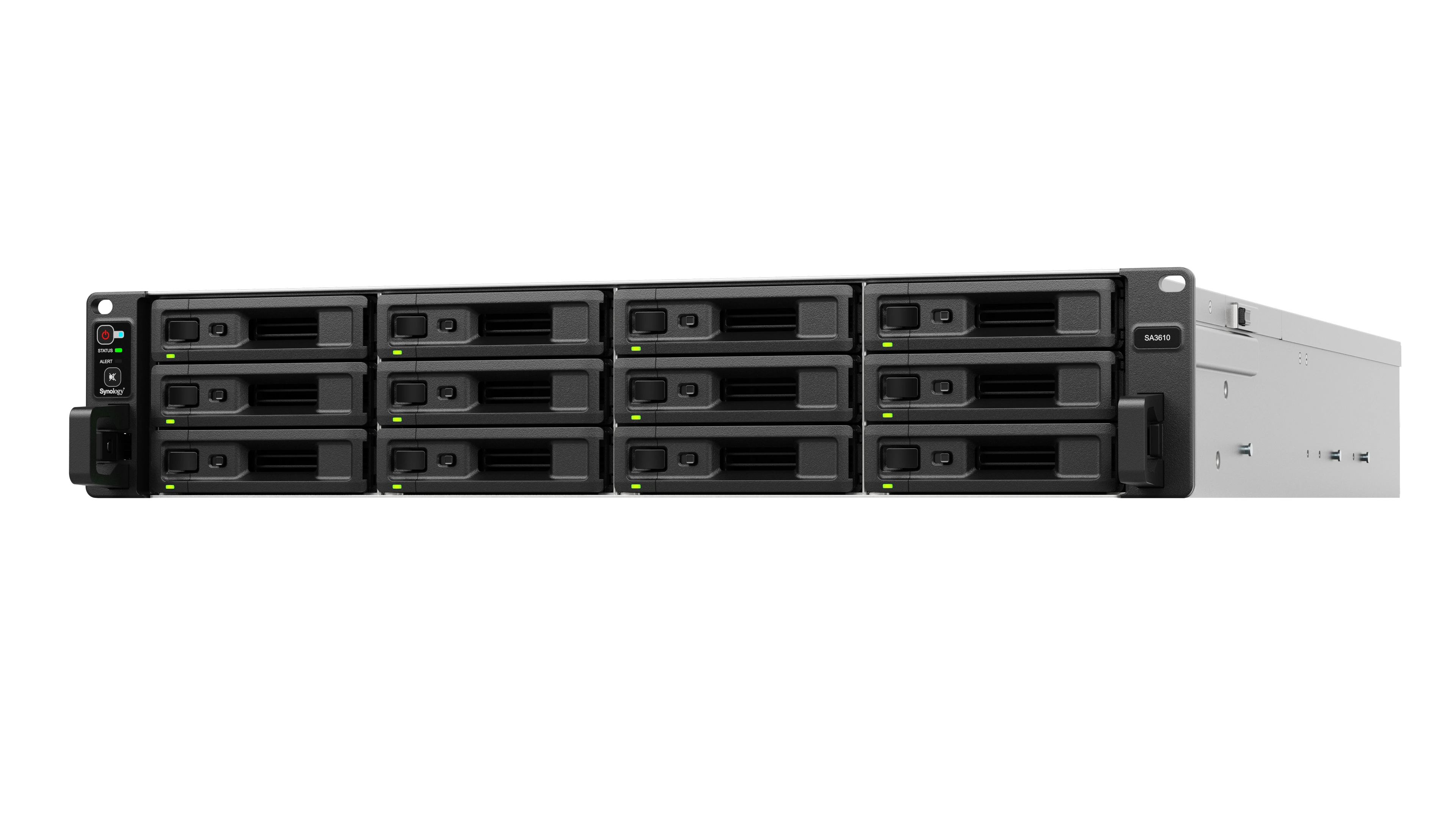

Synology SA3610 12 Bay Active/Passive Dual Controller SAS Storage Server
#SA3610
Our Price: Request a Quote
Synology SA3410 12 Bay Active/Passive Dual Controller SAS Storage Server
#SA3410
Our Price: Request a Quote

Want to build a custom bundle? Contact us!

Click here to jump to more pricing!

Please Note: All Prices are Inclusive of GST

Overview:

When scalability meets performance

The Synology SA3610 and SA3410 are designed for on-demand scalability and offer up to 1.9 PB of storage when fully expanded. They let enterprise data centers, studios, and growing businesses store large data volumes without sacrificing speed and performance.

Fast and reliable

Over 6,200/3,000 MB/s seq. read/write, built-in 10GbE, and hardware and software redundancy.

Expand and adjust

Add up to 84 extra drive bays, 40GbE or Fibre Channel, and SSD cache volumes whenever needed.

Host core applications

Back up 1,000+ endpoints, manage 128 IP cameras, or provide mailboxes for up to 1,600 users.


Flexibly expand storage capacity

Scale up your SA3610 and SA3410 flexibly to meet growing data demands whenever needed. Increase your storage capacity by adding up to seven 12-bay RX1222sas expansion units as your deployment grows.

12 bays
240 TB


96 bays
1.9 PB

Features:

Reliable and dependable

Protect your data and leverage hardware and software safeguards to ensure data and service availability in the face of disasters or malicious attacks.

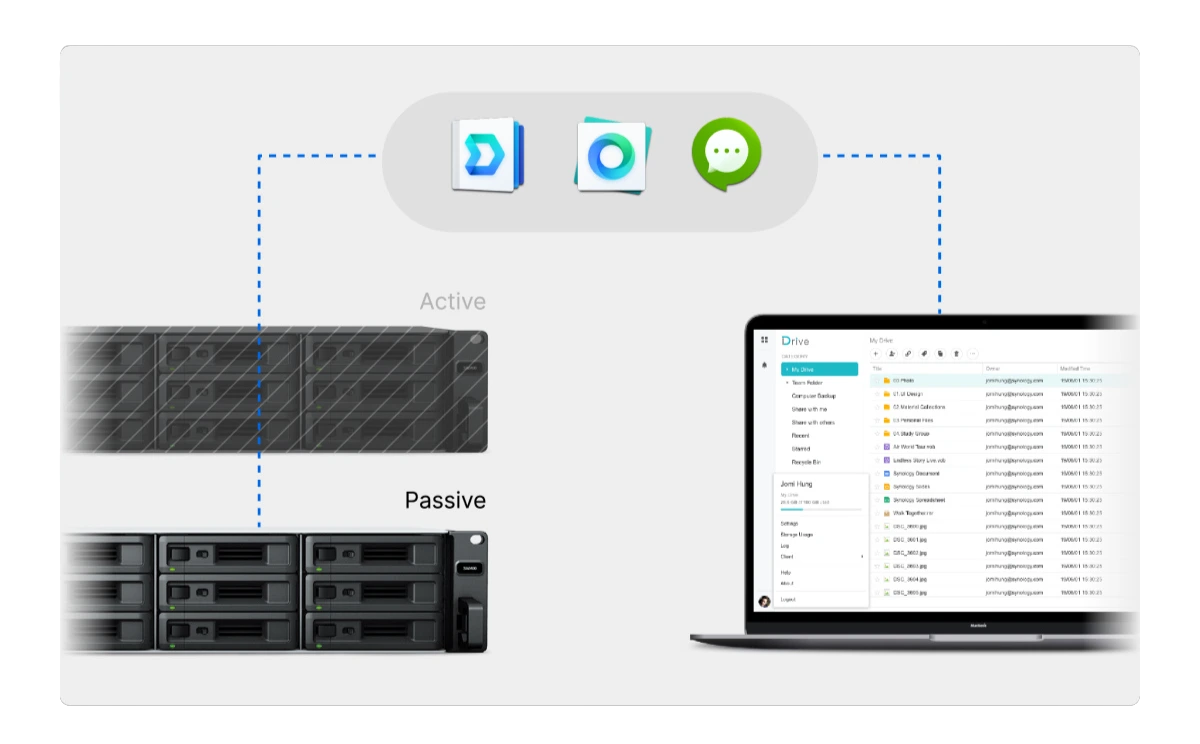

Create a Synology High Availability (SHA) cluster on your servers to minimize data loss and enjoy minute-level failover with two SA3610 or SA3410 to act as active and passive servers

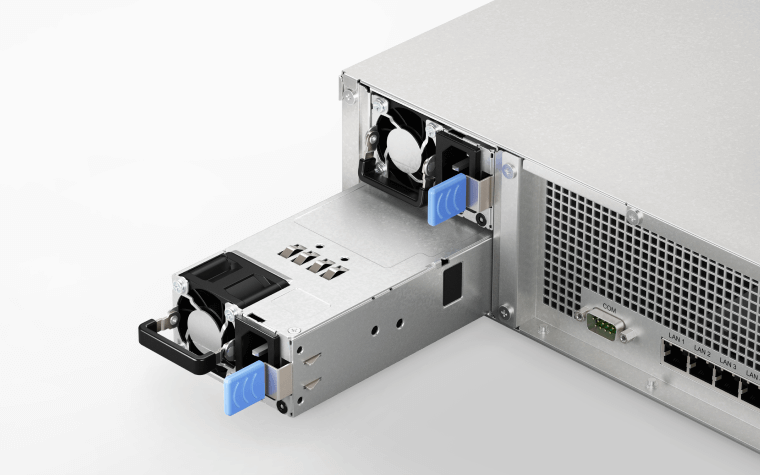

Redundant PSU units reduce the possibility of power disruptions on a single distribution channel or PDU adversely impacting data and service availability.
Take charge of your device, even if your primary networks are down. With out-of-band (OOB) management, you remotely troubleshoot your device.
Take charge of your device, even if your primary networks are down. With out-of-band (OOB) management, you remotely troubleshoot your device.

Versatile data storage

Consolidate business data, backup data, and more in a highly scalable server.

File server

Backup repository

Business application platform


Centralized monitoring and management

Stay on top of your fleet and keep it in optimal condition with our cloud and DSM-based monitoring and management solutions.


Central Management System

Manage Synology servers from a central console using group policies, task delegation, batch updates, and more.

Active Insight

Monitor your global Synology fleet's performance, backup status, login activity, and more with the power of the cloud.

Specifications:

Hardware Specifications SA3610 SA3410
CPU Model Intel Xeon D-1567
CPU Core 12 8
CPU Architecture 64-bit
CPU Frequency 2.1 (base) / 2.7 (turbo) GHz
Hardware encryption engine
Memory 16 GB DDR4 ECC RDIMM
Memory Module Pre-instaled 16 GB (16 GB x 1)
Total Memory Slots 4
Maximum Memory Capacity 128 GB (32 GB x 4)

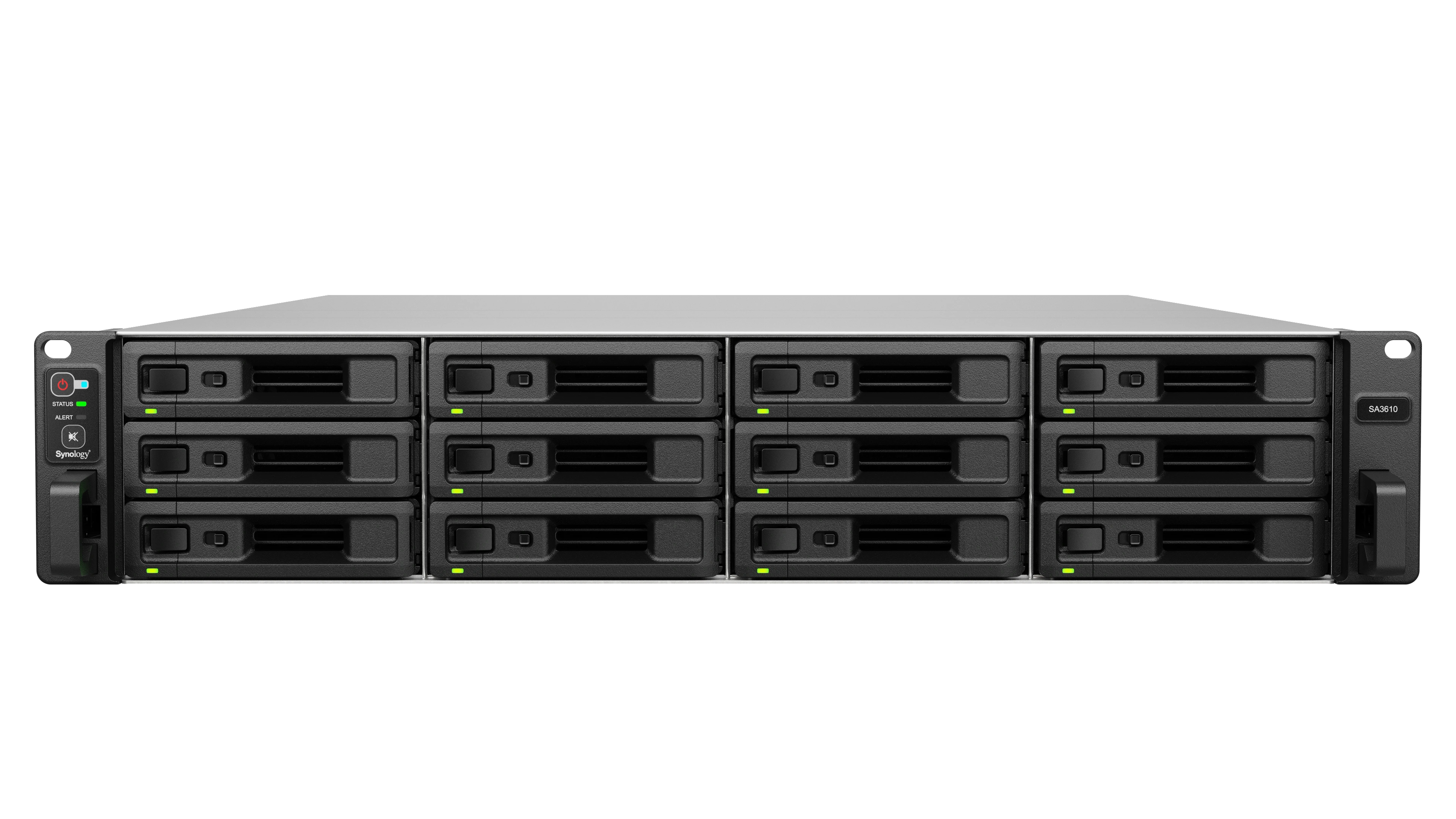

Drive Bays 12
Maximum Drive Bays with Expansion Unit 96 (RX1222sas x 7)
Compatible drive type
  • 3.5" SAS HDD
  • 2.5" SAS SSD
  • 3.5" SATA HDD
  • 2.5" SATA SSD
  • 3.5" SAS HDD
  • 2.5" SAS SSD
  • 3.5" SATA HDD
  • 2.5" SATA SSD
Hot swappable drive

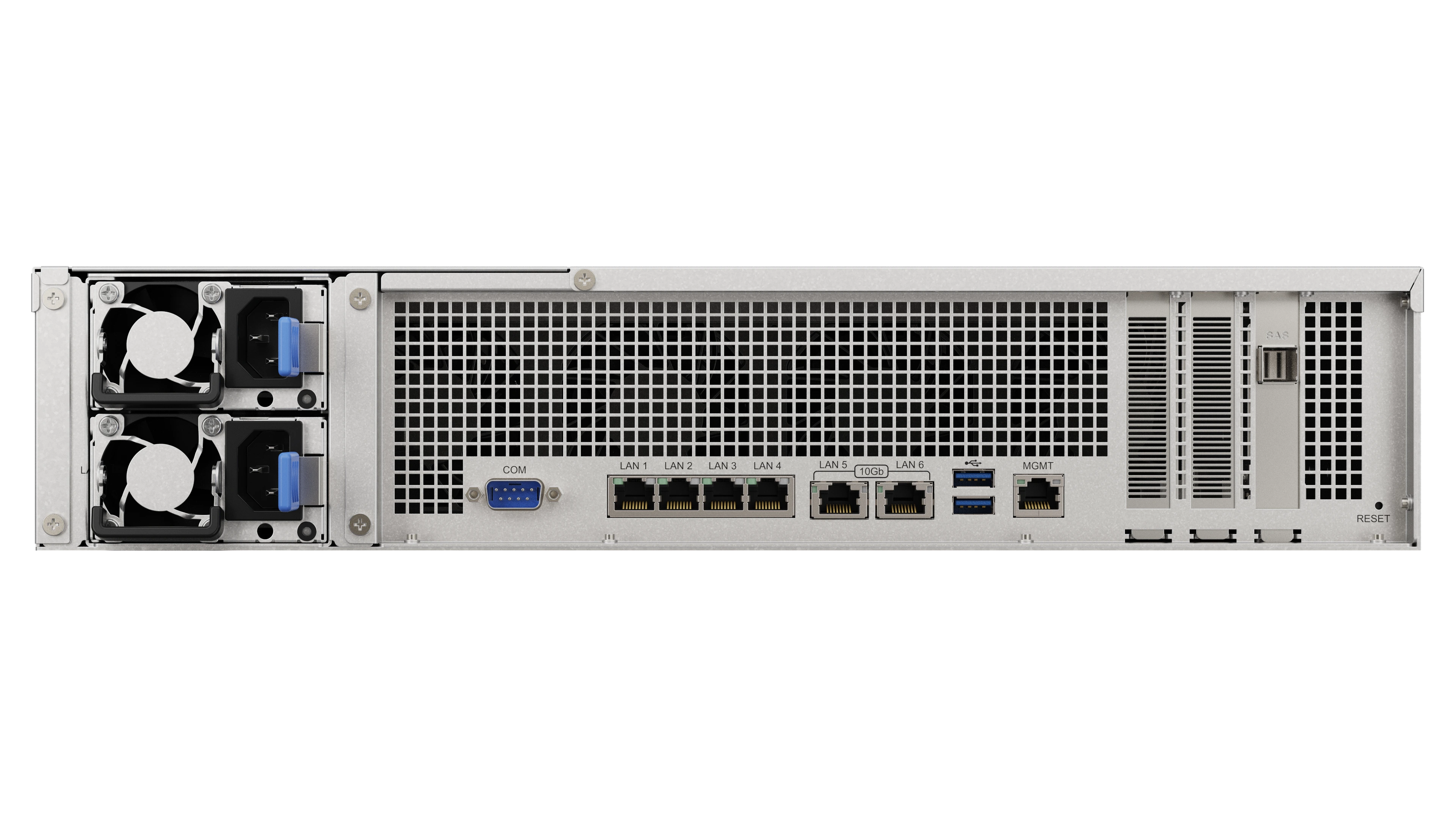

External port
  • 4 x RJ-45 1GbE LAN Port
  • 2 x RJ-45 10GbE LAN Port
  • 4 x RJ-45 1GbE LAN Port
  • 2 x RJ-45 10GbE LAN Port
Out-of-Band Management LAN Port 1
Max. Number of LAN Ports 15
USB 3.2 Gen 1 Port 2
Expansion Port 1
Expansion Port Type Mini-SAS HD
PCIe Expansion 2 x Gen3 x8 slots (x8 link)
Form Factor (RU) 2U
Size (Height x Width x Depth) 88 mm x 482 mm x 724 mm
Weight 14.5 kg
Rack Installation Support 4-post 19" rack (Synology Rail Kit - RKS-02)
Notes The rail kit is sold separately
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
System fan 80 mm x 80 mm x 4 pcs
Easy Replacement System Fan
Noise Level 55.5 dB(A)
Power Recovery
Wake on LAN/WAN
Power Supply Unit/Adapter 550 watts
Redundant Power Supply
AC input power voltage 100 V to 240 V AC
Power Frequency 50 to 60Hz, single phase
Power Consumption 137.54 watts (Access)
58.23 watts (HDD Hibernation)
136.15 watts (Access)
58.48 watts (HDD Hibernation)
British Thermal Unit 469.30 BTU/hr (Access)
198.68 BTU/hr (HDD Hibernation)
464.56 BTU/hr (Access)
199.54 BTU/hr (HDD Hibernation)
Operating Temperature 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certifications and Packaging
Environment safety RoHS compliant
Package content
  • 1 x Main unit
  • 1 x Quick Installation Guide
  • 1 x Accessory pack
  • 2 x AC power cords
  • 1 x Main unit
  • 1 x Quick Installation Guide
  • 1 x Accessory pack
  • 2 x AC power cords
Optional accessories
  • DDR4 ECC RDIMM: D4ER01-16G* / D4ER01-32G
  • Expansion Units: RX1222sas
  • Enterprise Series 3.5" SAS HDD: HAS5300 Series
  • Enterprise Series 3.5" SATA HDD: HAT5300 Series
  • Enterprise Series 2.5" SATA SSD: SAT5200 Series
  • M.2 SSD & 10GbE Combo Adapter Card: E10M20-T1
  • M.2 SSD Adapter Card: M2D20
  • 25GbE Network Interface Card: E25G30-F2
  • 10GbE Network Interface Card: E10G30-F2 / E10G30-T2 / E10G18-T1
  • Rail Kit Sliding: RKS-02
  • DDR4 ECC RDIMM: D4ER01-16G* / D4ER01-32G
  • Expansion Units: RX1222sas
  • Enterprise Series 3.5" SAS HDD: HAS5300 Series
  • Enterprise Series 3.5" SATA HDD: HAT5300 Series
  • Enterprise Series 2.5" SATA SSD: SAT5200 Series
  • M.2 SSD & 10GbE Combo Adapter Card: E10M20-T1
  • M.2 SSD Adapter Card: M2D20
  • 25GbE Network Interface Card: E25G30-F2
  • 10GbE Network Interface Card: E10G30-F2 / E10G30-T2 / E10G18-T1
  • Rail Kit Sliding: RKS-02
Warranty 5 Years

Documentation:



Download the Synology SA3610 Datasheet (PDF).

It appears you don't have a PDF plugin for this browser. No biggie... you can click here to download the PDF file.



Download the Synology SA3410 Datasheet (PDF).

It appears you don't have a PDF plugin for this browser. No biggie... you can click here to download the PDF file.

Warranty Icon

Synology has you covered

The SA3610 and SA3410 are backed by Synology's 5-year limited warranty,8 including technical support and hardware replacement services to maximize your return on investment and ensure continued high-quality performance.
