Synology SA6400
Handle growing data storage demands with ease

Synology Products
Synology SA Series
Synology SA6400 12 Bay Active/Passive Dual Controller SAS Storage Server
#SA6400
Our Price: Request a Quote

Want to build a custom bundle? Contact us!

Click here to jump to more pricing!

Please Note: All Prices are Inclusive of GST

Overview:

Highly scalable storage for enterprise and studios

The 12-bay Synology SA6400 is designed for rapid data scaling. With support for up to 108 drives after expansion, this unit is ideal for enterprise data centers, large production studios, and growing businesses in the retail and hospitality sectors looking to tackle data-intensive projects while leaving room for future expansion.

Scalability

Up to 2.1 PB with 8 x RX1223RP expansion units

CPU

Over 6,500/4,000 MB/s sequential read/write

Networking

Optional 25/40GbE or Fibre Channel connectivity


On-demand storage expansion

The SA6400 scales up flexibly whenever your data demands do. Accommodate up to 9 times the original capacity by adding 12-bay RX1223RP expansion units as your deployment grows.

Over
10,000/6,200 MB/s
read/write after expansion

Up to
8
expansion units

RX1223RP units
directly connect
to SA6400

Features:

Built for high reliability

The SA6400 is designed with built-in redundancies to keep mission-critical services running, even when disaster strikes.

Simplify troubleshooting by managing powered-down devices remotely and accessing critical logs through a dedicated interface.
Redundant PSU units reduce the possibility of power disruptions on a single distribution channel or PDU adversely impacting data and service availability.
Combine two SA6400 units into a high-availability cluster with Synology High Availability to achieve full hardware and data redundancy. Minute-level failover minimizes data loss and downtime in the event of server failure, or while performing system updates or upgrades

Advanced networking options

The SA6400 has the flexibility to accommodate different operating environments.

Two 10GbE RJ-45 ports and four Gigabit Ethernet ports allow for rapid transfer speeds right out of the box.

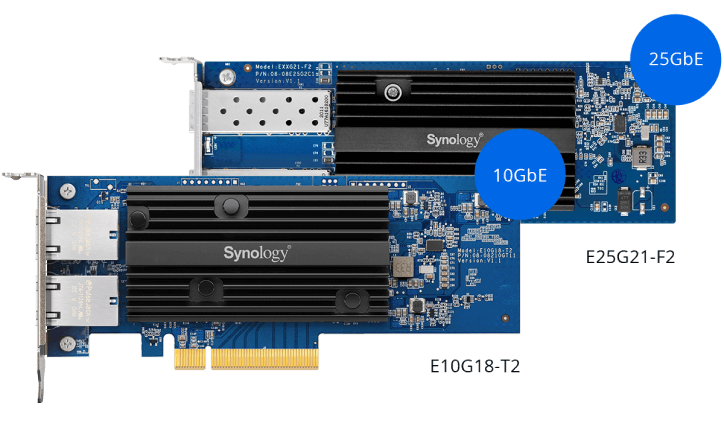

Add up to 2 x 10/25/40GbE network interface cards using the 2 x PCIe 3.0 slots to enable lightning fast networking in minutes.
Bond multiple network interfaces with Link Aggregation to enable automatic network failover and load balancing.

Versatile data storage and business application platform

Provide easy access to business data, consolidate digital assets, or host cost-efficient business solutions.

Flexible file server

Central backup server

Business application platform


Centralized monitoring and management

Stay on top of your fleet and keep it in optimal condition with our cloud and DSM-based monitoring and management solutions.


Central Management System

Manage Synology servers from a central console using group policies, task delegation, batch updates, and more.

Active Insight

Monitor your global Synology fleet's performance, backup status, login activity, and more with the power of the cloud.

Specifications:

SA6400 Hardware Specifications:
Hardware Specifications
CPU Model AMD EPYC 7272
CPU Core 12
CPU Architecture 64-bit
CPU Frequency 2.9 (base) / 3.2 (turbo) GHz
Hardware encryption engine Yes (AES-NI)
Memory 32 GB DDR4 ECC RDIMM
Memory Module Pre-instaled 32 GB (32 GB x 1)
Total Memory Slots 16
Maximum Memory Capacity 1024 GB (64 GB x 16)
Drive Bays 12
Maximum Drive Bays with Expansion Unit 108 (RX1223RP x 8)
Compatible drive type
  • 2.5" SATA SSD
  • 3.5" SATA HDD
Hot swappable drive

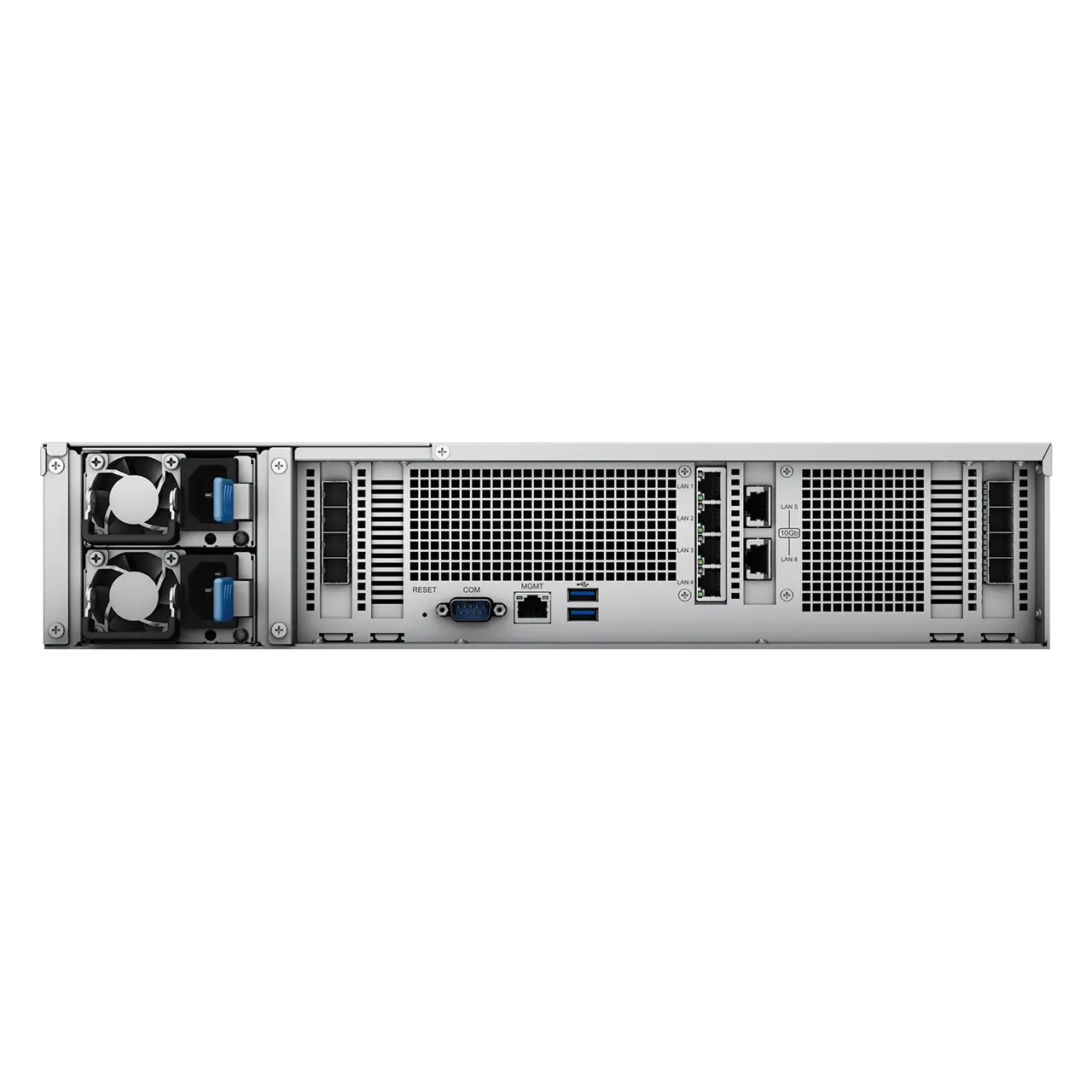

External port
  • 4 x RJ-45 1GbE LAN Port
  • 2 x RJ-45 10GbE LAN Port
Out-of-Band Management LAN Port 1
Max. Number of LAN Ports 15
USB 3.2 Gen 1 Port 2
Expansion Port 8
Expansion Port Type Mini-SAS HD
PCIe Expansion 2 x Gen3 x8 slots (x8 link)
Form Factor (RU) 2U
Size (Height x Width x Depth) 88 mm x 482 mm x 724 mm
Weight 16.5 kg
Rack Installation Support 4-post 19" rack (Synology Rail Kit - RKS-02)
Notes The rail kit is sold separately
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
System fan 80 mm x 80 mm x 4 pcs
Easy Replacement System Fan
Power Recovery
Noise Level 55.5 dB(A)
Power Recovery
Wake on LAN/WAN
Power Supply Unit/Adapter 550 watts
Redundant Power Supply
AC input power voltage 100 V to 240 V AC
Power Frequency 50 to 60Hz, single phase
Power Consumption 180.5 watts (Access)
88.56 watts (HDD Hibernation)
British Thermal Unit 615.89 BTU/hr (Access)
302.18 BTU/hr (HDD Hibernation)
Operating Temperature 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certifications and Packaging
Environment safety RoHS compliant
Package content
  • 1 x FS6400 main unit
  • 1 x Quick Installation Guide
  • 1 x Accessory pack
  • 2 x AC power cords
Optional accessories
  • DDR4 ECC RDIMM: D4ER01-32G / D4ER01-64G
  • Expansion Units: RX1223RP
  • Enterprise Series 3.5" SATA HDD: HAT5300 Series
  • Enterprise Series 2.5" SATA SSD: SAT5200 Series
  • M.2 SSD & 10GbE Combo Adapter Card: E10M20-T1
  • M.2 SSD Adapter Card: M2D20
  • 25GbE Network Interface Card: E25G30-F2
  • 10GbE Network Interface Card: E10G30-F2 / E10G30-T2 / E10G18-T1
  • Rail Kit Sliding: RKS-02
Warranty 5 Years

Documentation:

Download the Synology SA6400 Datasheet  (PDF).

It appears you don't have a PDF plugin for this browser. No biggie... you can click here to download the PDF file.

Warranty Icon

Synology has you covered

The SA6400 is backed by Synology's 5-year limited warranty, including technical support and hardware replacement services to maximize your return on investment and ensure continued high-quality performance.
