Synology SAT5221
Modernize storage infrastructure with Synology solid-state drives


Synology Products
Synology Enterprise Series 2.5" SATA SSD

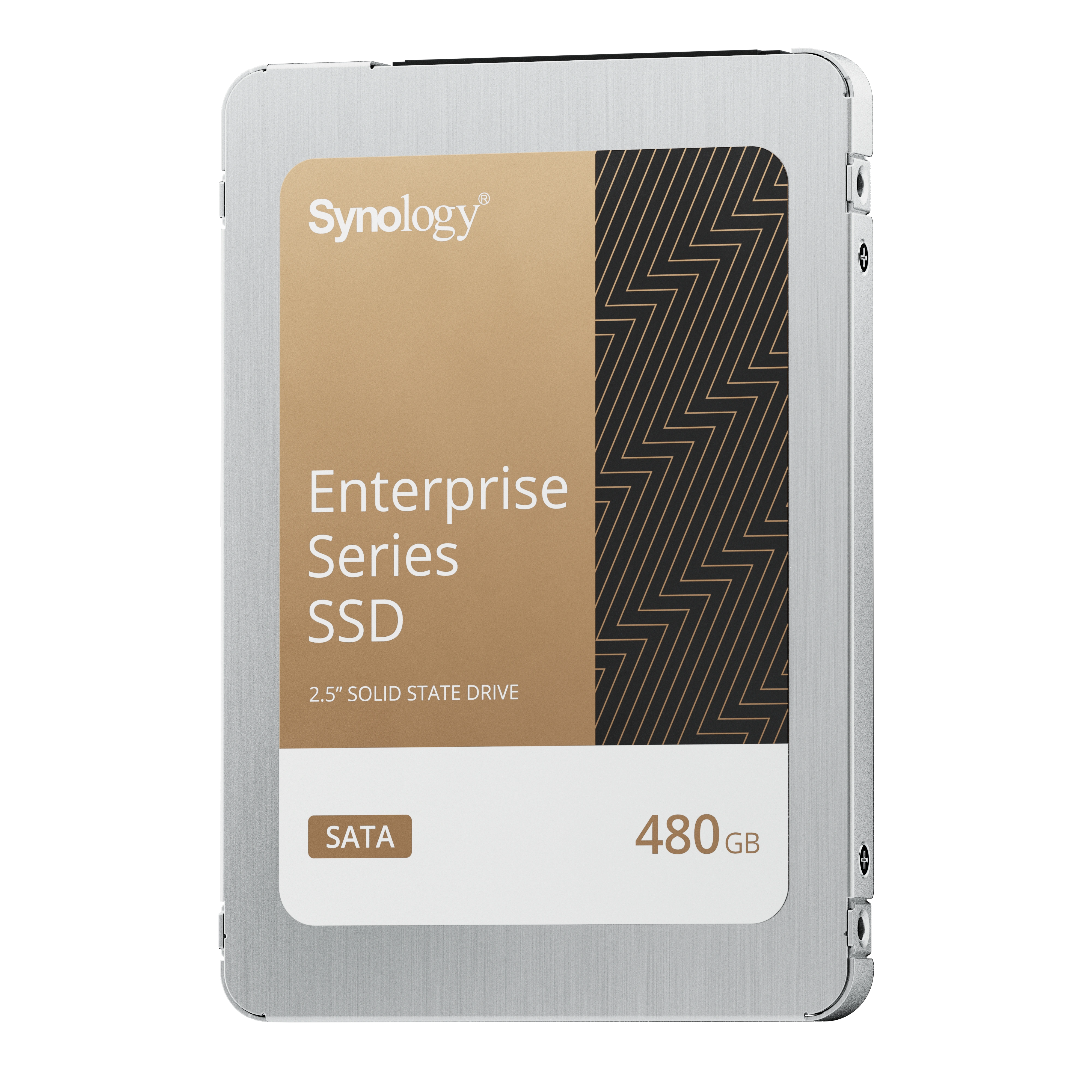

Synology 2.5" SATA SSD SAT5221, 480G
#SAT5221-480G
Our Price: Request a Quote
Synology 2.5" SATA SSD SAT5221, 960G
#SAT5221-960G
Our Price: Request a Quote

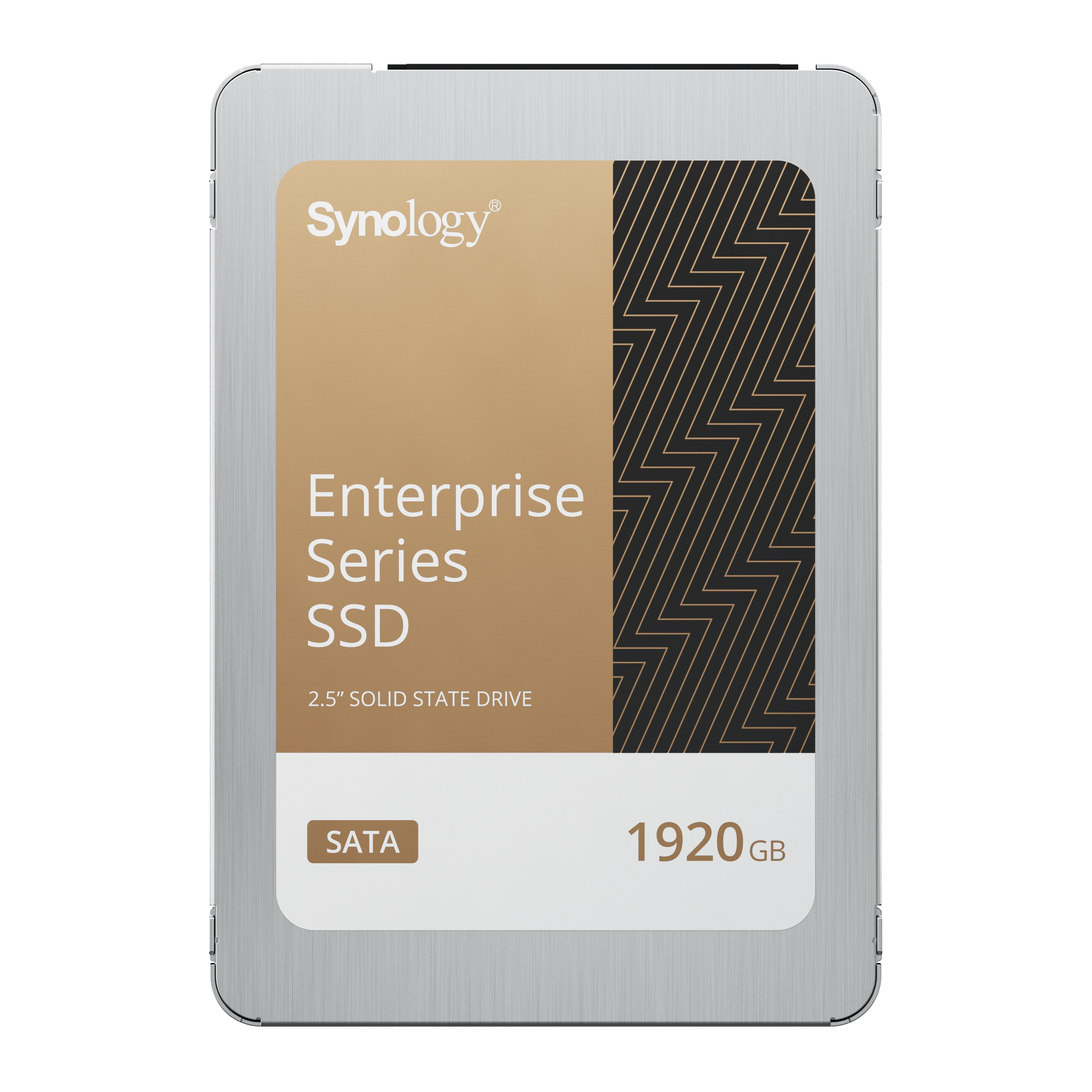

Synology 2.5" SATA SSD SAT5221, 1.9TB
#SAT5221-1920G
Our Price: Request a Quote
Synology 2.5" SATA SSD SAT5221, 3.8TB
#SAT5221-3840G
Our Price: Request a Quote
Synology 2.5" SATA SSD SAT5221, 7TB
#SAT5221-7000G
Our Price: Request a Quote

Want to build a custom bundle? Contact us!

Click here to jump to more pricing!

Please Note: All Prices are Inclusive of GST

Overview:

Enterprise solid-state drives

Synology SAT5200 Series SATA SSDs offer stable I/O performance while reducing the latency of critical services and applications. They are built to handle mixed and intensive 24/7 workloads without compromising on endurance, providing a streamlined storage experience on Synology systems with minimal service disruptions.


Performance

Up to 67,000 4K random write IOPS

Endurance

Up to 10,000 TBW for 24/7 enterprise workloads

Analytics

Actionable insight for optimal performance and longevity

Updates

One-click drive firmware updates through DSM

Features:

Stable high performance for demanding environments

Engineered for demanding environments such as for online transaction processing (OLTP) databases and virtualization deployments, Synology SAT5200 Series drives deliver consistently high performance.


Enterprise-grade endurance and reliability

  • Up to 10,000 TBW
    Built to withstand 24/7 intensive workloads with endurance up to 10,000 TBW.
  • End-to-end data protection
    Data integrity and consistency are safeguarded over the entire data transfer path.
  • Power loss protection circuit design
    Dedicated capacitors provide sufficient power to flush data-in-flight into NAND flash during a power loss event, further preventing data corruption.

Better analytics

Full integration with Synology DiskStation Manager (DSM) enables lifetime analytics for each SAT5200 Series drive based on actual workloads.

  • Timely notifications
    Plan further ahead for uninterrupted system performance and longevity with timely notifications.
  • Optimal use
    Easy monitoring allows you to make optimal use of each SSD.

One-click firmware upgrades

Automatic firmware update notifications and one-click installation through DSM minimize maintenance workload and reduce the chance of oversights.


Purpose-built for Synology systems

Synology SAT5200 Series SSDs are thoroughly validated for our systems following each engineering change, while firmware and component changes are strictly managed. Intensive I/O stress, power cycling, and temperature trials ensure that all products meet our strictest standards for quality and reliability.

Technical Specifications:

Hardware Specifications:
  SAT5221-480G SAT5221-960G SAT5221-1920G SAT5221-3840G SAT5221-7000G
General
Capacity 480 GB 960 GB 1.92 TB 3.84 TB 7 TB
Form Factor 2.5" 7mm 2.5" 7mm 2.5" 7mm 2.5" 7mm 2.5" 7mm
Interface SATA 6 Gb/s SATA 6 Gb/s SATA 6 Gb/s SATA 6 Gb/s SATA 6 Gb/s
Performance
Sustained Sequential read (128 KB, QD32) 500 MB/s 500 MB/s 500 MB/s 500 MB/s 530 MB/s
Sustained Sequential write (128 KB, QD32) 500 MB/s 500 MB/s 500 MB/s 500 MB/s 500 MB/s
Sustained Random Read (4KB, QD32) 90,000 IOPS 90,000 IOPS 90,000 IOPS 90,000 IOPS 97,000 IOPS
Sustained Random Write (4KB, QD32) 30,000 IOPS 30,000 IOPS 30,000 IOPS 30,000 IOPS 50,000 IOPS
Notes
  • Performance specifications represent single-unit SSD performance results obtained from Synology's testing environment; actual performance may vary according to the host system's hardware and software setup.
  • The specifications have undergone thorough review and verification by Synology to ensure they meet the performance demands and compatibility standard of each Synology system while providing high reliability.
  • All performance measurements refer to sustained performance achieved in a steady state, as defined by test specifications in accordance with the Storage Networking Industry Association (SNIA).
Endurance and Reliability
Terabytes Written (TBW) > 900 TB > 1,700 TB > 3,500 TB > 7,000 TB > 10,000 TB
Power Loss Protection
Warranty 5 Years
Notes
  • The TBW specifications denote the baseline endurance levels for Synology SSDs and are calculated using the JESD219A enterprise workload.
  • 5-year limited warranty provides coverage until the end of the warranty period or until the endurance usage of the drive has been reached, whichever comes first.
Power Consumption
Active Read (Typ.) 3 W 3.5 W 4.5 W 4.5 W 3.3 W
Active Write (Typ.) 3.5 W 4 W 5 W 5 W 5.1 W
Idle 1.2 W 1.2 W 1.2 W 1.2 W 1.8 W
Notes Power consumption may differ according to configurations and platforms.
Temperature
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Compatibility
Applied Models
  • SAT5210-7000G
  • SAT5221-480G
  • SAT5221-960G
  • SAT5221-1920G
  • SAT5221-3840G

Documentation:

Download the Synology SAT5221 Datasheet  (PDF).
