Synology SNV5400
Durable SSDs Built for Demanding Caching Workloads


Synology Products

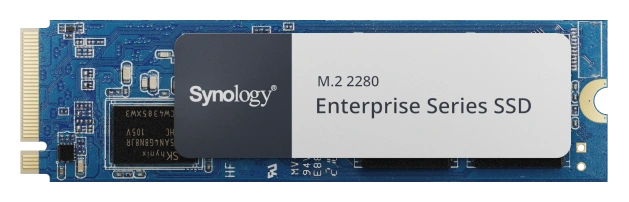

Synology Enterprise Series M.2 NVMe SSD
Synology M.2 NVMe SSD SNV5420, 400GB
#SNV5420-400G
Our Price: Request a Quote
Synology M.2 NVMe SSD SNV5420, 800GB
#SNV5420-800G
Our Price: Request a Quote
Synology M.2 NVMe SSD SNV5420, 1.6TB
#SNV5420-1600G
Our Price: Request a Quote

Want to build a custom bundle? Contact us!

Click here to jump to more pricing!

Please Note: All Prices are Inclusive of GST

Overview:

Supercharge your NAS/SAN

Enterprise Series M.2 NVMe SSDs are designed to intelligently work with Synology DiskStation Manager (DSM) to boost I/O performance. These high-performance NVMe drives accelerate the slower but higher-capacity storage space provided by traditional hard drives, enabling cost-effective, in-place upgrades for existing systems.


Performance

Up to 120,000 4K random write IOPS

Endurance

Up to 2,900 TBW

Analytics

Actionable insight for optimal performance and longevity

Updates

Automatic firmware updates with DSM

Features:

Consistently fast caching for 24/7 environments

Engineered for demanding environments such as for online transaction processing (OLTP) databases and virtualization deployments, Synology SAT5200 Series drives deliver consistently high performance.


Data integrity safeguards

The SNV3500 and SNV5400 Series offer full end-to-end data protection, including power loss protection to ensure data integrity during unexpected shutdowns. These series have capacitors in their power loss protection circuits to safely write cached data to NAND flash memory during power failures, thus preventing data loss.


Better analytics

Full integration with Synology DiskStation Manager (DSM) enables lifetime analytics for each SAT5200 Series drive based on actual workloads.

  • Timely notifications
    Plan further ahead for uninterrupted system performance and longevity with timely notifications.
  • Optimal use
    Easy monitoring allows you to make optimal use of each SSD.

Effortless firmware updates

Synology DSM keeps your drives up to date automatically. No need for separate maintenance sessions.


Purpose-built for Synology NAS

Synology Enterprise Series M.2 NVMe SSDs undergo comprehensive validation for use in our systems after every engineering change. Firmware and components are rigorously controlled, while extensive I/O stress, power cycling, and temperature testing ensure that all products meet the highest standards of quality and reliability.

Technical Specifications:

Hardware Specifications:
  SNV5410-400G SNV5410-800G SNV5410-1600G
General
Capacity 400 GB 800 GB 1600 GB
Form Factor M.2 2280 M.2 2280 M.2 2280
Interface NVMe PCIe 3.0 x4 NVMe PCIe 3.0 x4 NVMe PCIe 3.0 x4
Performance
Sustained Sequential read (128 KB, QD32) 3,000 MB/s 3,000 MB/s 3,000 MB/s
Sustained Sequential write (128 KB, QD32) 650 MB/s 1,000 MB/s 1,000 MB/s
Sustained Random Read (4KB, QD32) 225,000 IOPS 400,000 IOPS 660,000 IOPS
Sustained Random Write (4KB, QD32) 45,000 IOPS 70,000 IOPS 120,000 IOPS
Notes
  • Performance specifications represent single-unit SSD performance results obtained from Synology's testing environment; actual performance may vary according to the host system's hardware and software setup.
  • The specifications have undergone thorough review and verification by Synology to ensure they meet the performance demands and compatibility standard of each Synology system while providing high reliability.
  • All performance measurements refer to sustained performance achieved in a steady state, as defined by test specifications in accordance with the Storage Networking Industry Association (SNIA).
Endurance and Reliability
Terabytes Written (TBW) >700 TB >1,400 TB >2,900 TB
Power Loss Protection
Warranty 5 Years
Notes
  • 5-year limited warranty provides coverage until the end of the warranty period or until the endurance usage of the drive has been reached, whichever comes first.
  • Based on the JESD219A enterprise workload.
Power Consumption
Active Read (Typ.) 5 W 5 W 5 W
Active Write (Typ.) 5.5 W 5.5 W 5.5 W
Idle 2.5 W 2.5 W 2.5 W
Notes Power consumption may differ according to configurations and platforms.
Temperature
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Compatibility
Applied Models
  • M.2 SSD via Internal slot

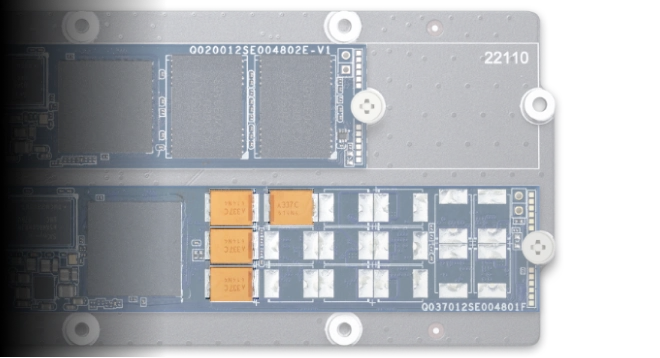

  • M.2 SSD via E10M20-T1
  • M.2 SSD via M2D20
  • M.2 SSD via M2D18

Documentation:

Download the Synology SNV5400 Datasheet  (PDF).
