Synology Camera TC500
AI-powered turrent camera
Overview:
Versatile AI camera for securing any location
- Consistent clear footage, 24/7
- Enchance your surveillance with camera-based AI
- Effortless setup and access from anywhere
- Safety and security you can rely on
Features:
Consistently clear footage, 24/7
- 5 MP & 110 degrees wide field of view
- IP67 certified
- 30m night vision
- NDAA compliant

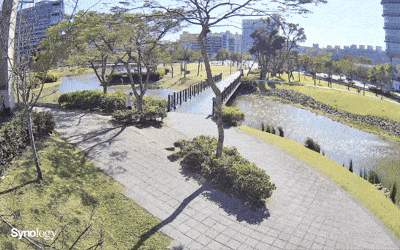

Around the clock surveillance
See clearly at night with four high-power IR LEDs that provide 30 meters of night vision range.

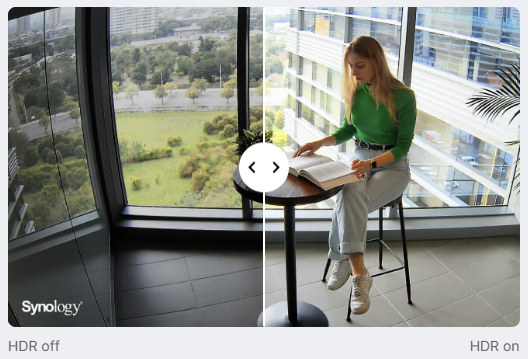

Detailed video recordings in all lighting conditions
Ensure security despite high contrast light conditions with High Dynamic Range (HDR), which provides detailed images in both shadows and bright spots.

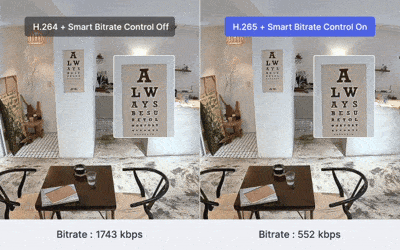

High quality video, increased storage efficiency
Smart Bitrate Control provides high-quality video while reducing storage and network requirements by up to 70%.
Enhance your surveillance with camera-based AI
Be proactive with surveillance. AI features empower security staff to watch over multiple locations more efficiently.

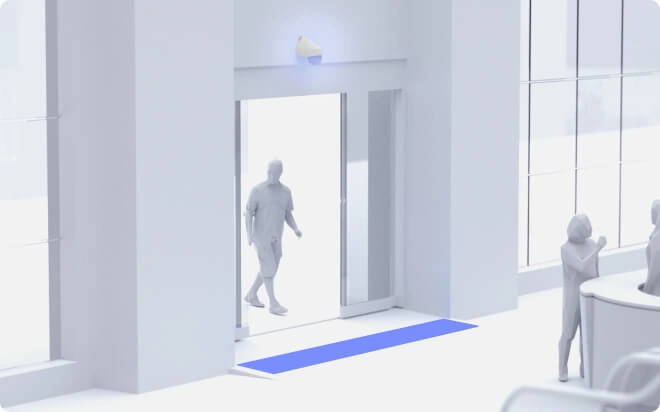

People & Vehicle Counting
Gauge occupancy levels with aggregated counting of people and vehicles entering and leaving your premises, with automatic alerts when capacity is reached.

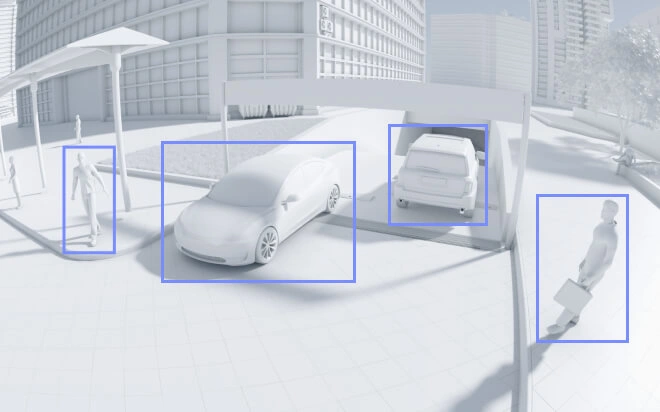

People and Vehicle Detection
Protect against loitering and boost security with cameras that leverage AI to distinguish people and vehicles from other moving objects with high accuracy.
Intrusion Detection
Identify trespassers without maintaining dedicated staff on site. Draw virtual borders to automatically receive alerts when people or vehicles cross.

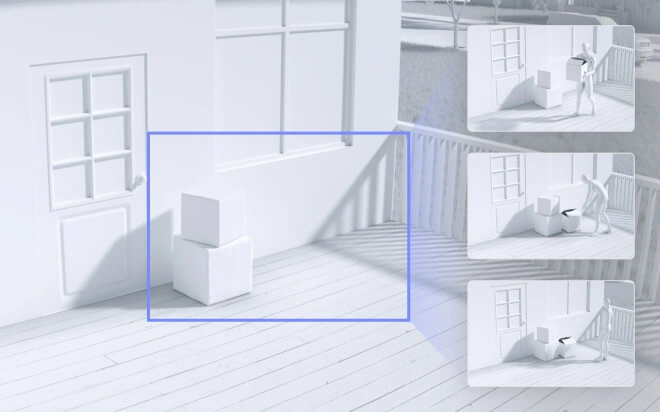

Instant Search
Investigate incidents quickly after they happen. Instant Search lets operators search for activities of interest within a certain area.
Auto Tracking
Auto Tracking seamlessly locks onto and trails the moving target, ensuring continuous centering on the screen.
Effortless setup and access from anywhere
With hassle-free setup and on-the-go access, these cameras are suitable for single-site small business installations and sprawling multi-site deployments alike.
- Optimized for Surveillance Station
BC500 and TC500 are designed to work in perfect harmony with Surveillance Station.
- Easy setup, configuration, and firmware updates
- No Surveillance Station device licenses required
- Streamlined setup and configuration
Simply connect and go. All camera settings, including image quality and network configuration, can be modified directly in Surveillance Station.
Stay in the know with DS cam
DS cam is the powerful companion mobile app for Surveillance Station, available for free on iOS and Android.
- Easily stay on top of security
Receive notifications sent to your phone the moment events are triggered. Quickly review the events of the day with a few taps. - See the action live
Watch up to 6 live feeds at the same time. If an event catches your eye, take a snapshot for a closer look. - Define detection zones
Select specific areas to monitor for accurate and relevant alerts.
Reliability and security you can depend on

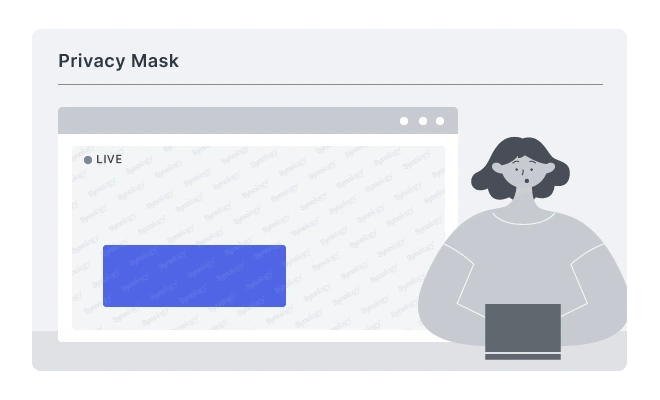

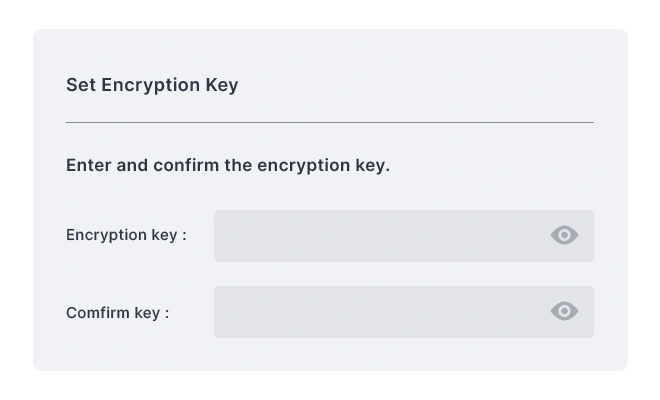

Integrated safeguards ensure surveillance availability, data security, and privacy.
Enterprise-grade reliability and availability

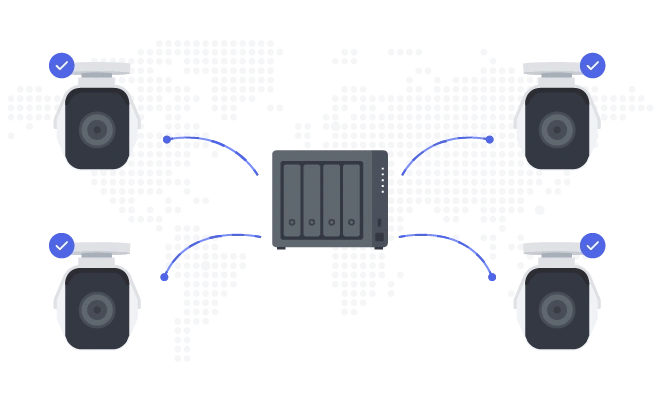

From recording to archiving, your video is protected

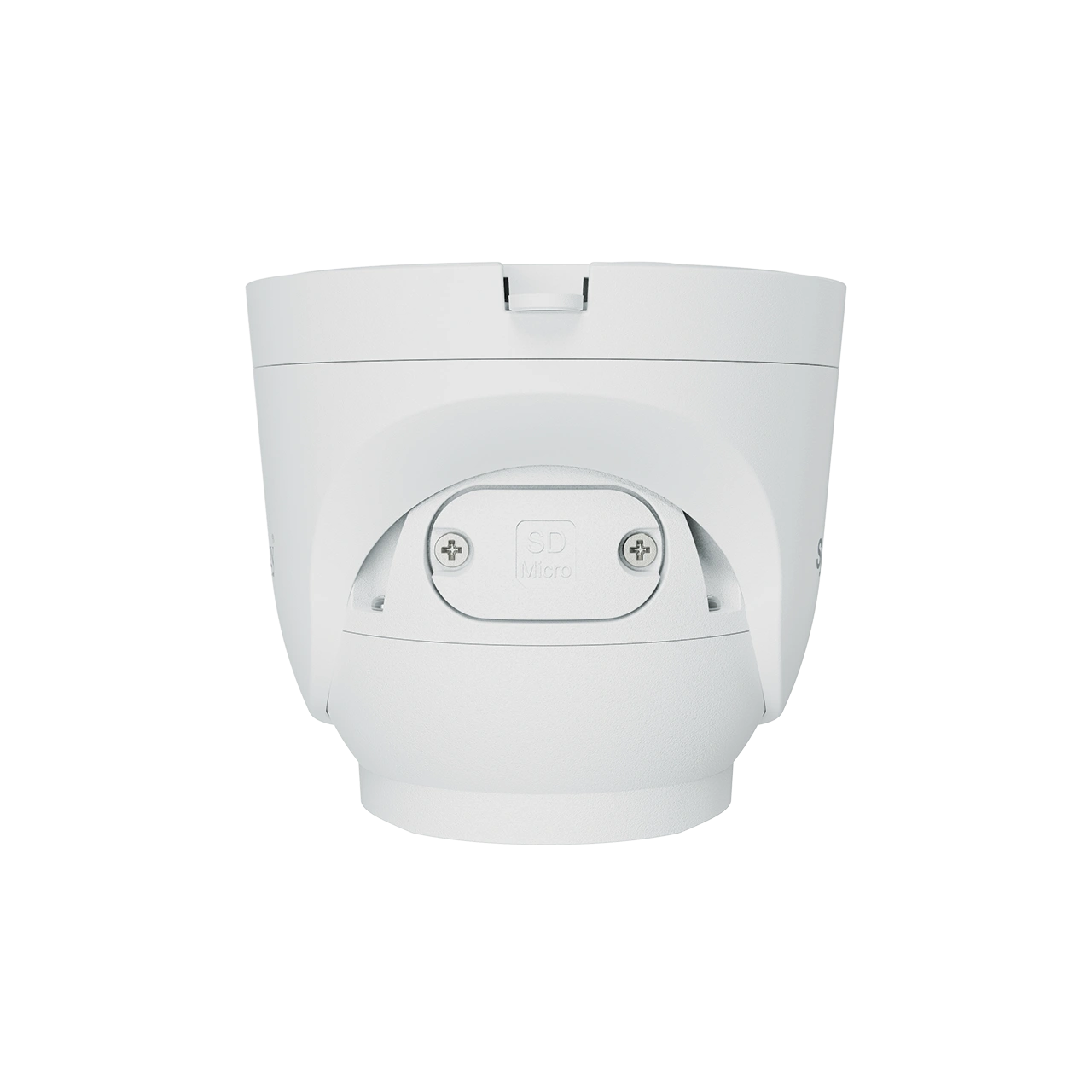

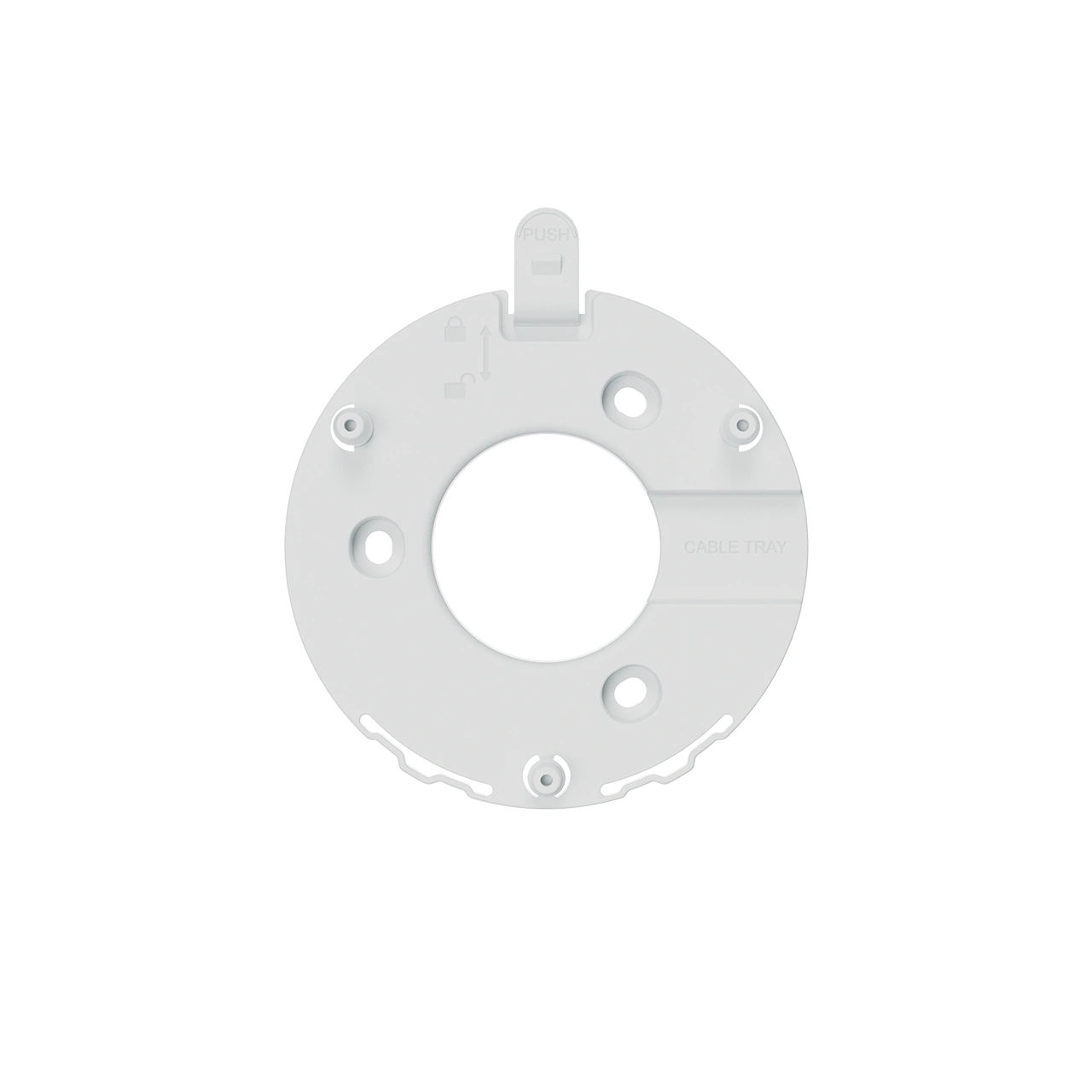

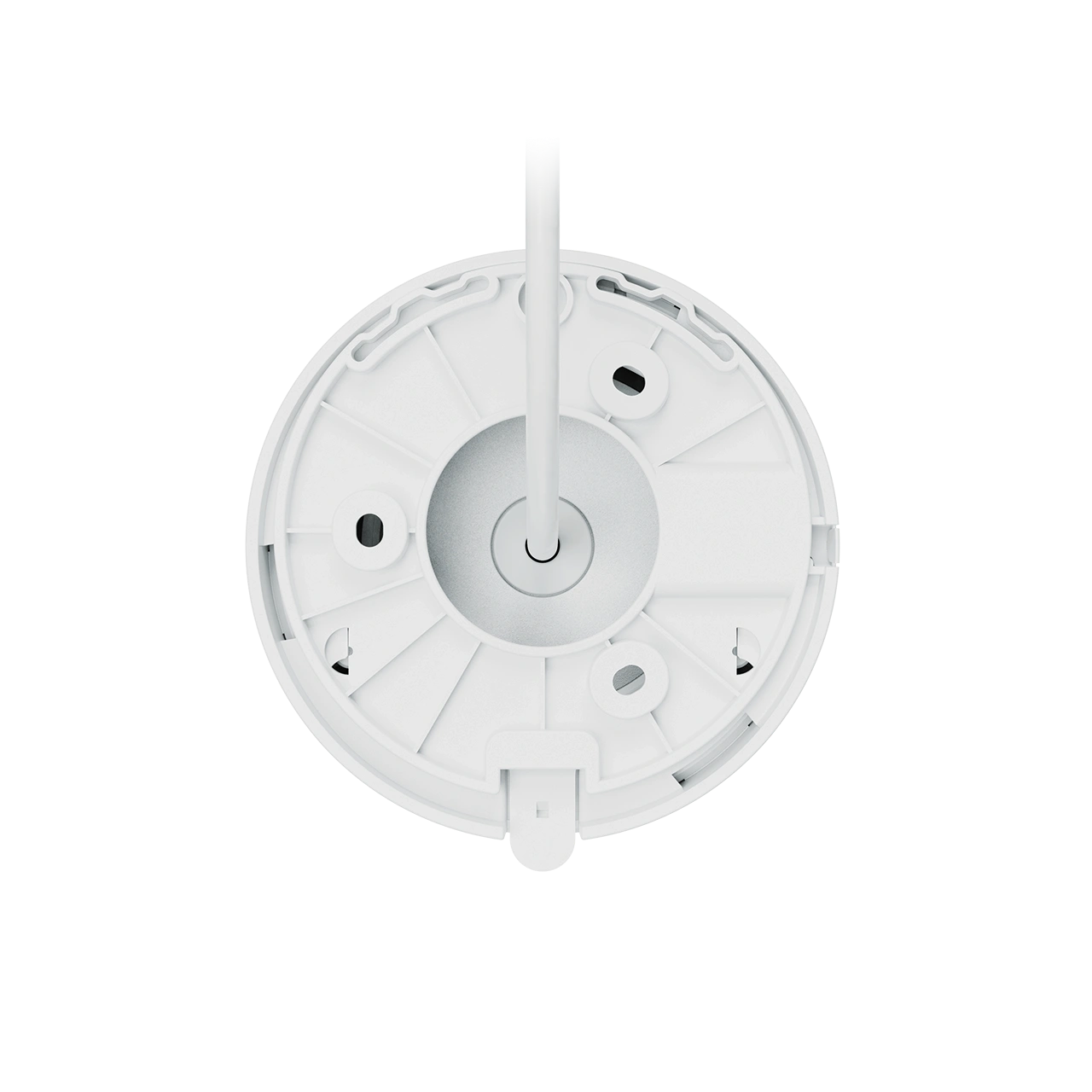

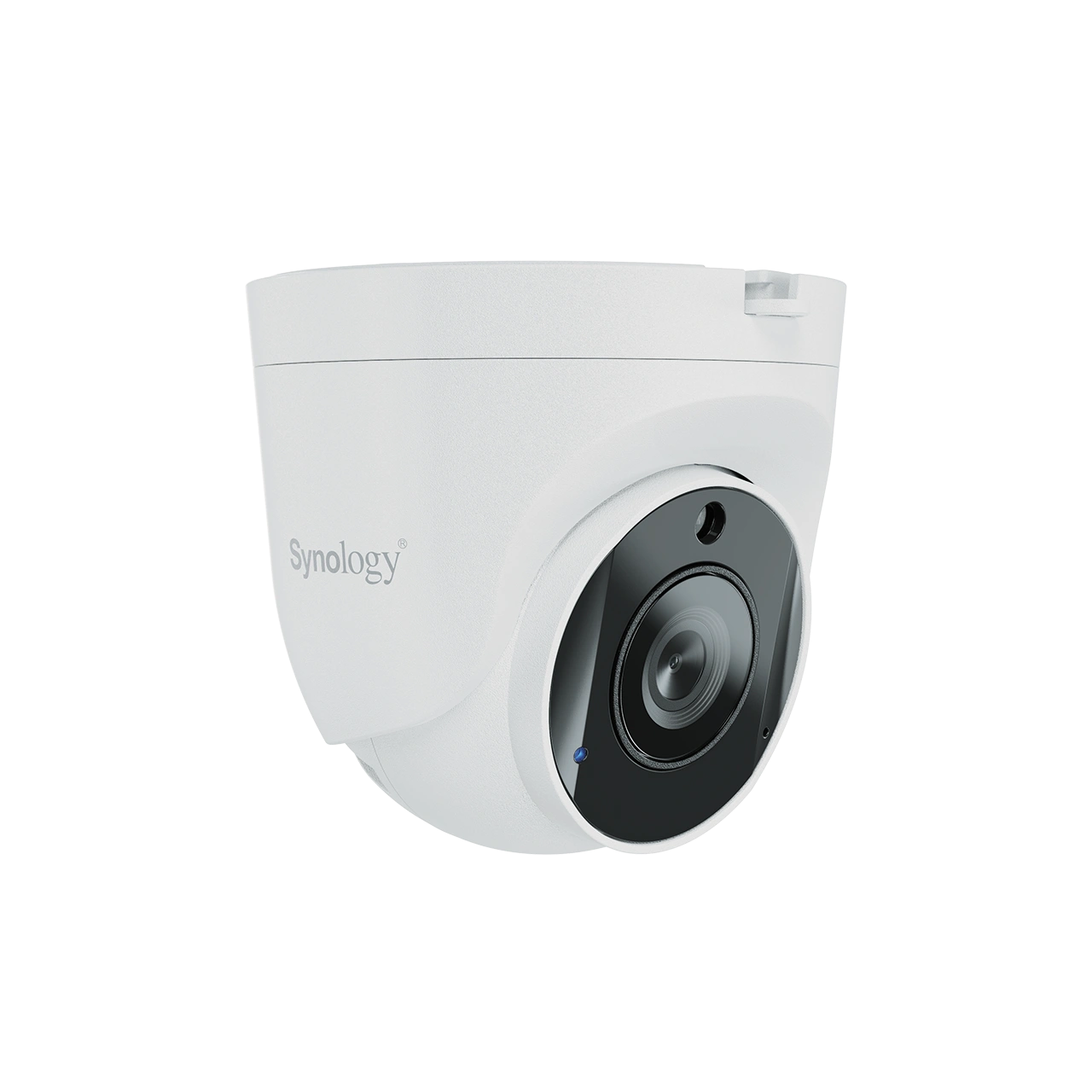

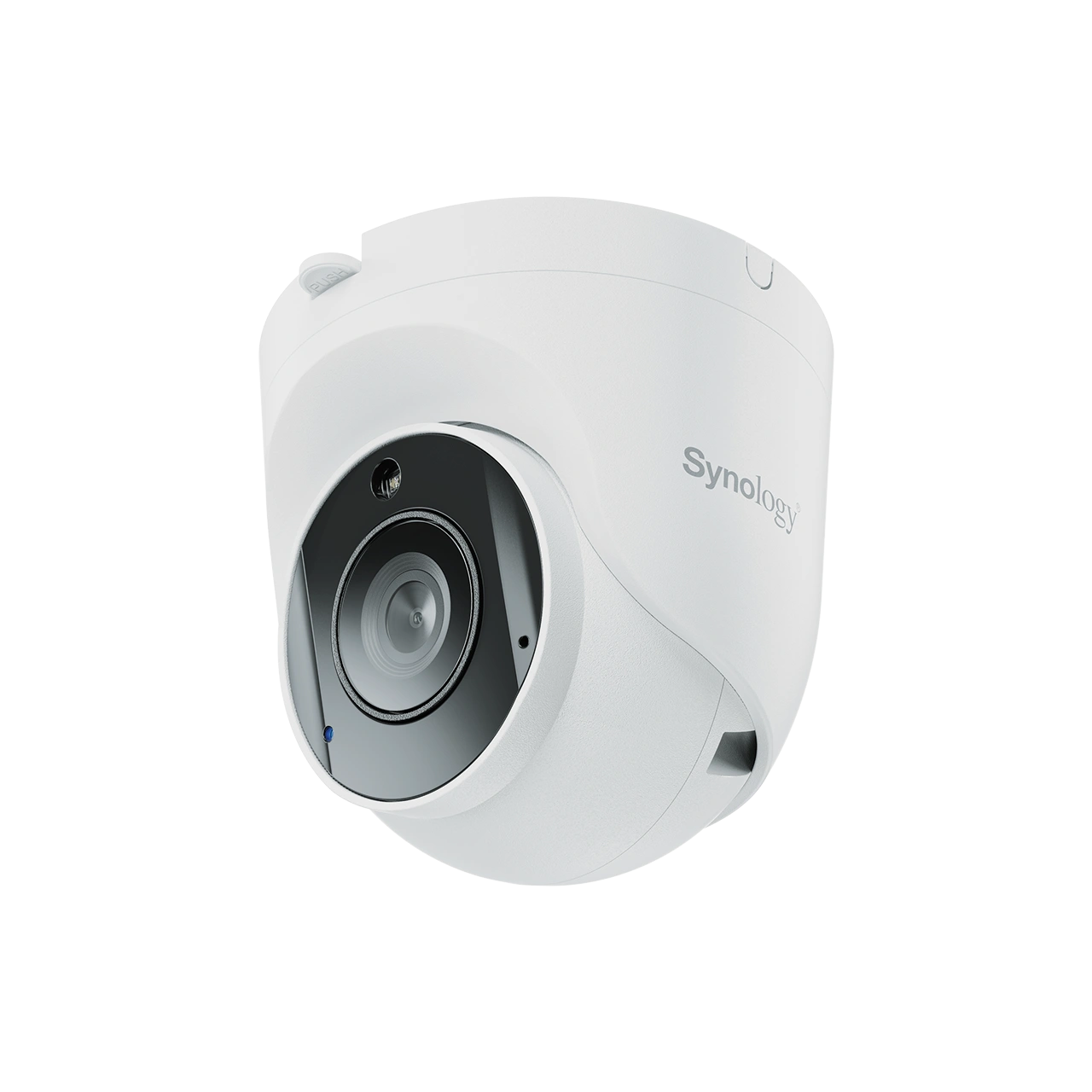

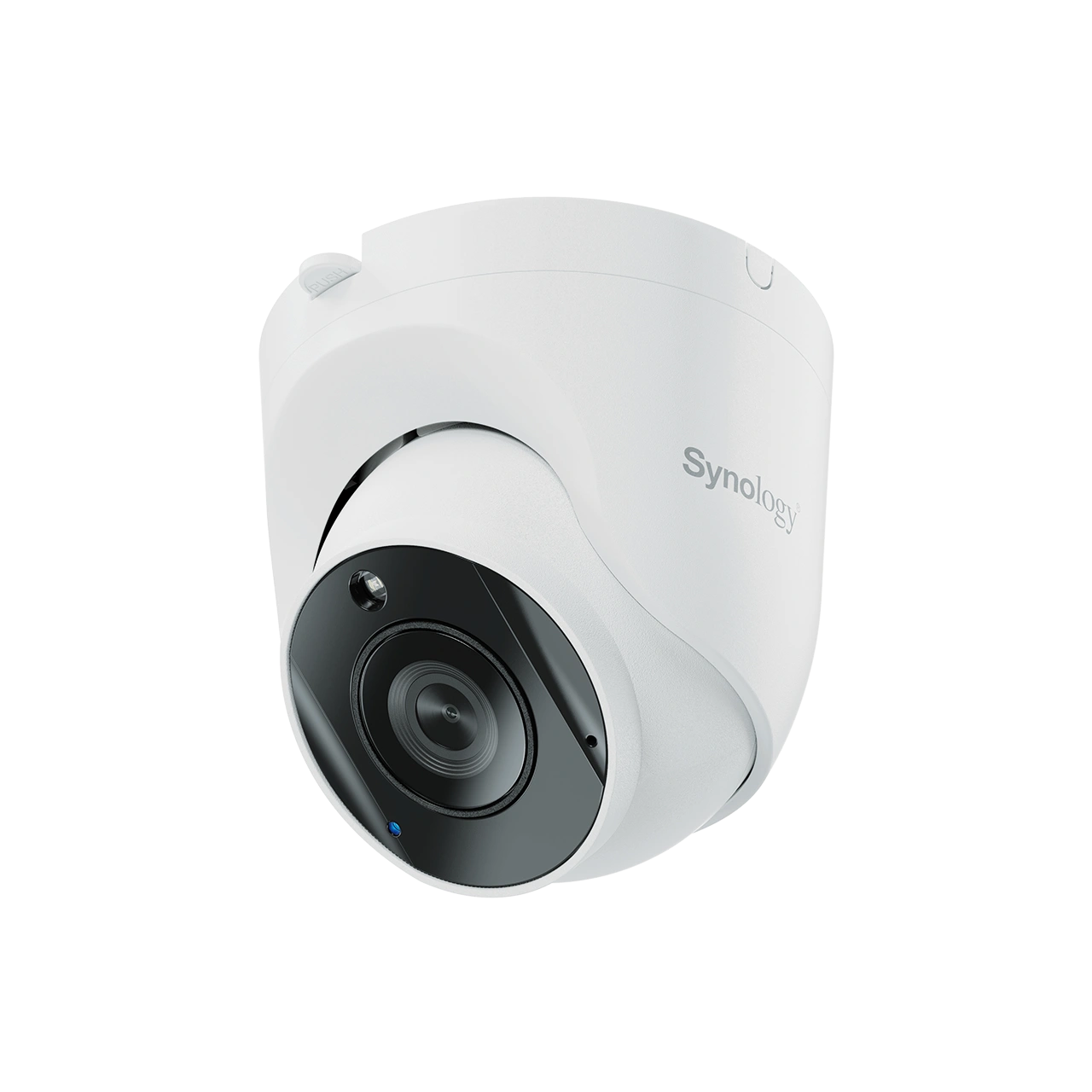

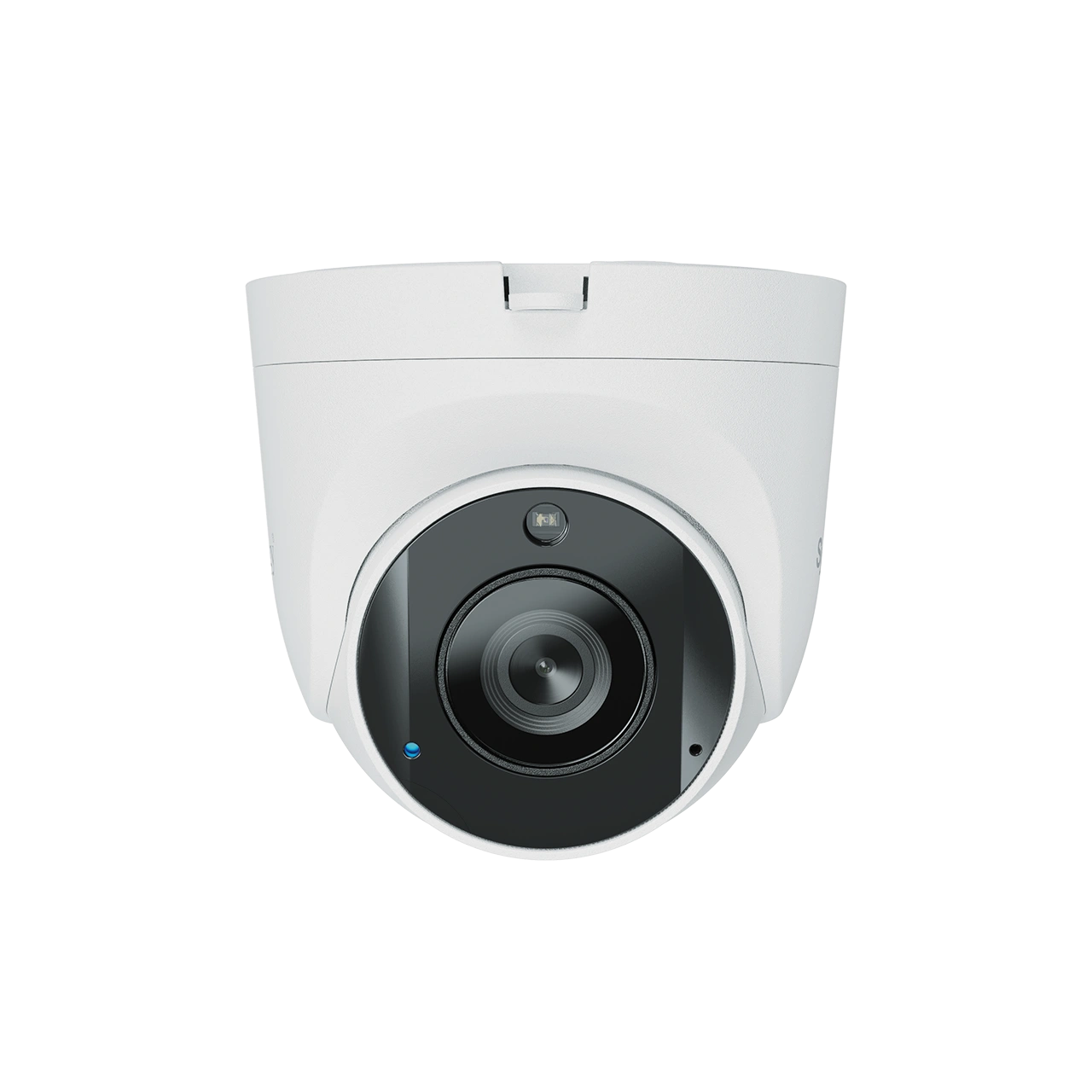

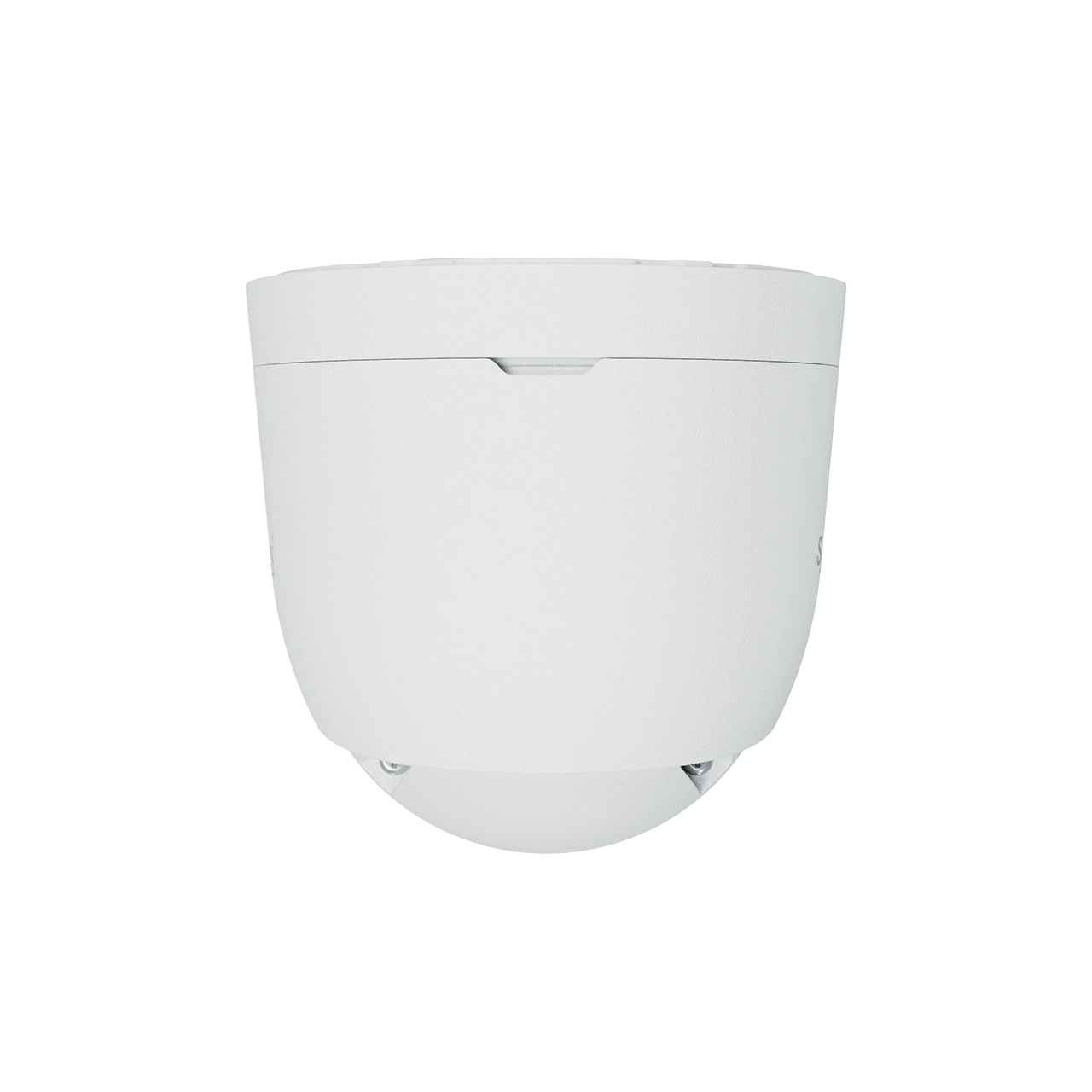

Product Views:
Technical Specifications:
| Hardware Specifications: | |
|---|---|
| Optical | |
| Image Sensor | 1/2.7" |
| IR LED wavelength | 850 nm |
| Max. IR distance | 30m (98.4ft) (0.001lux) |
| Shutter Speed | 1/16000 s to 1/30 s |
| Day & Night | Automatically removable infrared-cut filter |
| Lens | |
| Lens type | Fixed Focal |
| Focal Length | 2.8 mm |
| Field of View | 110° H, 56° V, 132° D (LDC ON) |
| DORI | D: 60m, O: 24m, R: 12m, I: 6m |
| Aperture | F1.8 |
| Video | |
| Max. video resolution | 2880x1620 @ 30 FPS |
| Multi-exposure HDR | |
| DNR |
|
| Audio | |
| Microphone | |
| I/O | |
| Ethernet | RJ45 10M/100M Ethernet port X 1 |
| Reset | |
| On-Board Storage |
MicroSD card slot X 1 Support microSD card up to 256GB Supported file format: exFAT Note: microSD card is not included |
| Power Supply | IEEE 802.3af Type 1 Class 3 or 12V DC |
| General | |
| Form Factor | Turrent |
| Dimension | 97 × 88 mm (3.82 x 3.46”) |
| Weight | 387 g (0.85 lbs) |
| Temperature | |
| Operating Condition |
Starting temperature:-30°C to 50°C (-22°F to 122°F) Operating temperature:-30°C to 50°C (-22°F to 122°F) (IR off) Operating temperature:-30°C to 40 °C (-22°F to 104°F) (IR on) Operating humidity:5%~95% (non-condensing) |
| Storage Condition |
Storage temperature:-40°C to 60°C (-40°F to 140°F) Storage humidity:5%~95% (non-condensing) |
| Certification | |
|
|
| Environment |
|
| Waterproof |
|
| Vandal | IK10 |
| NDAA Compliant | |
| TAA Compliant | |
| Warranty | 3 Years |
| Packaging Content |
|
Documentation:
Download the Synology TC500 Datasheet (PDF).
