Synology Unified Controller UC3400
Active-active SAN for mission-critical environments

Synology Products
Synology Unified Controller

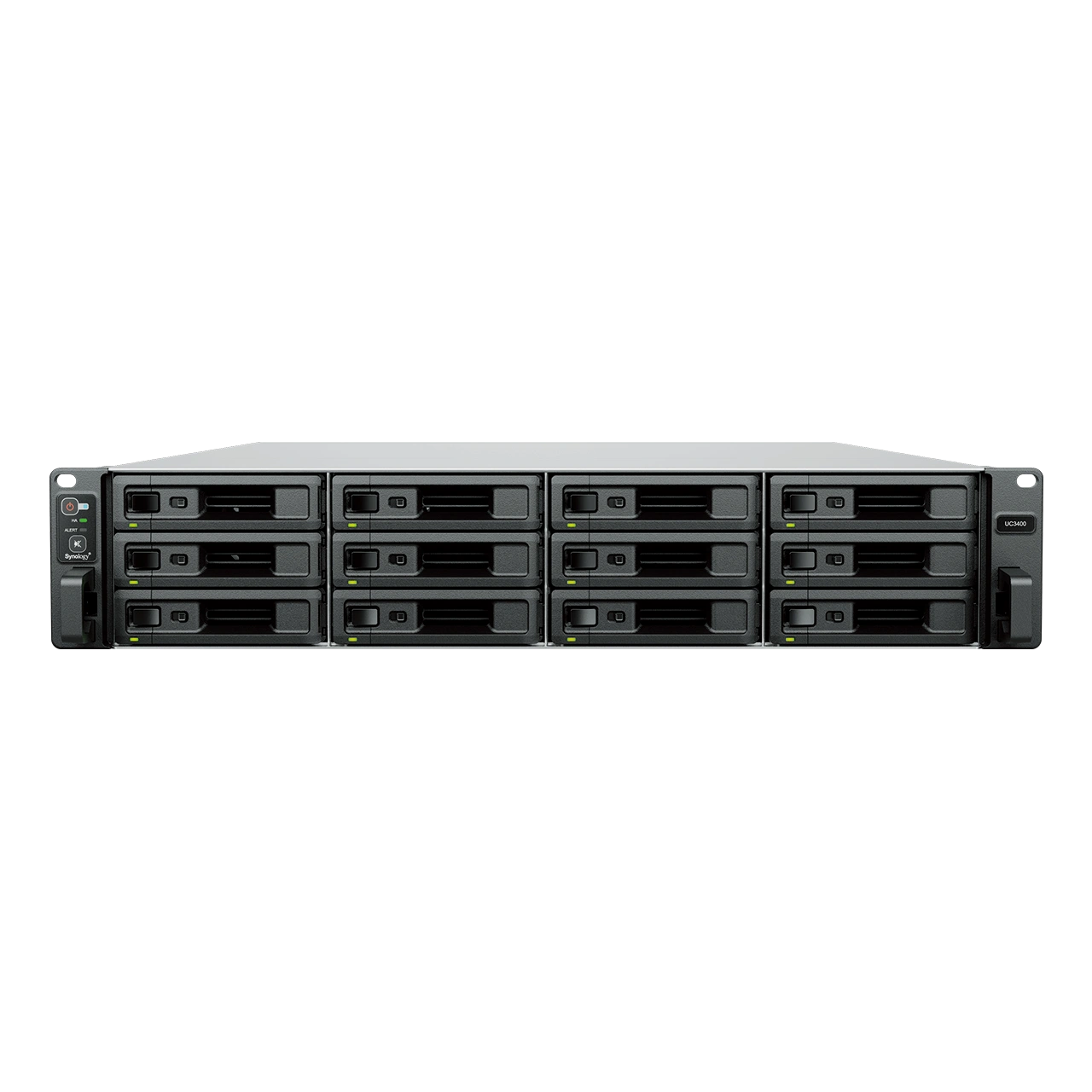

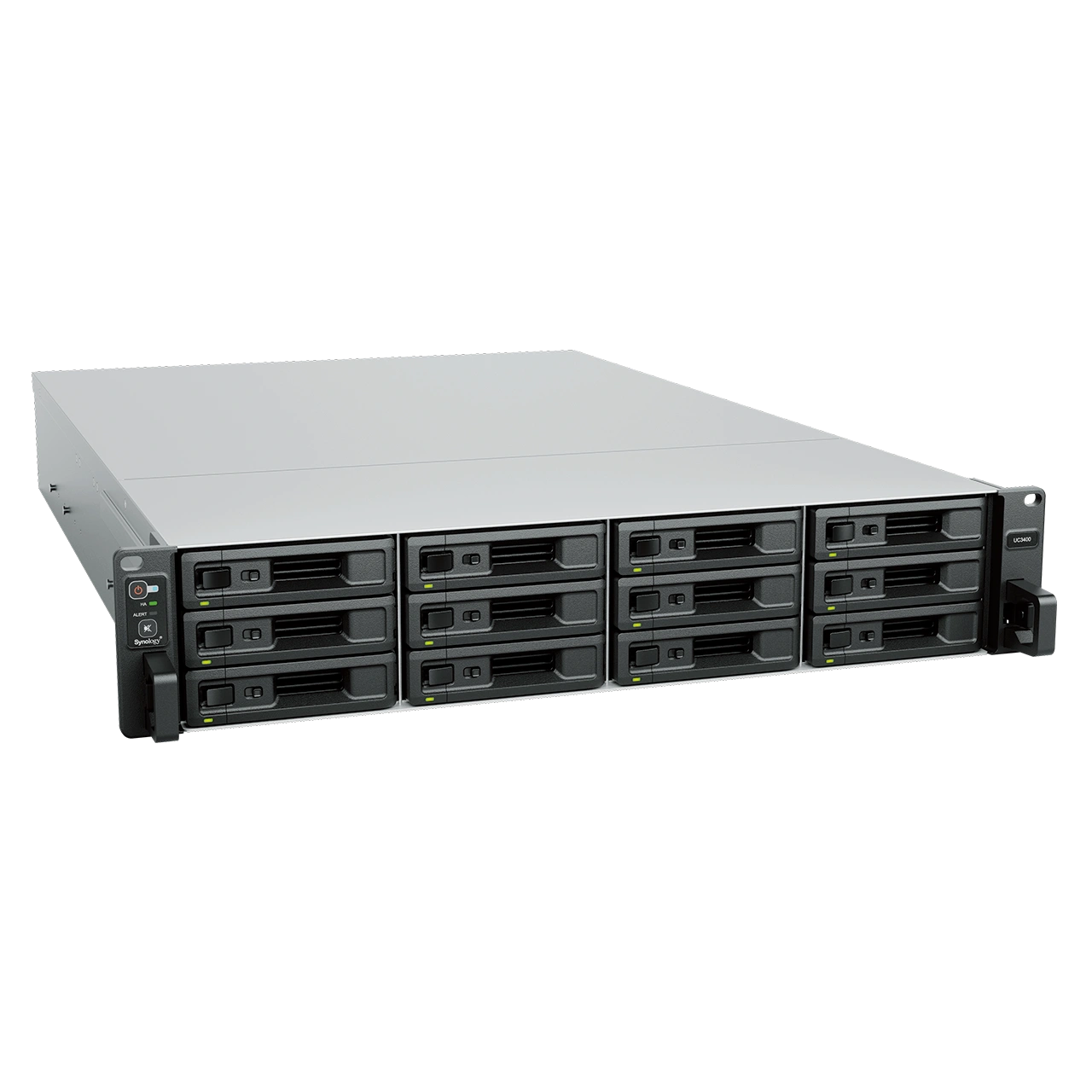

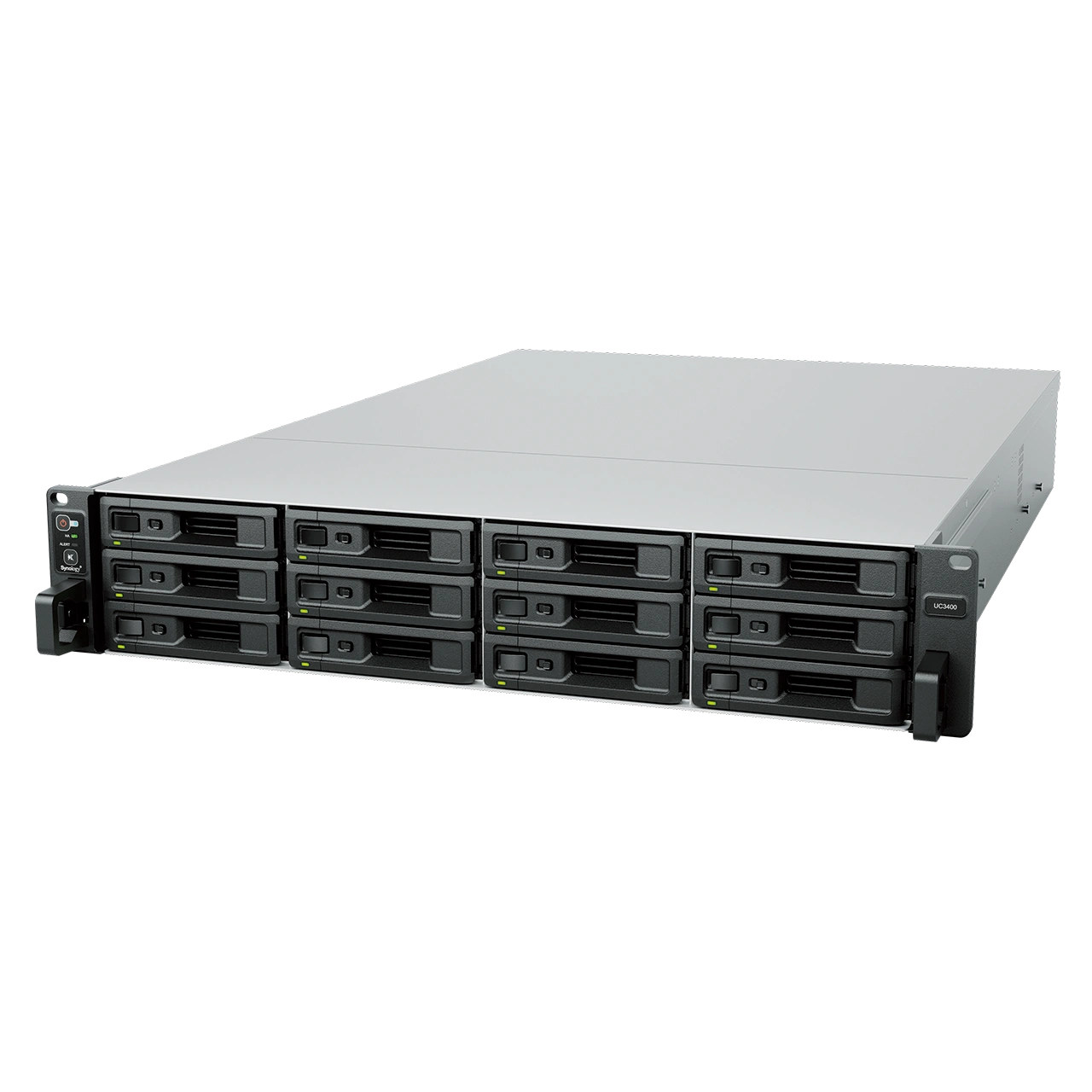

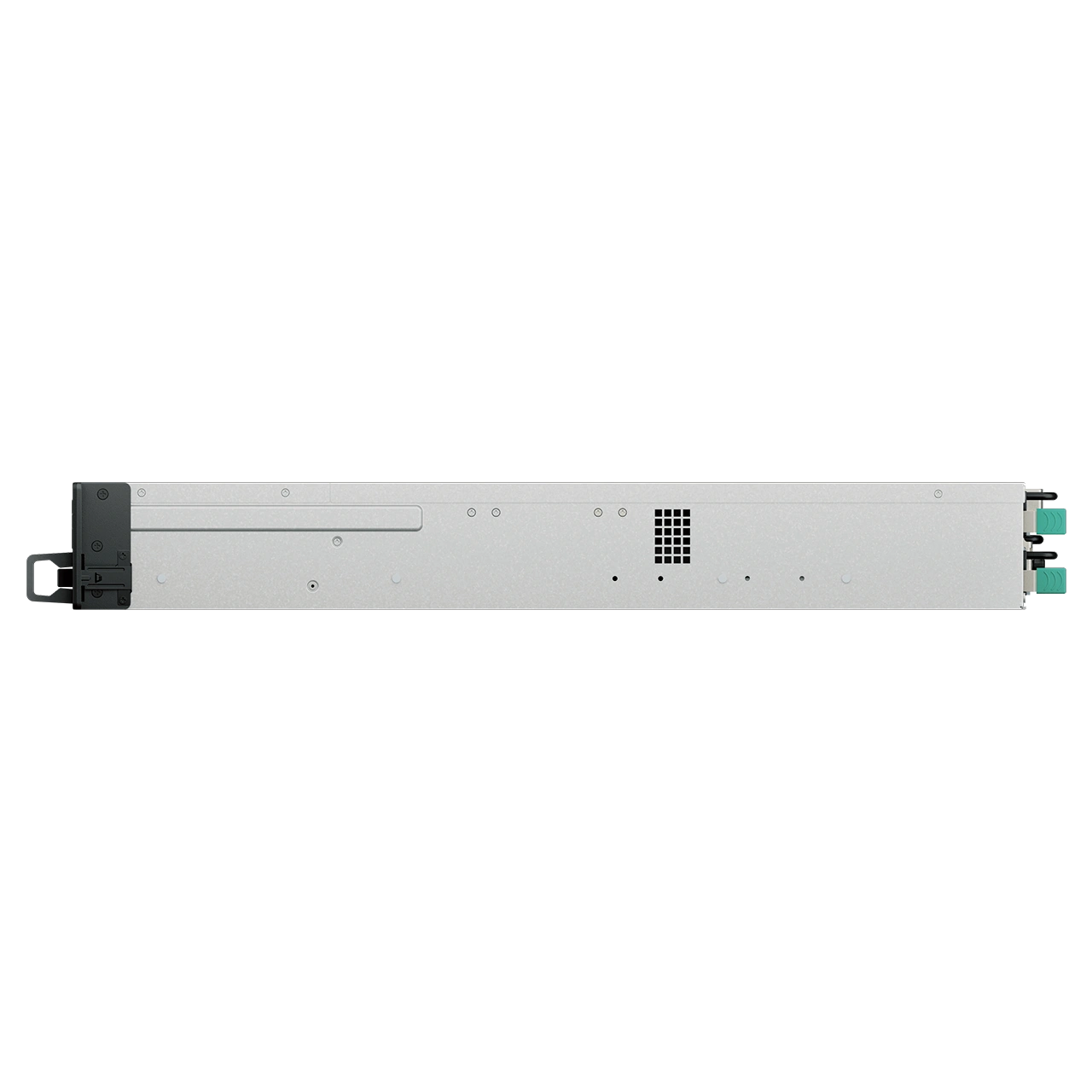

Synology Unified Controller UC3400 12 Bay Active-Active IP SAN
#UC3400
Our Price: Request a Quote

Want to build a custom bundle? Contact us!

Click here to jump to more pricing!

Please Note: All Prices are Inclusive of GST

Overview:

Active-Active SAN Storage for Mission-Critical Services

Synology UC3400 is designed for highavailability SAN environments, featuring an active-active architecture that ensures uninterrupted block storage services, while providing resilient data protection and a simplified management interface.


Non-disruptive block storage services

Dual Controller Module

Ensure interruption-free iSCSI and FC services

High Performance

Over 180,000 4K Random Write IOPS, and up to 576 TB of storage

Virtualization-ready

Full support for mainstream virtualization systems

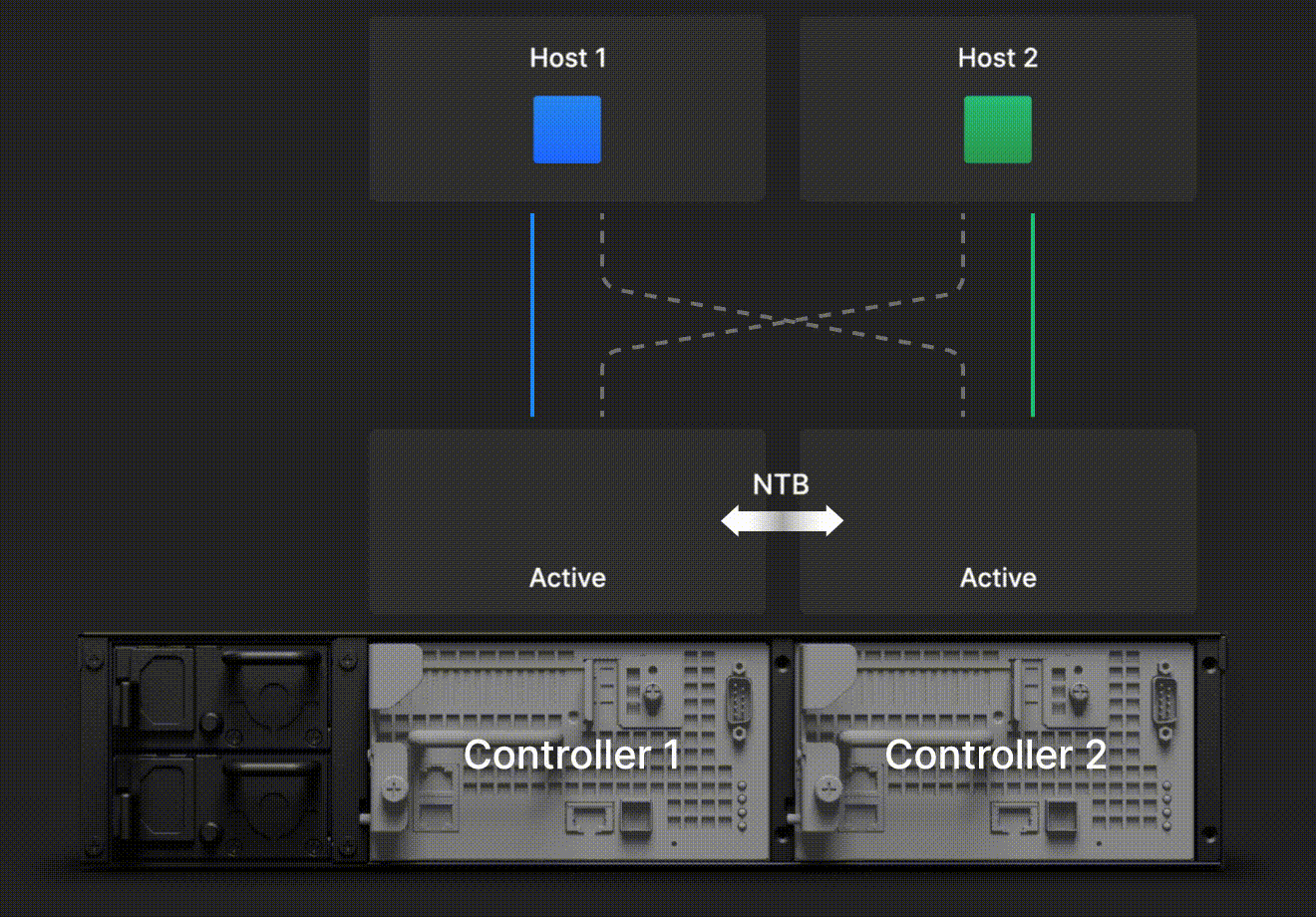

Reliability and High Availability

Active-active dual controllers work simultaneously to ensure zero downtime in the event of a controller failure while the non-transparent bridge (NTB) enables inter-domain communication to maximize the protection of in-flight data.

Features:

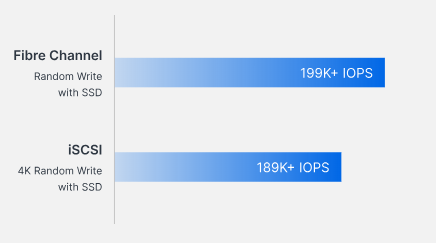

Active-Active SAN with enterprise-class performance

Designed for mission-critical environments, UC3400 is a high-availability SAN solution supporting Fibre Channel (FC) and iSCSI protocols. With over 180,000 4K random write IOPS, it supports a wide range of demanding workloads.



Virtualization-ready

Full certification for VMware, vSphere, Microsoft Hyper-V, Citrix XenServer, and OpenStack environments Support for Windows Offloaded Data Transfer (ODX), VMware vSphere Storage APIs Array Integration (VAAI), and ALUA ensure optimized and efficient storage operations OpenStack® Cinder support enables UC3400 to become a block-based storage component

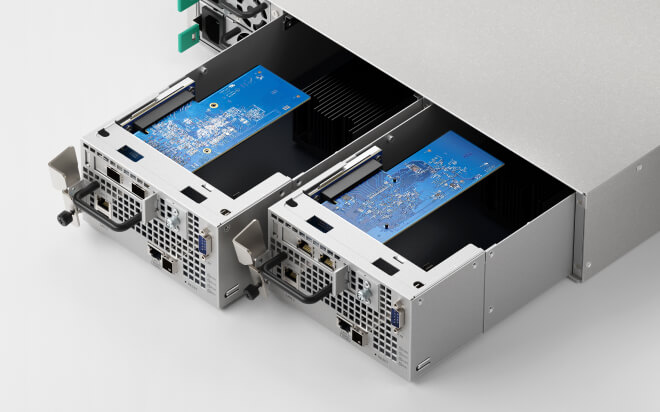

Flexible network options

Boost network from 10GbE and dual 1GbE RJ-45 ports to 10/25 Gb Ethernet cards or 16 Gb Fibre channel host bus adapters on each controller


Built-in data protection and security

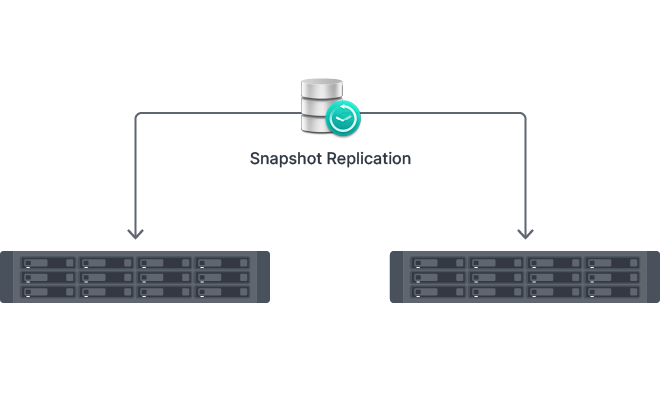

Maximize service uptime for critical services and enhance data security with snapshot protection and self-encrypting drive support in UC3400.

Built-in software offers application-aware snapshot protection and instant recovery of virtual machines in iSCSI LUNs in the event of a disaster.
Native support for self-encrypting drives (SEDs) provide hardware-level encryption for mission-critical and sensitive data at rest.

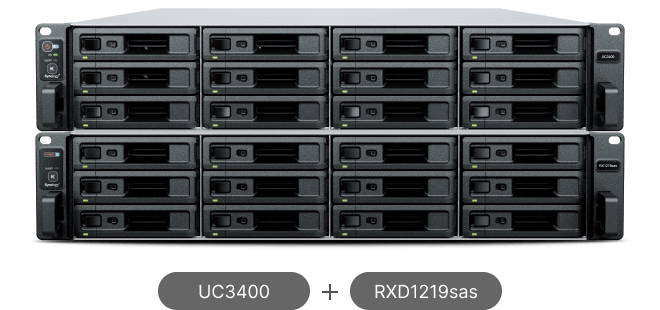

Storage expansion

Simple capacity expansion of up to 576 TB of raw storage is available with two Synology RXD1219sas Expansion Units

Specifications:

Unified Controller UC3400 Hardware Specifications:
Hardware Specifications
Number of Controller Module 2
CPU Model Intel Xeon D-1541
CPU Core 8
CPU Architecture 64-bit
CPU Frequency 3.35 (base) / 3.6 (turbo) GHz
Hardware encryption engine
Memory 8 GB DDR4 ECC UDIMM (per controller)
Memory Module Pre-instaled 8 GB (8 GB x 1) (per controller)
Total Memory Slots 4 (per controller)
Maximum Memory Capacity 64 GB (16 GB x 4) (per controller)
Drive Bays 12
Maximum Drive Bays with Expansion Unit 36 (RXD1219sas x 2)
Compatible drive type
  • 2.5” dual-port SAS SSD
  • 3.5” dual-port SAS HDD
Hot swappable drive

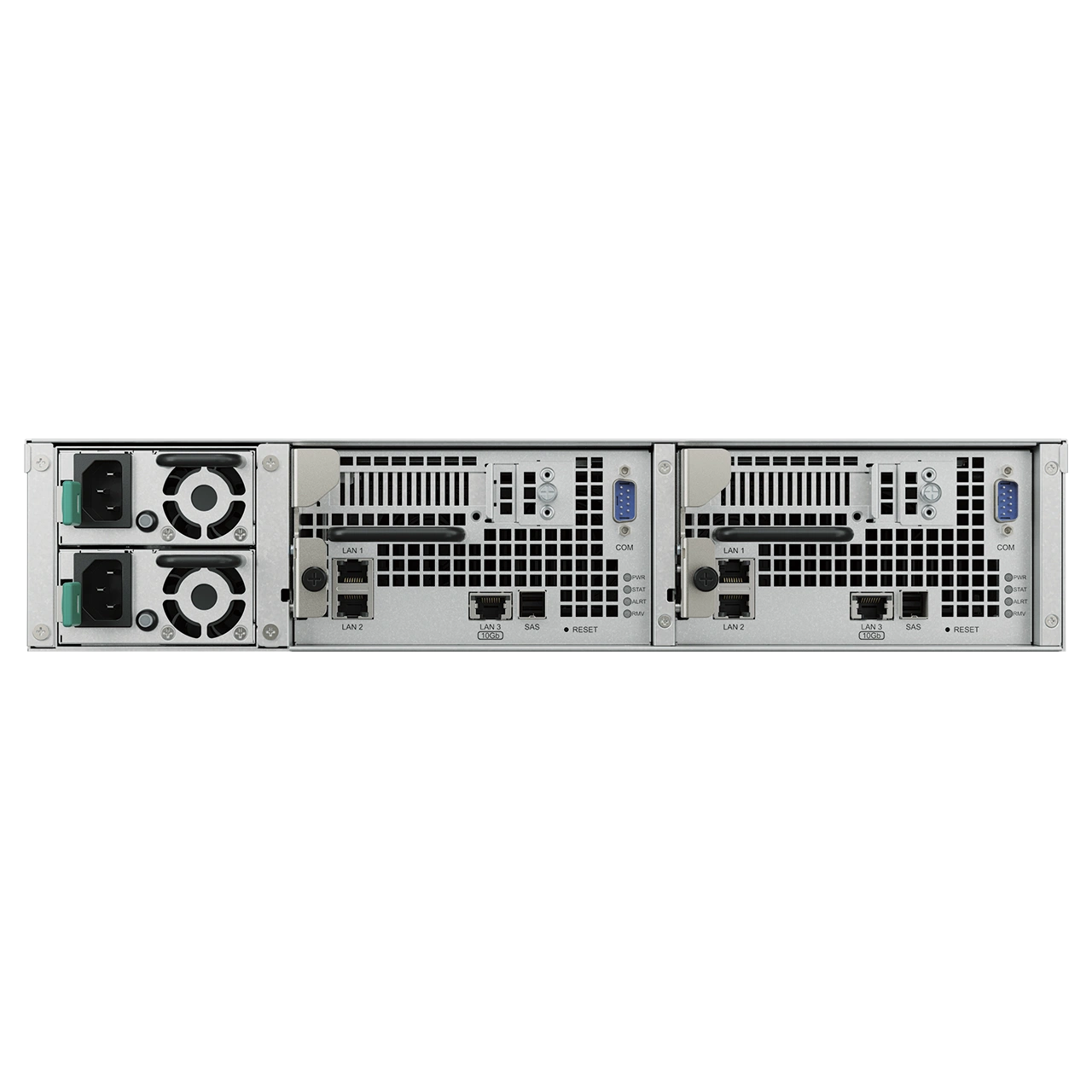

External port
  • 2 x RJ-45 1GbE LAN Port (with Link Aggregation / Failover support) (per controller)
  • 1 x RJ-45 10GbE LAN Port
PCIe Expansion 1 x Gen3 x8 slot (x8 link) (per controller)
Add-In-Card Support
  • 10GbE NIC
  • 25GbE NIC
  • FC HBA
Internal Drives Btrfs

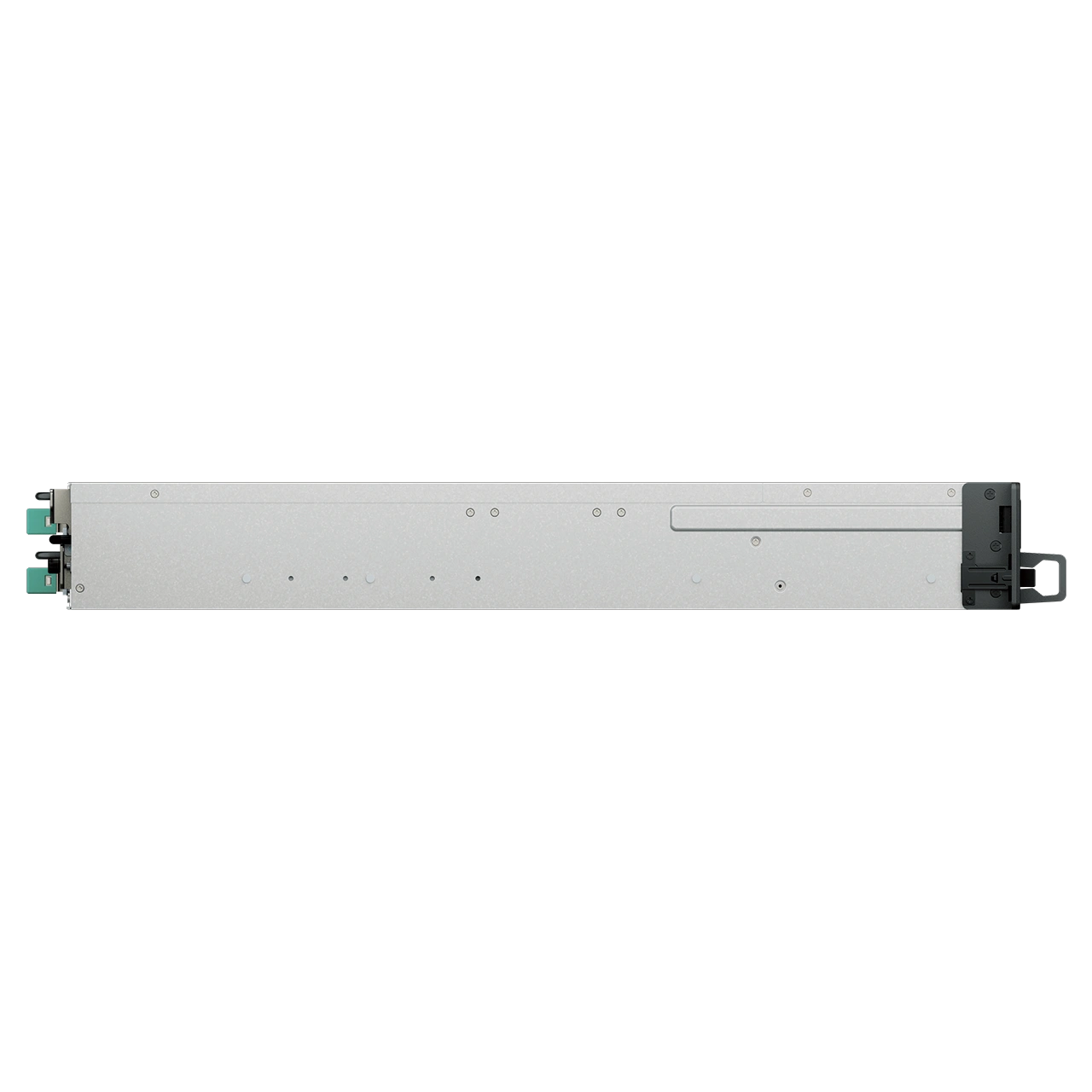

Size (Height x Width x Depth) 88 mm x 430.5 mm x 692 mm
Size (Height x Width x Depth) (with server ears) 88 mm x 482 mm x 724 mm
Weight 19.7 kg
Rack Installation Support 4-post 19" rack (Synology Rail Kit - RKS-02)
Rack Installation Support The rail kit is sold separately
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
System fan 60 mm x 60 mm x 2 (per controller)
Easy Replacement System Fan
Power Recovery
Noise Level 51.3 dB(A)
Power Recovery
Wake on LAN/WAN
Power Supply Unit/Adapter 550 watts
Redundant Power Supply
AC input power voltage 100 V to 240 V AC
Power Frequency 50 to 60Hz, single phase
Power Consumption 239.25 W (Access)
British Thermal Unit 816.35 BTU/hr (Access)
Operating Temperature 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certifications and Packaging
Environment safety RoHS compliant
Package content
  • 1 x Main unit
  • 1 x Accessory pack
  • 2 x AC power cords
  • 1 x Quick Installation Guide
Optional accessories
  • DDR4 ECC UDIMM: D4EC-2666-8G/D4EC-2666-16G
  • Expansion Units: RXD1219sas
  • Enterprise Series 3.5" SAS HDD: HAS5300 Series
  • 25GbE Network Interface Card: E25G30-F2
  • 10GbE Network Interface Card: E10G30-F2/E10G30-T2/E10G18-T1
  • Rail Kit Sliding: RKS-02
Warranty 3-year hardware warranty, extendable to 5 years with EW202 or Extended Warranty Plus

Documentation:

Download the Synology Unified Controller UC3400 Datasheet  (PDF).

It appears you don't have a PDF plugin for this browser. No biggie... you can click here to download the PDF file.

Warranty Icon

5-year warranty

At Synology, we are committed to product innovation and quality. Synology guarantees a robust and reliable data management experience with a 5-year limited warranty, providing responsive technical support and hardware replacement services to maximize your return on investment.
