Synology Visual Station VS600HD
Efficient TV-wall Solution for Surveillance Station

License

Synology Products
Synology Visual Station
Synology VS600HD
#VS600HD
Our Price: Request a Quote

Want to build a custom bundle? Contact us!

Click here to jump to more pricing!

Please Note: All Prices are Inclusive of GST

Overview:

Simplify surveillance management with the VS600HD, a PC-less compact surveillance client that pairs with Synology servers to create a comprehensive monitoring solution. Get the most out of Synology Surveillance Station1 with the VS600HD’s support for multi-screen output, allowing organizations to keep watch over their premises however they please.


Build a plug-and-play video wall

Optimized for video walls

Scale your TV wall with up to 50 video streams across two screens

Crystal-clear video feeds

Watch live camera feeds in up to 4K resolution

Plug-and-play surveillance

Experience instant access to Surveillance Station

US regulatory compliance

NDAA and TAA compliance help meet US federal requirements

Features:

Display your way

Simplify surveillance management with the VisualStation VS600HD, a PC-less compact surveillance client that pairs with Synology servers to create a comprehensive TV-wall monitoring solution.


High resolution dual display

Up to 4K video output and dual HDMI ports allow you to perform management tasks while monitoring multiple streams in crisp detail.

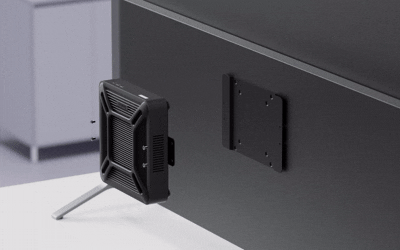

Minimalist design with TV mount option

The VS600HD can be affixed on the back of a monitor with the included VESA mount for optimized space utilization.


50-channel live view

Keep an eye on every corner of your premises with support for simultaneous monitoring of up to 50 channels at 600FPS/720p, as well as both H.265 and H.264 video compression standards.


Take security to the next level

Integrate the VS600HD as a powerful local management interface in a larger Synology surveillance deployment.


Centralized monitoring

Manage all your video feeds in one place and keep your property safe with the powerful features available in Surveillance Station

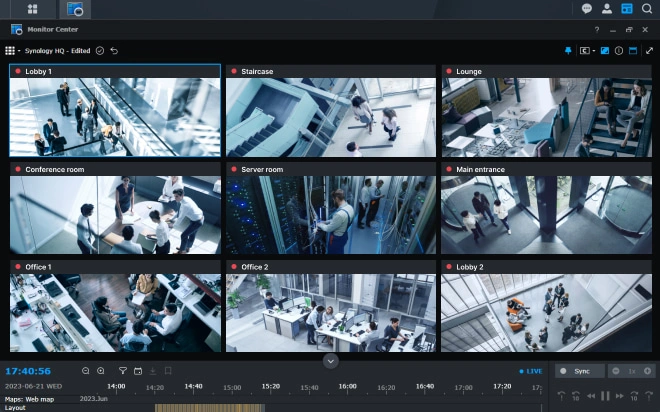

All-in-one security dashboard

Watch live video feeds, scrub through recorded footage, get alerts for security events and suspicious behavior, and control devices from one convenient overview.

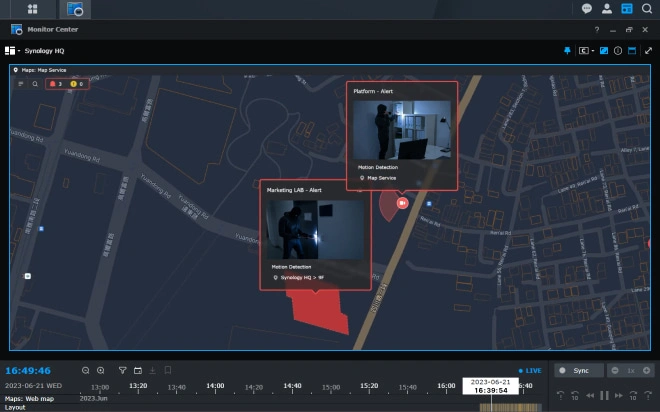

Accurate security mapping

Import floor plans of your premises or wider-area maps, maintain a clear overview of camera locations and angles, and see at a glance where events are detected.

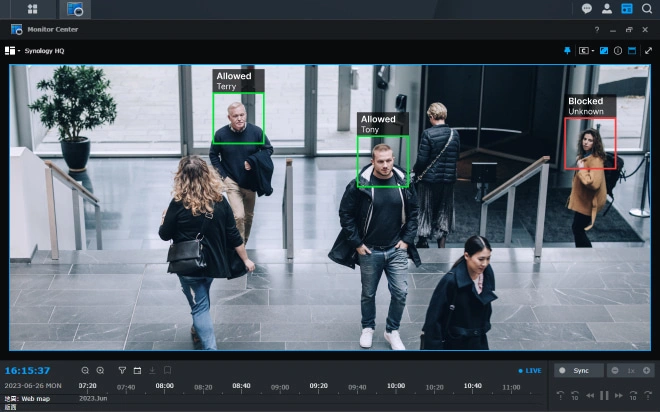

Deep learning analytics management

Combine the VS600HD with DVA Series Deep Learning NVRs and Synology Cameras, and leverage AI-powered analytics to boost incident response time.

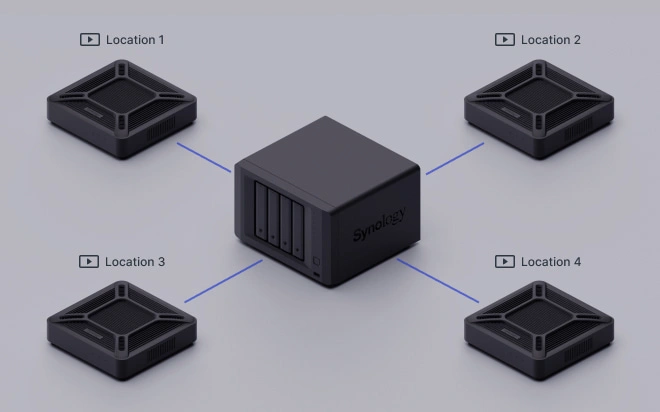

Easily control and update remotely

Configure the display on the VS600HD and keep the firmware up-to-date remotely from any location.

Product Views:


RS3618xs Front View
RS3618xs Front View
RS3618xs Front View
RS3618xs Front View
RS3618xs Front View
RS3618xs Front View

Technical Specifications:

Hardware Specifications:
Video Outputs
Video Outputs HDMI x 2
Supported Video Resolution
  • 4K (3840 x 2160), 30Hz
  • 1080p (1920 x 1080), 60Hz
Audio Input 3.5 mm Stereo Audio Jack x 1
Audio Output 3.5 mm Stereo Audio Jack x 1
RJ-45 1GbE LAN Port 1
USB 3.0 Port 2
Appearance
Size (Height x Width x Depth) 41.84 mm x 150 mm x 150 mm
Weight 0.36 kg
Others
Power Supply Unit / Adapter 36 W
AC Input Power Voltage 100 V to 240 V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption 15.49 W (50ch full-load)
5.85 W (Power on Idle)
Temperature
Operating Condition Starting temperature:-30°C to 50°C (-22°F to 122°F)
Operating temperature:-30°C to 50°C (-22°F to 122°F) (IR off)
Operating temperature:-30°C to 40 °C (-22°F to 104°F) (IR on)
Operating humidity:5%~95% (non-condensing)
Storage Condition Storage temperature:-40°C to 60°C (-40°F to 140°F)
Storage humidity:5%~95% (non-condensing)
Certification

  • FCC
  • UKCA
  • CE
  • BSMI
  • EAC
  • RCM
  • KC
  • VCCI
NDAA Compliant
TAA Compliant
Warranty 3 Years
Environment RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Quick Installation Guide X 1
  • AC Power Adapters X 1
  • RJ45 cap cover X 1
  • VESA mounting kit

Documentation:

Download the Synology VS600HD Datasheet  (PDF).
