Synology Mesh Router WRX560
Fast and secure mesh router for home

Synology Mesh Router WRX560

Synology Products

Synology Mesh Router

Synology Mesh Router WRX560

#WRX560
Our Price: Request a Quote

Get a Quote

Overview:

Feature-Packed and Mesh Capable Wi-Fi 6 Wireless Router

The WRX560 is a feature-packed high performance router designed for busy households and home offices. Take advantage of mesh network capability for seamless whole-house coverage. Support for 3 Gbps wireless speeds and up to 150 connected devices ensures fast, uninterrupted internet connectivity, even in busy network environments.

Designed for the modern smart home

Wi-Fi 6

Up to 3,000 Mbps wireless speeds

Mesh support

Seamless whole-home Wi-Fi with other Synology routers

Safe internet access

Comprehensive parental controls

2.5GbE WAN/LAN

Support for superfast internet or high-performance devices

"Superior throughput performance, wide signal coverage, and the SRM operating system make the Synology WRX560 an excellent choice among dual-band routers. It comes with strong parental control and network security software and is equipped with a multi-gig WAN/LAN port, and you can use it as part of a whole-home mesh configuration."

Features:

Faster Wi-Fi with better coverage

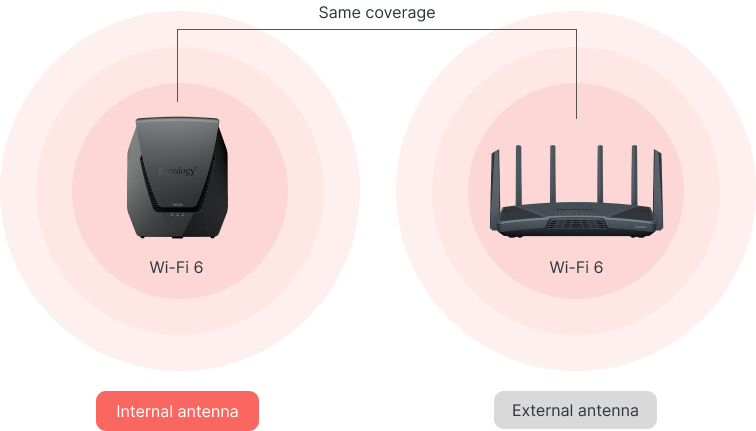

High performance in a space-saving design

Wi-Fi 6 technology combined with high-performance internal antennas bring higher speeds to more devices at greater ranges, all in a compact design.

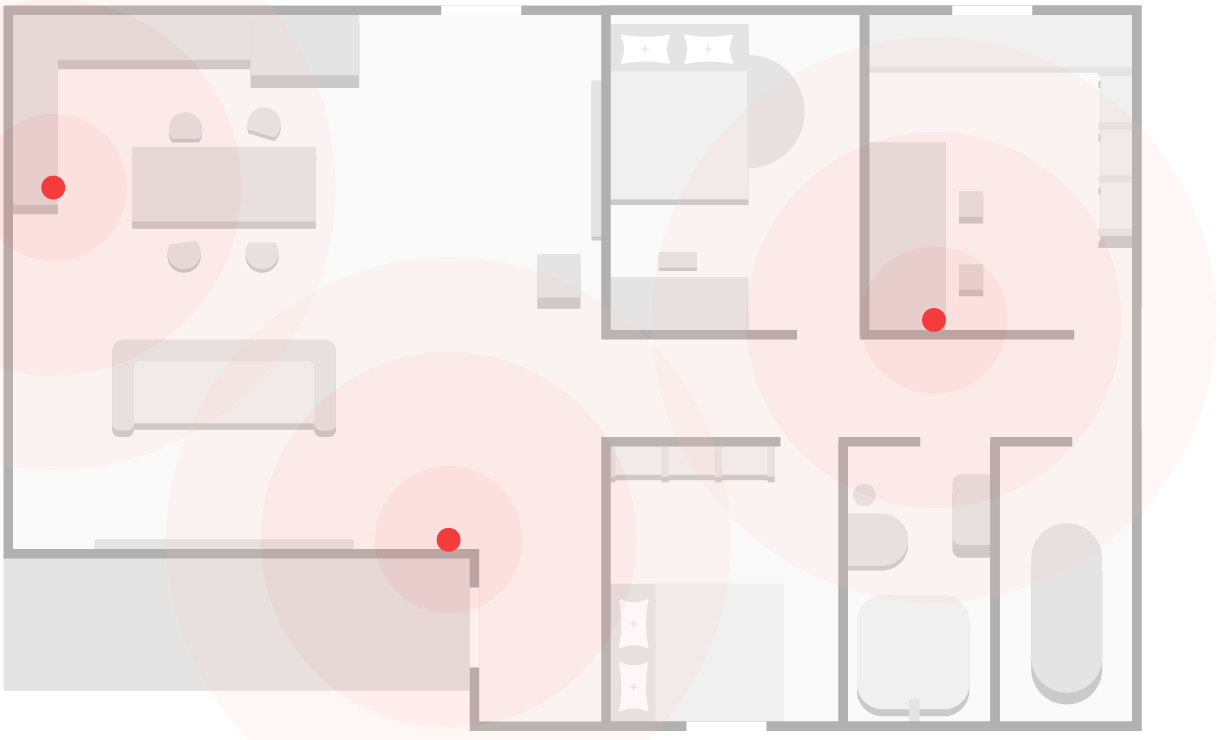

Mesh Wi-Fi

Say goodbye to Wi-Fi dead zones. Combine multiple Synology routers (WRX560 or other) for consistent and high-speed whole-home coverage under a single Wi-Fi name.

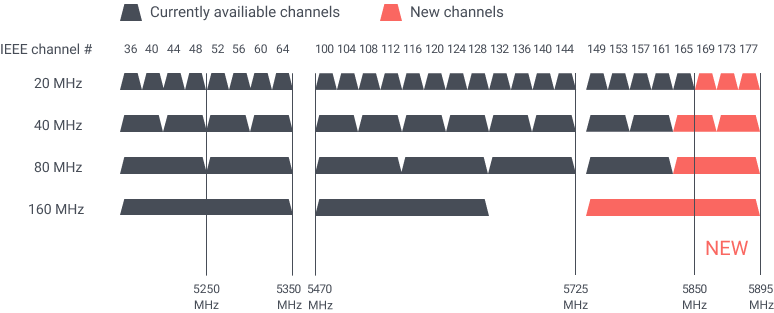

Support for 5.9 GHz band

5.9 GHz band support provides access to an interference-free band for higher potential connection speeds or dedicated wireless backhaul.

Optimized Wi-Fi signal

Smart Connect automatically steers your devices to the Wi-Fi band that provides the best signal and speed.

Comprehensive parental controls backed by Synology Router Manager (SRM)

Profiles for easy management

Create profiles for family members and assign devices to them for easy internet access management and monitoring of devices connected to your local network.

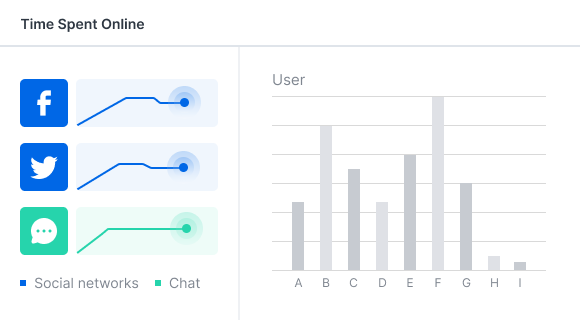

Understand usage

Gain insight into your kids’ activities online, such as the daily amount of time spent on the Web or whether they have attempted to visit inappropriate websites.

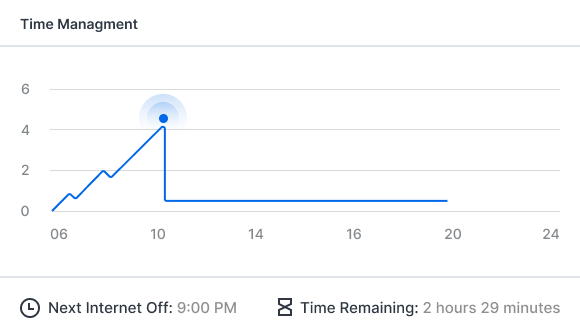

Limit screen time for kids

Set internet use quotas or restrict internet access to certain hours for each device your child owns. Define how much time can be spent on laptops, smartphones, and game consoles.

Web filtering

Prevent children from accessing adult, violent, gaming, and social networking websites, as well as explicit search results. Apply filters flexibly, for example, restricting social media during homework hours.

Built for busy network environments

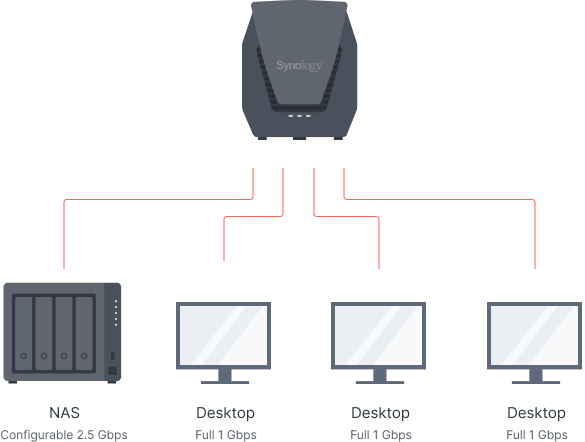

LAN without network congestion

Each Ethernet port has dedicated bandwidth for 5.5Gbps of aggregate wired throughput.

2.5GbE LAN/WAN port

A 2.5GbE port can be configured as either LAN or WAN interface to support high-performance devices or superfast internet plans.

Advanced network features in Synology Router Manager (SRM)

VPN Plus

Set up secure access to your local network from the internet.

Bandwidth management

Allocate dedicated bandwidth to streaming or gaming devices.

Network segmentation

Isolate networks or set access rules to limit connectivity to and from vulnerable devices.

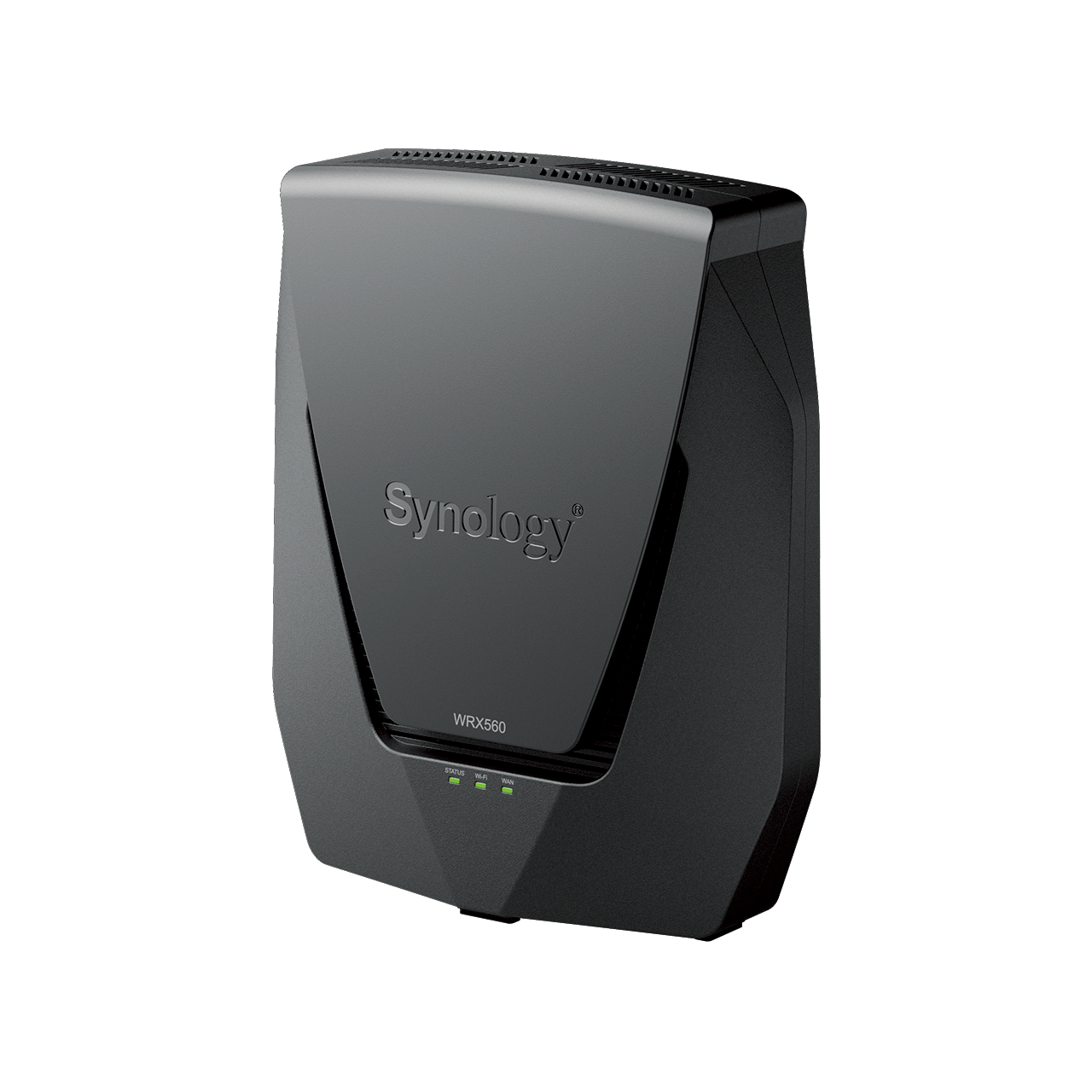

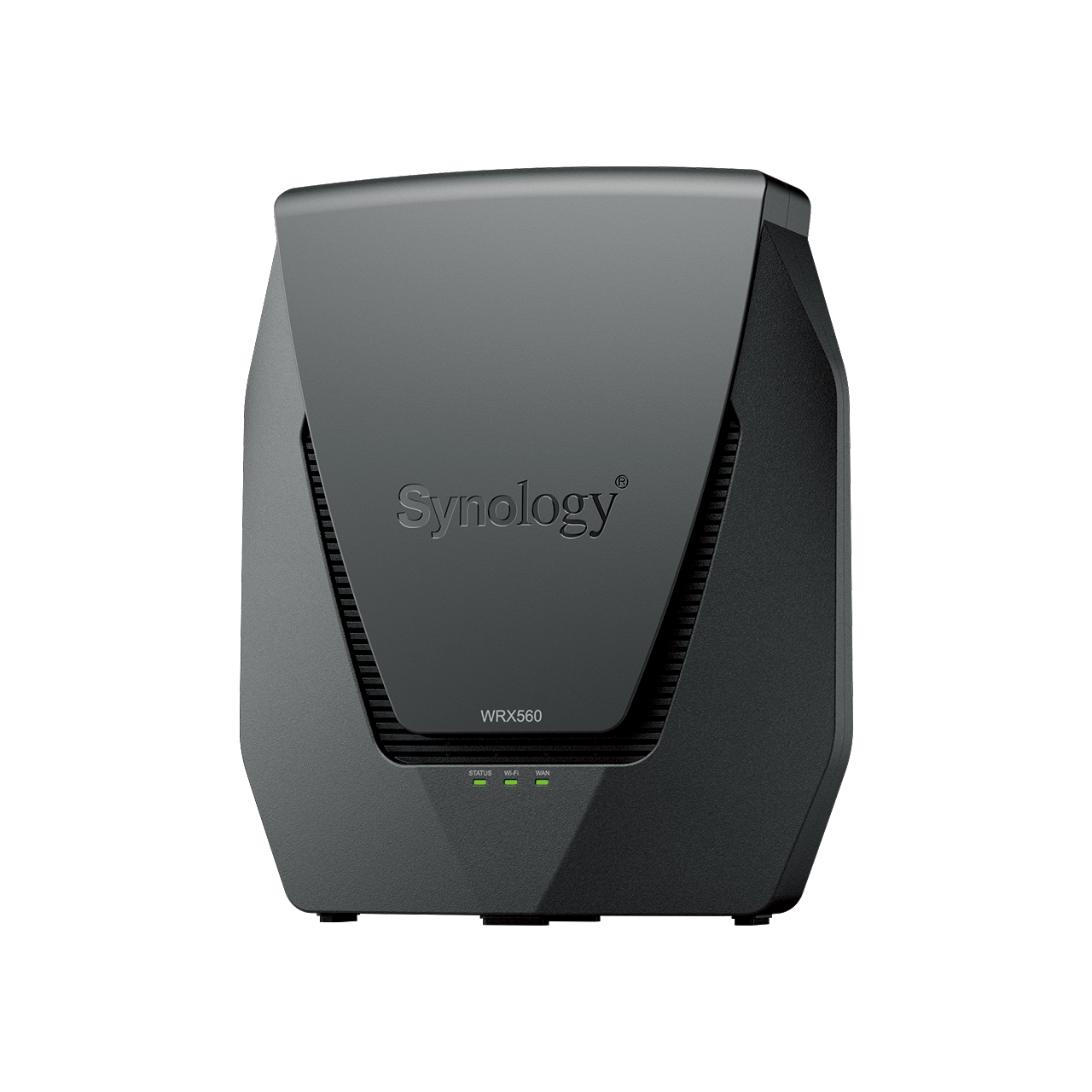

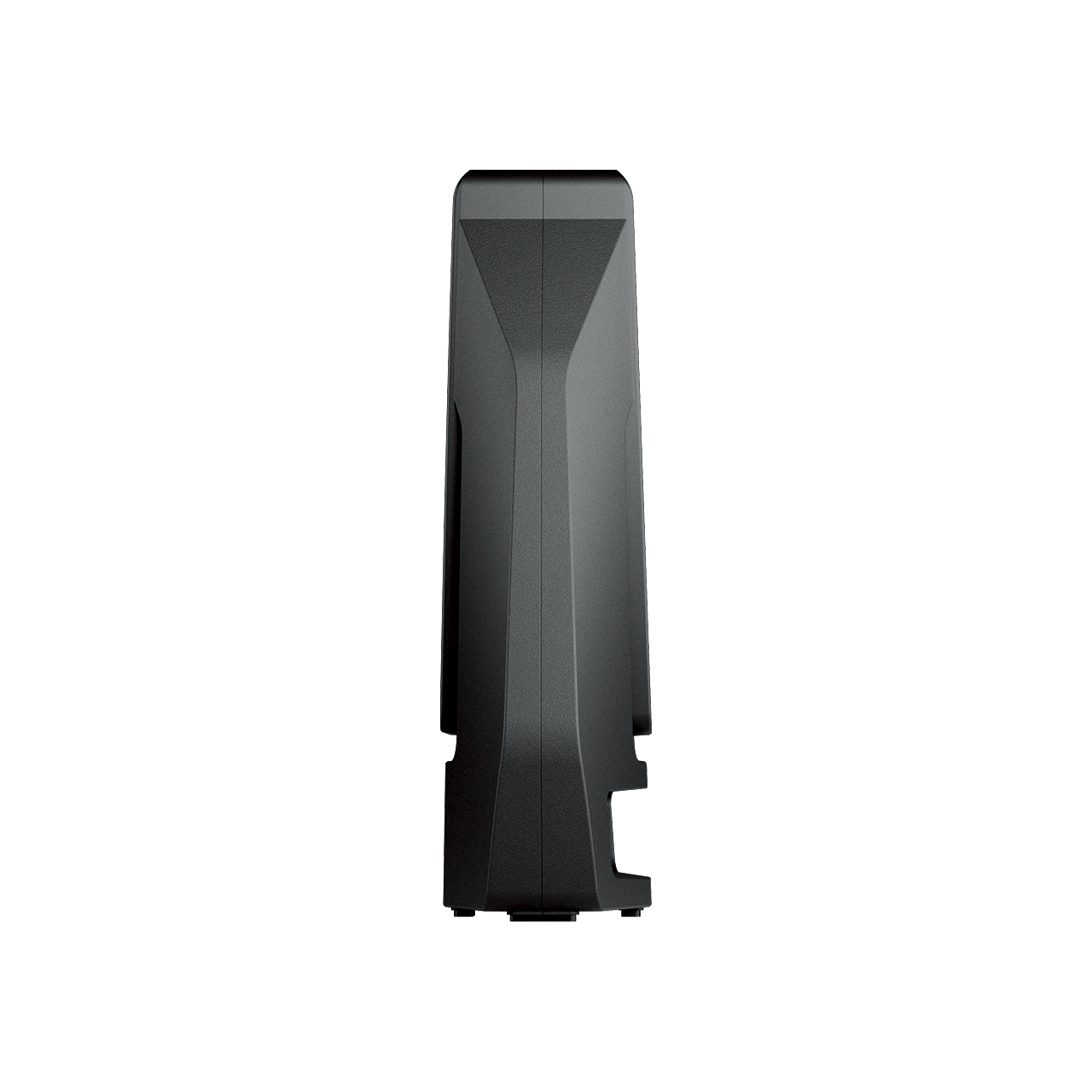

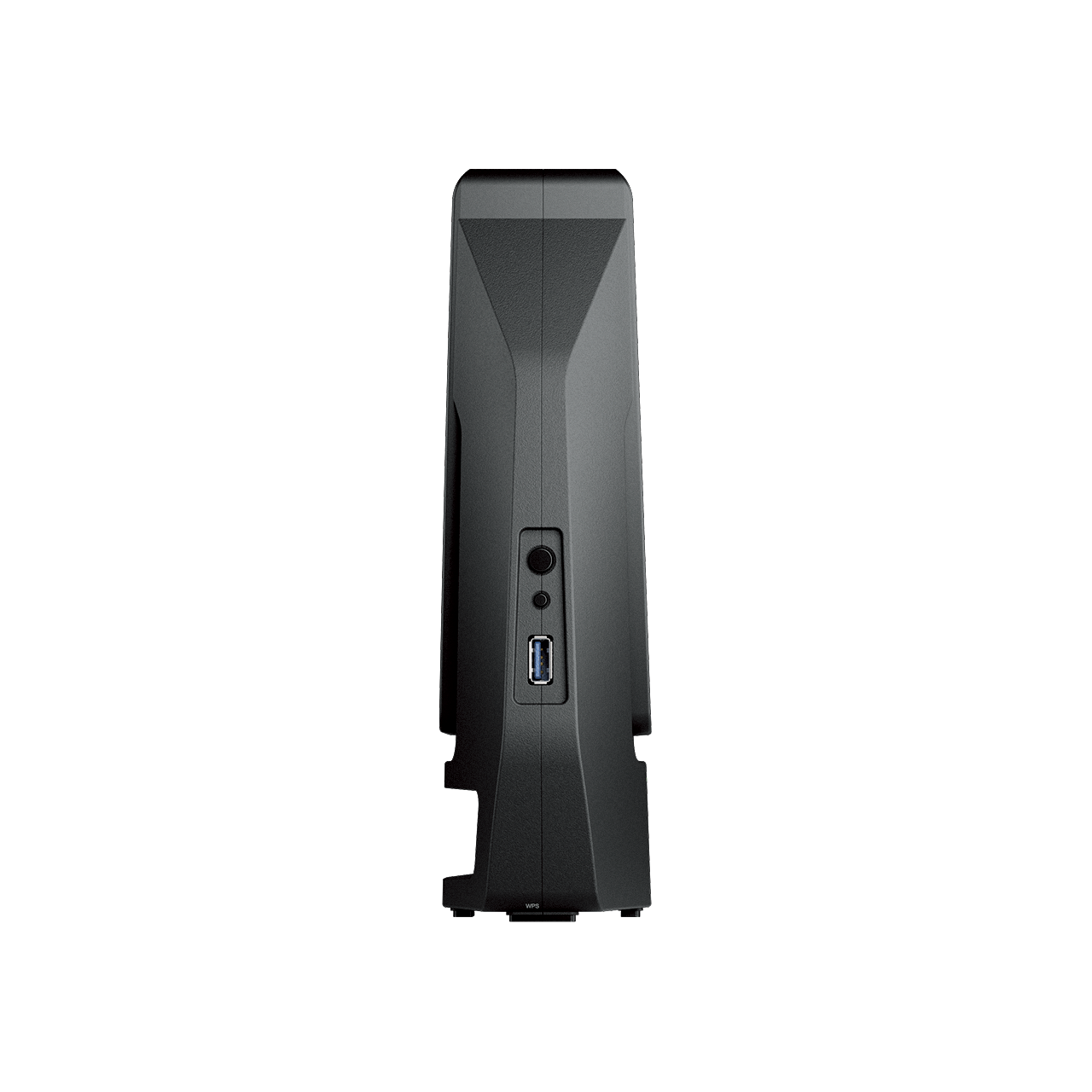

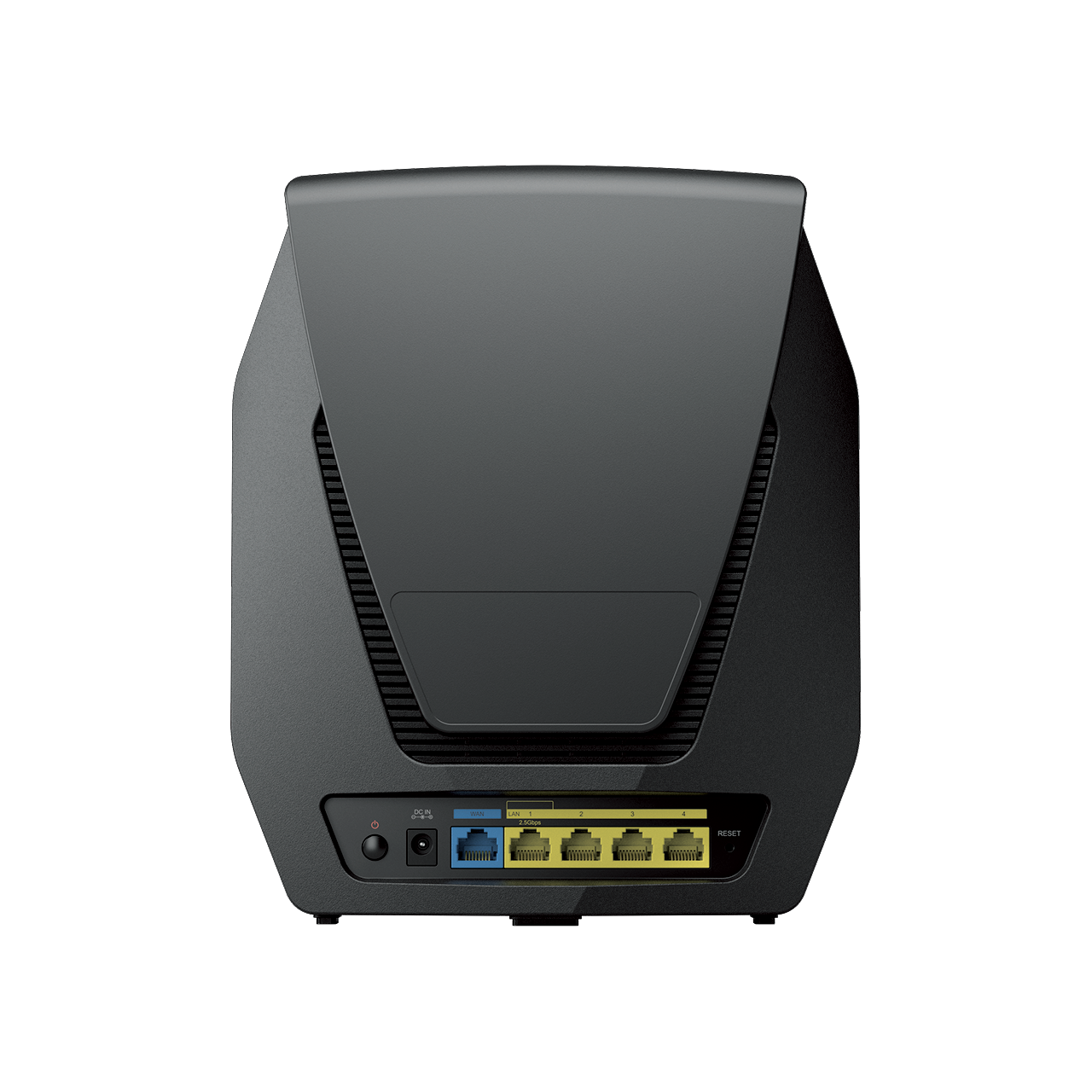

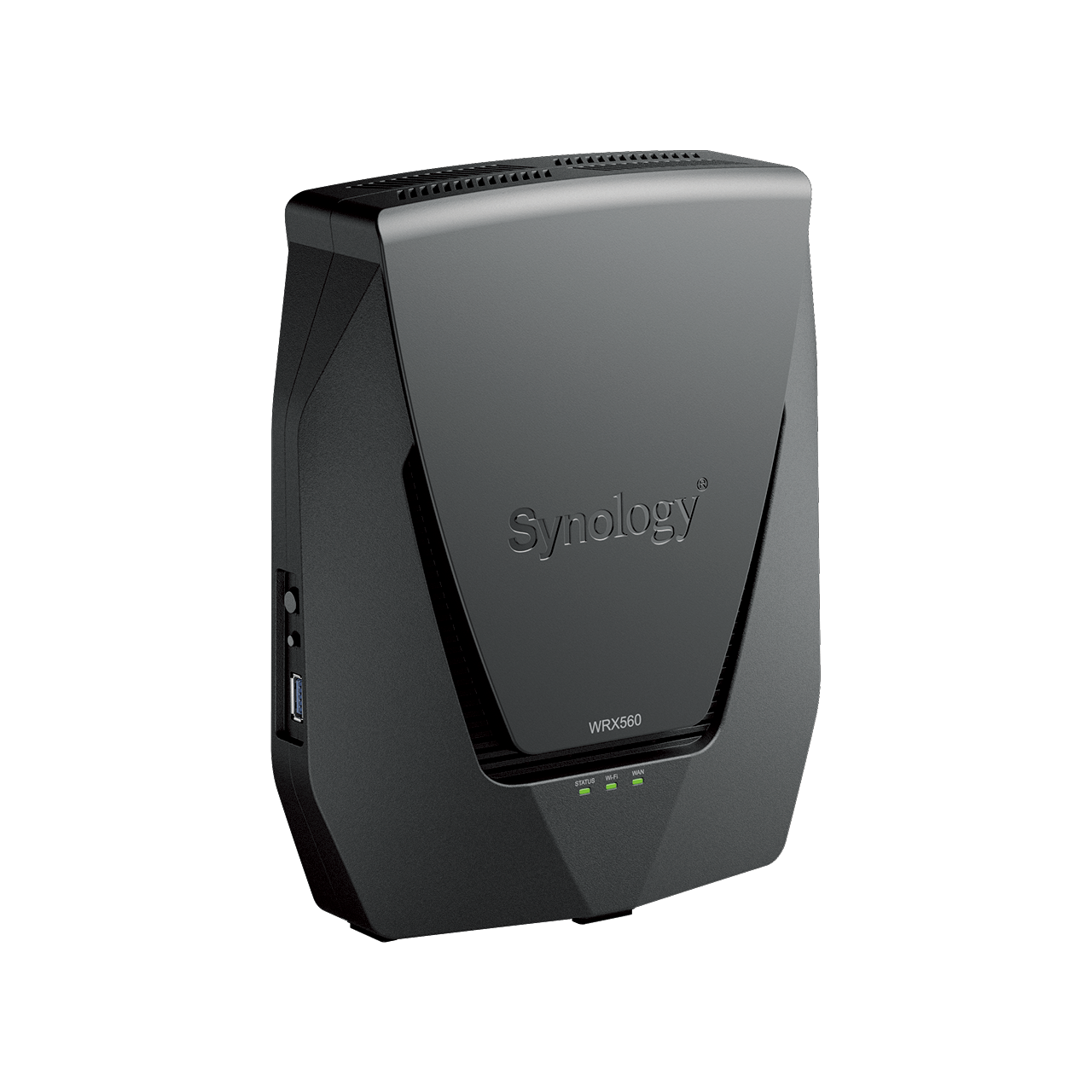

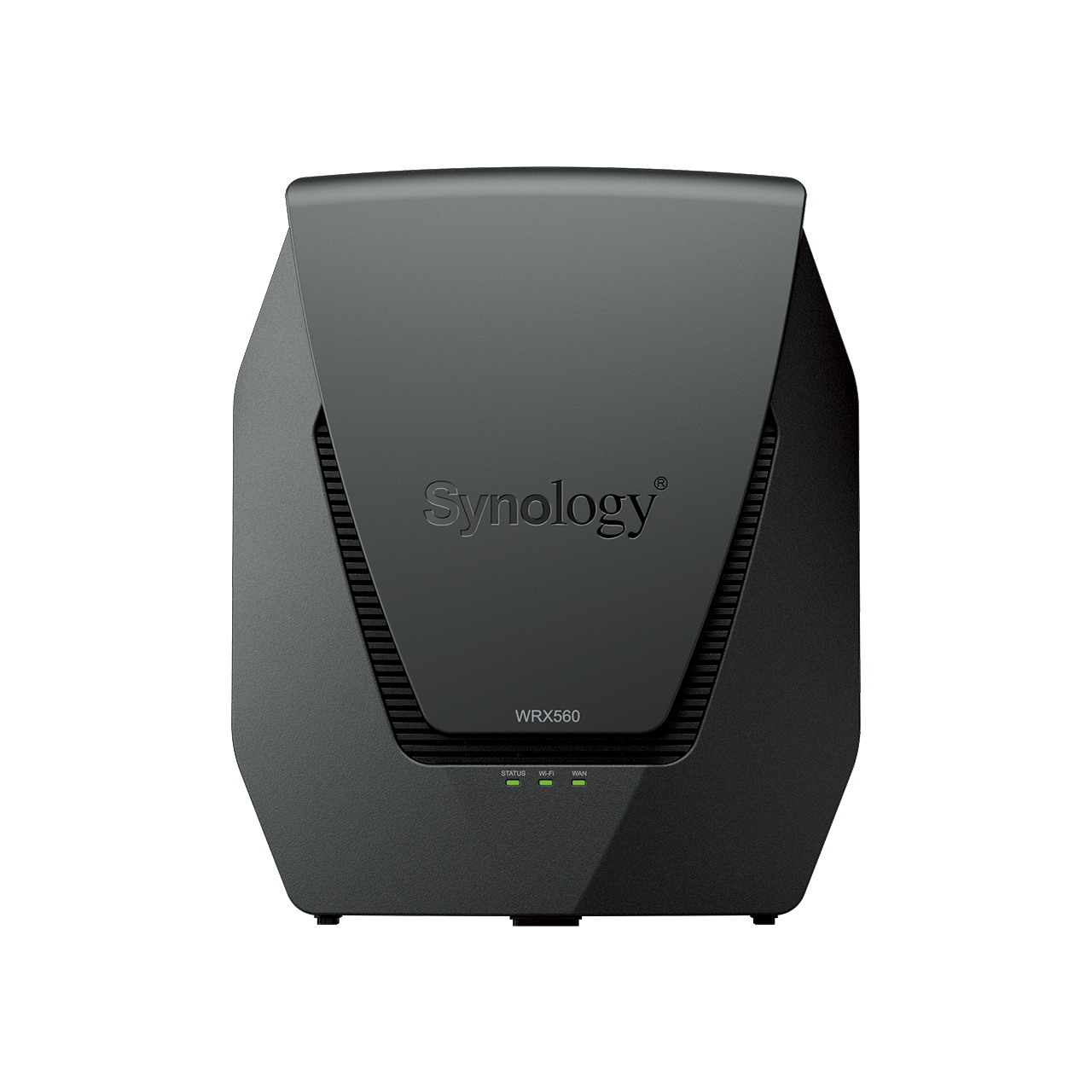

Product Views:

Technical Specifications:

Technical Specifications:
Hardware Specifications
CPU	Quad core 1.4 GHz
Hardware Acceleration Engine	Layer 4 / Layer 7
Memory	512 MB DDR4
Antenna type	4x4 MIMO high-performance internal antenna (5 GHz) 2x2 MIMO high-performance internal antenna (2.4 GHz)
LAN port	2.5GbE (RJ-45) x 1 Gigabit (RJ-45) x 3
WAN port	Gigabit (RJ-45) x 1 2.5 GbE (RJ-45) x 1 (Dual WAN)
External Ports	USB 3.2 Gen 1 x 1 (5V, 0.9A power output)
IEEE 802.11ax	IEEE 802.11a/b/g/n/ac/ax 2.4GHz: 600Mbps 5GHz: 2400Mbps Simultaneous dual-band Wi-Fi
Wi-Fi Encryption	WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPA2/WPA3-Personal, WPA3-Personal/Enterprise, Wi-Fi Enhanced Open (OWE)
Appearance
Size (Height x Width x Depth)	154 x 199 x 65 mm
Button and Switch	WPS, Power, Reset, Wi-Fi On/Off
Weight	1.35 kg
Others
AC Input Power Voltage	100V to 240V AC
Power Frequency	50 to 60Hz, single phase
Power Consumption	10.80 W (Access) 7.94 W (Idle)
Temperature
Operating Temperature	5°C to 40°C (40°F to 104°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Relative Humidity	5% to 95% RH
Maximum operating altitude	5,000 m (16,400 ft)
Wireless
Certifications and Packaging
Certification	FCC UKCA CE BSMI VCCI RCM KC iDA TELEC JATE IC
Wi-Fi Certification	CE UKCA FCC NCC RCM iDA TELEC KC IC
Environment	RoHS Compliant
Package content	Main Unit AC power adapter RJ-45 LAN cable Quick Installation Guide
Warranty	2 Years

Documentation:

Download the Synology Mesh Router WRX5560 Datasheet (PDF).
