Synology Rail Kit RKS1317
For installing your Synology RackStation in a rack

Sorry, this product is no longer available. Please Contact Us for a replacement.

Synology Rail Kit RKS1317 (Rail Kit Sliding) comes with sliding rails for easy server maintenance, and supports most Synology 1U/2U/3U RackStation models. RKS1317 is backed with Synology's 1-year limited warranty.

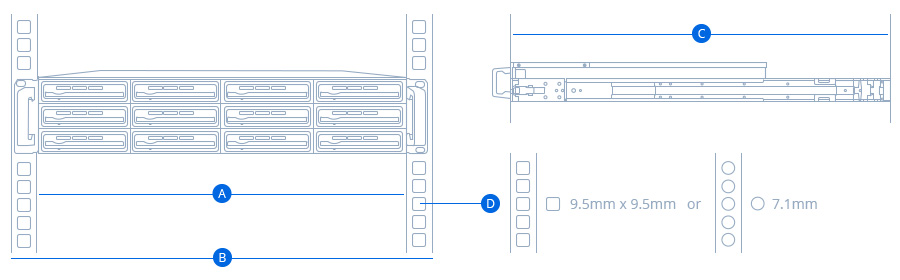

Physical Specifications for Synology RKS1317

• Mount post width must be equal to or greater than 451mm
• Panel width must be equal to or greater than 480mm
• Rack mounting depth: 610mm to 890mm
• Rack mounting hole support:
  square hole: at least 9.5mm x 9.5mm
  round hole: at least 7.1mm x 7.1mm

Applied Models

• 17-series: FS3017, FS2017, RS18017xs+, RS4017xs+, RS3617xs+, RS3617(RP)xs, RX2417sas, RX1217sas, RX1217(RP)
• 16-series: RS18016xs+, RS2416(RP)+, RX1216sas, RS816
• 15-series: RC18015xs+, RXD1215sas, RS815(RP)+, RS815, RX415
• 14-series: RS3614xs+, RS3614(RP)xs, RS2414(RP)+, RS814(RP)+, RS814, RX1214(RP)
• 13-series: RS10613xs+, RS3413xs+, RX1213sas
• 12-series: RS3412(RP)xs, RS2212(RP)+, RS812(RP)+, RS812
• 11-series: RS3411(RP)xs, RS2211(RP)+, RS411, RX1211(RP)
• 10-series: RS810(RP)+, RX410
• 9-series: RS409(RP)+, RS409, RX4
