Synology Rail Kit RKM114
Fixed rail solutions for Synology RackStation
Synology Products
Synology Rail Kit
Overview:

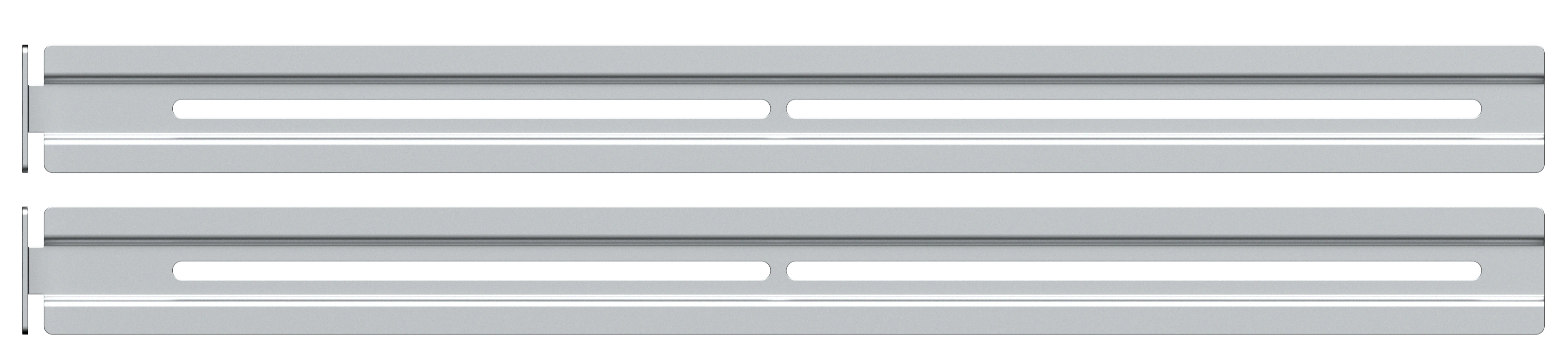

Synology Rail Kit RKM114 (Rail Kit Mounted) is a fixed rail solution with easy installation design and supports most Synology 1U RackStation models. RKM114 is backed with Synology's 1-year limited warranty.

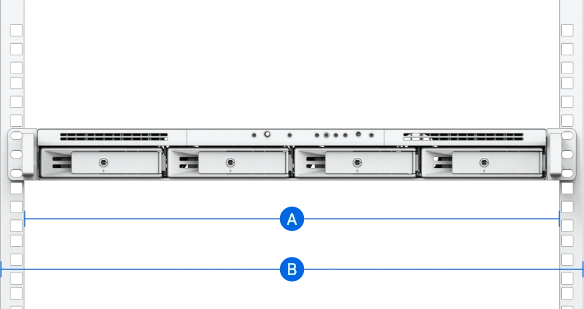

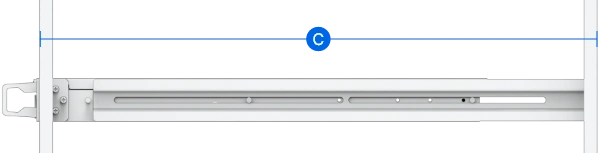

Physical specifications for Synology RKM114
- Mount post width must be equal to or greater than 450 mm
- Mount post depth must be equal to or greater than 125 mm
- Mount post height must be equal to or greater than 41 mm
Compatibility
Rack mounting depth: 570 mm to 720 mm
- 22 series: RS422+
- 21 series: RS1221+
- 19 series: RS1219+, RS819
- 18 series: RX418
- 16 series: RS816
- 15 series: RS815, RX415
- 12 series: RS812RP+, RS812+, RS812
- 11 series: RS411
- 10 series: RS810RP+, RS810+, RX410
- 9 series: RS409RP+, RS409+, RS409, RX4
Rack mounting depth: 570 mm to 810 mm
- 22 series: RS822RP+, RS822+
- 20 series: RS820RP+, RS820+
- 19 series: RS1619xs+
- 18 series: RS818RP+, RS818+
- 15 series: RS815RP+, RS815+, RC18015xs+
- 14 series: RS814RP+, RS814+, RS814
